THX-5000-LCR
Features:
- Sealed enclosure
- Top-of-the-line internal wiring

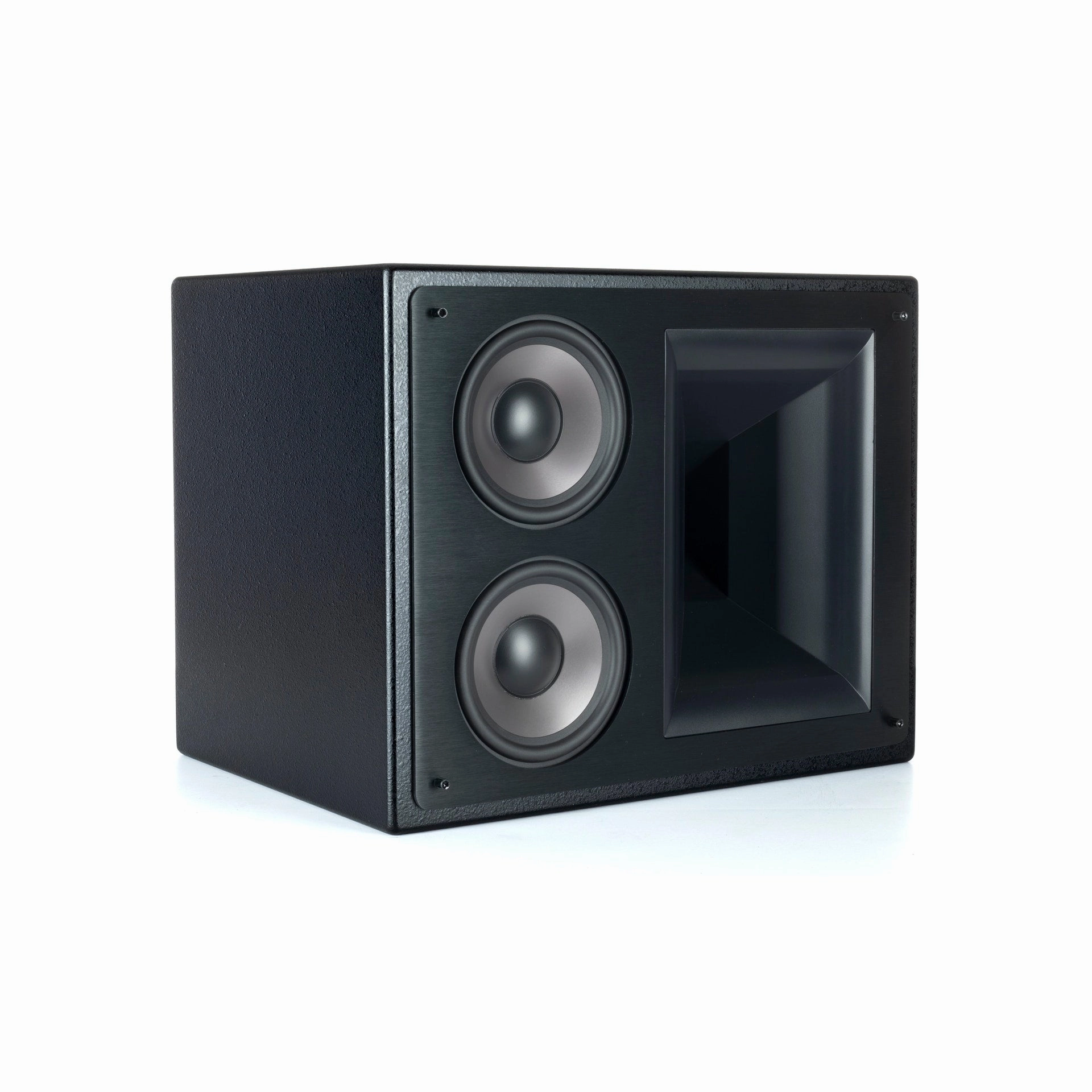

- Dual 5.25-inch Cerametallic woofers
- 1-inch titanium diaphragm compression driver coupled to a 6- by 10-inch Tractrix Horn
The highly efficient THX-5000-LCR features a sealed enclosure, top-of-the-line internal wiring, dual 5.25-inch Cerametallic woofers, and a 1-inch titanium diaphragm compression driver coupled to a 6- by 10-inch Tractrix Horn.
The THX-5000-LCR enclosure has the same dado and rabbet construction used in Klipsch professional speakers ensuring cabinet integrity in suspended applications. The Omni-Mount suspension points on this loudspeaker facilitate wall or ceiling mounting using standard hardware.
Available in a custom Galaxy black finish with an aluminum fascia, the KL-525-THX delivers dynamic audio experiences that draw listeners into the middle of live concerts and action-packed movies.
Technical Specifications:
| Frequency Response | 80Hz-20kHz 3dB |
| Sensitivity | 94dB @ 2.83 volts / 1 meter |
| Nominal Impedance | 8 ohms compatible |
| High Frequency Crossover | 1500Hz |
| Power Handling | 100 watts maximum continuous (400 watts peak) |
| Enclosure Type | Sealed |
| Enclosure Material | Medium density fiberboard construction (MDF) |
| Tweeter | 1" (2.5cm) magnetically shielded, titanium dome compression driver with 9.6oz ceramic magnet structure |
| High Frequency Horn | 10" x 6" rectangular 90 x 60 Tractrix Horn |
| Woofer | Two 5.25" (13.3cm) magnetically shielded, Cerametallic cone, cast aluminum frame drivers |

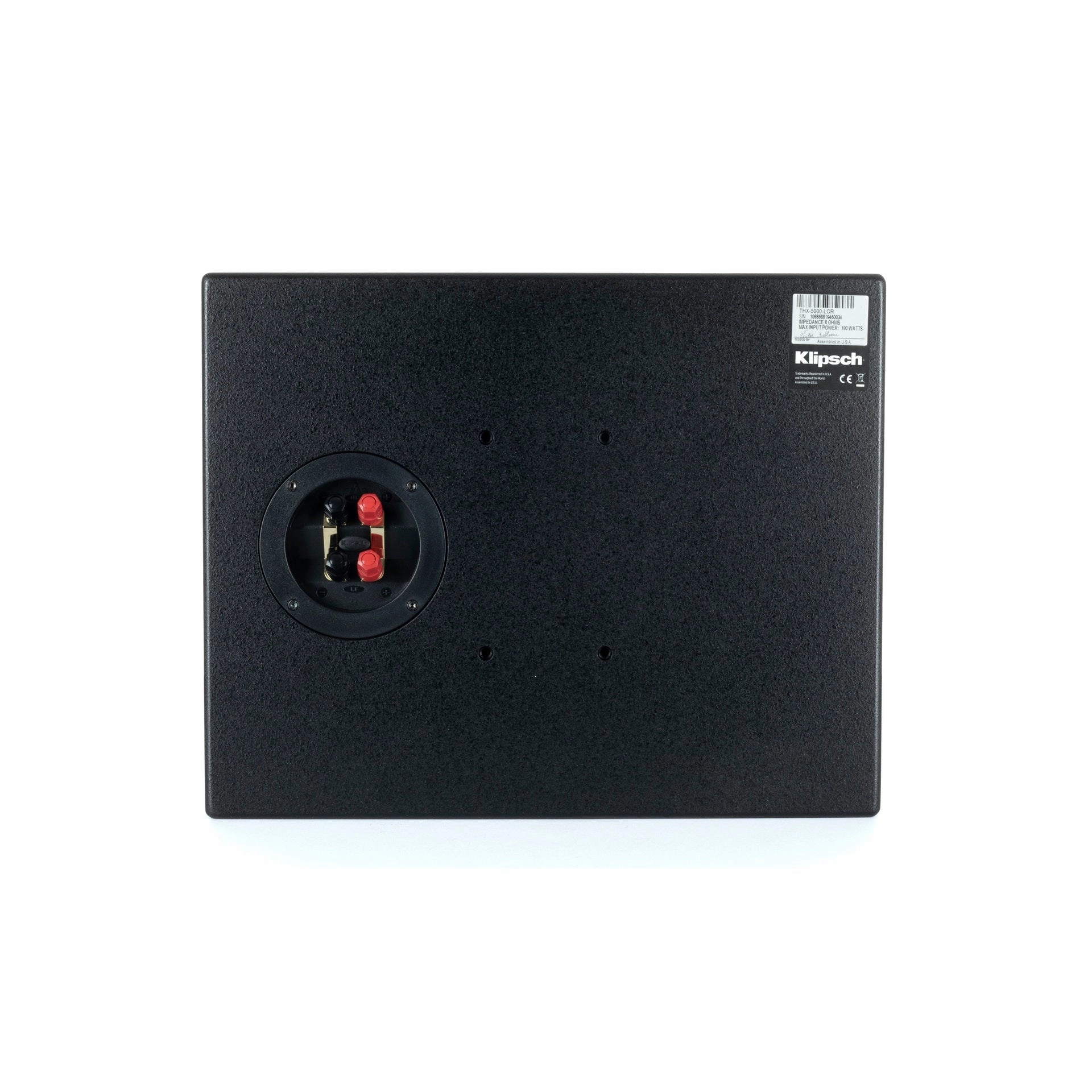

| Inputs | Two sets of binding post speaker terminals (connected via brass strap jumpers) |
| Dimensions | 12.75" (32.4cm) H x 16" (40.6cm) W x 12.5" (31.8cm) D (w/grille) |
| Weight | 32 lbs. (14.5kg) |
| Finish | Galaxy Black cabinet with Black anodized aluminum fascia |
| Mounting | 4-bolt pattern 1/4"-20 thread |
