THX-1200-SW SUBWOOFER

The world's finest theater operators chooseKlipsch cinema systemsbecause they deliver the full impact of the most intense action movie soundtracks without sacrificing musical definition. When designing the THX-1200-SW subwoofer, Klipsch applied its theater experience to bring the same powerful, deep-driving bass to the comforts of home.

Features:

12-inch, long-throw Cerametallic driver
Front-firing port
Top-of-the-line internal wiring

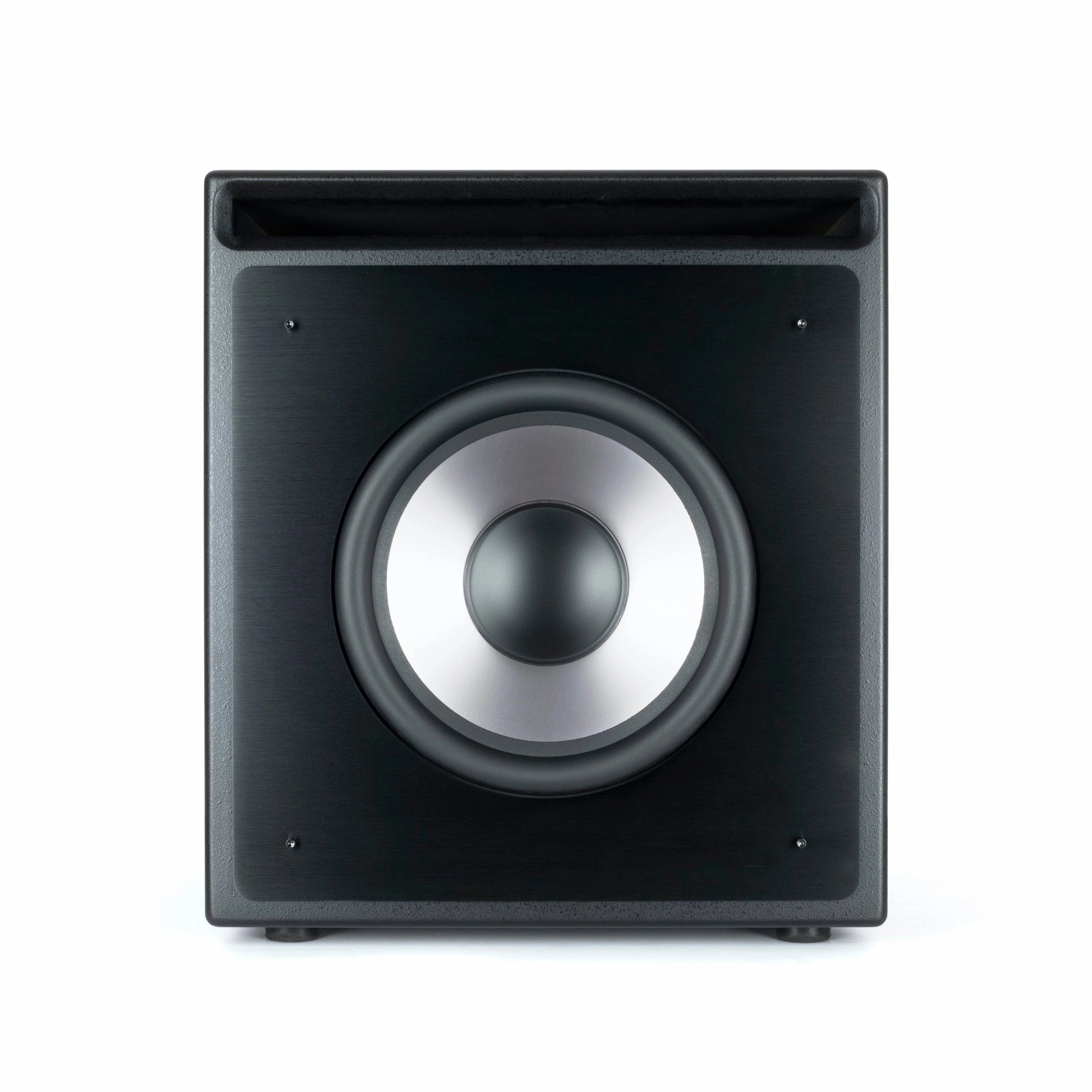

To achieve intense, deep-bass output in large rooms, this high-performance subwoofer that is part of theTHX familyfeatures a 12-inch, long-throw Cerametallic driver and front-firing port. It includes a 15 pound motor structure and a 20-foot Monster THX Ultra cable with Neutrik Speakon connectors. The subwoofer is driven by an external 1-kilowatt amplifier (KA-1000-THX) tailored to its characteristics for maximum output and reliability with extremely low distortion.

The subwoofer's enclosure has the dado and rabbet construction used in Klipsch professional speakers for structural integrity.

Finished in Galaxy black with an aluminum fascia, the KW-120-THX also features top-of-the-line internal wiring to ensure that every roar or explosion is heard with complete clarity.

Technical Specifications:

Frequency Response	20-200Hz 3dB
Max Acoustic Output	130dB @ 30Hz, 122dB @ 20Hz, 112dB @ 15Hz 1/8 space, 1M (2 enclosures side-by-side per THX Ultra2)
Nominal Impedance	8 ohms
Enclosure Type	Bass-reflex via front-firing slot port
Amplifier Type	Use only with KA-1000-THX
Amplifier Power	See KA-1000-THX specifications
Woofer	12" (30.5cm) front firing, Cerametallic cone, cast aluminum frame driver with a 240oz ceramic magnet structure
Dimensions	20.25" (51.4cm) H x 17.75" (45.1cm) W x 17.75" (45.1cm) D (w/grille)
Weight	80 lbs. (36kg)
Speaker Enclosure	Medium density fiberboard construction(MDF)
Finish	Galaxy Black cabinet with Black anodized aluminum fascia
