PRO-18RC

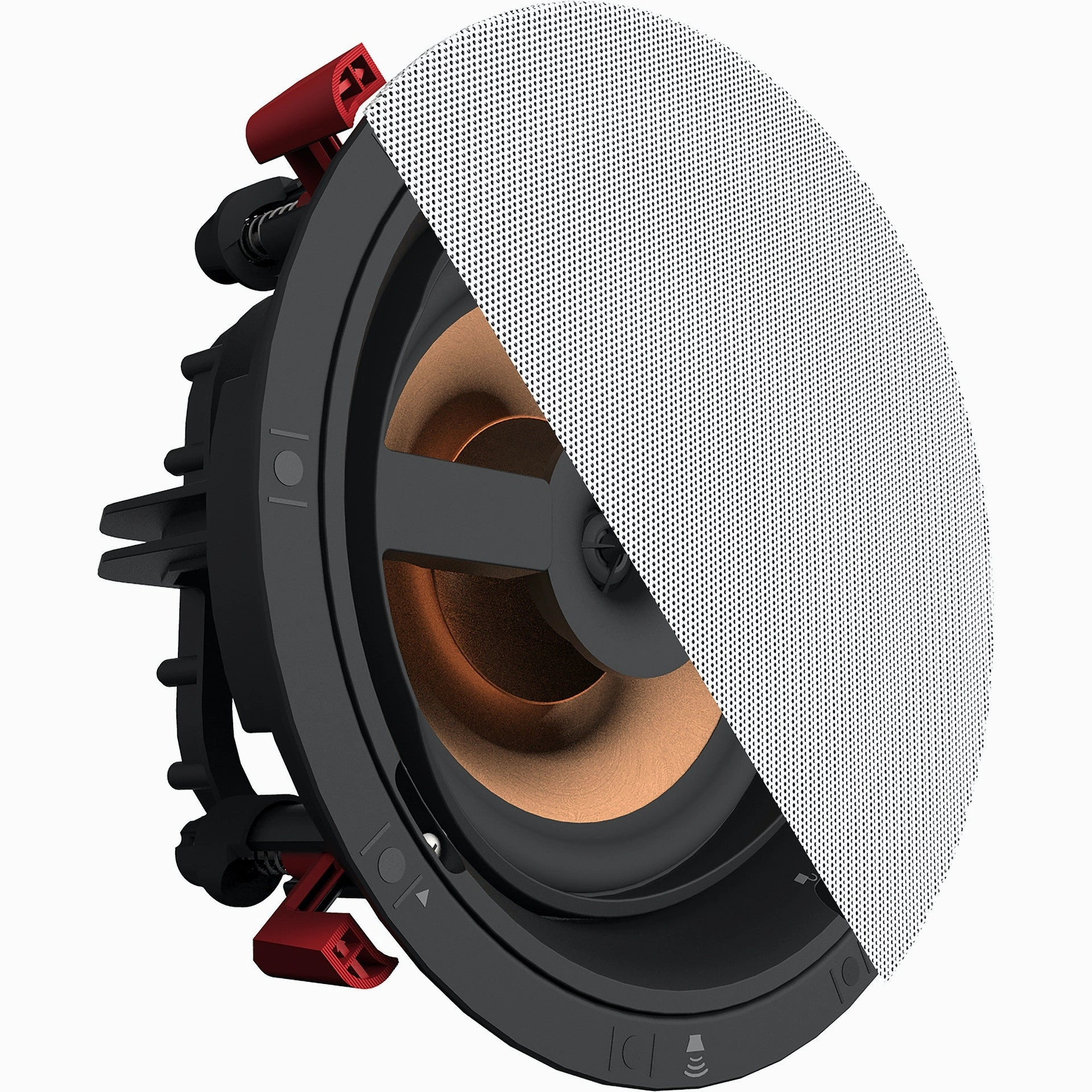

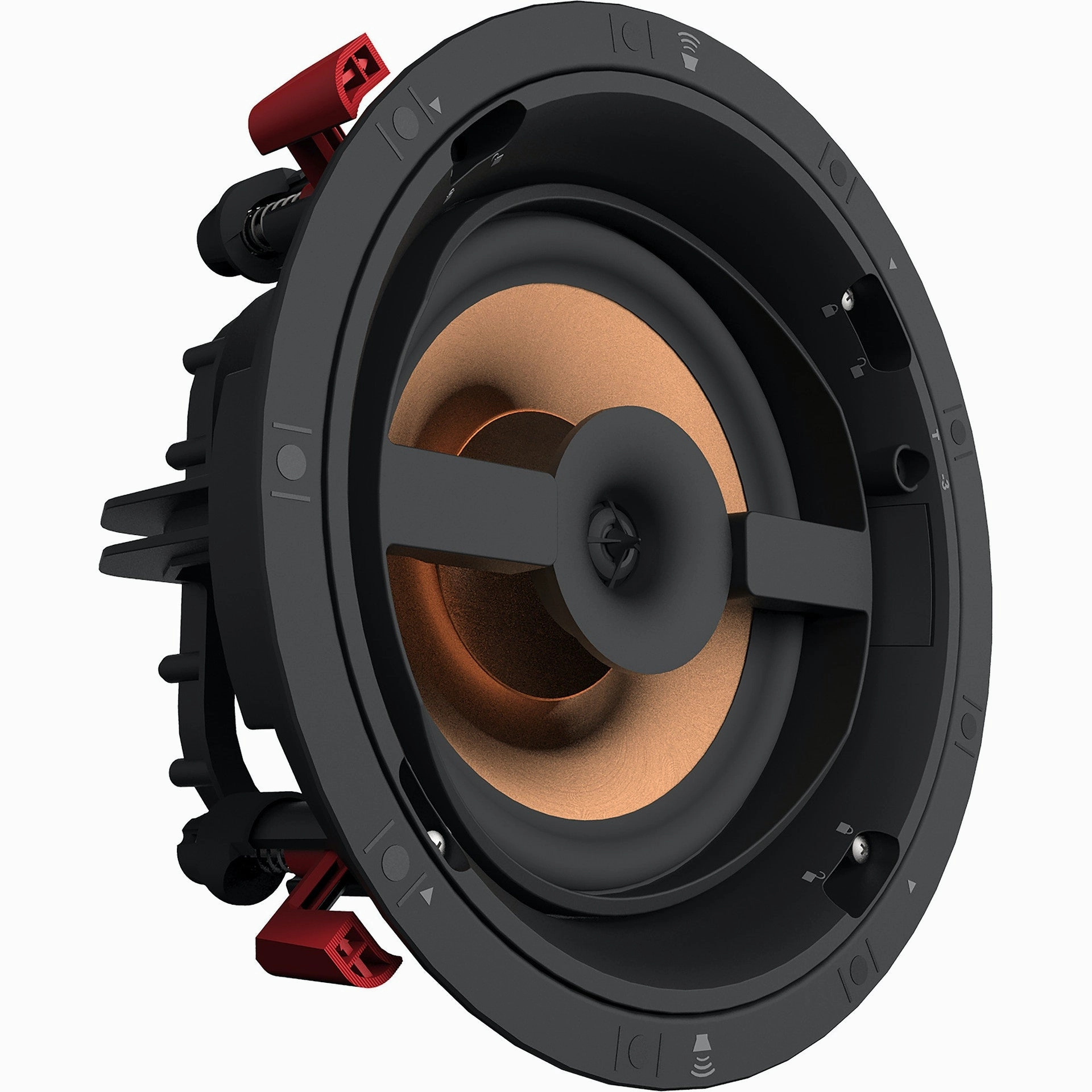

Featuring a 8 Injection Molded Graphite (IMG) Woofer and 1 Pivot Aluminum Dome ABS Tractrix Horn-Loaded Tweeter, the PRO-18RC brings incredible acoustics with the signature Klipsch sound. Featuring the SecureFit Installation System, the Klipsch Professional Series Reference speakers are the ideal choice for custom home installation audio.

Features:

8 Injection Molded Graphite (IMG) Woofer
1 Pivot Aluminum Dome ABS Tractrix Horn-Loaded Tweeter
Exclusive, modular SecureFit Installation System
Bezel-Free square and round paintable magnetic grilles
Controlled Dispersion Technology
Magnetic paint shield

REFIT INSTALLATION SYSTEM

The exclusive modular installation system allows for the dog legs to be engaged by hand to a preset clamping force, eliminating the possibility of overtorquing. The speaker module is fixed to the bezel using machine screws instead of traditional drywall screws for a more robust, acoustically stable installation.

CONTROLLED DISPERSION TECHNOLOGY

Controlled Dispersion Technology allows for the tweeter and woofer to be aimed up to 15 in any direction. This provides the perfect on-axis frequency response to off-center listening positions and the ideal solution for challenging installation positions.

PVC PAINT SHIELD INCLUDED

Also included is a magnetic PVC paint shield that can be used to cover the speaker module to protect it from paint or construction dust during renovations or remodels.

SPECIFICATIONS

Power Handling	50W RMS / 200W Peak
Mounting Depth	6.35" (16.1cm)
Cutout Dimensions	9.72 " (24.7cm)
Product Dimensions	10.89" W x 10.89" H x 6.59" D ( 27.7cm W x 27.7cm H x 16.7cm D)
Product Weight	7.4 lbs (3.36kg)
Frequency Response	56Hz - 23kHz /- 3dB
High Frequency Driver	1" (2.54cm) Aluminum Dome Tweeter mated to a round Tractrix Horn
Low Frequency Driver	8" (20.32cm) IMG Woofer
Sensitivity	95 dB @ 2.83V / 1m
Coverage Angle	100
Impedance	8 Ohm Compatible
Enclosure Type	ABS/Infinite Baffle
Finish	Black Baffle/Frame, White Paintable Grille
Included	Round Grille, Square Grille, Paint Shield
Installation Kit	IK-800-C II (Sold Separately)
Built From	2017
