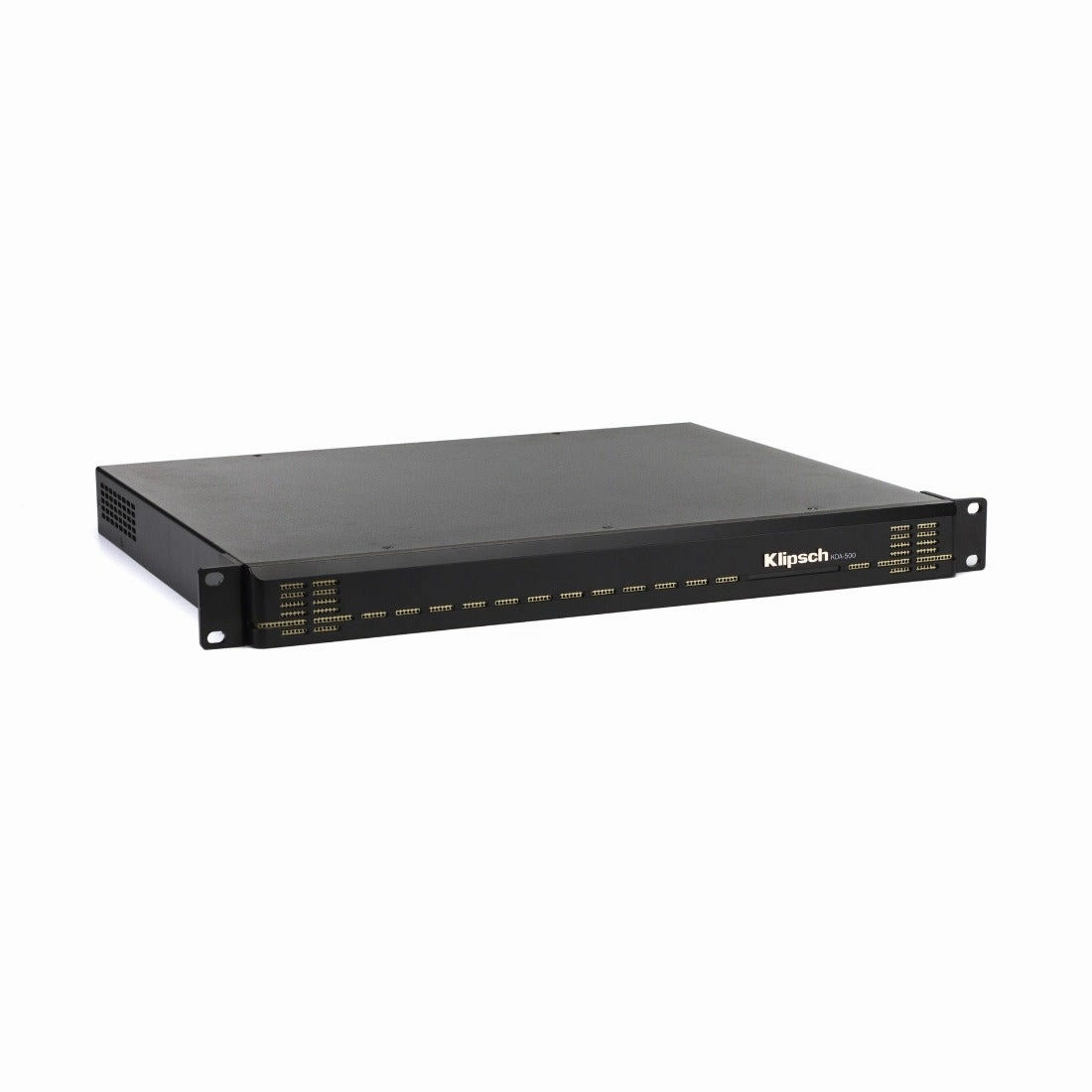

The Klipsch KDA Series DSP Amplifiers offer legendary Klipsch power and performance in a sleek, high-tech, 1 rack unit solution. The KDA- 500 offers 500W of class G/H power, for clean, dynamic power in any type of install.
Features:
- 500W Total System Power (4 x 125W)
- High performance power platform
- 70V / 100V / Low Impedance Compatibility
- Flexible I/O
- State-of-the-art DSP control and set-up
Specifications:
| Part Number | 120V: 1063257 230V: 1063260 |
| Amplifier Type | High Efficiency Class G/H |
| Amplifier Power | 500W Total System Power 4 x 125W Per Channel |
| Inputs | Balanced: 4 x Phoenix Line Level (up to 12 AWG wire) Unbalanced: 4 x RCA Line Level |
| Outputs | 4 x Phoenix Speaker Level (up to 12 AWG wire) 4 x RCA Line Level (Throughs) |
| Input Sensitivity | 750mV Balanced, 0dBU |
| Input Impedance | Balanced 40k |
| THD | <1% @ Rated Output |
| Signal-To-Noise | -100dB Below Rated Output |
| Enclosure Type | Front Face: ABS Plastic Case: Machine Formed Steel |
| Rack Unit | 1RU |
| Product Dimensions | 1.73 x 19.02 x 14.29 (44mm x 483mm x 363mm) |
| Product Weight | 15 lbs (6.82 kg) |
| Mounting Options | Removable 1RU Rack Ears, Removable Rubber Feet |
| Built From | 2016 |
