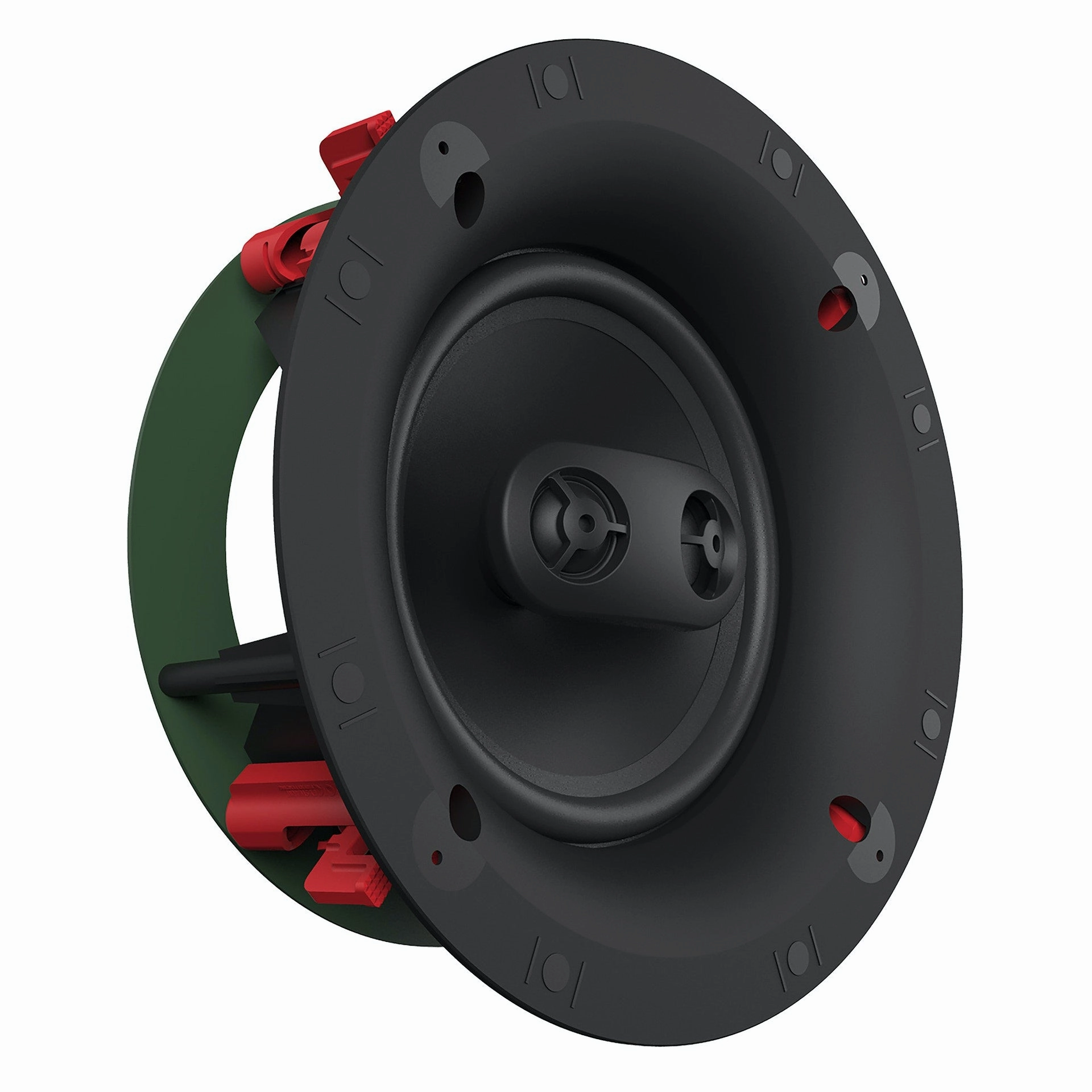

Using the same acoustic voicing and design principles of our more premium architectural and box speaker lines, the all-new Klipsch Designer series provides true Klipsch power and performance. With a dual voice coil 8 Polypropylene woofer and two .75 Silk Dome tweeters, the DS-180CSM brings dynamic, powerful, detailed sound to your distributed audio system - for true stereo sound in spaces where two speakers arent possible.
Features:
- 8 Polypropylene woofer
- Dual .75 Silk Dome tweeter
- Patented Sky Hook Tool-Free Installation System
- Bezel-Free Magnetic Grille
SKY HOOK TOOL-FREE INSTALLATION SYSTEM
The exclusive Sky HookpatentedCinch by Swarm Installation System engages the dog legs automatically when the speaker is inserted into the cutout hole with a preset clamping force, eliminating the possibility of over-torquing. This fast, easy installation system reduces install time by up to 75%.
ALL NEW, BEZEL-FREE MAGNETIC GRILLE
A completely redesigned powercoated magnetic steel grille eliminates the bezel for seamless, pristine integration into the living space.
HORN-LOADED PERFORMANCE
Get crystal clear sound with minimal effort through Klipsch signature horn-loaded speakers. We've been perfecting the art of horn-loaded audio since 1946.
Specifications:
| Frequency Response | 73Hz - 20kHz /- 3dB |
| High Frequency Driver | Dual .75" (1.9cm) Silk Dome Tweeters |
| Low Frequency Driver | 8" (20.32cm) Polypropylene Woofer |
| Sensitivity | 94 dB @ 2.83V / 1m |
| Coverage Angle | 160 |
| Power Handling | 50W RMS / 200W RMS |
| Impedance | 4 Ohm |
| Enclosure Type | ABS/Infinite Baffle |
| Finish | Black Baffle/Frame, White Paintable Grille |
| Product Dimensions | 10.75 W x 10.75 H x 4.5 D (27.3cm H x 27.3cm W x 11.5cm D) |
| Mounting Depth | 4.45 (11.3cm) |
| Cutout Dimensions | 9.8 (24.9cm) |
| Product Weight | 7.4 lbs (3.36kg) |
| Included | Flat Paintable Magnetic Grille |
| Installation Kit | IK-800-C II (Sold Separately) |
| Fire Rated Enclosure | ME-800-C (Sold Separately) |
| Built From | 2017 |
