DS-160W

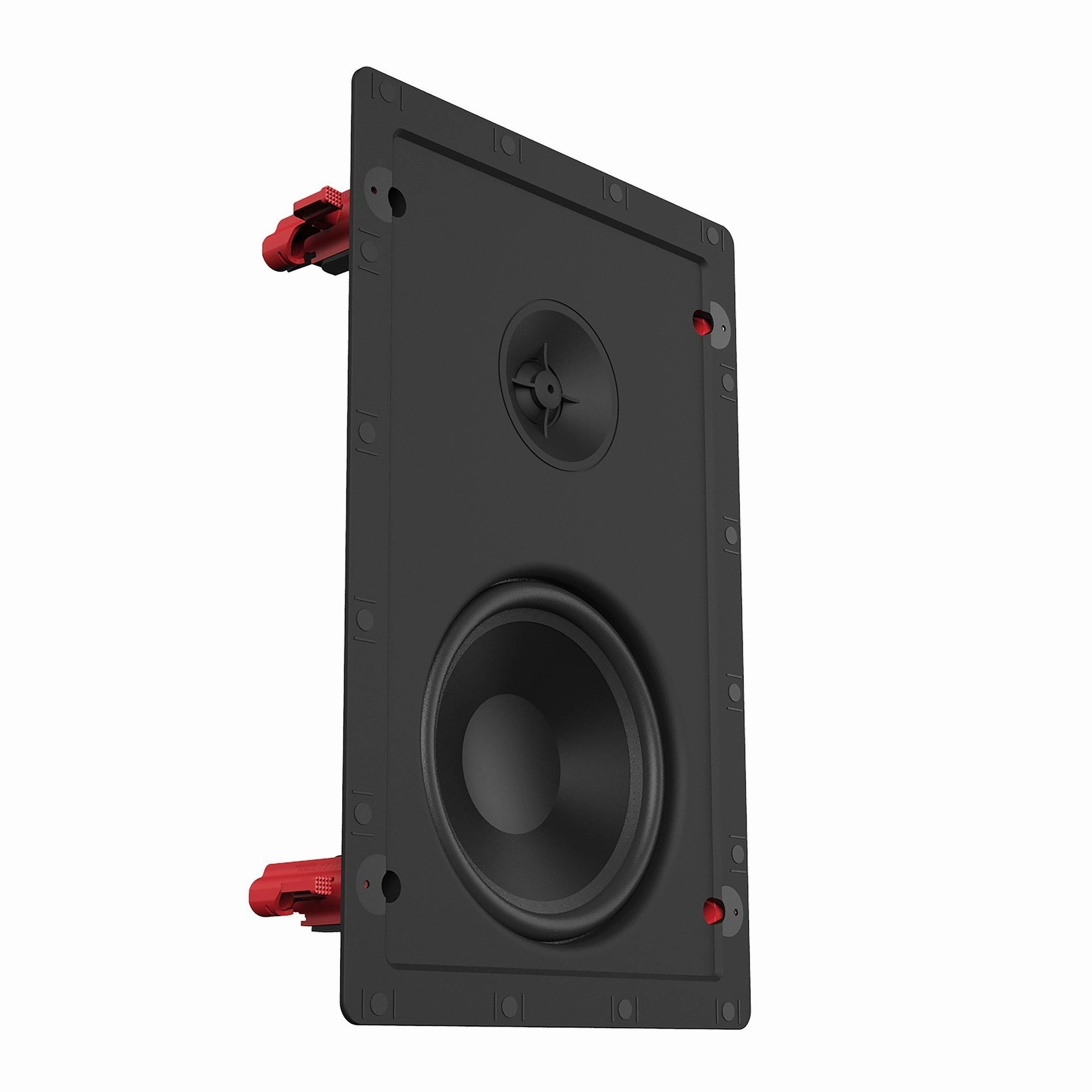

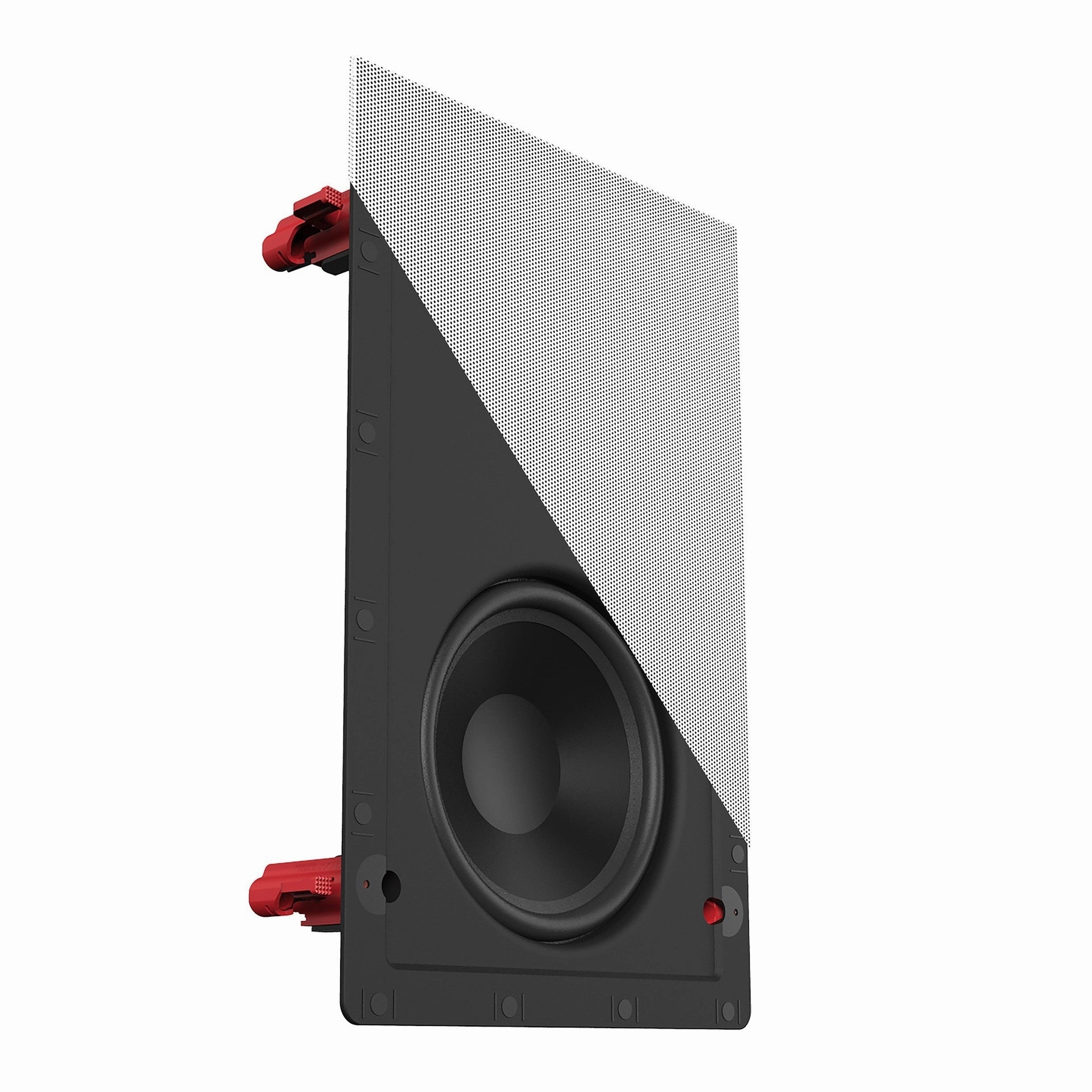

Offering the Klipsch Signature Horn-Loaded performance at an incredible value, the DS-160W features a 6.5 Polypropylene woofer and a 1 Silk Dome tweeter mated to a round Tractrix horn for dynamic acoustic performance. Utilizing the Sky HookpatentedCinch by Swarm Installation System, your install time is reduced by 75%.
Features:
- 6.5 Polypropylene woofer
- 1 Silk Dome tweeter
- Patented Sky Hook Tool-Free Installation System
- Bezel-Free Magnetic Grille
SKY HOOK TOOL-FREE INSTALLATION SYSTEM
The exclusive, patented installation system bySwarmtechnology engages the dog legs automatically when the speaker is inserted into the cutout hole with a preset clamping force, eliminating the possibility of over-torquing. This fast, easy installation system reduces install time by up to 75%.

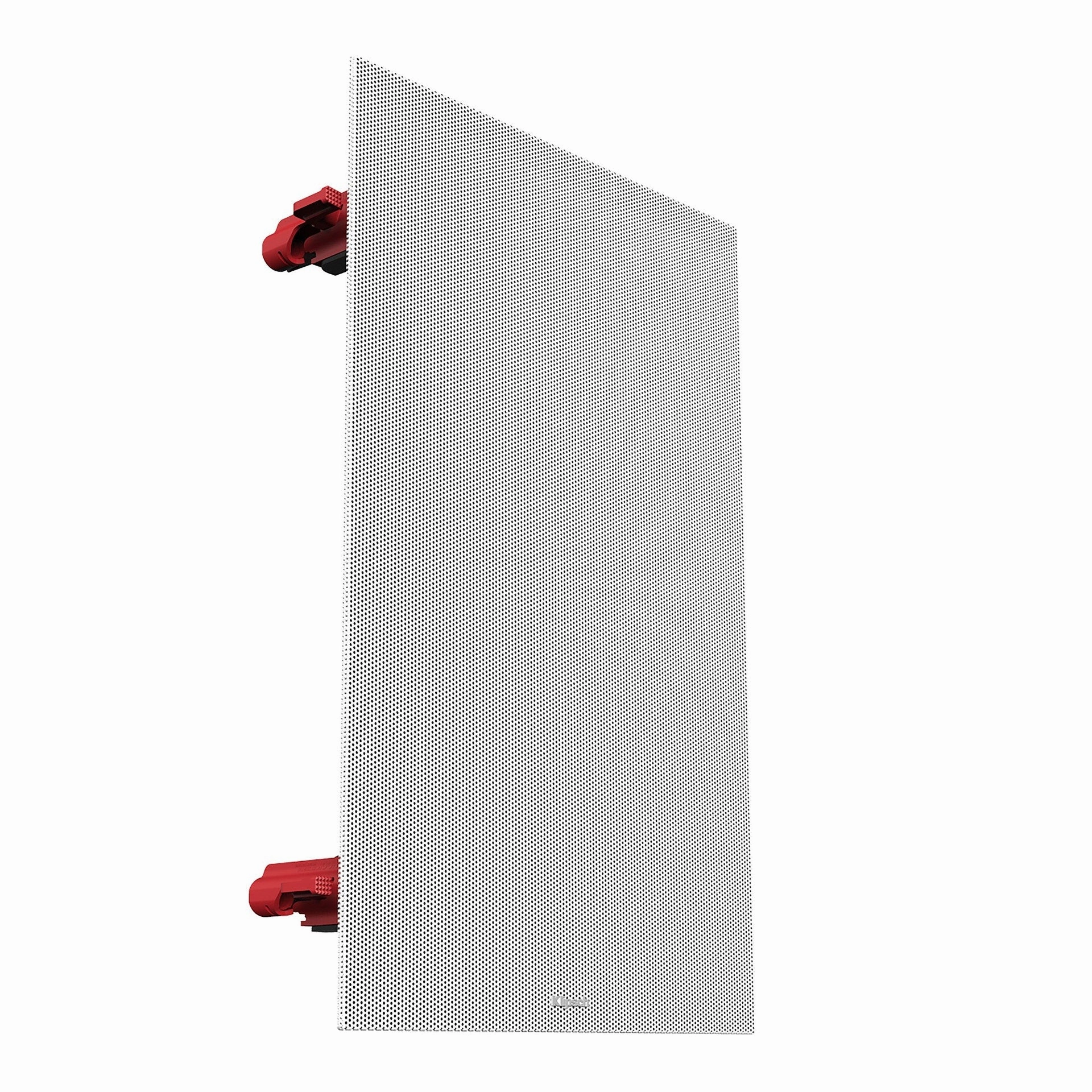

ALL NEW, BEZEL-FREE MAGNETIC GRILLE
A completely redesigned powercoated magnetic steel grille eliminates the bezel for seamless, pristine integration into the living space.
HORN-LOADED PERFORMANCE
Get crystal clear sound with minimal effort through Klipsch signature horn-loaded speakers. We've been perfecting the art of horn-loaded audio since 1946.
Specifications:
| Frequency Range | 77Hz - 20kHz /- 3dB |
| High Frequency Driver | 1" (2.54cm) Silk Dome Tweeter mated to a round Tractrix Horn |
| Low Frequency Driver | 6.5 (16.51cm) Polypropylene Woofer |
| Sensitivity | 91 dB @ 2.83V / 1m |
| Coverage Angle | 100 |
| Power Handling | 50W RMS / 200W RMS |
| Impedance | 8 Ohm Compatible |
| Enclosure Type | ABS/Infinite Baffle |
| Finish | Black Baffle/Frame, White Paintable Grille |
| Product Dimensions | 9.0 W x 14.1 H x 3.9 D (22.8cm H x 35.8cm W x 9.8cm D) |
| Mounting Depth | 3.78 (9.6cm) |
| Cutout Dimensions | 13 H X 8 W (33.0cm H X 20.3cm W) |
| Product Weight | 7.2lbs (3.25kg) |
| Included | Magnetic Grille |
| Installation Kit | IK-650-W II (Sold Separately) |
| Fire Rated Enclosure | ME-650-W (Sold Separately) |
| Built From | 2017 |
