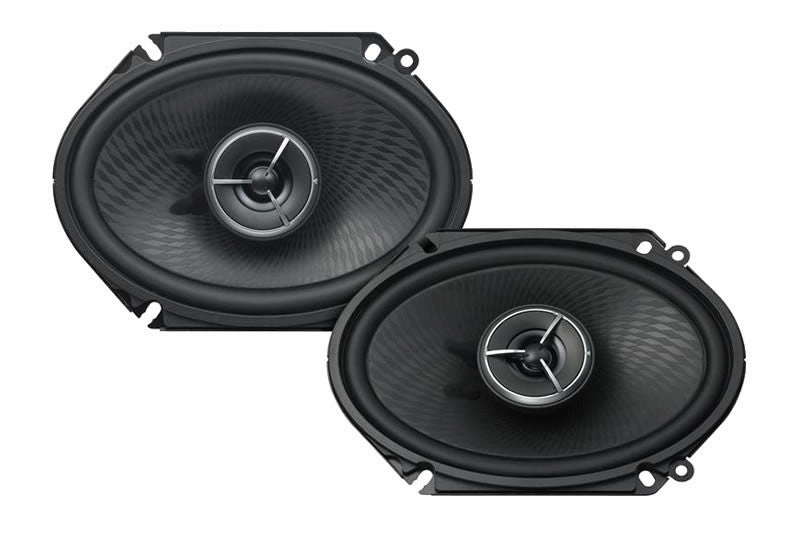

Summary
- Carbon-Polypropylene Hybrid Cone with Diamond Array Pattern
- Peak Power: 180W
- Rated Input Power: 60W
- 3 Ohm Impedance
- Frequency Response: 80Hz - 21kHz
- Warranty: 2 years
Overview
KENWOOD eXcelon products are specially developed to provide the ideal listening experience.
Maximum precision is achieved with top-end components for true musical indulgence. Receivers feature innovative technologies such as advanced smartphone connectivity and driver safety options.
We stand firmly behind the eXcelon products with a 2 Year Warranty.
General Features
- Diamond Array Pattern Diaphragm: Yes
- Woofer:
- Woofer Size: 6 x 8 in (145 x 204mm)
- Woofer Diaphragm: Injection P.P. Cone
- Surround: Rubber
- Basket: Steel (Black)
- Magnet: Ferrite
- Mid-Range:
- Mid-Range Size: 1-3/16 in (30mm)
- Mid-Range Diaphragm: P.E.I Balanced Dome
- Dimensions (without grill):
- Width: 8 in (203.7mm)
- Height: 5-11/16 in (145mm)
- Depth: 3-1/8 in (80mm)
- Mounting Depth: 2-1/2 in (64mm)
- Warranty: 2-Year
Specifications
| Nominal Impedance | 3 |
|---|---|
| Maximum Peak Power | 180 W |
| Rated Input Power (RMS) | 60 W |
| Sensitivity | 88 dB/W at 1m |
| Frequency Response | 80Hz - 21kHz |
| Crossover Frequency | - |
