Summary
- Woofer: Water-resistant PP Cone
- Tweeter: 1" Balanced Dome Tweeter
- Impedance: 4 ohms
- Frequney Response: 55Hz - 20kHz
- Mounting Depth: 3-3/8"
Specifications

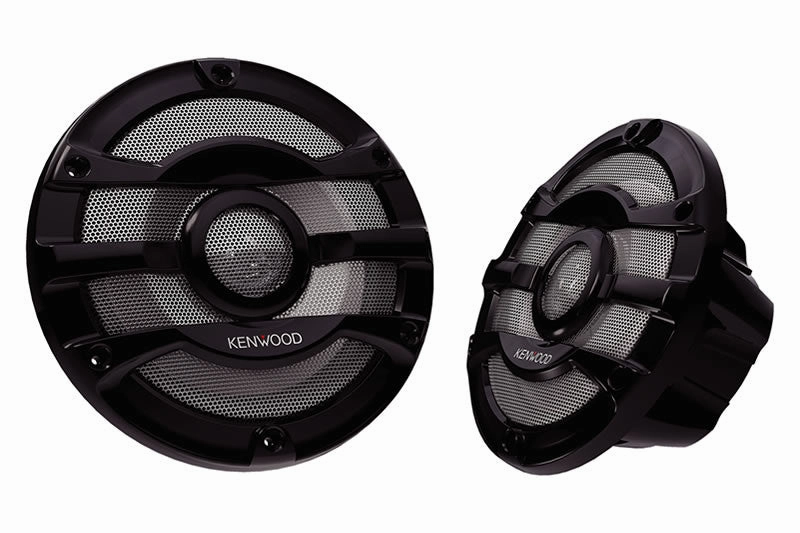

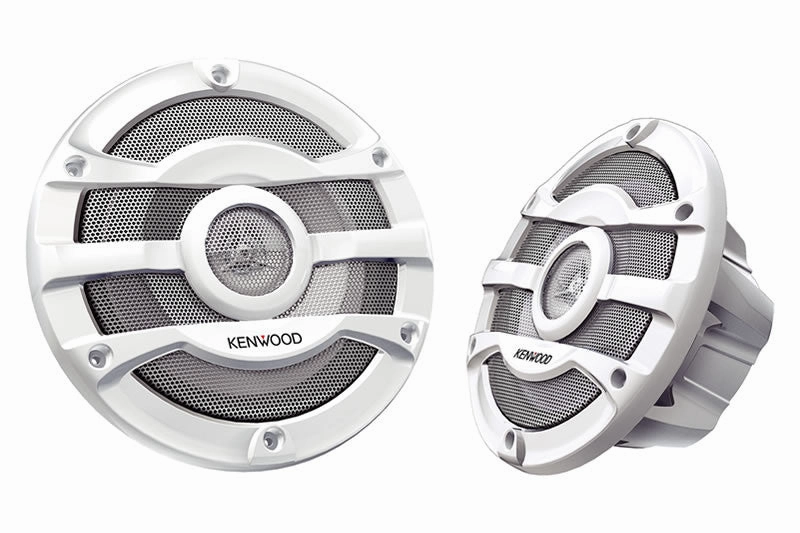

| Model Name | KFC-2053MRB/W | ||
|---|---|---|---|
| System | 2way-2speaker | ||
| Woofer | Size | 8in | |
| Diaphragm | PP Cone | Silver | |
| Surround | Santoprane | ||
| Basket | Resin mold | Black | |
| Magnet | Ferrite | 90*t20 | |
| Tweeter | Size | 1in | |
| Diaphragm | Balanced Dome(PEI) | Silver | |
| Magnet | Ferrite | 35*t6 | |
| Woofer | Width (w_Gr) | 9-1/16in | |
| Height (w_Gr) | 9-1/16in | ||
| Cutout Diameter | 7-1/16in | ||
| Depth (w_Gr) | 4-7/16in | ||
| Mounting Depth | 3-3/8in | ||
| WEIGHT | with Grille (pc.) | 3.75lbs | |
| Gross Weight | 8.8lbs | ||
| Weight of Woofer Magnet | 15.5oz | ||
| POWER HANDLING | Peak Power (KITS SPEC) | 300W | |
| Rated Power (CEA SPEC) | 100W | ||
| SENSITIVITY | 86db / W at 1m | ||
| FREQUENCY RESPONSE | 55Hz-20,000Hz | ||
| Impedance | 4ohms | ||
| CROSSOVER FREQUENCY | - | ||
| ACCESSORY | Screw sets | ||
| Pan Head Tapping Screw 4x30*12 | |||
| Speed Nut *12 | |||
| Warranty Card *1 | |||
| SPECIAL FEATURE | Marine Quality | ||
