Features
- Powerful 2000W Maximum Output
- Variable Low-Pass Filter
- Infrasonic Filter
- Speaker Level Input
- Bass Boost
Impressive Power Output
This Class D amplifier provides a maximum power output of 2000 watts, delivering 500 watts RMS at 4 ohms and 1000 watts RMS at 2 ohms. Such substantial power ensures that your subwoofer produces deep and impactful bass, enriching your overall audio experience.
Advanced Audio Controls

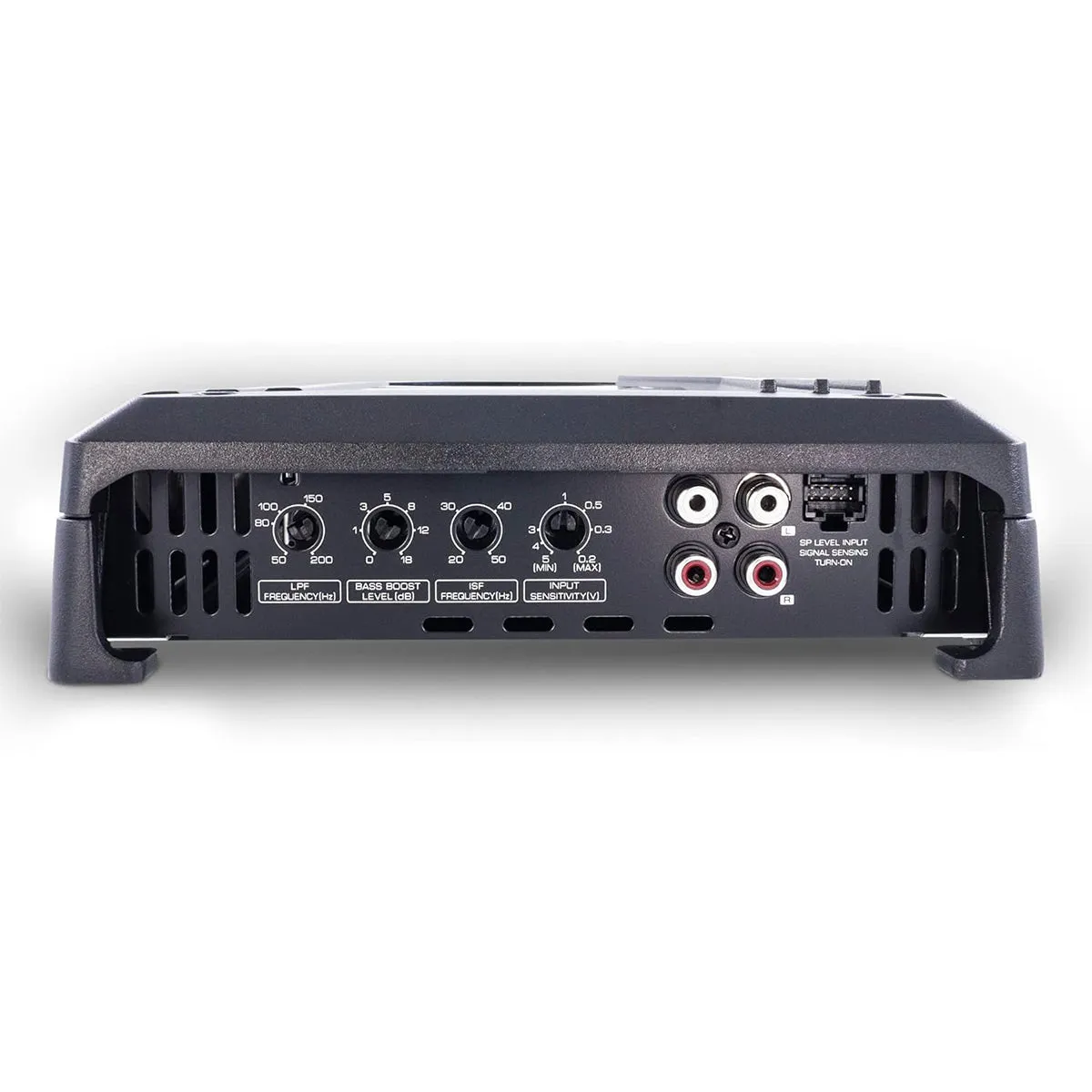

The KAC-9106D is equipped with a variable low-pass filter adjustable between 50 to 200 Hz, allowing for precise tuning of the audio output to match your subwoofer's characteristics. Additionally, it features an infrasonic filter ranging from 20 to 50 Hz to eliminate inaudible low frequencies that can cause distortion. The built-in bass boost control offers up to 18 dB at 40 Hz, enabling you to enhance the bass response according to your preferences.
Efficient Design and Connectivity
Utilizing Class D amplification technology, the KAC-9106D ensures high efficiency and reduced heat generation. Its cast aluminum heat sink design aids in effective heat dissipation, maintaining optimal performance. The amplifier also includes speaker-level inputs with signal sensing turn-on, facilitating easy integration with various audio systems, even those without dedicated preamp outputs.
Compact Dimensions
Measuring 13-3/16 inches in width, 2-3/16 inches in height, and 7-9/16 inches in depth, and weighing approximately 6.2 pounds, the KAC-9106D's compact size allows for flexible installation options within your vehicle.
