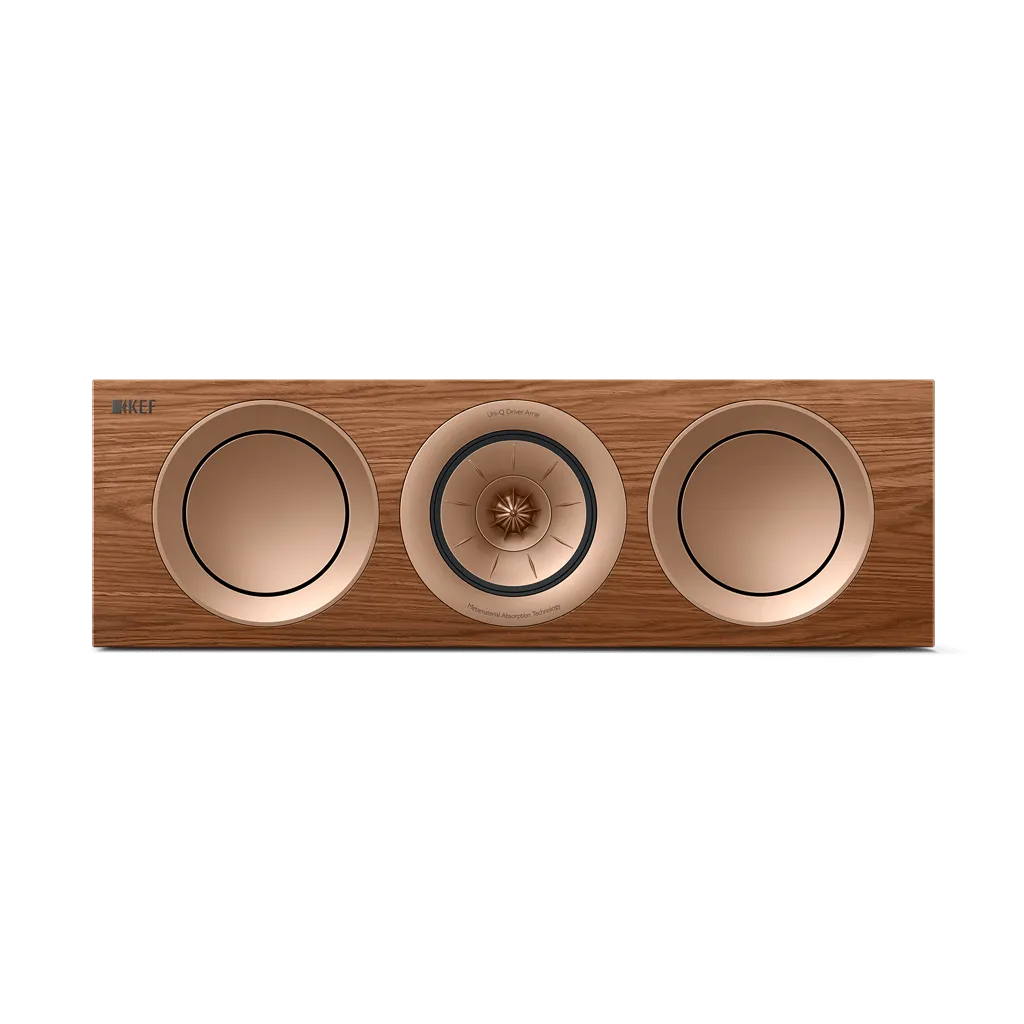

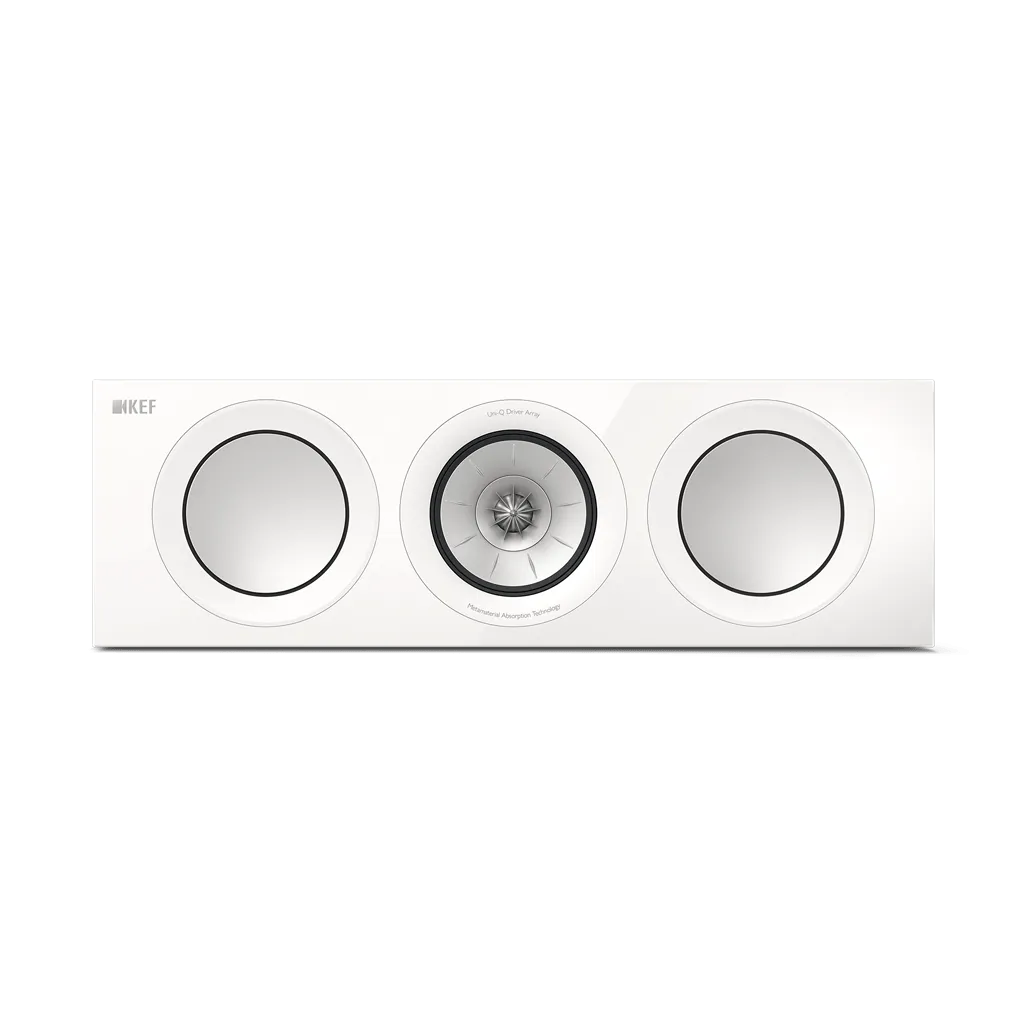

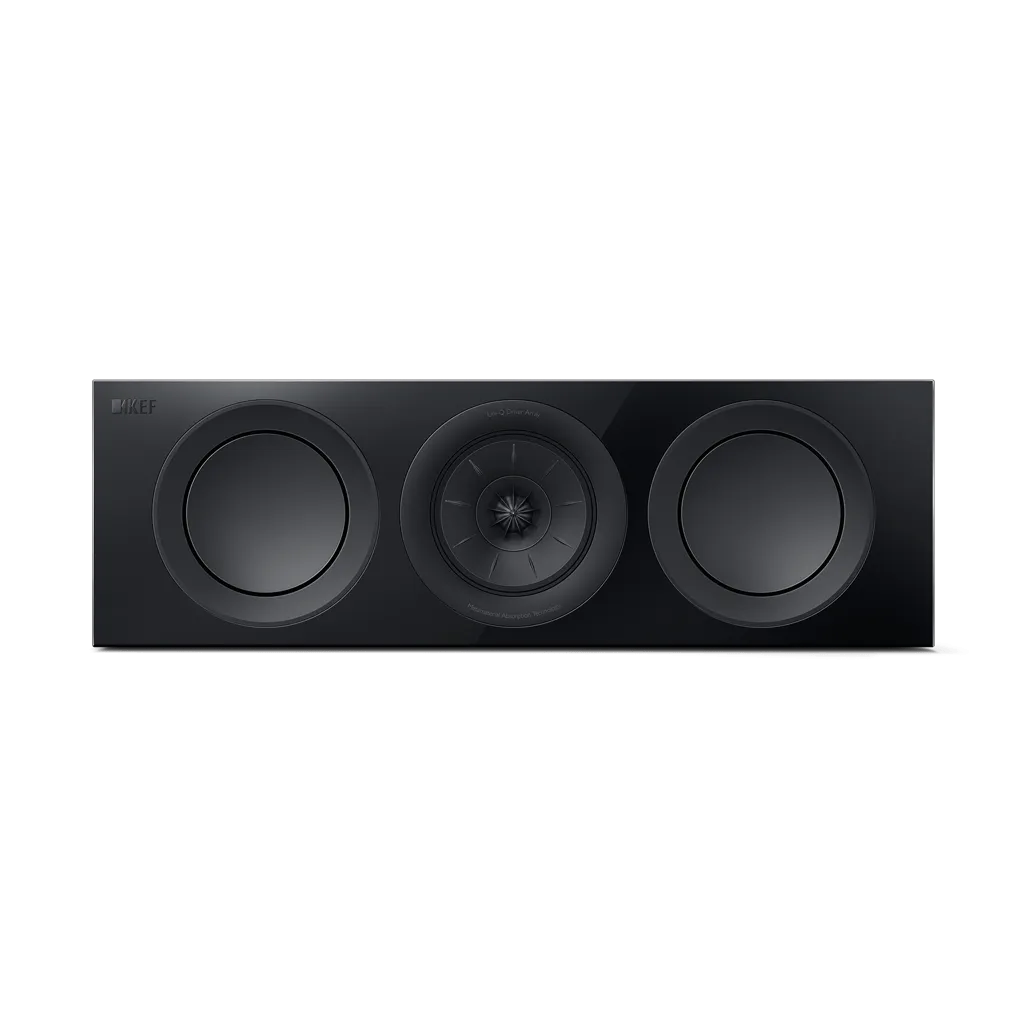

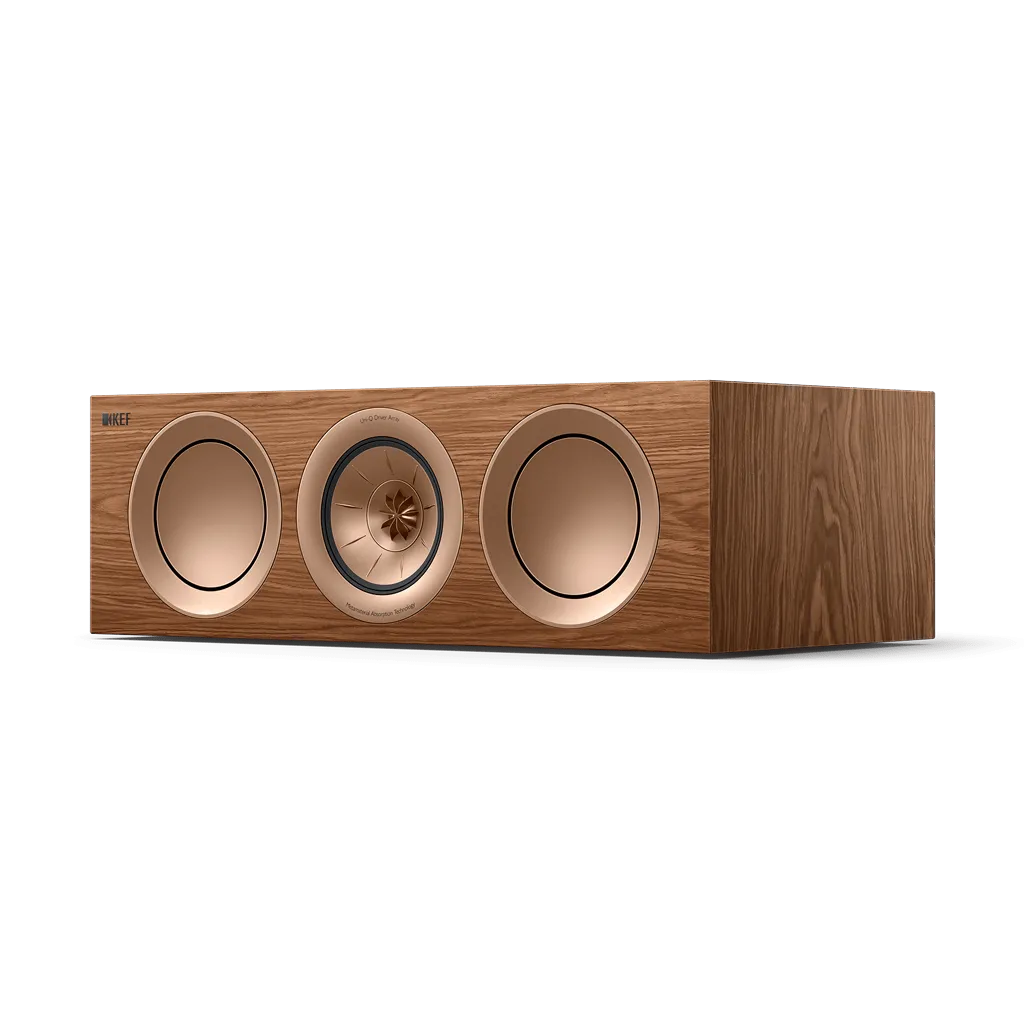

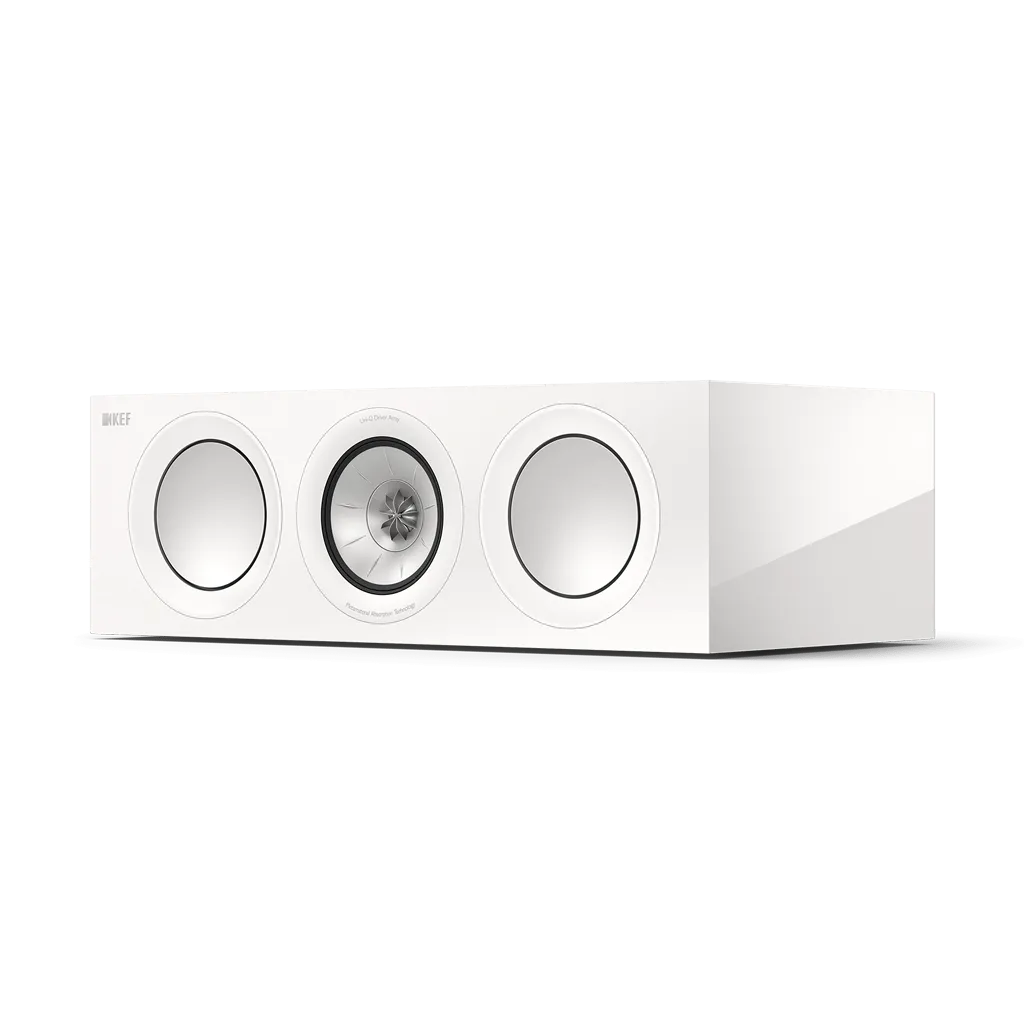

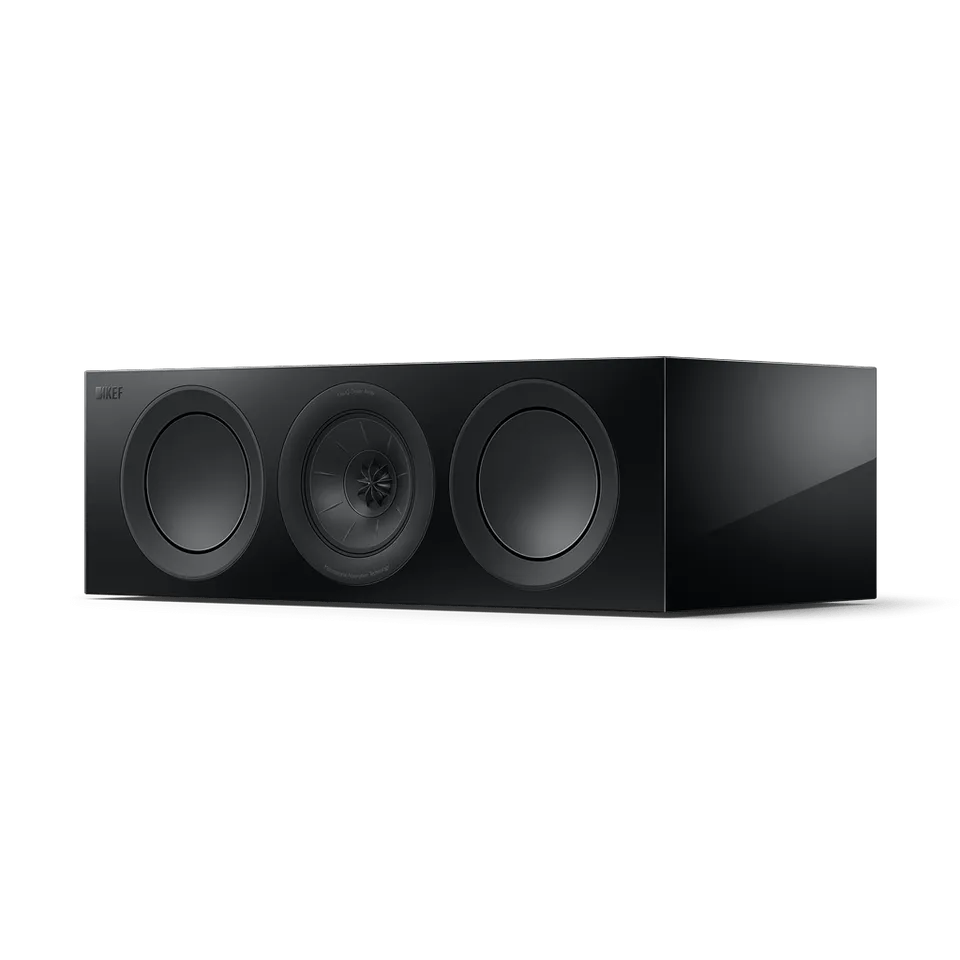

Compact three-way centre channel speaker

Designed to match any R Series floorstanding speakers, the R2 Meta boasts the 12^th generation Uni-Q driver array with MAT and two 5.25 hybrid aluminium bass drivers. It is compact enough to use in smaller rooms while being capable of high-quality sound with even the most dynamic music and movies. This design is highly versatile and can be used in an LCR (Left-Centre-Right) configuration.

An icon born from The Reference

A suite of class-leading technological innovations drawn from The Reference for exceptional acoustic performance.

Metamaterial Absorption Technology

Absorbs 99% of unwanted sound for pure and natural sound.

True bass definition

Hybrid aluminium bass drivers with greater driver excursion for tight, deep, controlled bass.

12^th generation Uni-Q

Acts as a single point source to enlarge the 'sweet spot' and disperse sound more evenly.

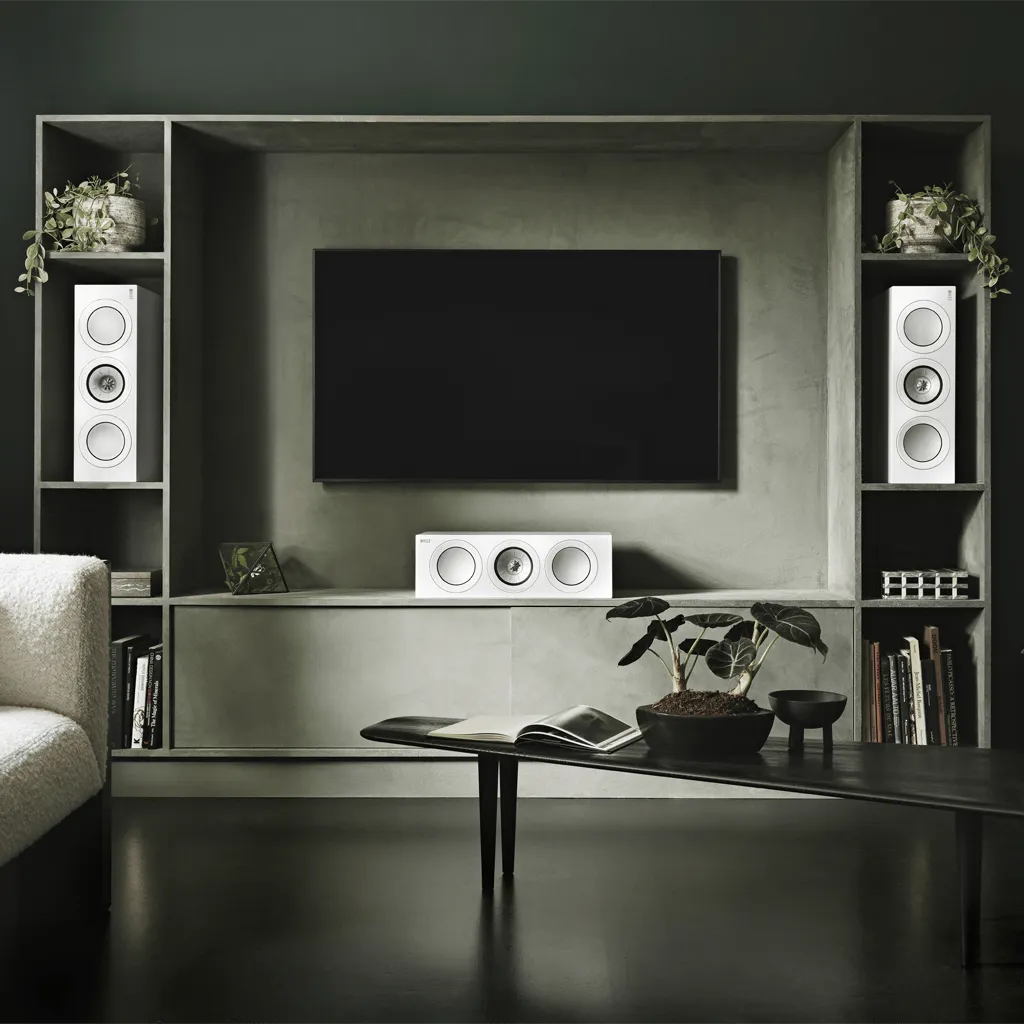

Home theatre made versatile

With a choice of matching home theatre models to pair with, the stage is set for an immersive movie experience.

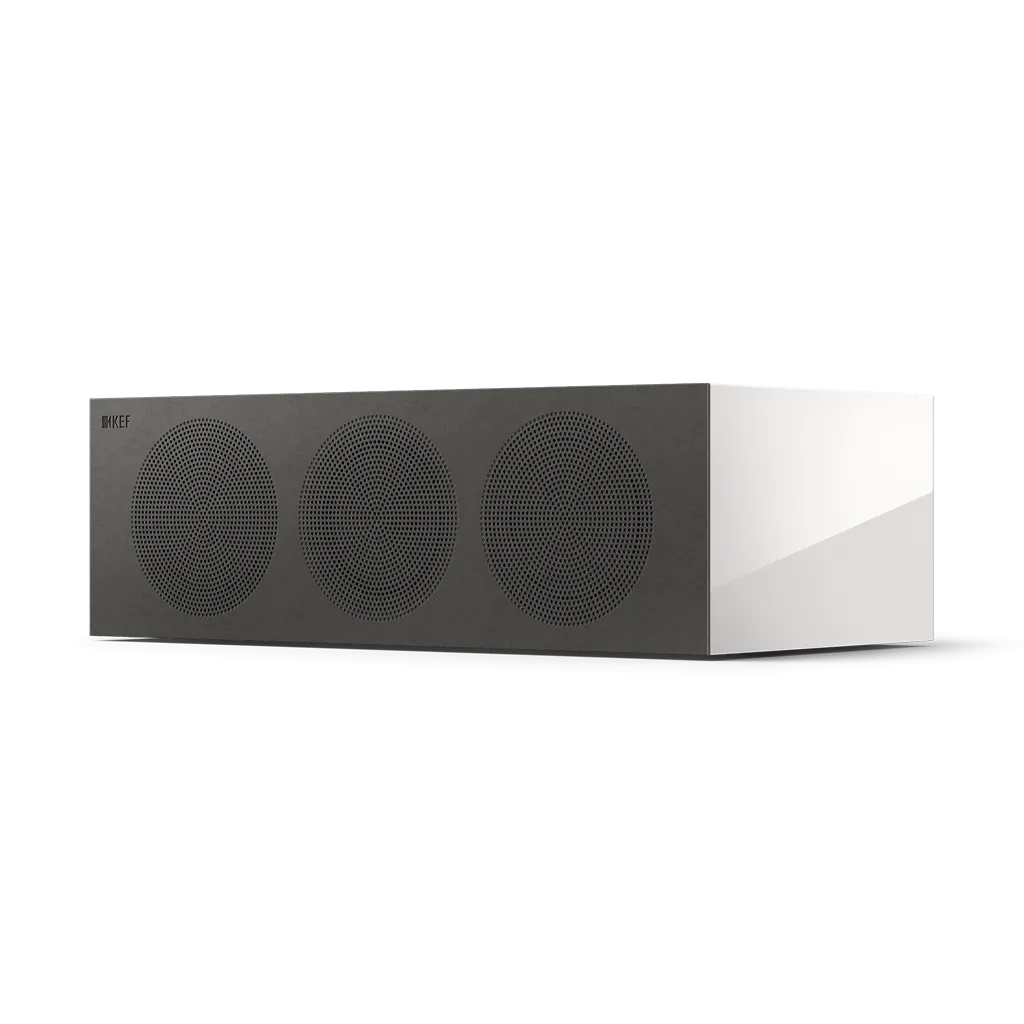

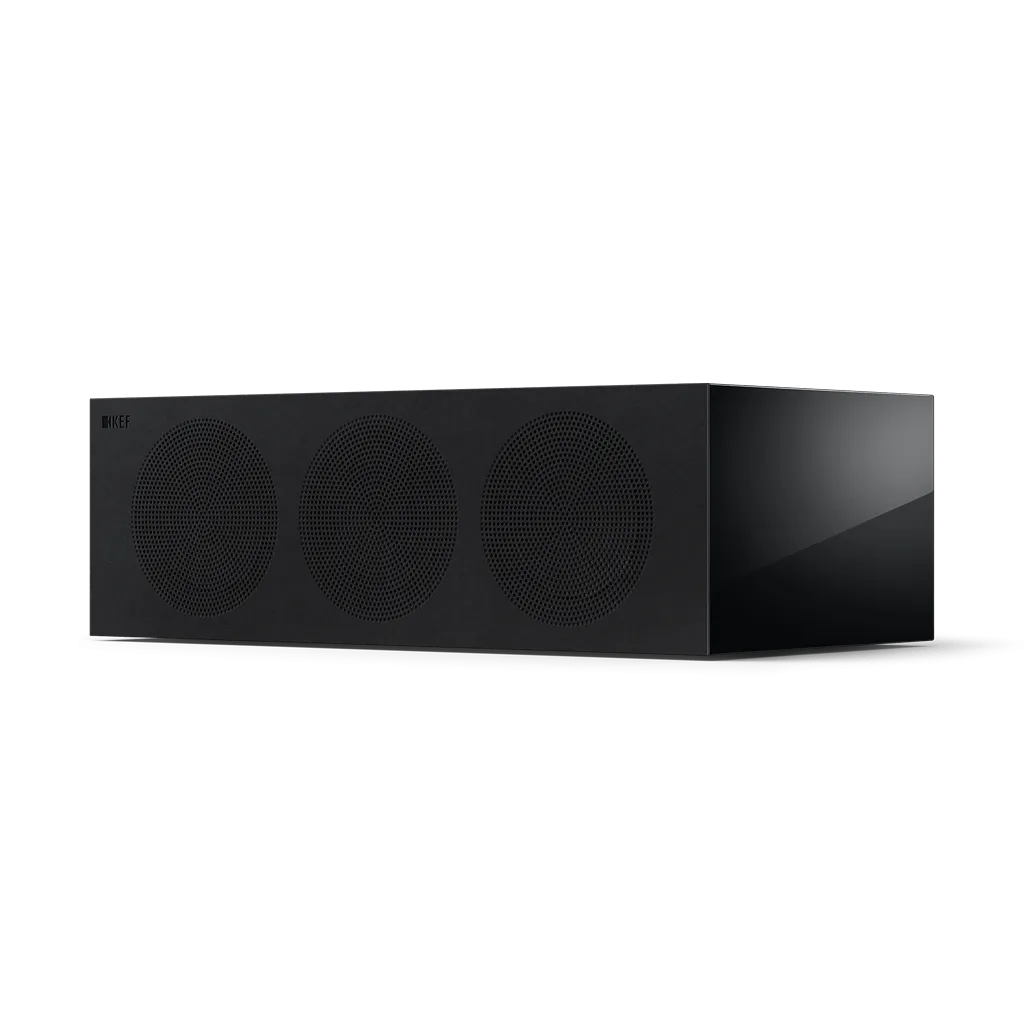

Microfibre grilles

With 1801 precision-cut holes for each driver, performance is ensured even when the drivers are covered.

What is in the box

1 unit of R2 Meta loudspeaker
1 piece of microfiber grille
Rubber feet
User manual and warranty information

Specifications:

DESIGN	Three-way closed box
DRIVE UNITS	Uni-Q Driver Array: HF: 25 mm (1 in.) vented aluminium dome with MAT MF: 125 mm (5 in.) aluminium cone Bass Unit: LF: 2 x 130 mm (5.25 in.) hybrid aluminium cone
CROSSOVER FREQUENCY	560 Hz, 2.5 kHz
FREQUENCY RANGE (-6dB)	58 Hz - 50 kHz
TYPICAL IN-ROOM BASS RESPONSE (-6dB)	43 Hz
FREQUENCY RESPONSE (3dB)	67 Hz - 28 kHz
HARMONIC DISTORTION (90dB, 1m)	<1% 84 Hz and above <0.5% 95 Hz - 20 kHz
MAXIMUM OUTPUT	110 dB
AMPLIFIER REQUIREMENTS	15 - 200W
NOMINAL IMPEDANCE	4 (min. 3.2 )
SENSITIVITY (2.83V/1m)	87 dB
WEIGHT *	15.4 kg (34.0 lbs)
DIMENSION (H x W x D) WITH TERMINAL *	175 x 550 x 309 mm (6.9 x 21.7 x 12.2 in.)

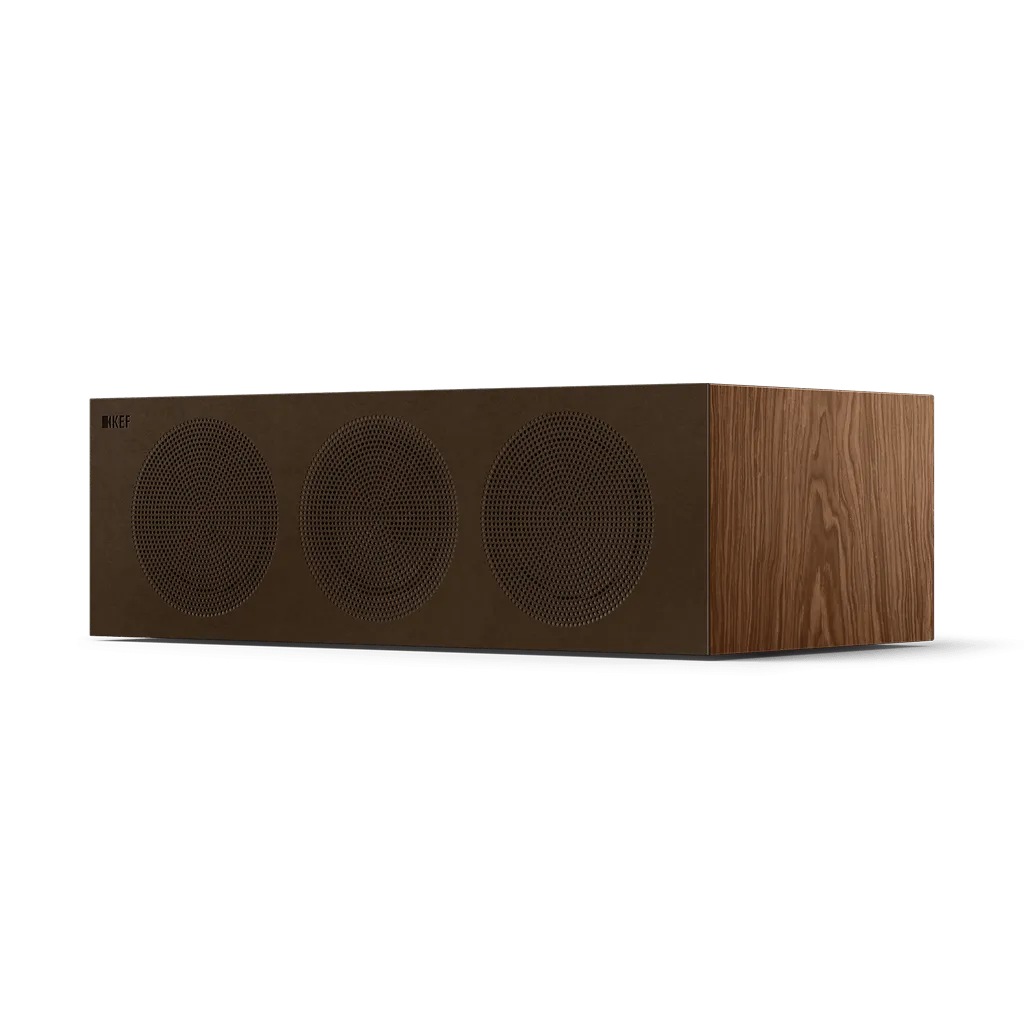

FINISHES	Black Gloss / White Gloss / Walnut
