Overview

5-Channel Class D System Amplifier with Integrated DSP, 75 W x 4 @ 4 300 W x 1 @ 2 - 14.4V

Designed to simplify great audio, every VXi amplifier combines our advanced NexD2 switching amplifier technology with an integrated, full-featured digital signal processor.

Employing our second generation NexD2 amplifier technology, the VX700/5i efficiently powers a complete audio system. It can drive four main speakers with 75 W x 4 @ 4 ohms while also powering a subwoofer with up to 300W @ 2 ohms. Bridging the main channels converts it into a very powerful, 3-channel system amplifier with up to 200W x 2 @ 4 ohms on the main channels and 300W @ 2 ohms on the subwoofer channel.

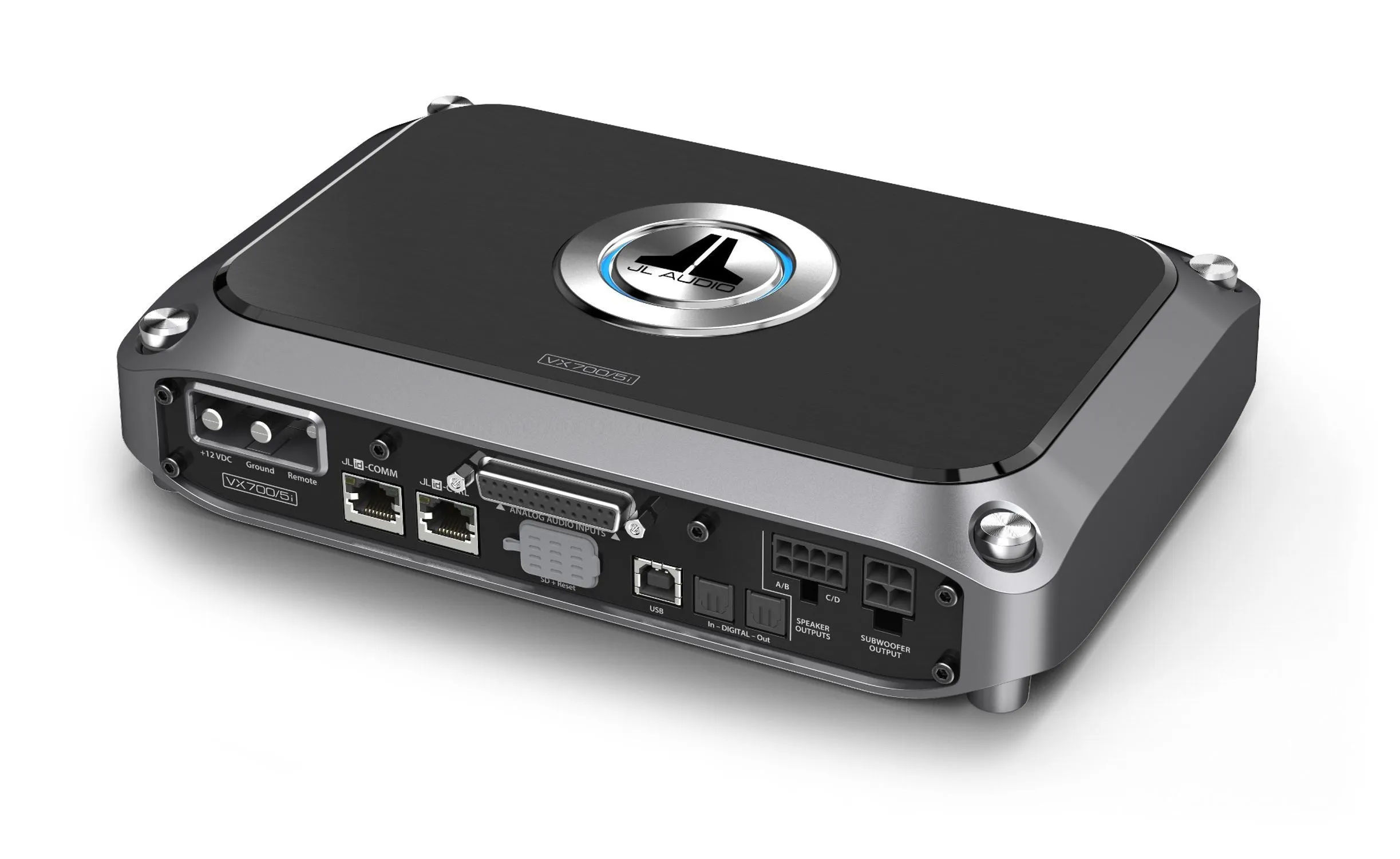

The NexD2 full-range technology in the main channels of this amplifier is DSP-controlled and features a reduced loop area design utilizing DirectFET outputs for outstanding fidelity, very low noise and exceptional efficiency. The subwoofer channel features an optimized low-frequency variant of the NexD2 technology. The amplifier chassis is ultra-compact, with all connections on one side, to greatly simplify installation into tight spaces.

Instead of traditional control knobs and switches, all amplifier adjustments and DSP functionality are configured via a compatible external device (PC, Tablet or Smartphone), with the appropriate JL Audio TN Software application installed.

Amplifier includes: Power Connector (for 4 AWG wire), Analog Input/Pre-Out Harness, Speaker Output Harness, Subwoofer Output Harness, 6 ft A/B USB Cable
