Summary
Overview

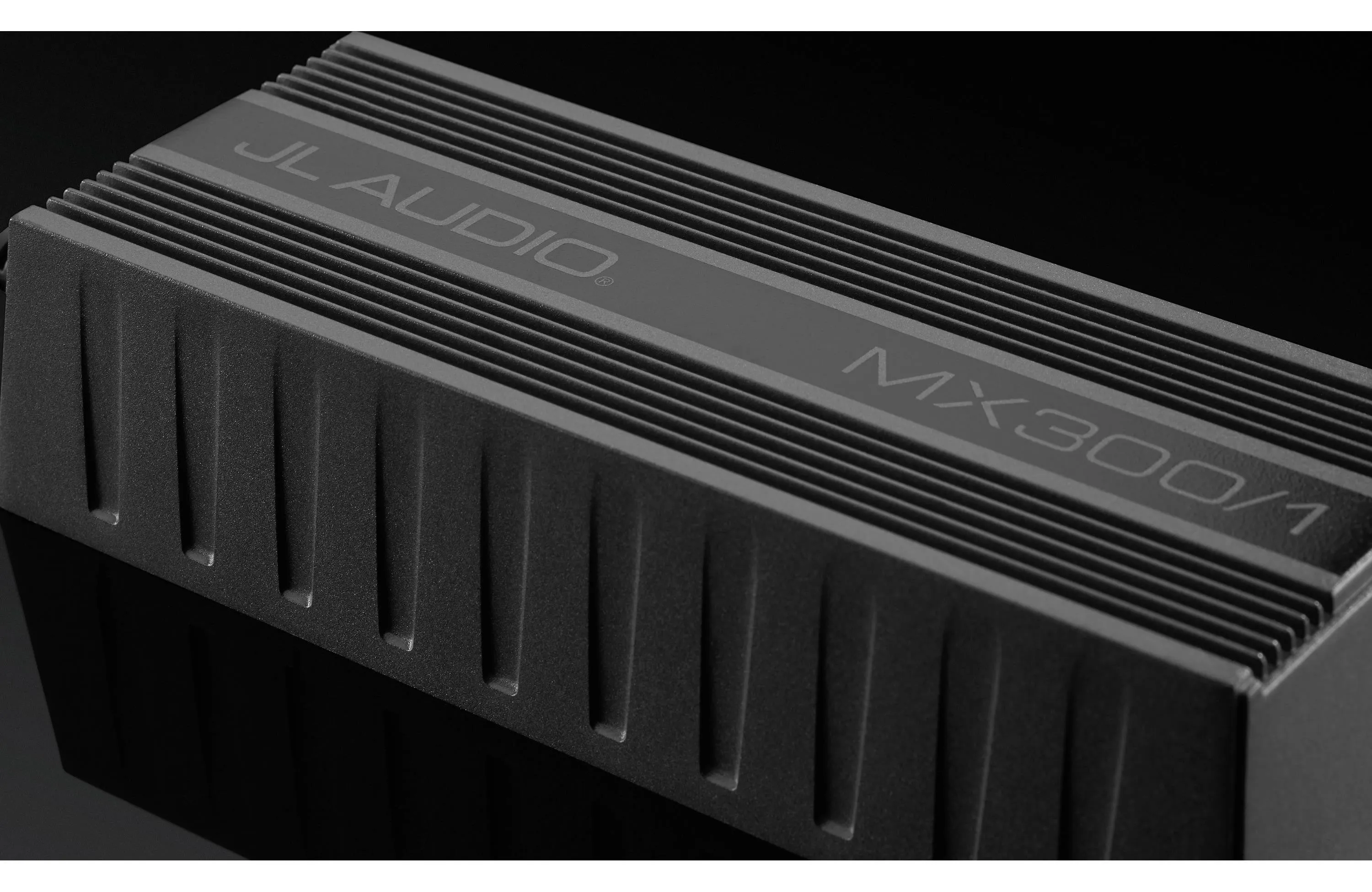

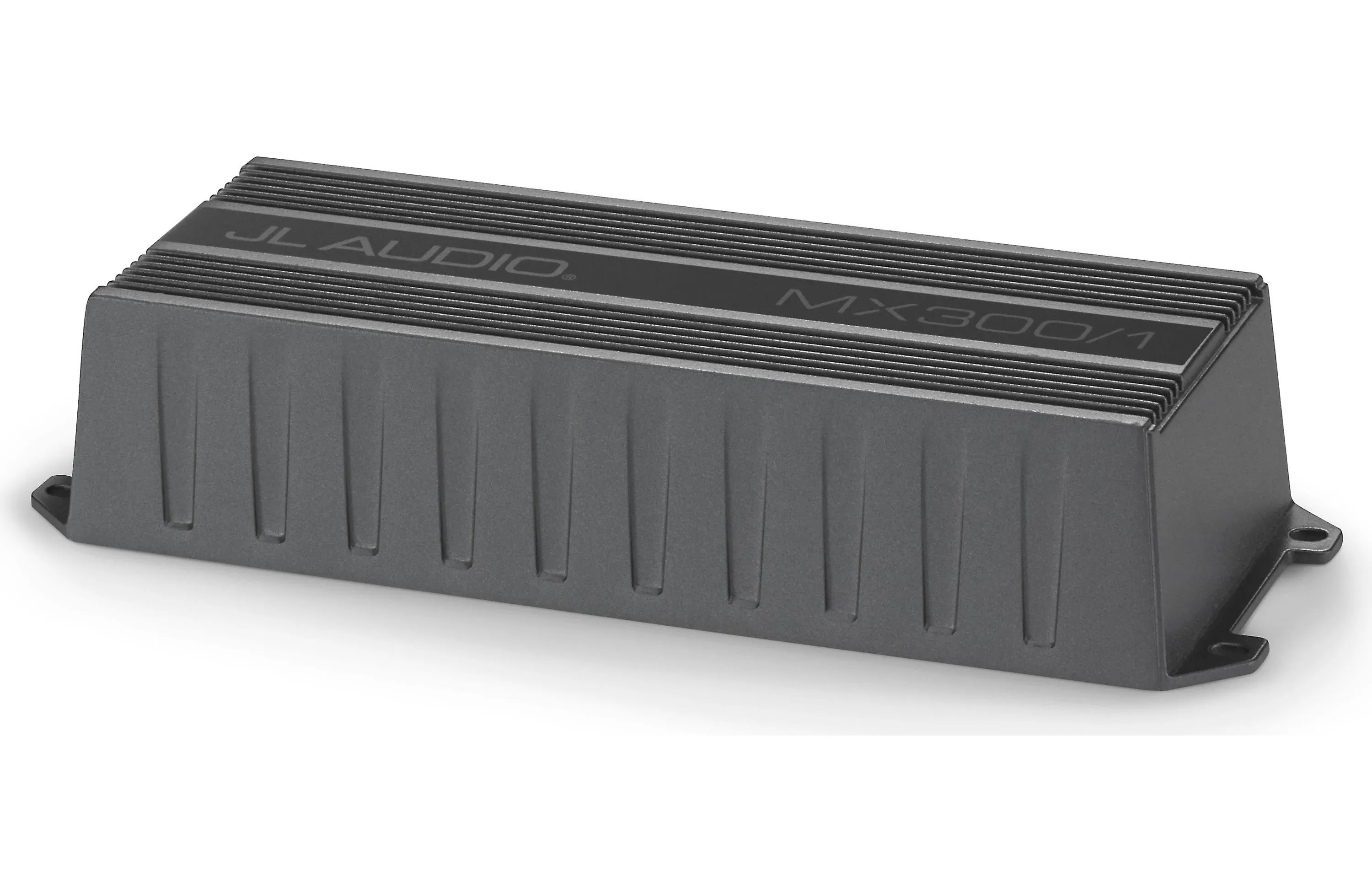

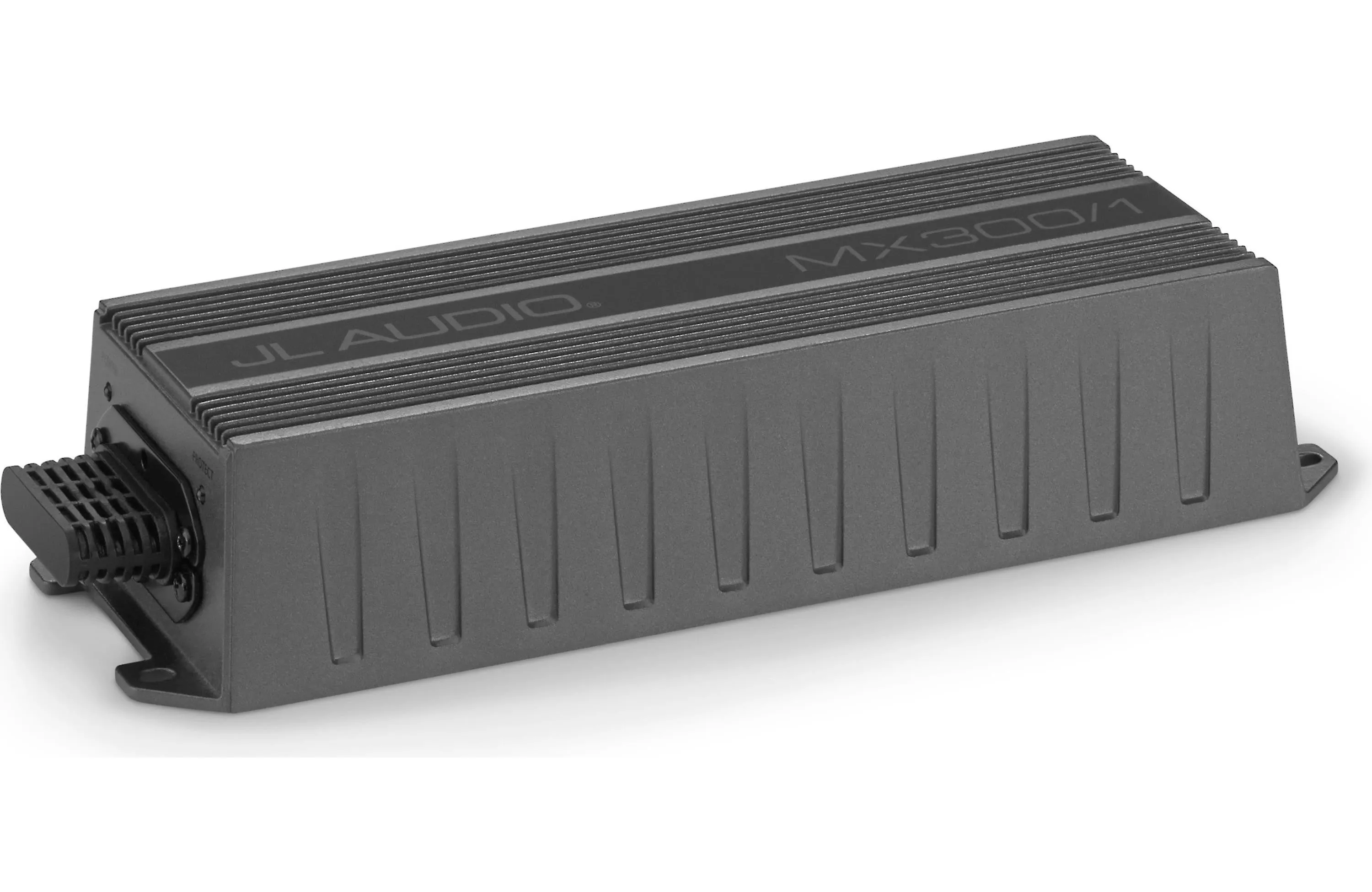

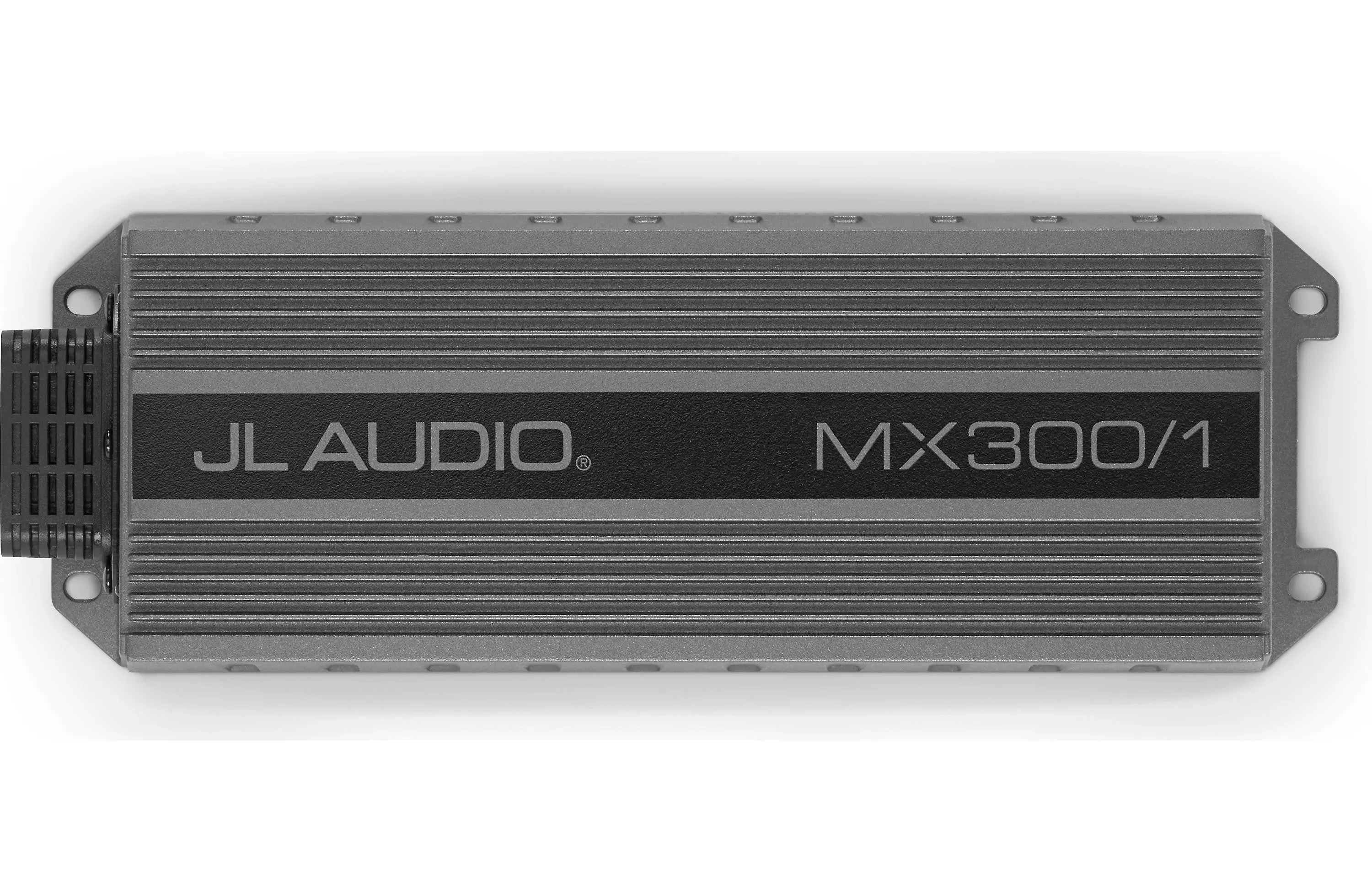

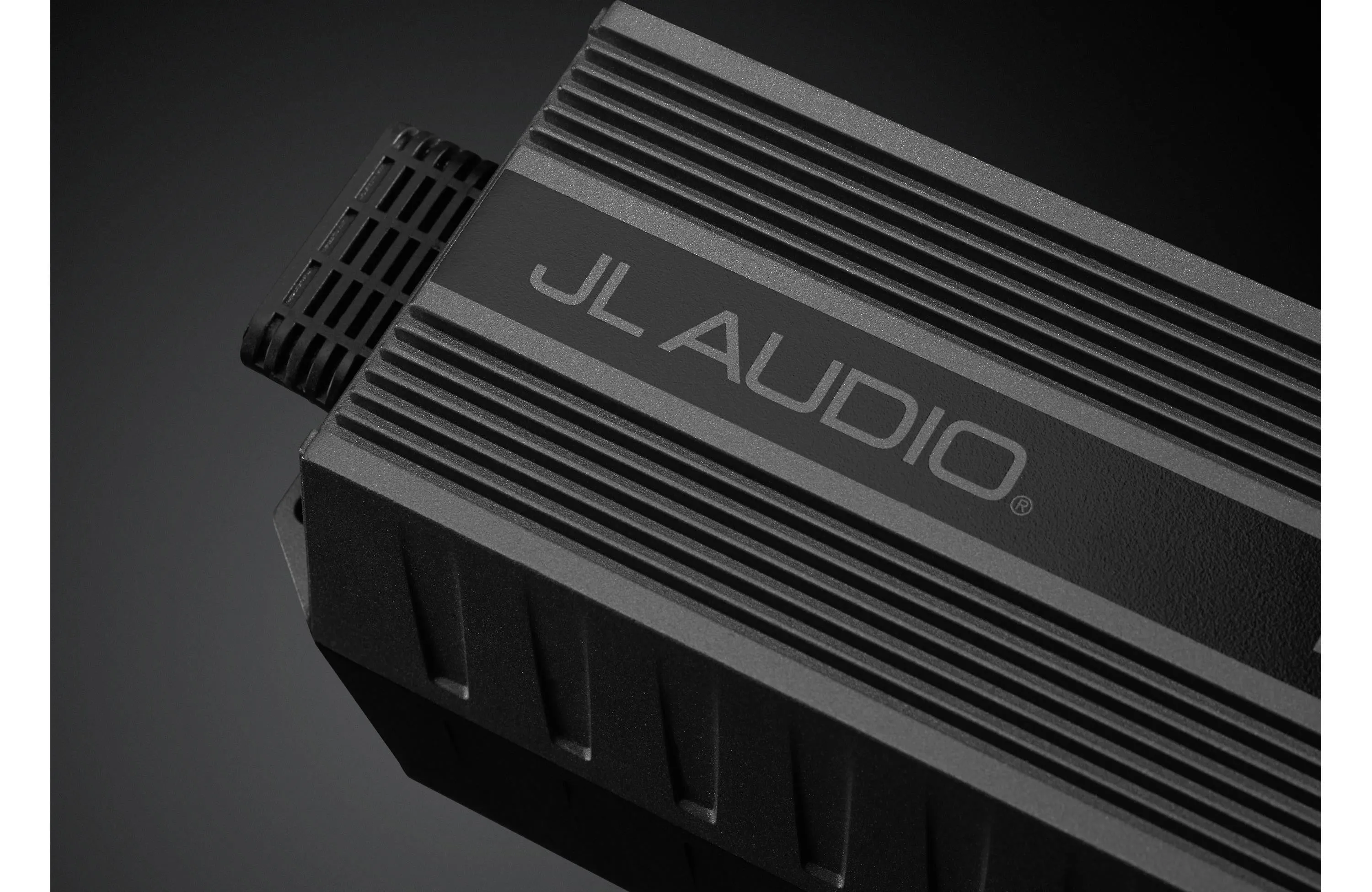

Engineered specifically for powersports applications, the MX300/1 monoblock amplifier employs the high-speed NexD switching design to pack a serious audio punch, without straining charging systems. Its tiny, cast aluminum chassis is highly resistant to corrosion, with an IPX6 water-resistance rating, making it perfect for motorcycles, ATVs or other utility vehicles.

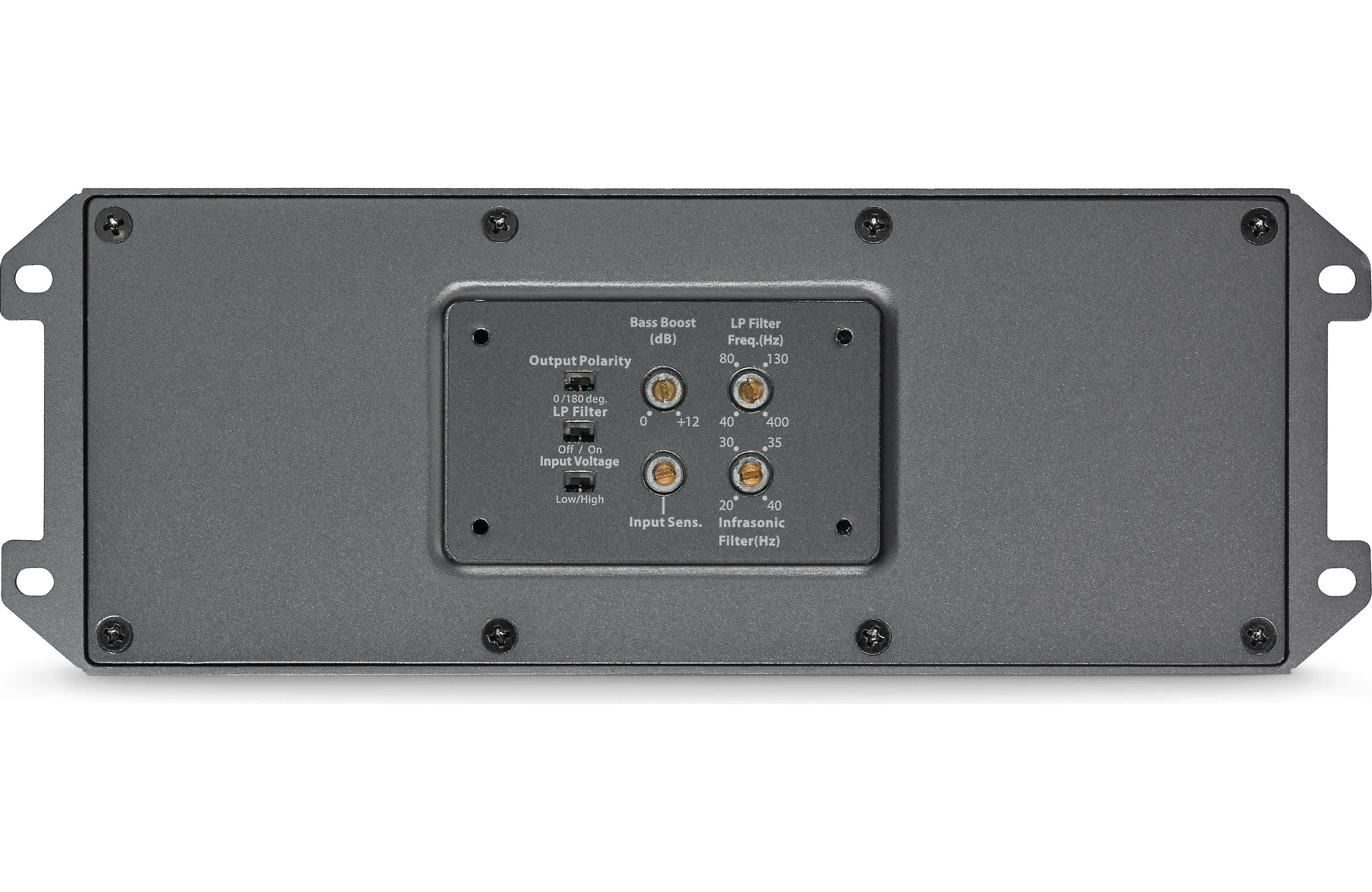

With a robust 300W of clean power into a 2-ohm load (14.4V, 1% THD), use one to drive a subwoofer, or grab a pair to deliver stunning output to a subwoofer system. The MX300/1 also features an adjustable low-pass crossover, a bass boost EQ, variable infrasonic filter and output polarity switch.
Its dual-range input section accepts a wide range of input voltage levels, from line-level all the way to high-power speaker level signals. With the addition of an M-RBC-1 remote level control (sold separately), subwoofer output can be directly controlled from the drivers seat.

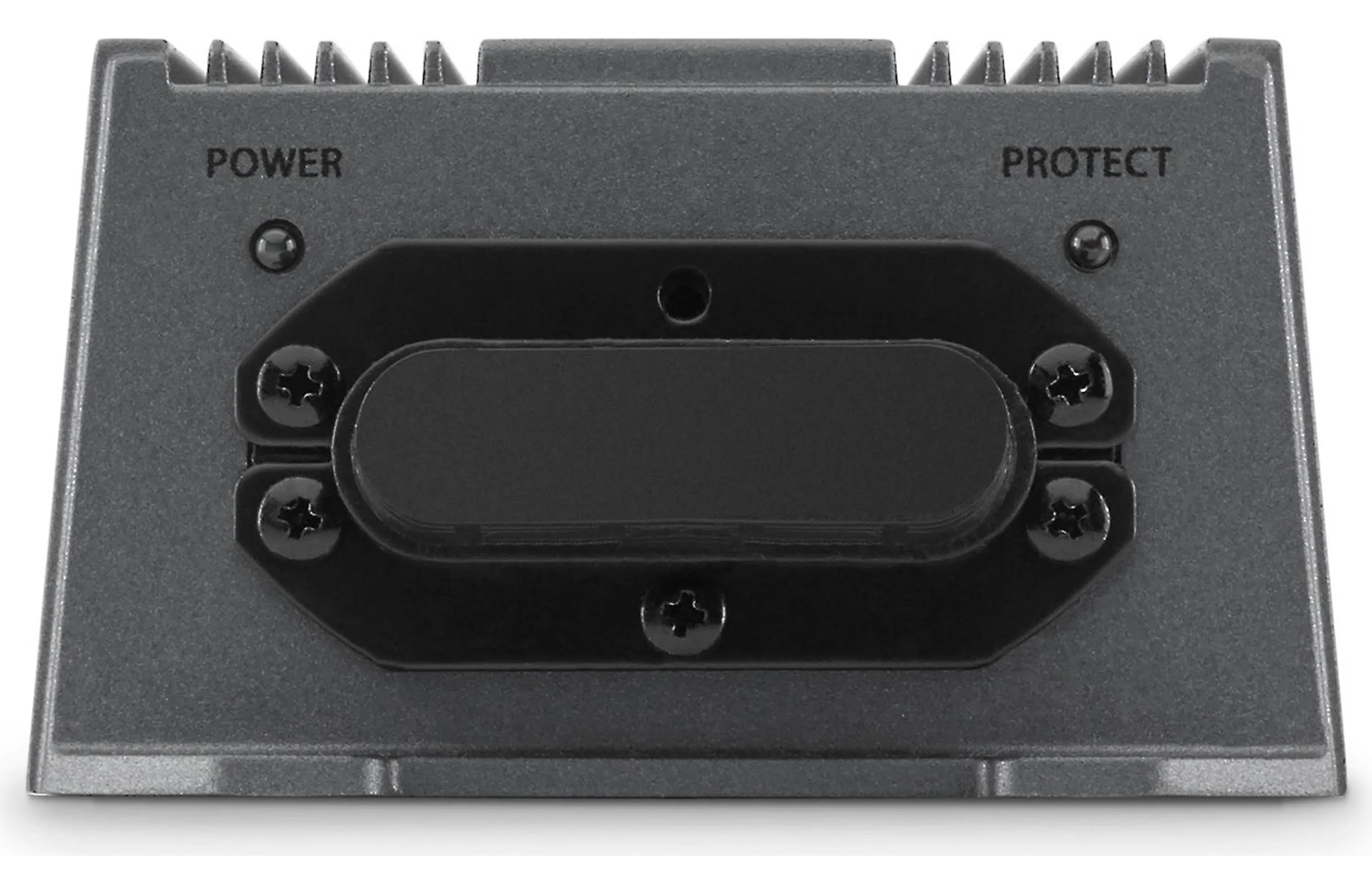

This amplifier features a black powder-coated finish, a gasketed cover for the controls and stainless steel hardware for durability.
| RMS Power Output (Watts x Channels) | 160 x 1 | |
| Frequency Response at Rated RMS Power | --- | |
| THD at Rated RMS Power | 1% | |
| Signal to Noise Ratio | 85 dB | |
| Input Voltage | 14.4v | |
| Peak Power Output (Watts x Channels) | N/A | |
| Power at 2 Ohms (Watts x Channels) | 300 x 1 | |
| Bridged Power (Watts x Channels) | N/A | |
| Minimum Impedance Bridged | N/A | |
| Minimum Impedance Unbridged | 2 | |
| Features | ||
|---|---|---|
| Amplifier Class | D | |
| Low-Pass Crossover Frequency | 40-400 Hz | |
| Low-Pass Slope (dB/octave) | 24 dB/octave | |
| High-Pass Crossover Frequency | N/A | |
| High-Pass Slope (dB/octave) | N/A | |
| Bass Boost | 0-12 dB | |
| Bass Boost Frequency | 43 Hz | |
| Fan Cooled | No | |
| Fuse Rating | 35 | |
| Speaker Level Inputs | Yes | |
| Preamp Outputs | No | |
| Height (inches) | 1-13/16 | |
| Width (inches) | 8-11/16 | |
| Depth (inches) | 3-1/8 | |
