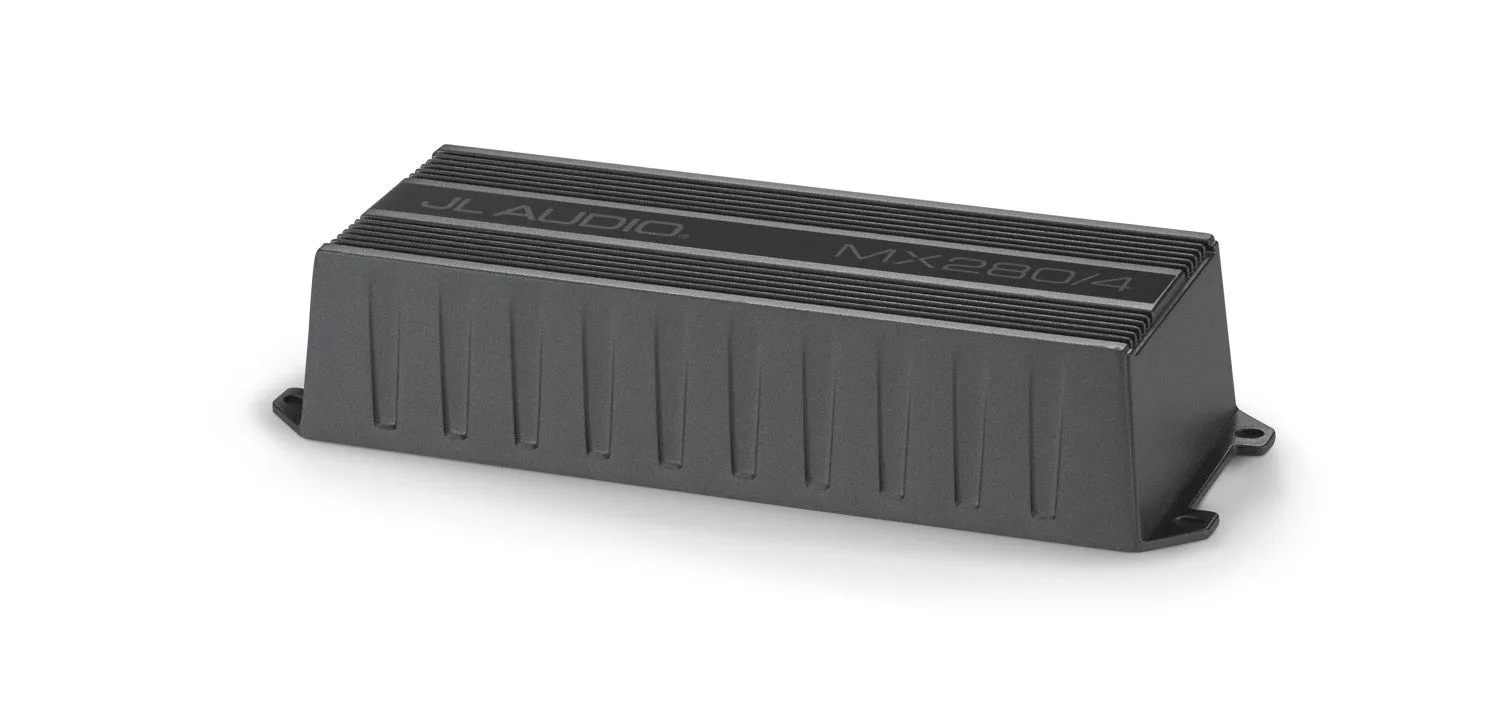

Name: JL Audio MX280/4 4 Ch. Class D Full-Range Marine Amplifier
SKU: 334472

JL Audio MX280/4 4 Ch. Class D Full-Range Marine Amplifier

$ 72.00

$ 0.00

Unavailable

Please select combo product attributes

The combo subtotal is $,SAVE$

Summary

4-channel amplifier

50 watts RMS x 4 at 4 ohms (70 watts RMS x 4 at 2 ohms)

140 watts RMS x 2 bridged at 4 ohms (4-ohm stable bridged)

Variable low-and high-pass filters (35-300 Hz, 12 dB/octave)

Class D amplifier design with NextD switching amp technology

IPX6 water-resistance rating

Corrosion-resistant cast aluminum chassis

Overview

Engineered specifically for powersports applications, the 4-channel MX280/4 amplifier employs the high-speed NexD switching design to deliver plenty of clean power, without straining charging systems. Its tiny, cast aluminum chassis is highly resistant to corrosion, with an IPX6 water-resistance rating, making it perfect for motorcycles, ATVs or other utility vehicles.

Generating a solid 50W x 4 into 4 ohms (14.4V, 1% THD), the MX280/4 is fully bridgeable, so it can be used as a 3-channel amplifier, or as a 2-channel amplifier producing a potent 140W x 2 into 4 ohms.

Other features include independent front and rear crossovers with selectable full-range, high-pass or low-pass filter controls and a dual-range input section that accepts a wide range of input voltage levels, from line-level all the way to high-power speaker level signals.

This amplifier features a black powder-coated finish, a gasketed cover for the controls and stainless steel hardware for durability.

Performance

RMS Power Output (Watts x Channels) 50 x 4
Power at 2 Ohms (Watts x Channels) 70 x 4
Bridged Power (Watts x Channels) 140 x 2
Minimum Impedance Bridged 4

Features

Amplifier Class D
Low-Pass Crossover Frequency 35-300 Hz
Low-Pass Slope (dB/octave) 12 dB/octave
High-Pass Crossover Frequency 35-300 Hz
High-Pass Slope (dB/octave) 12 dB/octave
Fuse Rating 35
Speaker Level Inputs RCA
Preamp Outputs No
