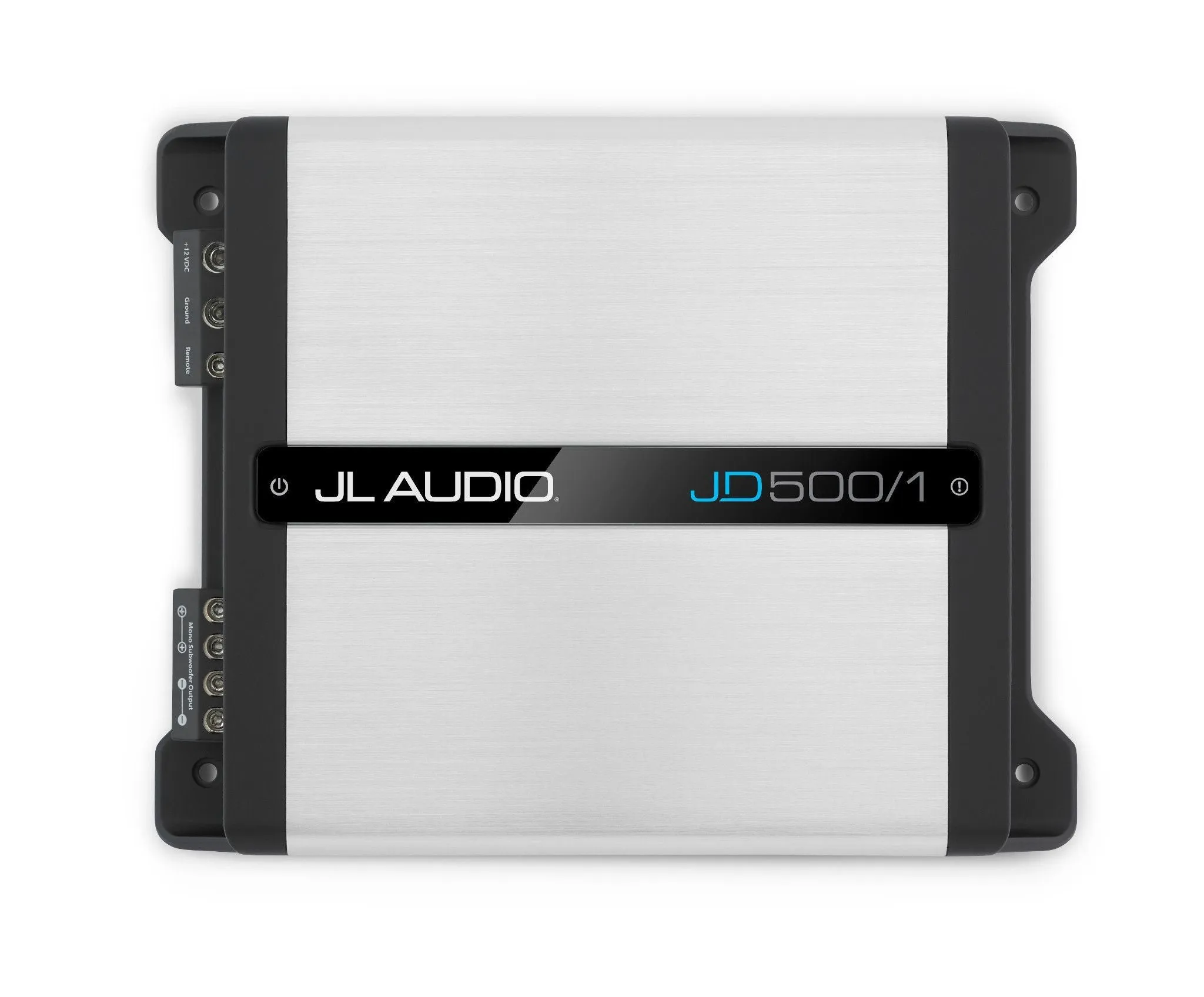

Monoblock Class D Subwoofer Amplifier, 500 W x 1 @ 2 / 250 W x 1 @ 4 - 14.4V

Designedto produce a whopping 500 watts into 2 ohms (14.4V, 1% THD), the JD500/1 amplifier is a great solution for powering subwoofers in a cost-conscious system.Our proprietary NexD switching technology delivers large amounts of real-world power output with excellentefficiency and ultra-low distortion.

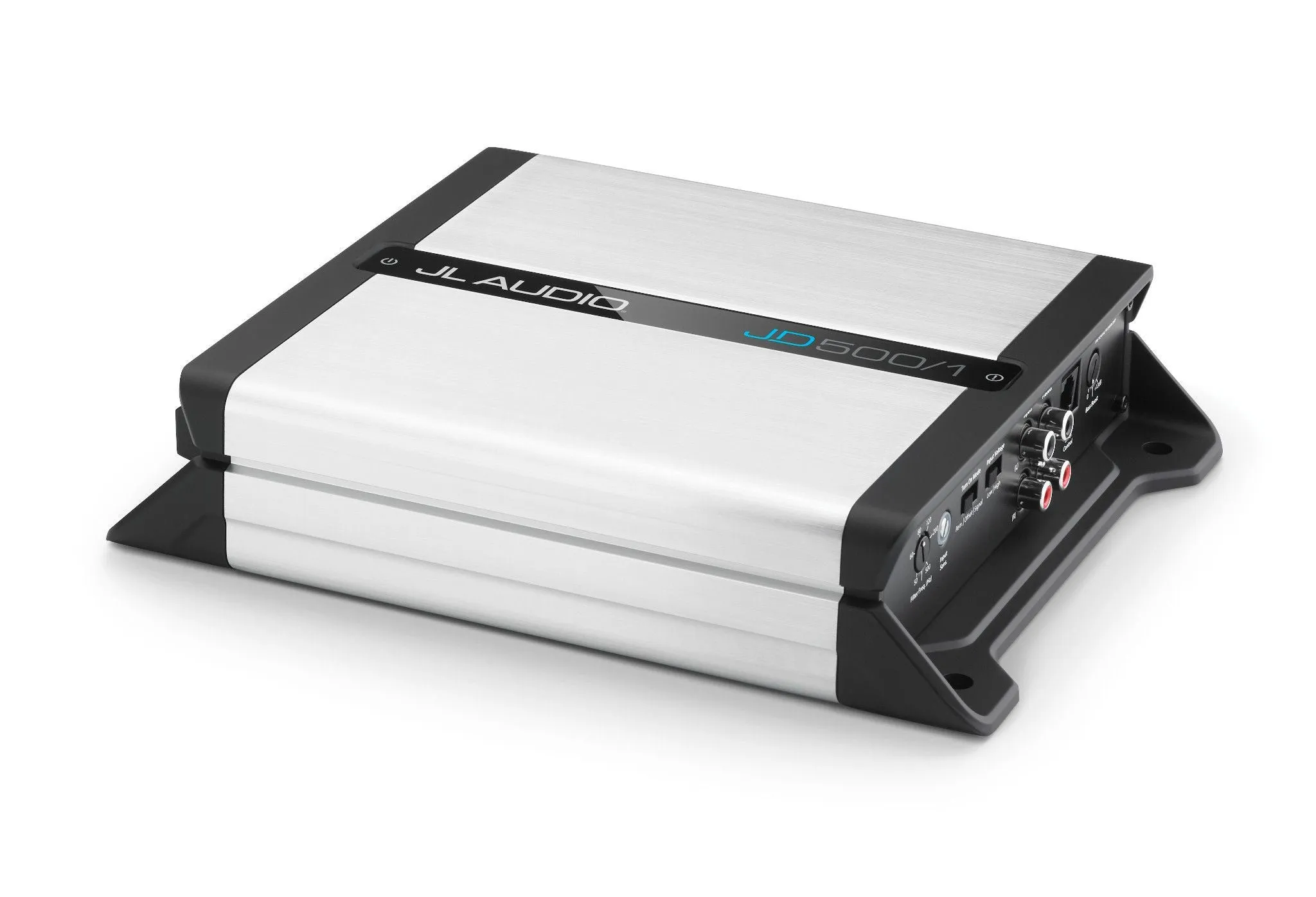

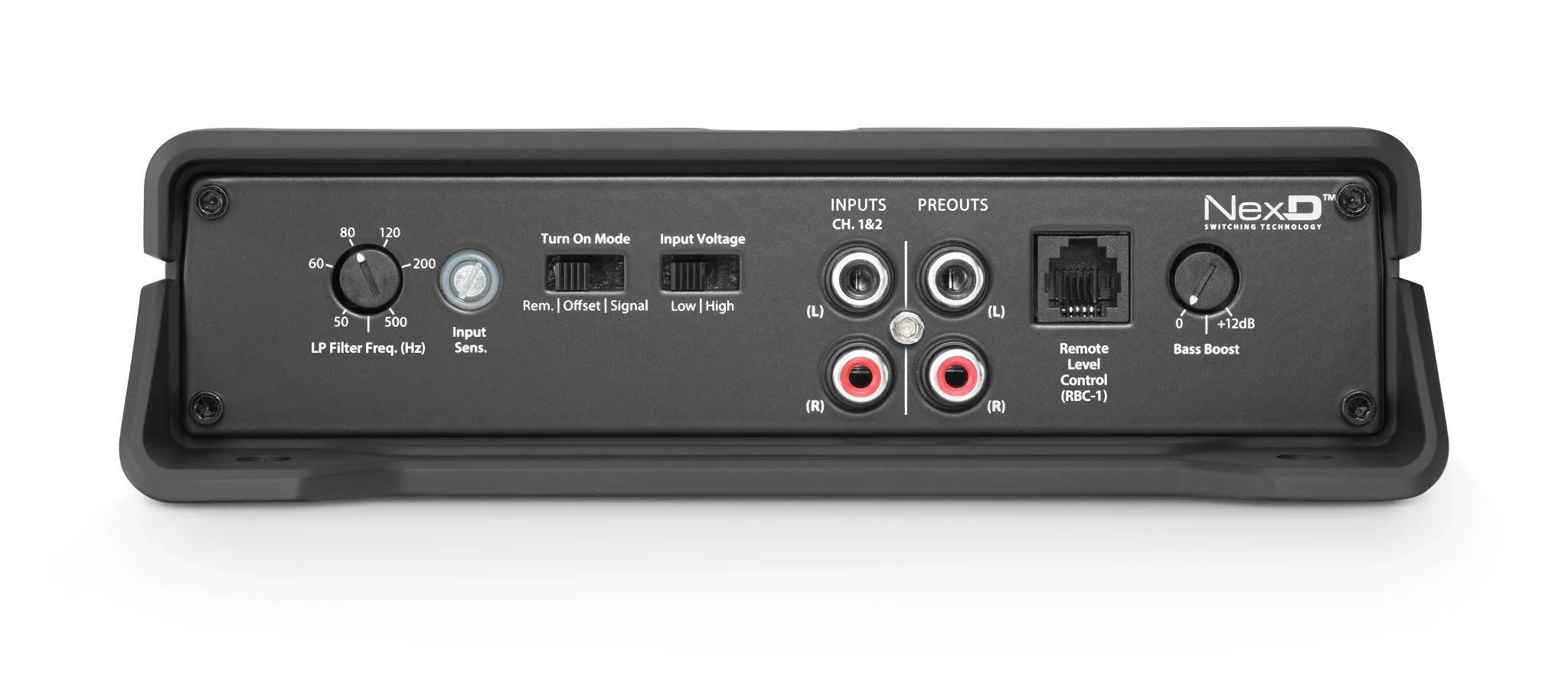

The JD500/1s controls are located onthe input panel.while the power and speakerconnections can be found along the opposite endof its extruded aluminum chassis. Signal processing features include a 12 dB / octave low-pass filter, with continuously variable frequency selection from 50-500 Hz, and a variable bass boost EQ. Dual-range, differential-balanced inputs are also on-hand, capable of accepting line-level and speaker-level signals. Automatic turn-on capability (via signal sensing or DC-offset sensing) is standard, along with a set of preamp outputs so you can easily pass signals to another amplifier.

The JD500/1 is also equipped with an onboard LED-clipping indicator ring, surrounding the input sensitivity control. This usefulfeature lets you set your amplifiers input sensitivity, quickly and accurately, without special equipment. With the addition of an RBC-1 remote level control (sold separately), you can control the subwoofer levelfrom the drivers seat.
