Summary

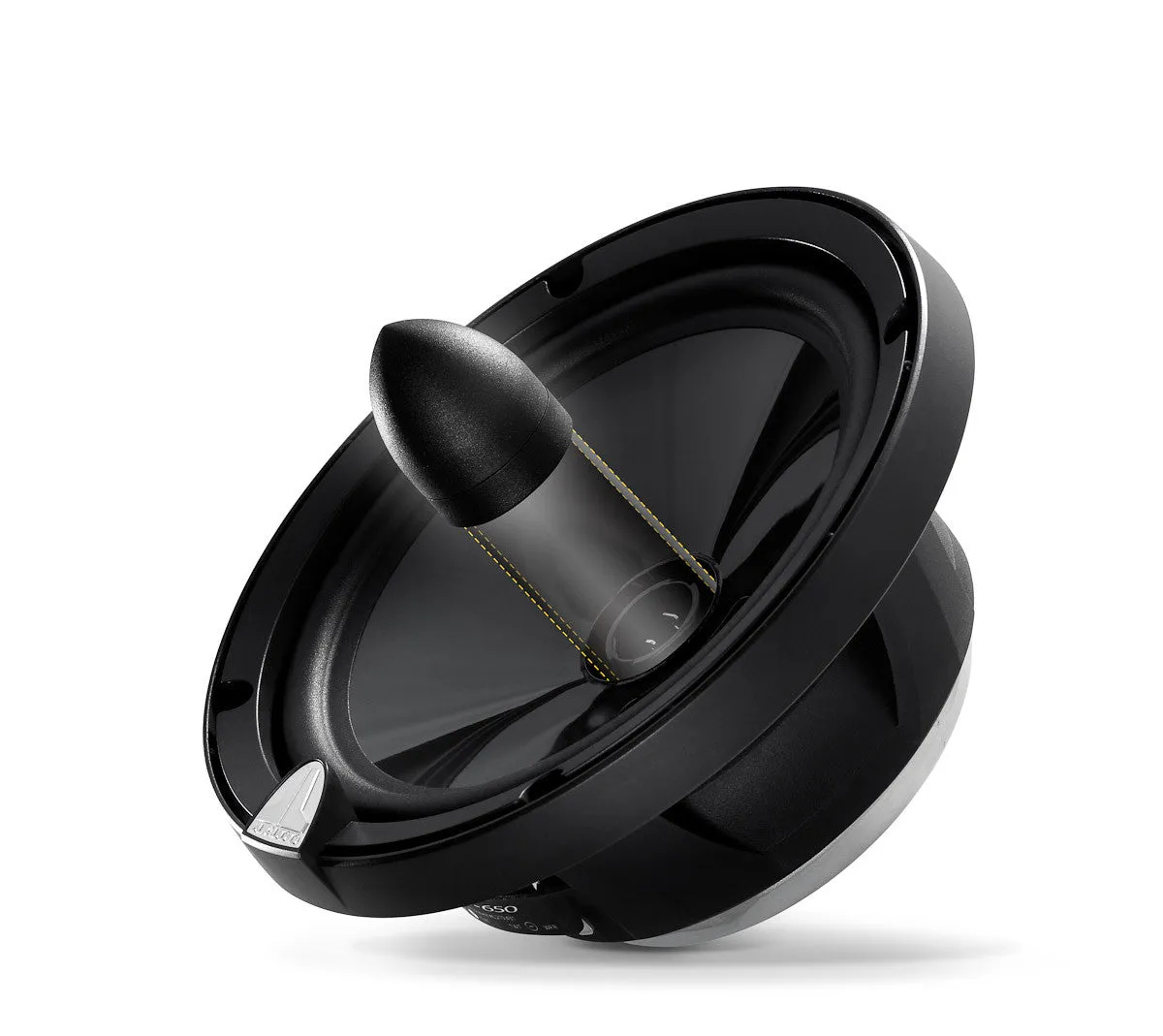

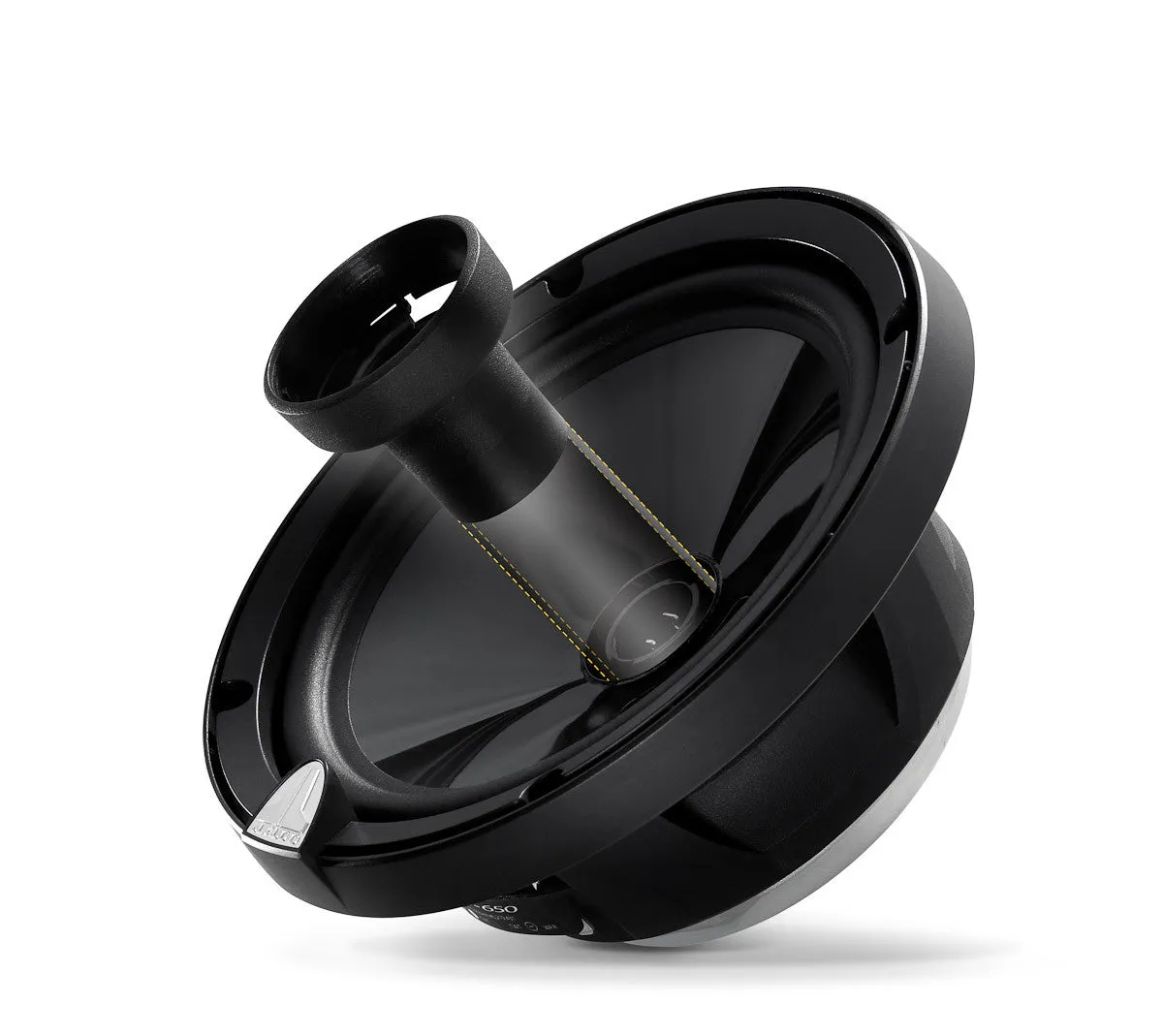

The C3-650cw is a 6.5-inch (165 mm) component woofer capable of accurate reproduction between 48 Hz and 5 kHz. It features a mineral-filled polypropylene cone and an injection-molded polymer basket. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.
A grille is included, consisting of a black grille tray and a black steel mesh grille.
Sonic character: Clean and Powerful
Sold individually.
Specifications
General Specifications
- Continuous Power Handling (RMS) 75 W
- Peak Music Power 225 W
- Recommended RMS Amplifier Power (per Ch.) 25 - 150 W
- System Efficiency 90.0 dB @ 1 W / 1 m
- System Nominal Impedance 4
- System Frequency Response 48 Hz - 5 KHz 3 dB
Woofer Physical Specifications
- Frame Outer Diameter (A) 6.50 in / 165 mm
- Grille Tray Outer Diameter (B) 6.74 in / 171 mm
- Rear Cover Outer Diameter (C) 4.08 in / 104 mm
- Frontal Coaxial Tweeter Protrusion* (D) 0.75 in / 19 mm
- Frontal Grille Protrusion** (E) 1.03 in / 26 mm
- Mounting Hole Diameter (F) 5.56 in / 141 mm
- Mounting Depth (G) 2.55 in / 65 mm
