Summary

• Very shallow mounting depth (3.25 / 3.50 Inches)
• No pole vent: permits mounting close to rear wall of enclosure.
• Very small sealed enclosure volume requirements
• Very long linear excursion capability (0.60 In / 15.2 mm, one-way)
• DMA-optimized motor designs
• concentric tube architecture
• Patented floating cone attach method technology
• Cast alloy frame
• Injection molded, mica-filled polypropylene cone
• Rubber surround
• Aluminum-alloy dust cap and rear cap with JL Audio logo
• Precision-built in USA at JL Audios Miramar, Florida factory with global components

Overview

Building on the core technology of our TW5 thin-line subwoofers, the TW3s deliver a powerful combination of shallow mounting depth and excursion capability. In fact, they are capable of greater excursion than the W3v3s.

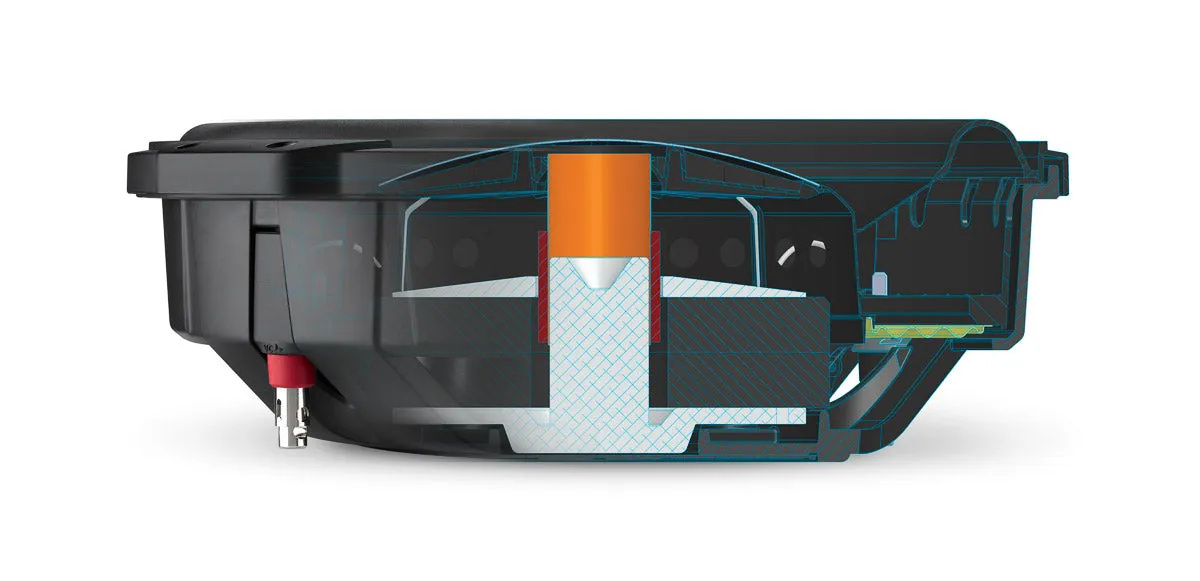

To allow this remarkable feat to be achieved, JL Audios patented thin-line woofer technology compresses the architecture of the TW3s using a concentric tube structure built into the injection-molded cone body. This structure supports the voice coil and a full annular spider, while permitting the placement of the large motor structure further forward in the speaker than with conventional designs.

TW3s are optimized for small enclosures and offer our tab-ear mounting design to maximize cone area within their mounting footprints. We know youre going to love working with these amazing subwoofer drivers.

Deep, powerful and accurate JL Audio bass is now possible in more applications than ever.
