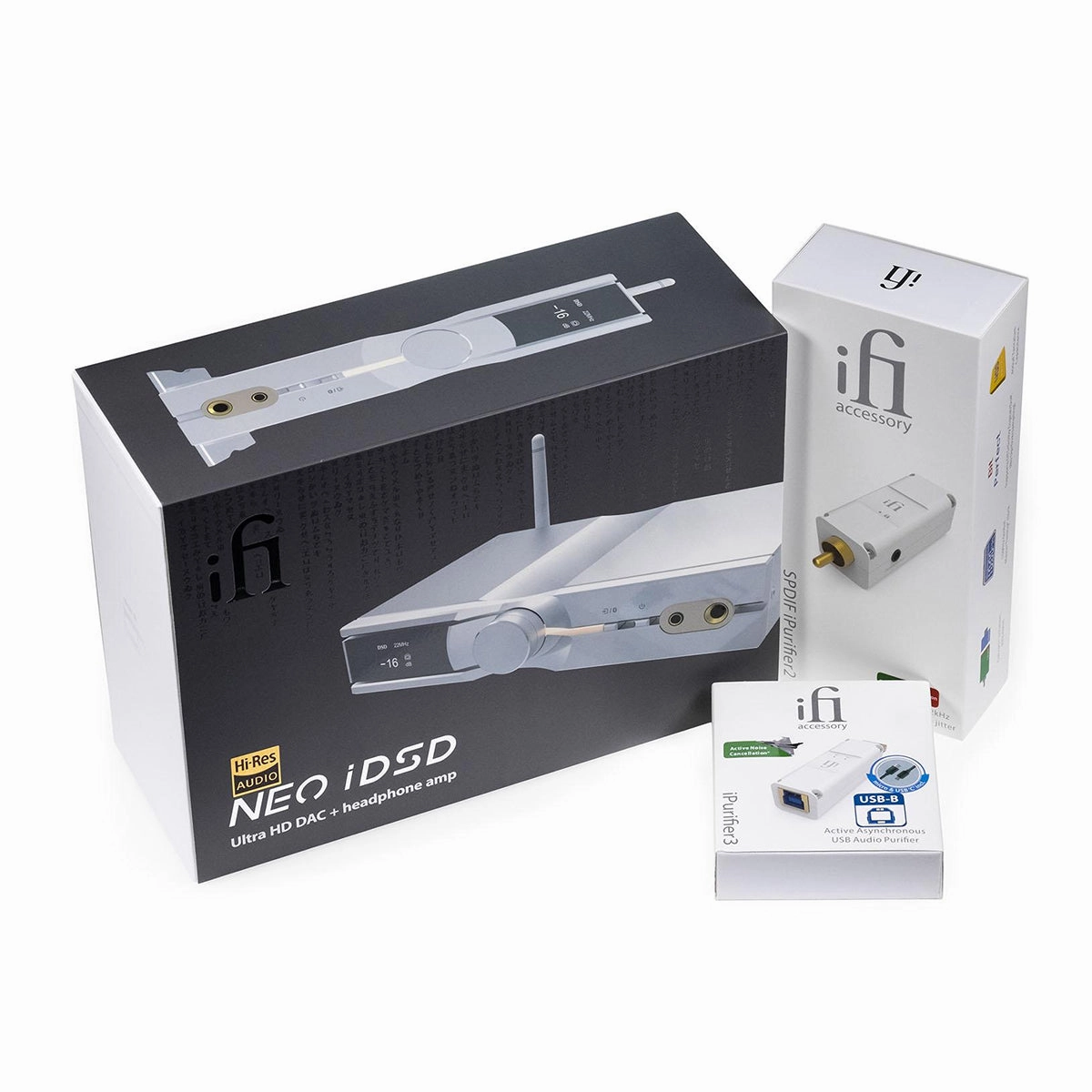

Combination of iFi's
Neo iDSD Specs
Inputs | ||
| Digital | USB3.0 B (USB2.0 compatible)/S-PDIF (coaxial/optical) Bluetooth 5.0 ( AAC, SBC, aptX, aptX HD, aptX Adaptive, aptX LL, LDAC, LHDC/HWA Codec) | |
| Formats | DSD512/256/128/64, Octa/Quad/Double/Single-Speed DSD DXD (768/705.6/384/352.8kHz), Double/Single-Speed DXD PCM (768/705.6/384/352.8/192/176.4/96/88.2/48/44.1kHz) MQA Bluetooth 96kHz | |
Outputs | ||
| Balanced XLR | 6.3V / 7.7V max. (variable) | 4.4V fixed |
| UnBAL RCA | 3.2V / 3.9V max. (variable) | 2.2V fixed |
Zout | ||
| Balanced | <= 100 | |
| UnBAL | <= 50 | |
| SNR | -112dB(A) @ 0dBFS (UnBAL/BAL) | |
| DNR | >116dB(A) @ -60dBFS (UnBAL/BAL) | |
| THD N | <0.0015% @ 0dBFS (UnBAL/BAL) | |
Headphone Section | ||
| Output | Balanced | >6.4V/68.6 mW (@ 600) >5.77V/1040 mW (@ 32) |
| UnBAL | >3.25V/17.6 mW (@ 600) >3V/295 mW (@ 32) | |
| Output Impedance | <1 (UnBAL/BAL) | |
| SNR | -112dBA (3.3V UnBAL/6.2V BAL) | |
| THD N | <0.0015% (125mW @ 32) | |
| Power consumption | No Signal ~0.5W Max Signal ~2.5W | |
| Dynamic range | -120dB(A) | |
| Input voltage | DC 5V/2.5A, AC 100 -240V, 50/60Hz (with iPower) | |
| Dimensions | 214 x146 x 41 mm 8.4" x 5.7" x 1.6" | |
| Weight | 970 g (2.14 Ibs) | |
| Warranty period | 12 months |
iPurifier3USB Purifier Type-B
TheiPurifier3is small but mighty and its packed with:
- REclock/REgenerate/REbalance Technology To improve music flow
- Active Noise Cancellation To cancel all incoming noise
| USB3.0 2.0 compatible input port, USB2.0 High Speed output port |
| Connectors: iFiFINALUSB solid-aluminium connectors (Impedance: 90 Ohms) |
| Dimensions: 69(l) x 19(w) x 20(h)mm |
| Weight:33g (0.1 lbs) |
| Warranty period: 12 months |
SPDIF iPurifier2REclock Jitter Elimination
Mainstream devices that output an S/PDIF signal typically suffer from really low-quality transmission due to huge amounts of jitter. Read: terrible sound quality.
The SPDIF iPurifier2 solves spdif splutters.
| Supported Signals | 44.1/48/88.2/96/176.4/192kHz; 16 to 24 Bit, DSD/DoP, Dolby Digital, DTS |
| Input | Combo optical mini-jack & gold-plated co-axial connector (impedance 75 Ohms) |
| Outputs | Gold-plated co-axial connector (impedance 75 Ohms) & optical mini-jack |
| Power Supply | Type-C USB, 5V/500mA (iPower 5V included) |
| Dimensions | 76(l) x 19(w) x 20(h)mm/3.0 x 0.7 x 0.8 |
| Weight | 56g (1.98oz) |
| Warranty period | 12 months |
