iFi NEO iDSD DAC And Headphone Amplifier

Bleeding-edge Bluetooth. MQA decoding. Balanced.

The DAC/amp. Reloaded

TheNEO iDSDis our new 3-in-one DAC/amp.

With balanced PureWave circuitry, unbeatable hi-res Bluetooth5.0and MQA, it is the ultimate in hi-res playback.

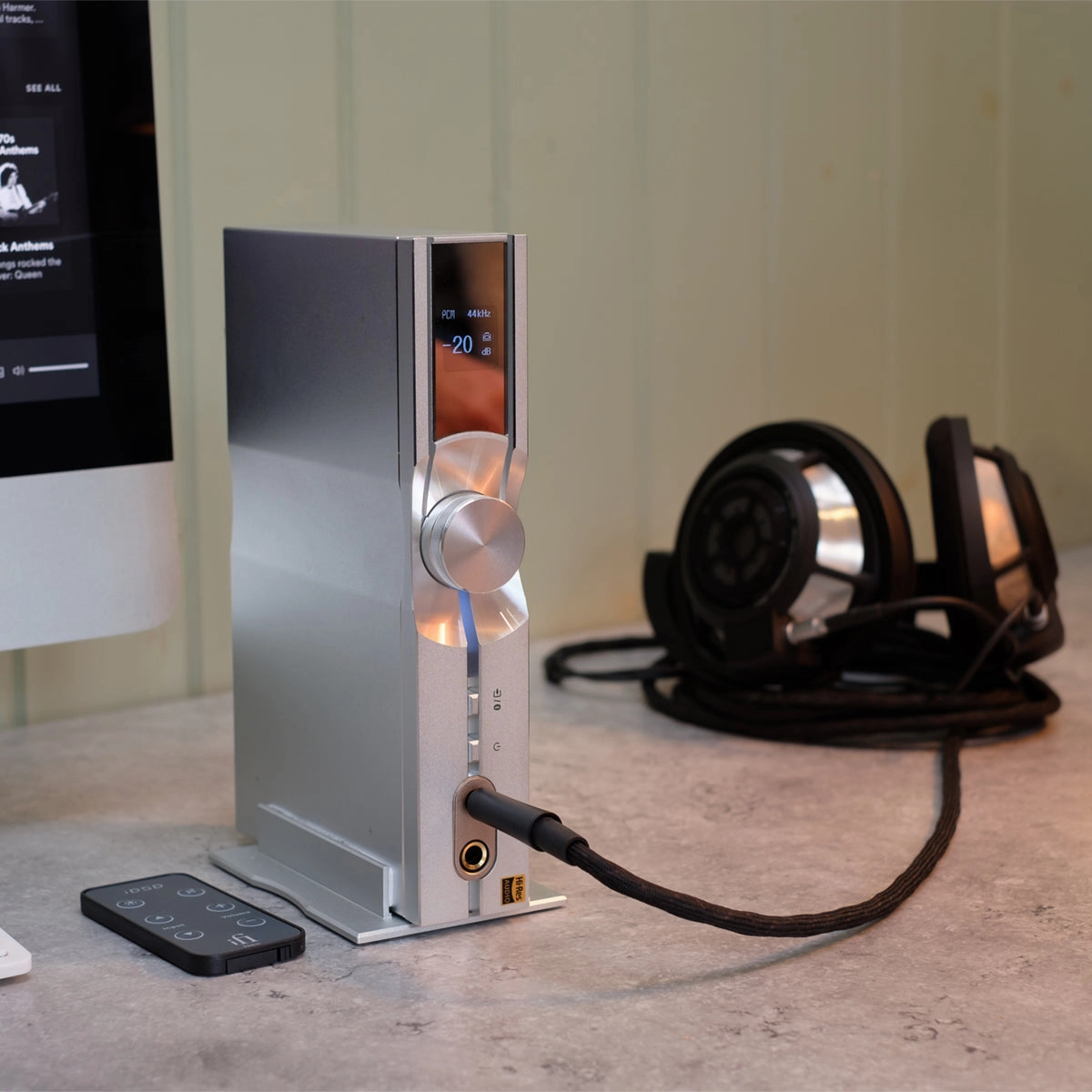

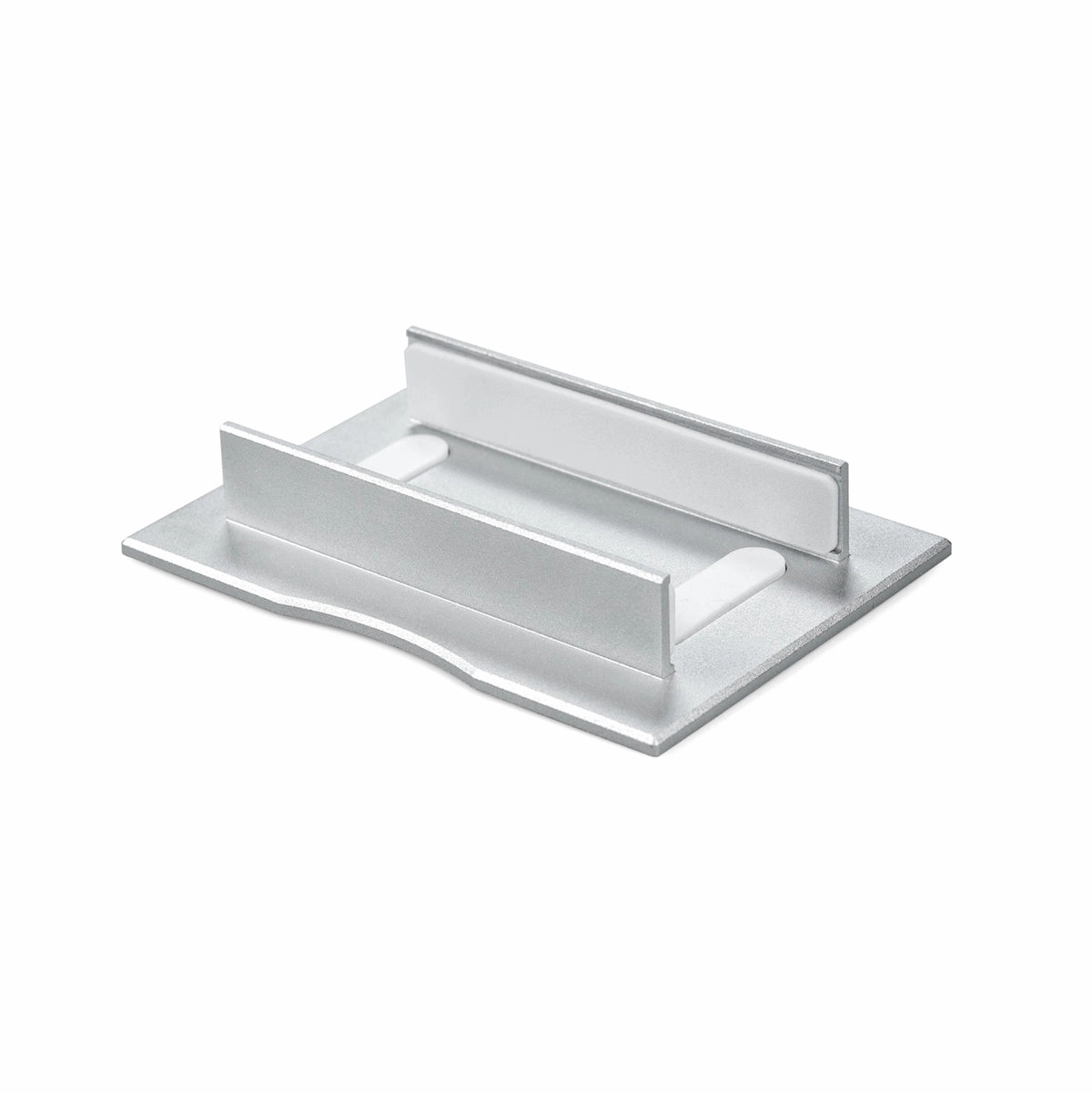

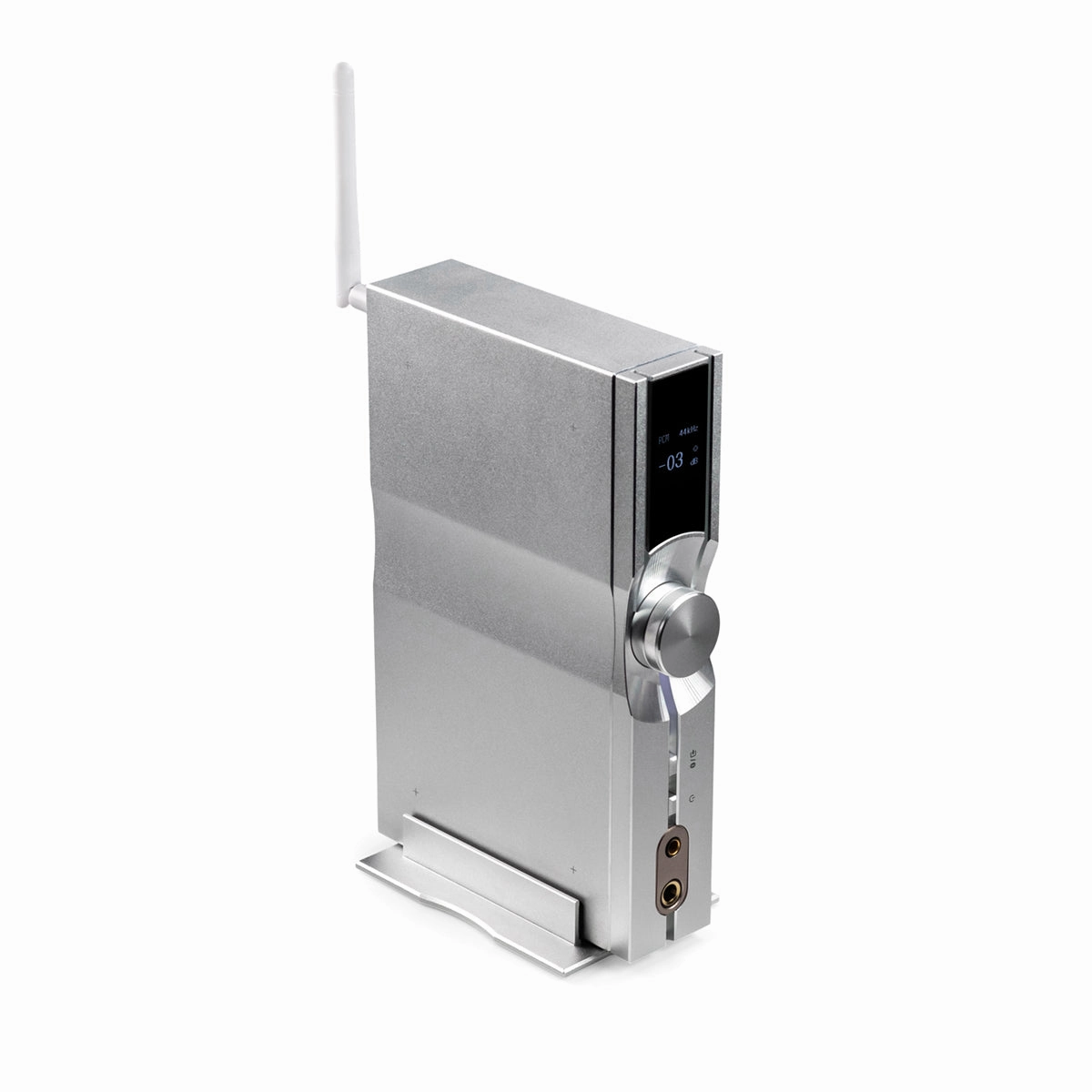

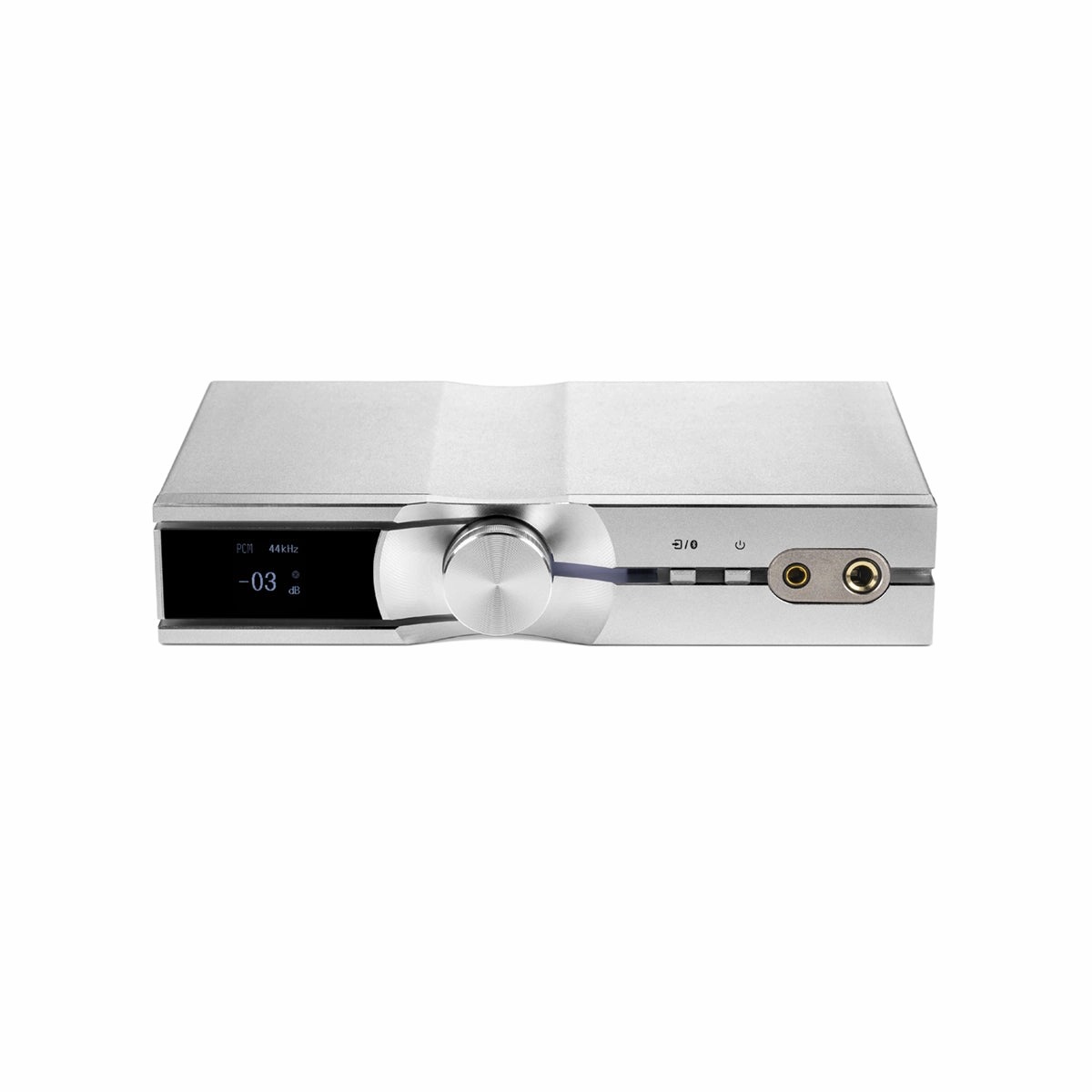

Place it horizontally or vertically to suit its surroundings. The OLED display flips to match orientation. One rotary knob controls functionality.

Sleek, sophisticated and versatile.

All. Bases. Covered.

Enjoy theNEO iDSDas a pure DAC.Connect it to a separate integrated amp or preamp using the fixed-level analogue output.

Or treat it as a DAC/preamp with a variable output. The ideal companion to a power amp or active speakers.

And headphone users will love using the excellent amp stage to create a fabulous head-fi system.

All. Games. Played.

Love your music but also love gaming?

TheNEO iDSDwill enhance your current or next-gen gameplay. Feel more immersed than ever before as sound finally matches picture in spectacular fashion.

Pair it with new the PS5 or Xbox Series X for the ultimate gaming experience.

Enhanced engine

The Burr-Brown DAC chipset still fuels theNEOs digital engine.

But weve souped it up with a new 16-core, XMOS microcontroller that processes the data via USB and S/PDIF digital inputs. Double the clock-speed. Four times the memory.

Add in jitter eradication including our GMT femto-precision clock, intelligent memory buffer and ourGTO filteras standard, and youve got one heck of a super DAC.

Hi-res heaven

TheNEO iDSDsupports PCM up to 32-bit/768kHz, DSD up to 512 and DXDx2. All remain bit-perfect.

TheNEOprovides full MQA decoding to ensure the best possible sound quality.

Plus with MQA over S/PDIF, take advantage of any MQA CDs in your collection.

Bleeding-edge Bluetooth

iFi uses Qualcomms new QCC5100 Bluetooth processing IC.

All current high-definition Bluetooth audio formats are supported aptx, aptX HD, aptX Adaptive, aptX LL, LDAC, HWA/LHDC, AAC and SBC.

TheNEO iDSDremembers up to 7 devices and has impressive range on Bluetooth5.0.

Ride the PureWave

Not only is theNEO iDSDa purist design no DSP, no digital filter selection and no change in analogue playback it is also all designed around a balanced circuit design named PureWave.

It uses audiophile-grade components and delivers sonic purity thanks to the extraordinarily low levels of noise and distortion.

Power and poise

The headphone amp stage maintains an engaging balance between sonic power and poise no matter what it is tasked to drive. From high-sensitivity in-ear monitors to current-hungry planar headphones, it drives them with aplomb.

It has a continuous power output of over 1000mW into 32ohms available through the balanced headphone socket. Plenty of oomph for headphone user.

Just more music

TheNEO iDSDcontains top-notch audio components to back-up the outstanding balanced circuit design. Scroll down for more.

Even the OLED SilentLine display is engineered to ensure there is no electrical noise to interfere with the audio signal as it switches itself off when not in use.

Quality components mean more clarity and texture, a more engaging performance. You just hear more of the music.

Featuring

• We use Qualcomms new QCC5100 Bluetooth processing IC in combination with proprietary circuits to create an audibly superior Bluetooth engine. All the current high-definition Bluetooth audio formats are supported Qualcomms aptX Adaptive and aptX HD, Sonys LDAC and HWAs LHDC, regular aptX and aptX Low Latency, AAC (Apple iOS devices) and SBC (the plain vanilla Bluetooth codec). Of the 24-bit-capable codecs, aptX Adaptive and aptX HD support up to 48kHz, while LDAC and LHDC reach 96kHz. iFis Bluetooth engine can also be updated over-the-air, so future codecs may be added.
• Balanced, differential analogue circuit design reduces noise and cross-talk within the signal path by fully separating the left and right channels. PureWave is a new, balanced, symmetrical dual-mono topology with short, direct signal paths. The name refers to the sonic purity it achieves thanks to exceptional linearity and infinitesimally low levels of noise and distortion. High-quality components are used throughout, including custom ultra-low-distortion op-amps, multilayer ceramic TDK C0G capacitors, MELF thin-film resistors and inductors from Murata and Taiyo Yuden. Their class-leading qualities such as low ESR (Equivalent Series Resistance), high linearity and low noise pay great dividends in terms of sound quality. The headphone amp stage has a continuous power output of more than 1000mW into 32ohms available through the balanced headphone socket. To retain maximum resolution, the volume is adjusted in the analogue domain via a resistor ladder, under precise microprocessor control.
• MQA (Master Quality Authenticated) is supported through the USB and S/PDIF inputs, with full decoding of MQA files up to 384kHz thanks to the processing power of the new 16-core XMOS chip. This means that the full three unfold decoding process is performed internally, as opposed to only the final unfold in the manner of an MQA renderer. Globally, MQA has become an important consideration for any comprehensively equipped DAC. It is available through for Tidal Masters, Audirvana and Roon.
• The Burr-Brown True Native chipset means file formats remain unchanged or bit-perfect. This means you are listening to music as the artist intended in the format in which it was recorded. At iFi we use Burr Brown extensively in our products having selected it for its natural-sounding musicality and True Native architecture. Our experience with this IC means we know how to make the most of it.
• The XMOS 16-Core chip processes the audio data received via the USB and S/PDIF digital inputs. This new low-latency XMOS microcontroller has greatly enhanced processing power. Compared to the current generation of eight-core chips, this new 16-core IC delivers double the clock speed (2000MIPS) and four times the memory (512KB), as well as the latest SuperSpeed USB standard. iFis in-house digital development team has programmed the XMOS firmware to optimise sound quality and ensure a perfect partnership with the Burr-Brown DAC.
• Hi-res audio support is state-of-the-art with True Native playback. It handles PCM data to 32-bit/768kHz, DSD up to DSD512 and single and double speed DXD. Thanks to the Burr-Brown DAC chips four-channel True Native design, PCM and DSD take separate pathways this enables DSD, as well as PCM, to remain bit-perfect in its native form right through to analogue conversion. This is not the case with all DAC devices from other brands even if DSD compatibility is stated, many such DACs convert DSD signals to PCM.
• Extensive jitter-eradication technologies are applied to the digital stage, including our GMT (Global Master Timing) femto-precision clock and intelligent memory buffer. This represents a total out-of-the-box systematic digital solution that solves jitter once and for all.
• As with many other iFi audio products, weve incorporated a custom OV Series operational-amplifier. This top-notch component contributes to the extremely low noise, low distortion (0.0001%) and wide bandwidth.
• Texas Instruments low-noise ICs offer great unity-gain bandwidth, very low noise and distortion, high output drive capability, Common-mode and Power Supply Rejection Ratios of over 100 dB, wide maximum-output-swing bandwidths and high slew rates.
• TDK C0G (Class 1 ceramic) capacitors offer high stability and low losses for resonant circuit applications. They are pricey but are a perfect addition to our products.
• muRata control-type, low-ESR high-Q multi-layer capacitors. The ESR control aspect of the Murata is something special. Their noise suppression abilities are impressive.
• Switching between settings has been engineered to ensure sonic transparency with advanced trench technology MOSFET is used as a muting switch. This FET-based switching is handled by a micro-controller, which only wakes up when the user changes a setting, thus eradicating any sonically deleterious interference.
