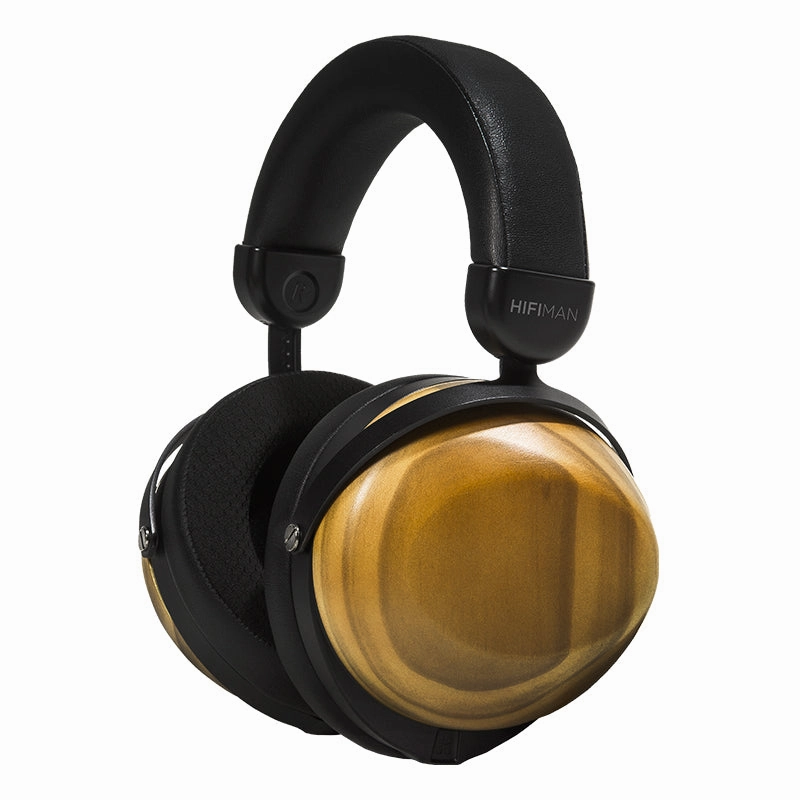

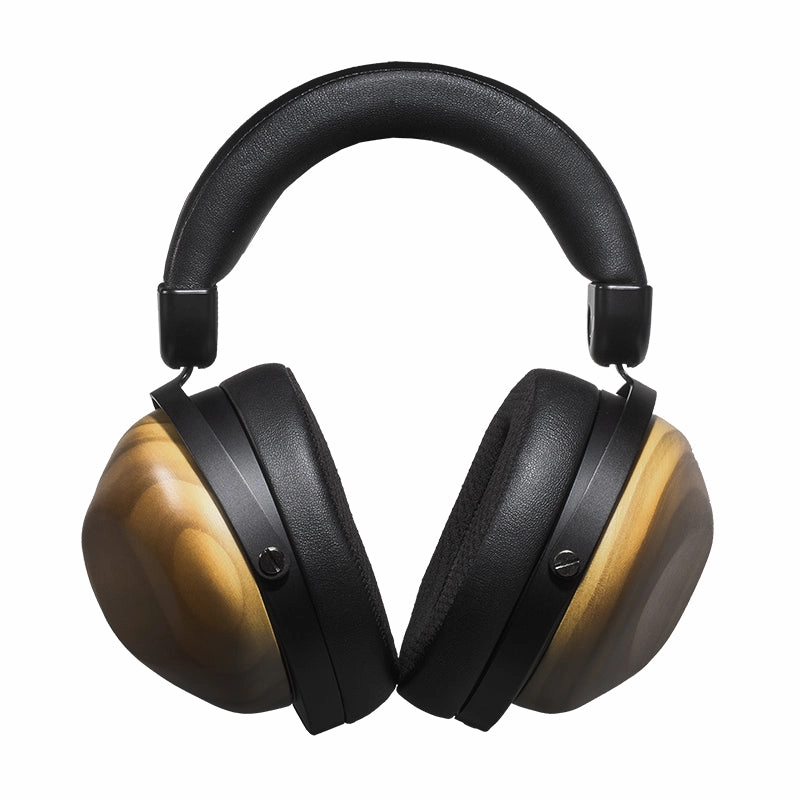

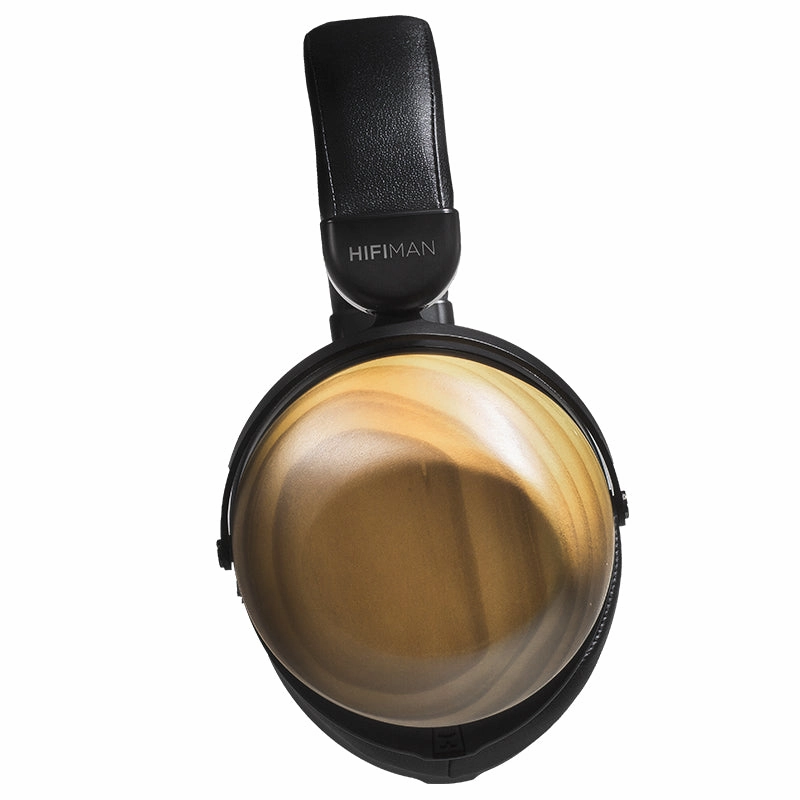

HE-R10
Dynamic Version

The wooden ear cup's large internal space brings sufficient
volume and breathing room to the powerful driver.

HIFIMAN Topology Diaphragm

The Topology Diaphragm refers to a diaphragm featuring a special Nano particle coating applied to its surface. The result is a more natural and detailed sound than what is typically achieved in True Wireless earphones.

The idea behind the new Topology Diaphragm was inspired by Dr Fang Bian's Ph.D. thesis that "different Nano materials have differing structures and each of those materials have its own properties". Therefore, by carefully controlling the diaphragm surface structure you can yield different results in acoustic performance to a degree previously unobtainable.

Best-sounding 50mm dynamic driver

High sensitivity thanks to HIFIMAN's use of a rare earth magnet

Topology diaphragm for detailed high frequency response to 30kHz

Advanced voice coil

Cables

The HE-R10D package includes three detachable cables with three different jacks: one cable with 3.5mm jack, one cable with XLR balanced jack and one cable with 1/4" (6.35mm) jack.

3.5mm/ 1.5m
XLR balanced/ 3m
1/4" (6.35mm)/ 3m

Input Options

Wired Version

Traditional wired 3.5mm input
With 3.5mm to 6.35mm connector

Wireless Version

Bluetooth
A variety of HD Bluetooth protocol

LDAC
Qualcomm aptX HD
Qualcomm aptX
AAC
SBC

USB

USB DAC via USB-C cable

HE-R10 Dynamic
Specifications:

Frequency Response: 15-35kHz, 10 Hz - 60 kHz
Impedance: 32, 30
Sensitivity: 103dB, 100 dB
Weight: 337g, 460g
Socket: 3.5mm Balance Output
Frequency Response: 20Hz-20kHz
AMP Output in fact: 230mw
AMP Output in theory: 1125mw
TDH: <0.1% @1W/1KHz
SNR: 95dB
Battery Life: 7-10 Hours
Weight: 25g
Bluetooth Codecs [Wireless Version Only]: LDAC, aptx-HD, aptX, AAC, SBC
Transmission [Wireless Version Only]: Bluetooth/USB Type C
