Fyne Audio F500SP Bookshelf Loudspeaker (pair)

With a 6" bass-mid driver, 25 mm magnesium dome tweeter, down-firing bass port, and 90 dB sensitivity

TheF500SP is the smallest loudspeaker in the UK-built Special Production series. from Fyne Audio. The SP version addsspecial production IsoFlare driver, tuned crossover, and premium BassTrax port system, all derived from the prestigious F700 series.

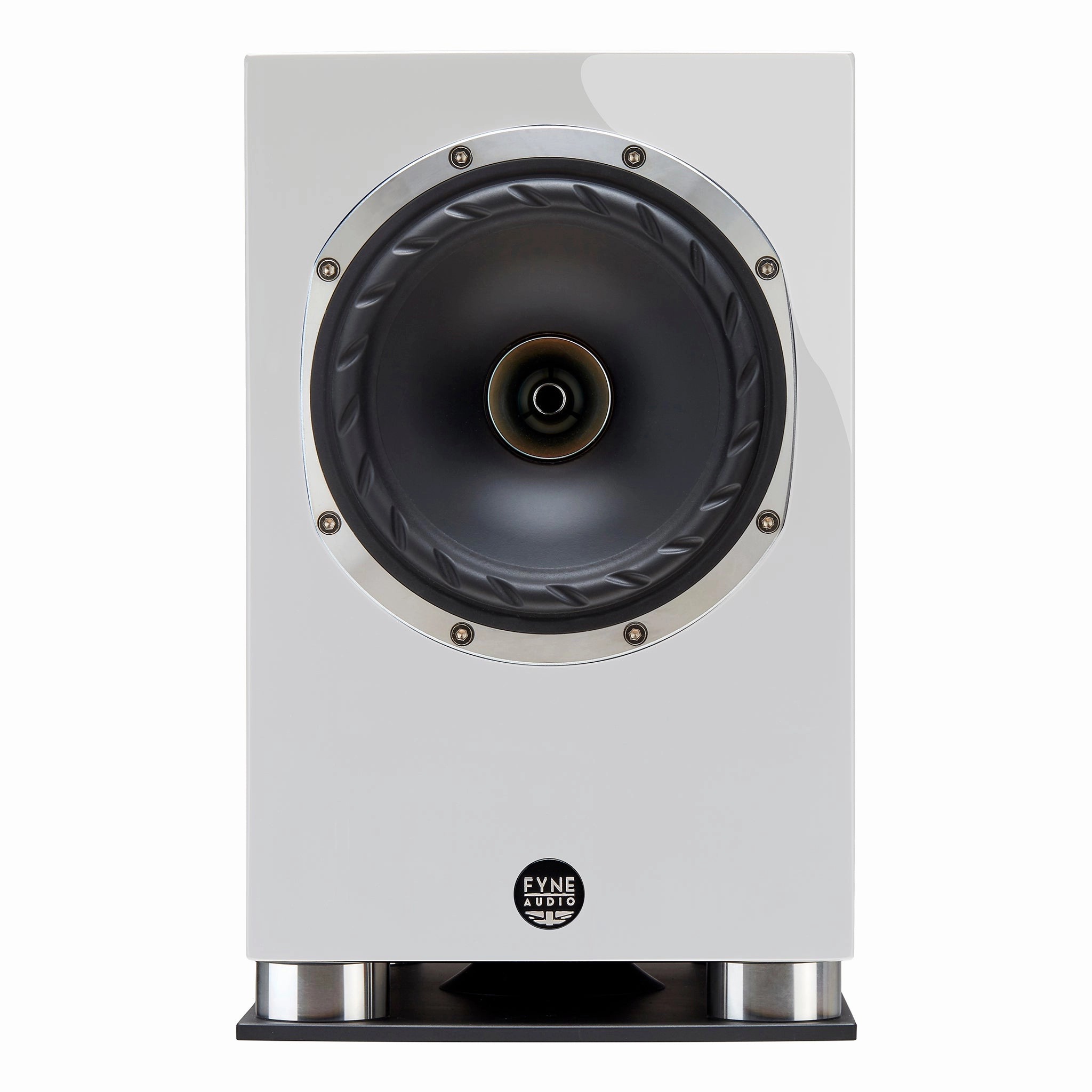

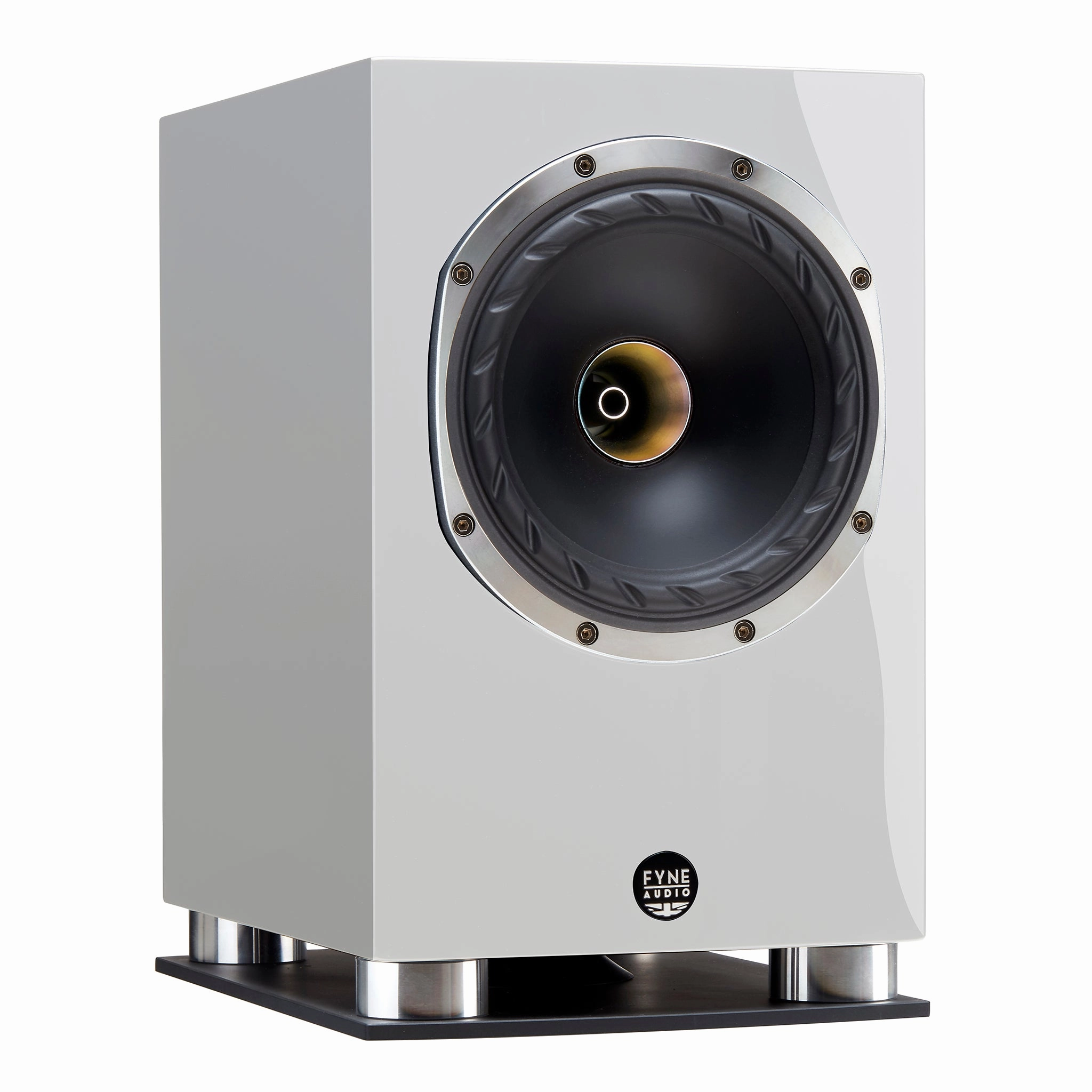

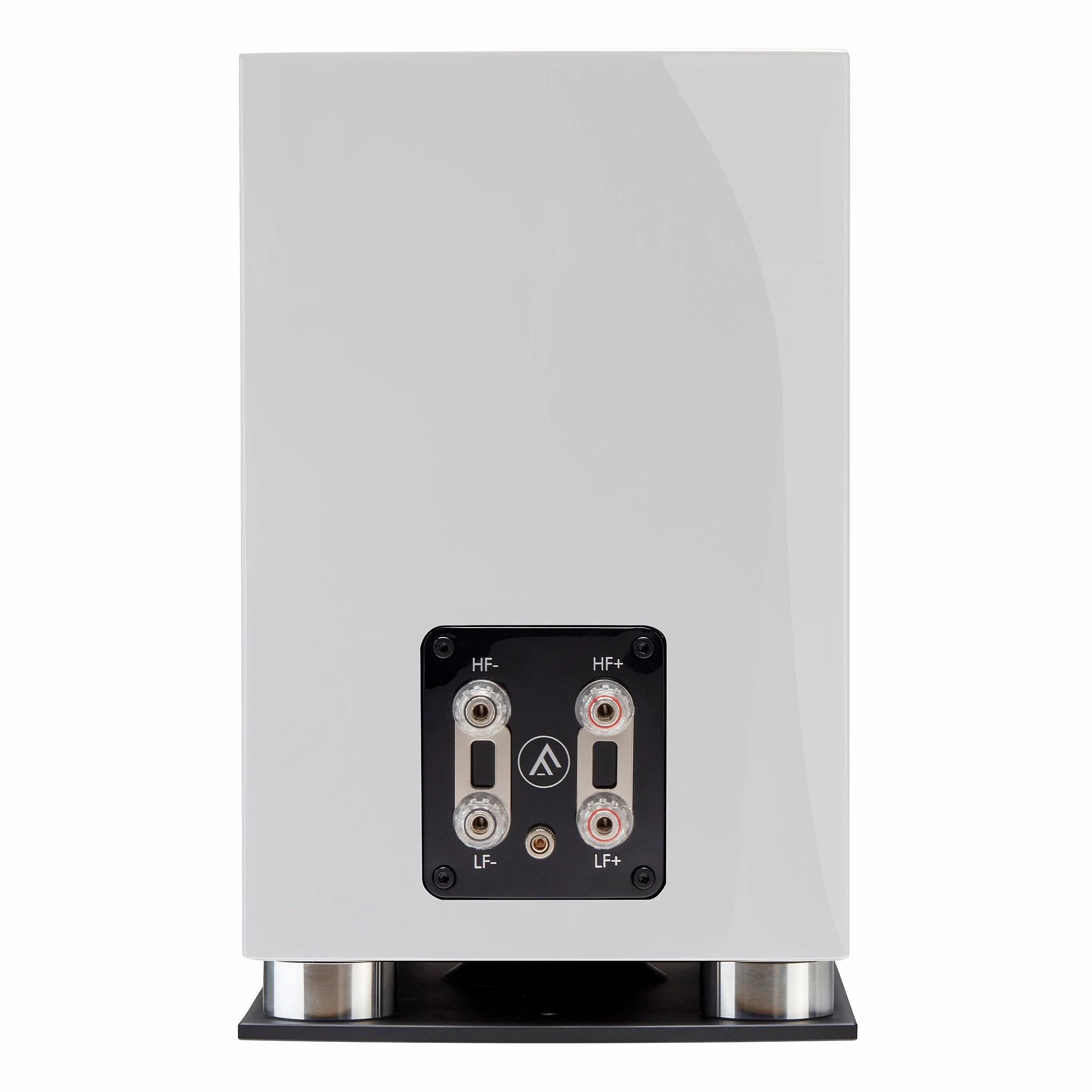

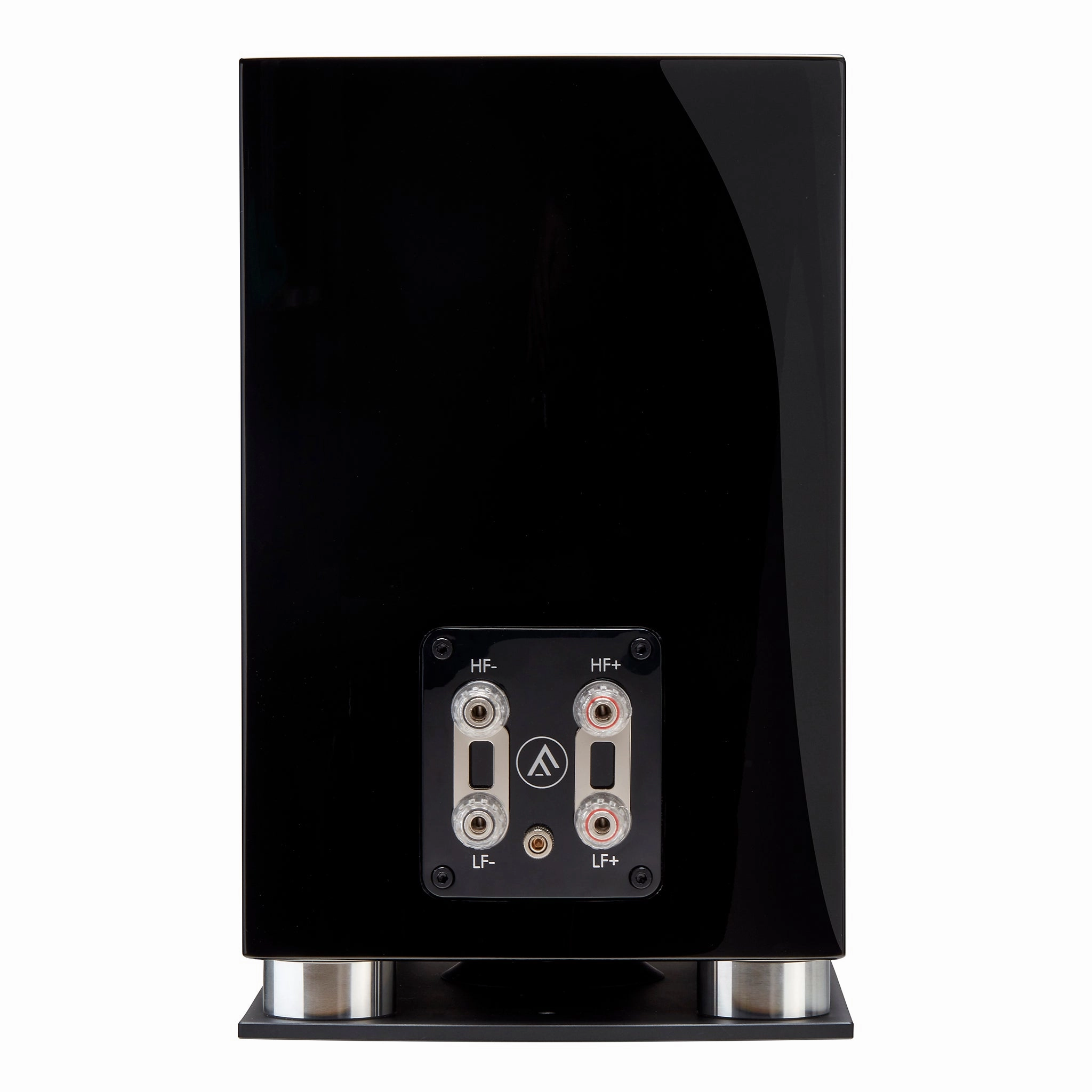

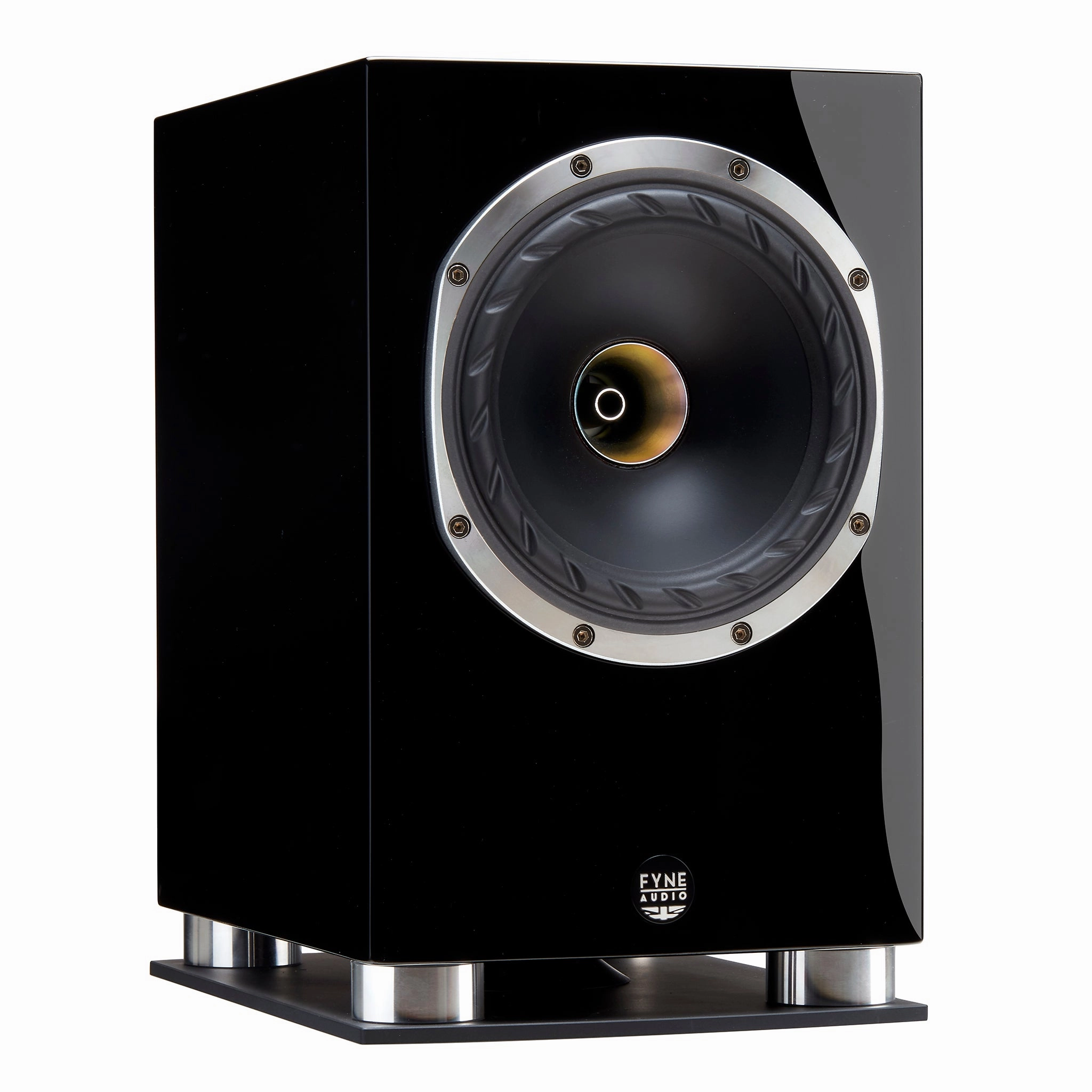

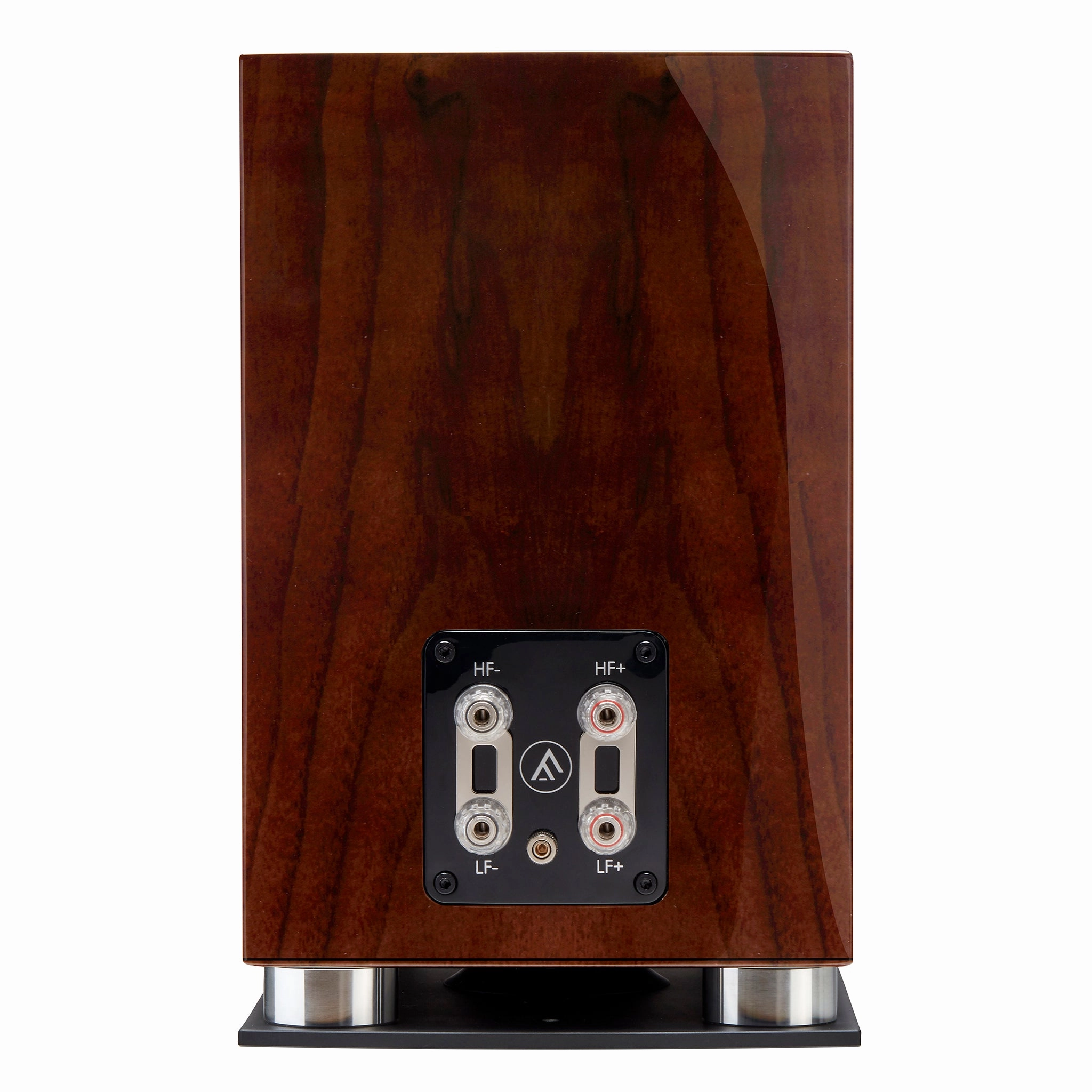

This standmounts 6 SP IsoFlare driver delivers full-range, point source reproduction across the entire audio spectrum for outstanding detail and class-leading imaging. The multi-fiber cone has exceptional bass reproduction thanks to its innovative twin-magnet motor system and FyneFlute roll surround that reduces cone resonances at the driver termination. The LF output is channeled through a downfiring port onto Fynes premium BassTrax Tractrix diffuser system, giving a smooth bass response and easy room integration. The bi-wire connection panel features a fifth terminal to ground the driver chassis and eliminate amp or cable-borne RF interference.

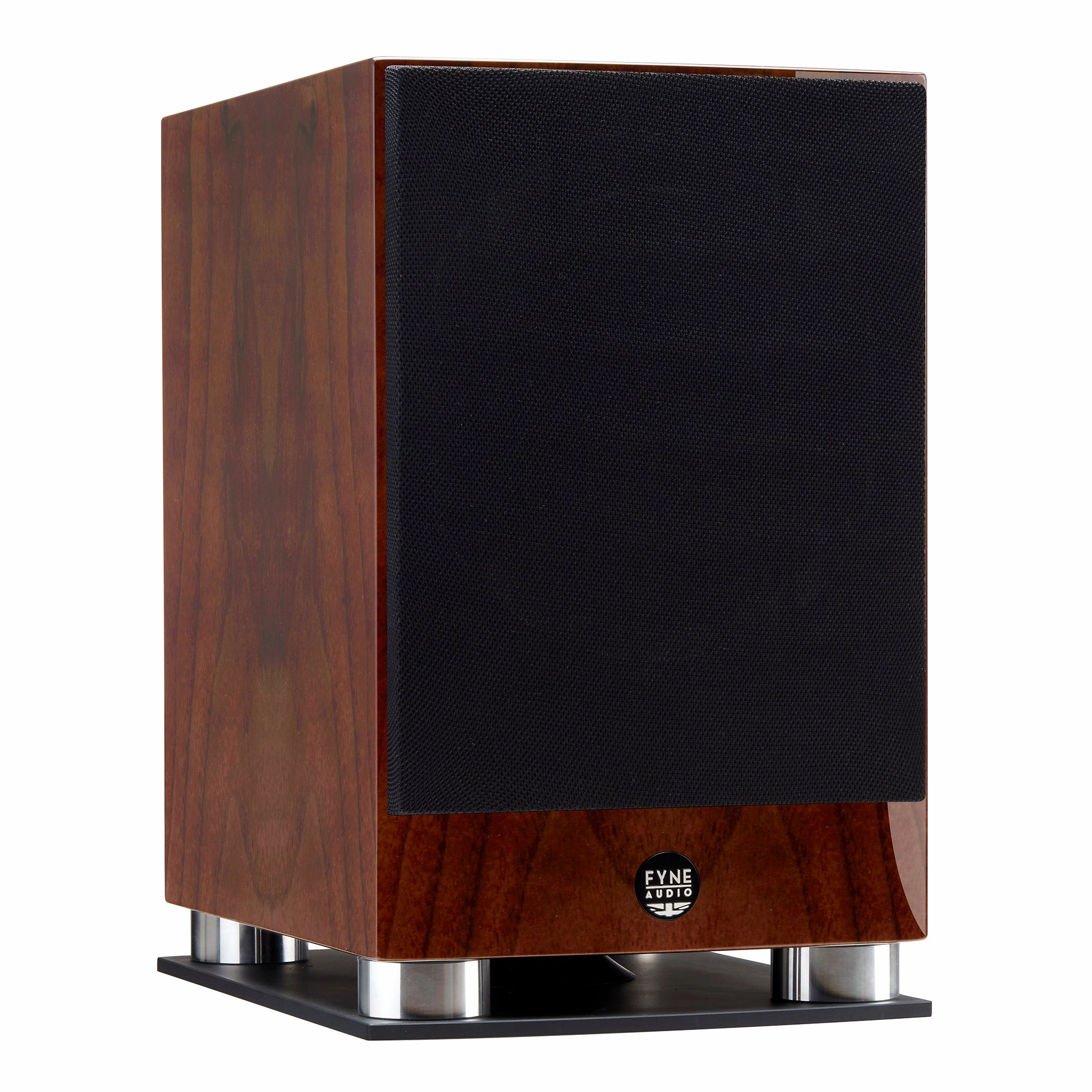

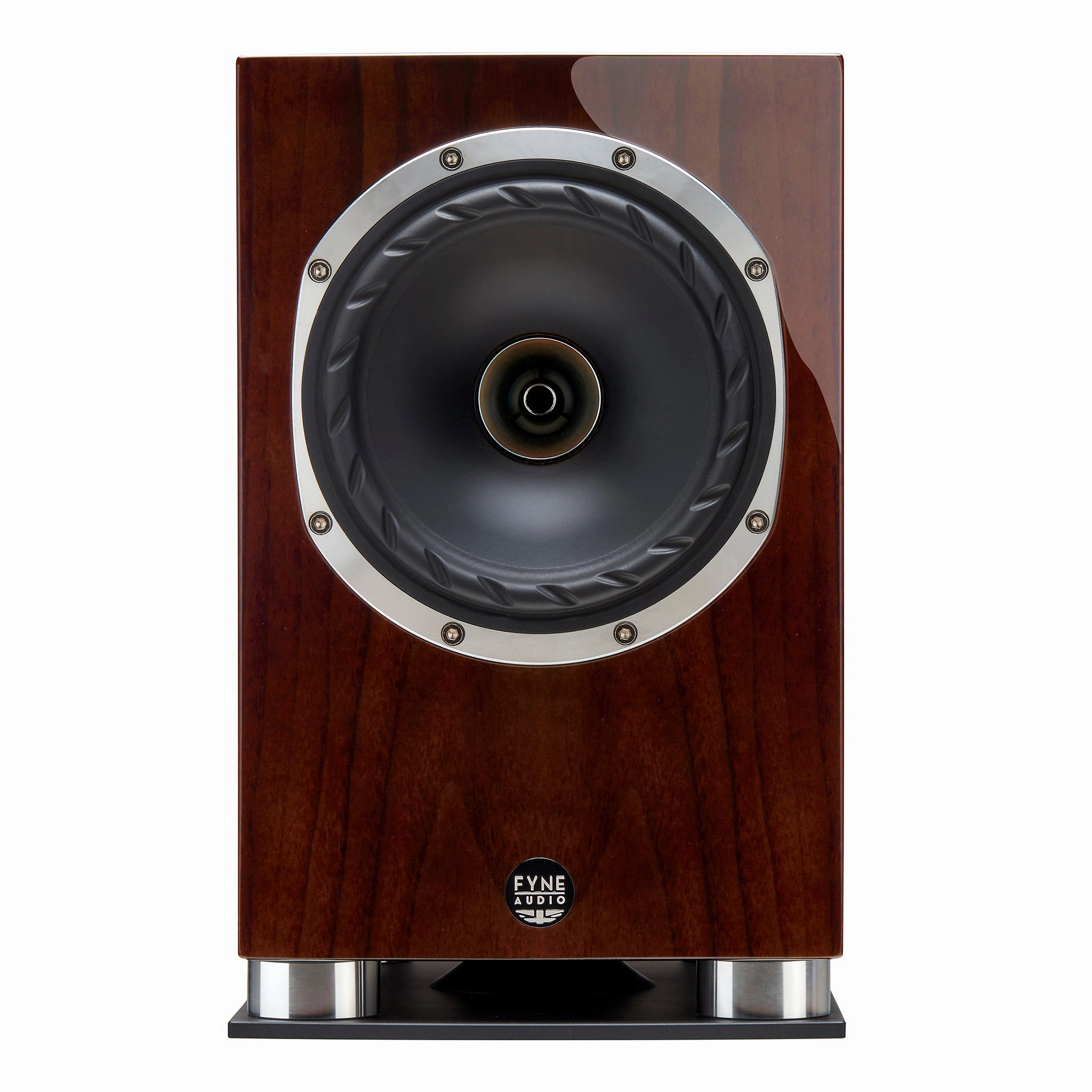

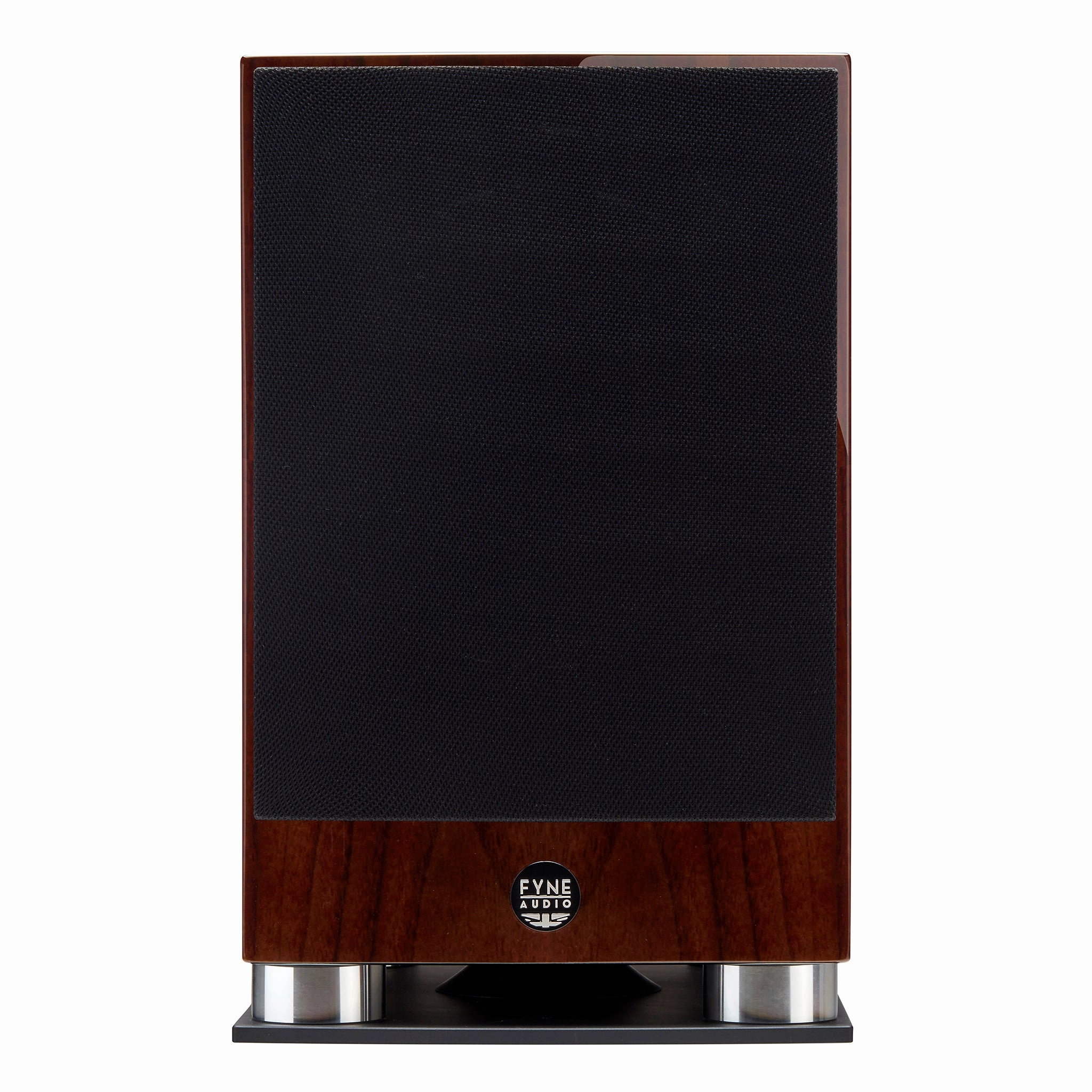

With enhanced details including an anodized aluminum plinth, diamond-cut aluminum driver trim, and a deep gloss walnut veneer finish option, the F500SP is Fyne Audios most affordable premium UK-made loudspeaker.

More About Special Production

The 500SP modelsuse Fynes flagship BassTrax Tractrix bass porting systemfrom the F700 and flagship F1 models.

With many crossover components and circuit architecture trickled down from the premium F700 loudspeakers, F500 SP models use low-loss laminated core inductors, high-grade polypropylene capacitors, and Van Den Hul Matched Crystal silver-plated OFC wiring enhanced byFyne's Cryo-Lite process. The F500 SP Series also integrate Fynes high-quality bi-wire terminal panel with a fifth loudspeaker terminal for driver chassis grounding.

Floorstanding SP models use Fynes striking twin-layer metal plinthwhich is machined from thick aluminum plates. The integrated floor spikes are adjusted from the top of the plinth to make leveling easy, while knurled lock nuts clamp the spikes firmly in position. Machined aluminum cups are provided to protect wooden floors.

The most significant upgrade for Special Production modelsare the new SP Isoflare drivers. The SP Isoflare units borrow much of the technology developed for F700 models, including the F700s 25 mm magnesium diaphragm compression tweeter and multi-fiber cone with FyneFlute roll surround.

Specifications

Type:Two-way, downwards firing port, with BassTrax Tractrix diffuser*

Sensitivity:90 dB

Nominal Impedance: 8 Ohm

Frequency Response (-6 dB typical in room):42 Hz-34 kHz

Drivers (Neodymium magnet system)
High: FyneFlute surround with 25 mm magnesium dome compression
Mid/Bass: 1 x 5.9" (150 mm) IsoFlare point source, multi-fiber

Crossover Frequency: 1.7 kHz

Crossover Type:Bi-wired passive low loss, 2nd order low pass, 1st order high pass

Dimensions (HWD):12.7" x 7.9" x 12.6(323 x200 x320 mm)

Weight:17.6 lb.
