TM2Stereo Earphones

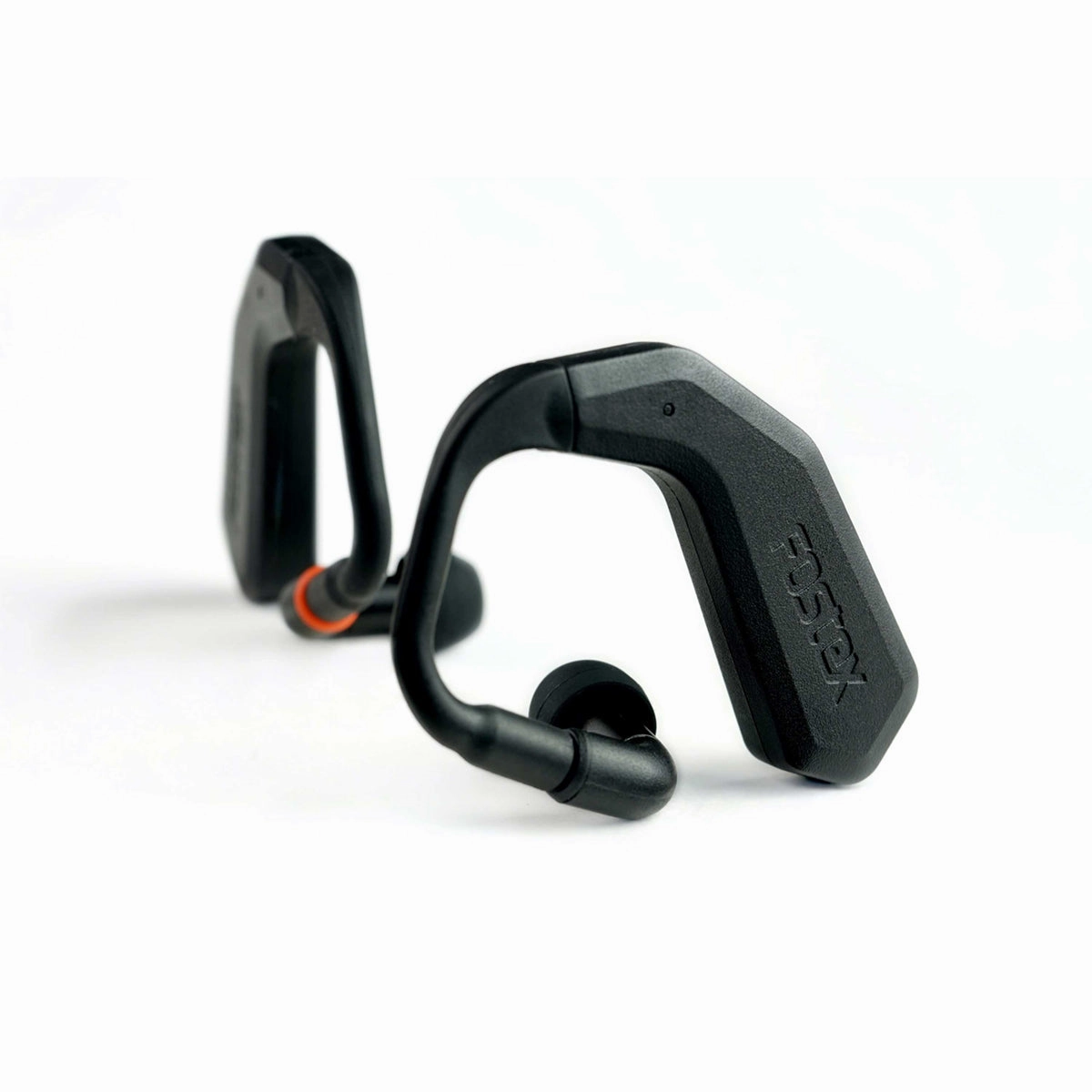

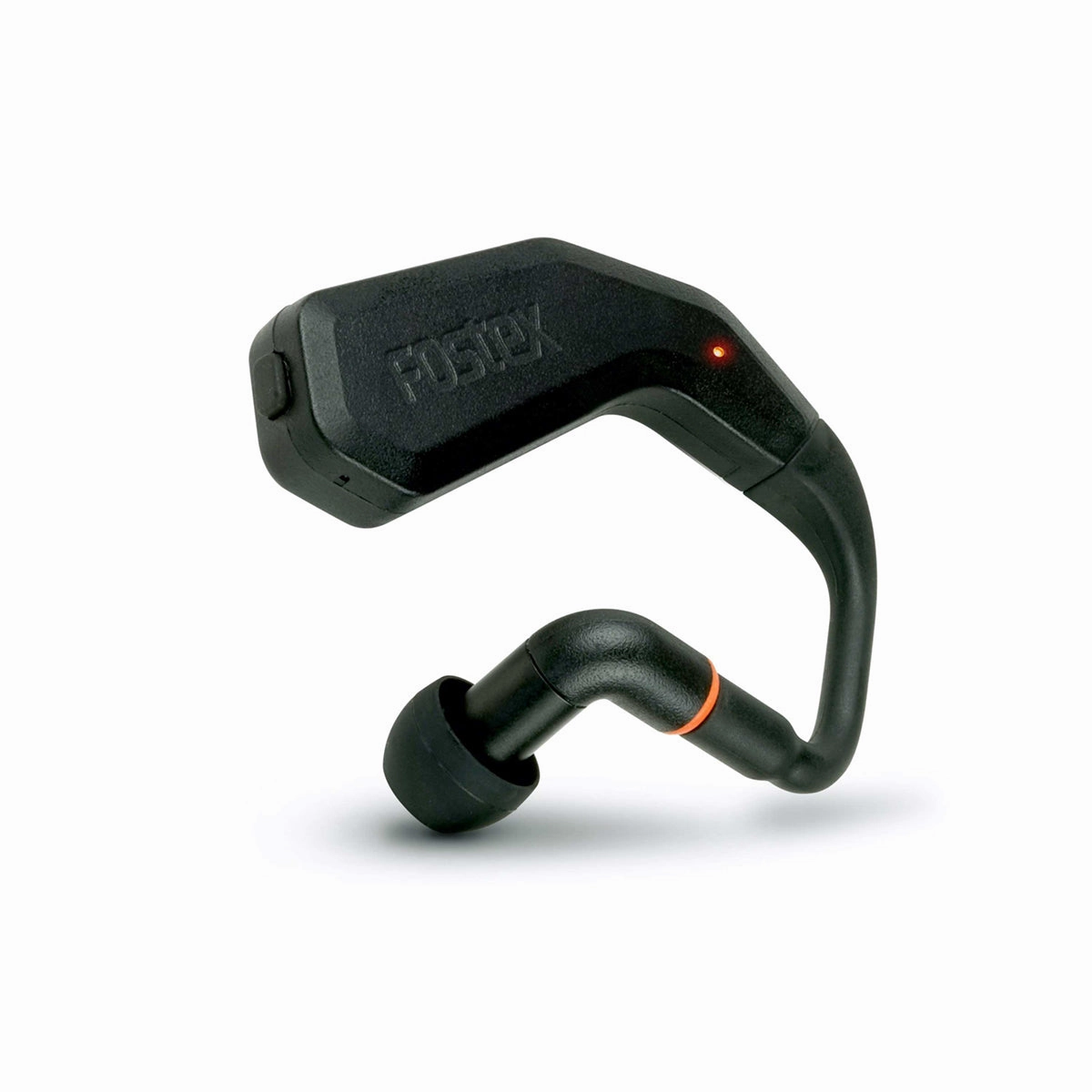

TM2 is the Fostex first and the next generation TWS earphones that consists of a pair of main receiver unit with touch-sensor and multi-button, detachable flexible short cable and detachable 6mm dynamic driver unit. The latest Qualcomm chipset QCC3026 allows left and right independent connection with a True Wireless Stereo Plus ready device.
In addition to the supplied MMCX short cable, using allows various third party IEMs to be TWS.
- Flexible short cable can be fitted to various shapes of ears even you wear glasses.
- A 6mm drivers in minimally designed earphones, developed by Fostex own technology, reproduces wide frequency range for its size.
- Legacy modeallows to connect each sides as master and slave.
- True wireless Stereo Plus modeallows to connect each independent L,R sides.
- Multi button at rear side

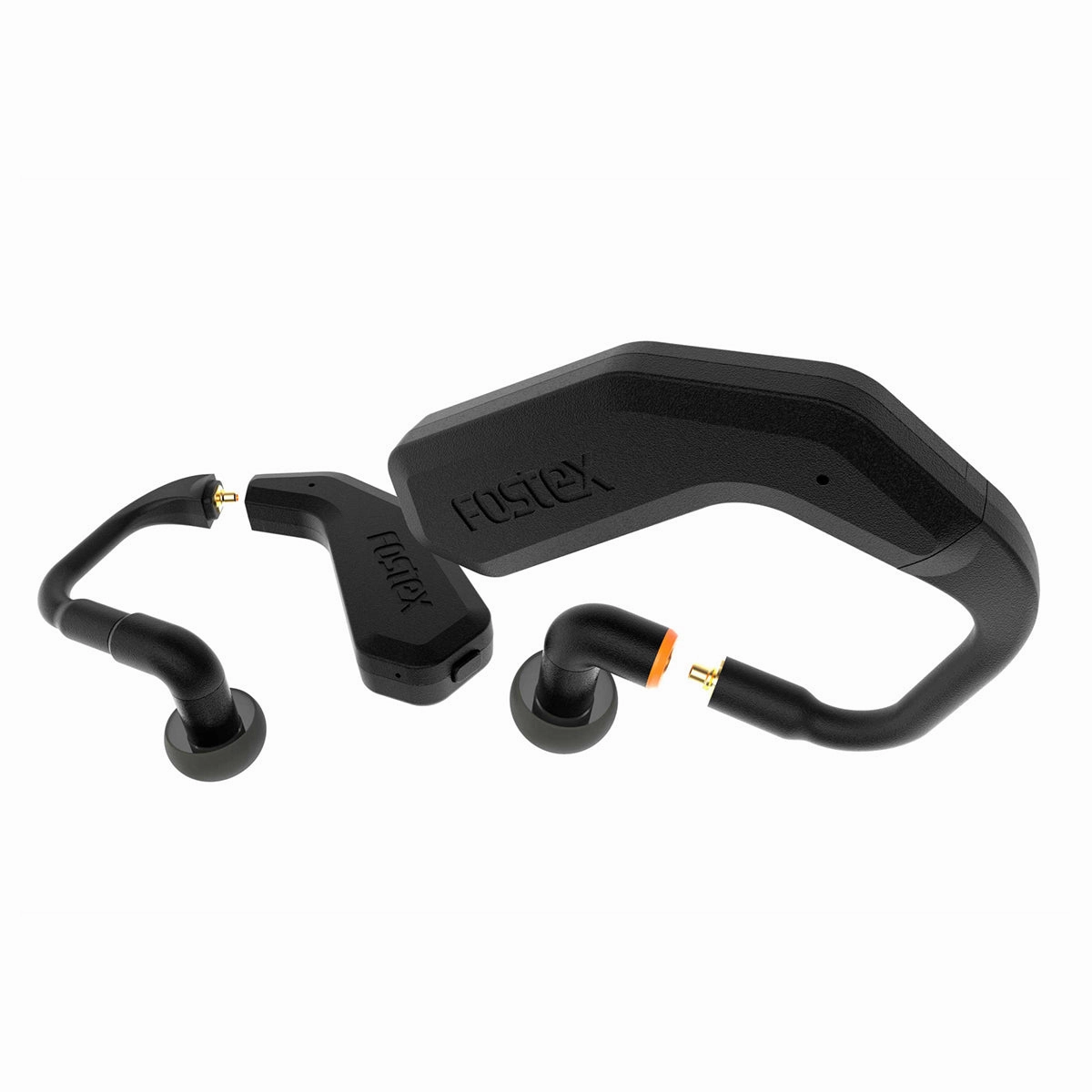

- Detachable three-piece configuration
- The Charging Case has enough room to accommodate large size third party IEM.
Note: This case does not contain battery for on-the-road charging. Only chargeable when connecting to USB adapter.
In Detail
- Bluetooth 5.0 for stable connection via the latest Qualcomm QCC3026 SoC
- True Wireless Stereo Plus mode connects with left and right units respectively for stable connection and power efficiency (with TWS Plus ready device)
- Role swapping function automatically switches the master and slave for efficient battery consumption to realize long time operation.
- Fostex high-performance 6mm dynamic driver unit comes as standard and can be swapped with your favorite IEM with MMXC Connector, or optional CIEM 2PIN Type or FitEear 2PIN Type Connector.
- Use of either Left or Right unit independently (e.g. for phone calls)
- Flexible short cable is designed to fit various shape of ears.
- On-unit control via switch (Music play/Call control) and Touch sensor (Volume control, Fast forward, Rewind)
- Water resistant of IPX5 class
- App to be available in near future for iOS and Android that allows for blending in the envi-ronmental sound (Landscape Mode), 5-band EQ and Voice Assistant function.
TM2 App now available from the App Store and Google Play
The exclusive Application "Fostex TM Sound Support" for iOS that supports extension of TM2 functions. You can download and install in your iPhone or Android device to get the following Firmware Version 2.9.
- Improves connection between Left & Right
- Adjusts the level of the prompt voice
- Add auto off after 10 min. of no Bluetooth connection
- 5-band EQ, Voice Assistant Function etc. are planned to become available on the next firmware update.
Specifications
Bluetooth
Firmware ver.Bluetooth ver.5.0
Output classClass2
TransmissionFHSS Frequency hopping type
Transmission distanceApprox. 10m
Frequency range2.4 GHz2402 2480MHz
ProfileA2DP 1.3, AVRCP 1.6,HSP 1.2, HFP 1.7
CodecAACapt-XSBC
Contents protectionSCMS-T types
Transmission range20Hz 20kHz
AudioEarphones
Typesdynamic
Driver unit6mm
Frequency response range10Hz~40kHz
Impedance16 ohm
DimensionW21.6D14.6H6.5mm
Microphone
TypesMEMS
DirectivityAll directionsCVC Noise cancelling available
Remote controller
Music play PlayPauseFast forwardRewindNext song, Previous song, volume control,
Call controlReceiving call, Call off
Charge cradle
Inputmicro USBtype B
DimensionW138D67H35
Weight128gExcept for TM2
Others
TM2 body dimensionW40.2D48.2H8.8(mm)
TM2 body weight11g2Including cables, earphones
BatteryDC3.7V (Internal charge Lithium-ion)
Charge timeApprox. 1 hour 30minsFull charge
Play time / Call timeMax approx. 10 hours
Water proofIPX5
Accessories
USB Charge cable
Ear piecesS,M,L M size equipped
PU leather pouch
Logo sticker
User manual
Specifications and appearance are subject to change without notice for product improvement
