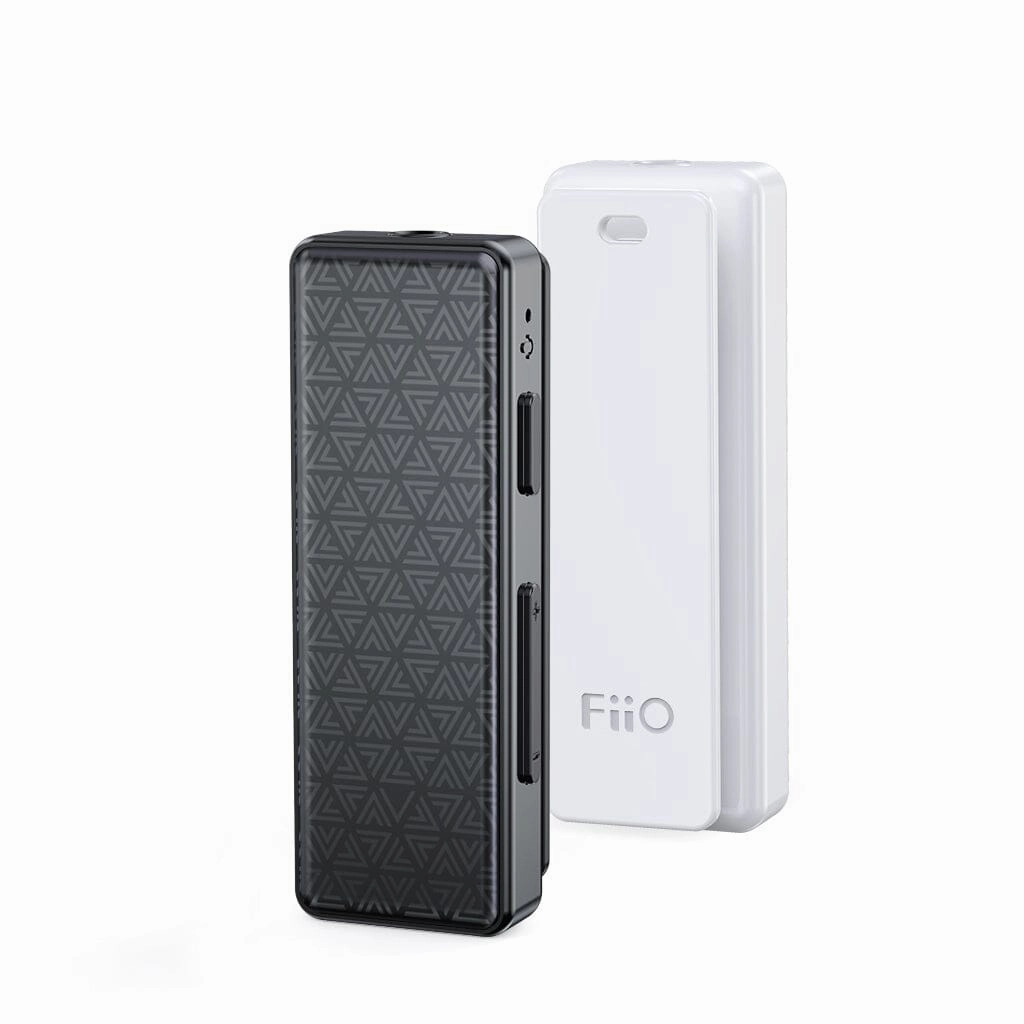

Introducing the FiiO BTR11 Portable DAC and Headphone Amplifier, a compact yet powerful device designed to elevate your wireless audio experience. With advanced Bluetooth capabilities, high-resolution codec support, and a robust independent amplifier, the BTR11 ensures exceptional sound quality for music enthusiasts on the move.
Advanced Bluetooth Connectivity
The BTR11 features the latest Bluetooth 5.3 technology, powered by the BES2700IHC chip, ensuring a stable and efficient wireless connection. This advanced Bluetooth version enhances data transmission rates and extends range, providing a seamless listening experience whether you're at home, in the office, or on the go.
High-Resolution Audio Support
Experience superior sound quality with the BTR11's support for high-resolution audio codecs, including LDAC, AAC, and SBC. LDAC allows for audio streaming up to 24-bit/96kHz over Bluetooth, ensuring that your music retains its depth and clarity, bringing you closer to the original recording.
Independent Headphone Amplifier
Equipped with an independent headphone amplifier, the BTR11 delivers impressive output power, capable of driving a wide range of earphones and headphones. With an output of up to 45mW at 16 and 30mW at 32, it ensures your headphones perform at their best, providing rich and dynamic sound across all genres.
Sleek and Portable Design
Weighing approximately 13 grams and measuring 55x19x14.6mm, the BTR11 is designed for portability without compromising on style. Its sleek polished finish, crafted from transparent materials with multiple silk-screen prints, offers a luxurious feel. The black-and-white dual-color design ensures it looks appealing from any angle, making it a stylish accessory for any audio setup.
Extended Battery Life
Enjoy uninterrupted music with the BTR11's impressive battery performance. It offers up to 15 hours of playback time when using the AAC codec and around 8.5 hours with LDAC, ensuring it keeps up with your daily activities. The device charges fully in approximately 1.5 hours, minimizing downtime between uses.
User-Friendly Features
The BTR11 is designed with user convenience in mind. Physical buttons allow for easy volume control and playback adjustments, while the built-in high-sensitivity omnidirectional microphone supports noise-canceling for clear calls. Additionally, the LED indicator provides intuitive status updates, including Bluetooth transmission codec, charging status, and low battery reminders, keeping you informed at a glance.
Technical Specifications
| Specification | Details |
|---|---|
| Model | BTR11 |
| Bluetooth Chip | BES2700IHC |
| Bluetooth Version | 5.3 |
| Supported Codecs | LDAC, AAC, SBC |
| Amplifier Chip | HT97220 |
| Output Power | 45mW (16), 30mW (32) |
| Frequency Response | 20Hz45kHz |
| Signal-to-Noise Ratio | 101dB (A-weighted) |
| Battery Life | Up to 15 hours (AAC), ~8.5 hours (LDAC) |
| Charging Time | 1.5 hours |
| Dimensions | 55x19x14.6mm (including clip) |
| Weight | Approximately 13g |
| Output Impedance | 0.5 |
| THD N | <0.008% (1kHz/-3dB @ 32) |
| Output | 3.5mm single-ended |
| Color Options | Black/White |
What's in the Box
- FiiO BTR11 Portable DAC and Headphone Amplifier
- USB-C Charging Cable
- Quick Start Guide
- Warranty Card
Elevate your audio experience with the FiiO BTR11, combining advanced technology, high-resolution audio support, and user-friendly features in a sleek, portable design. Whether you're an audiophile or a casual listener, the BTR11 offers a significant upgrade to your wireless listening experience.
