Headphone Amplifier PCL86 Push Pull Class AB Output Impedance 36-600 Ohms

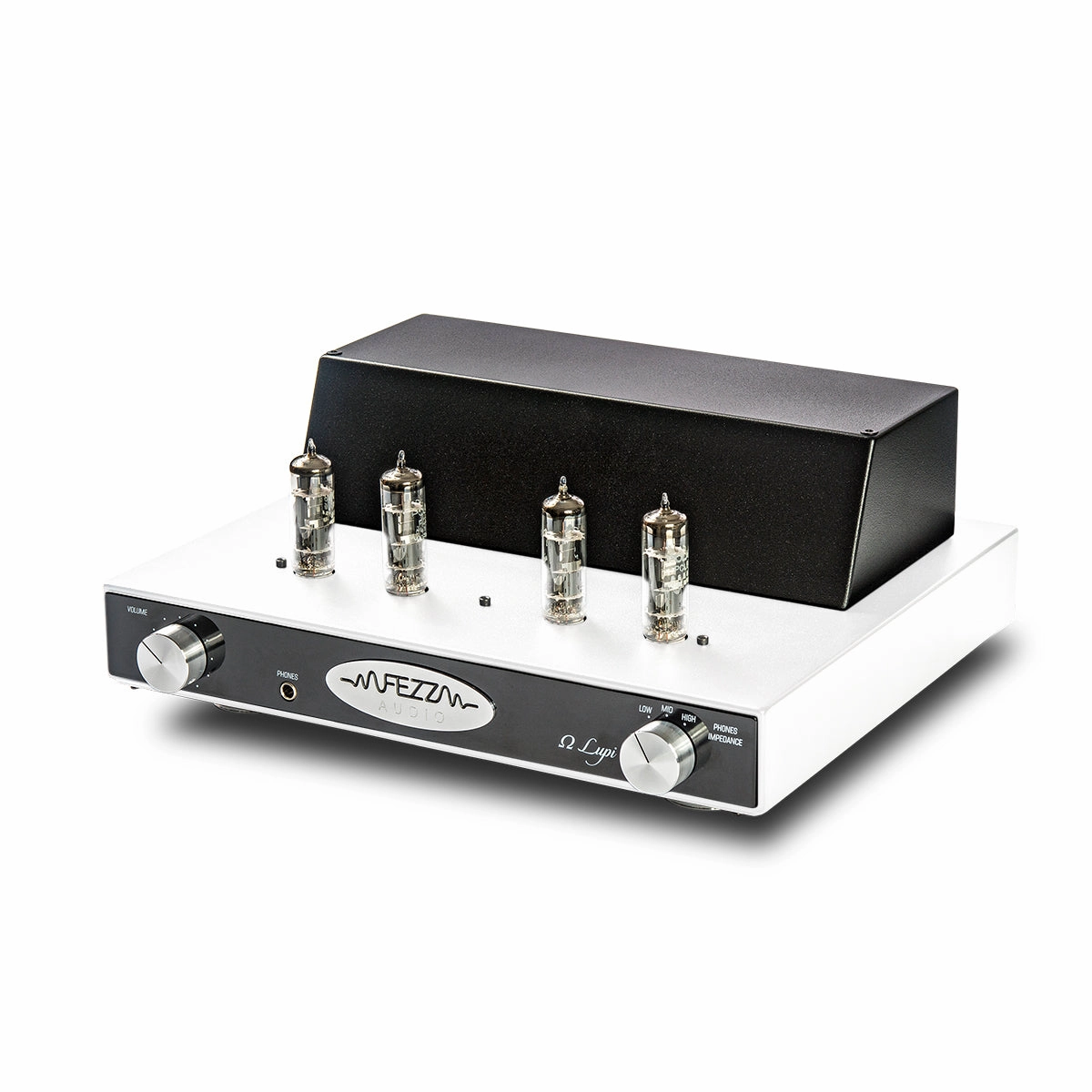

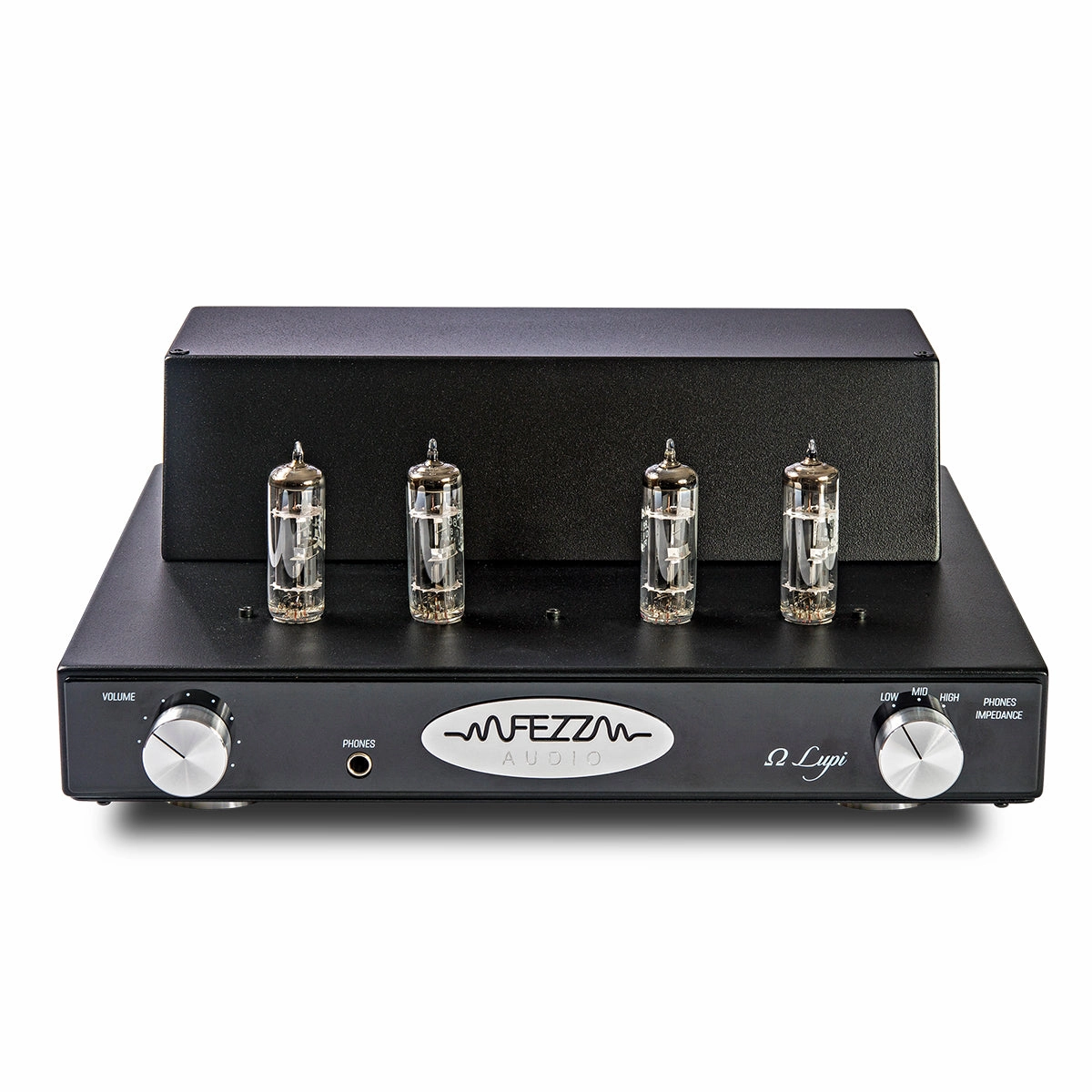

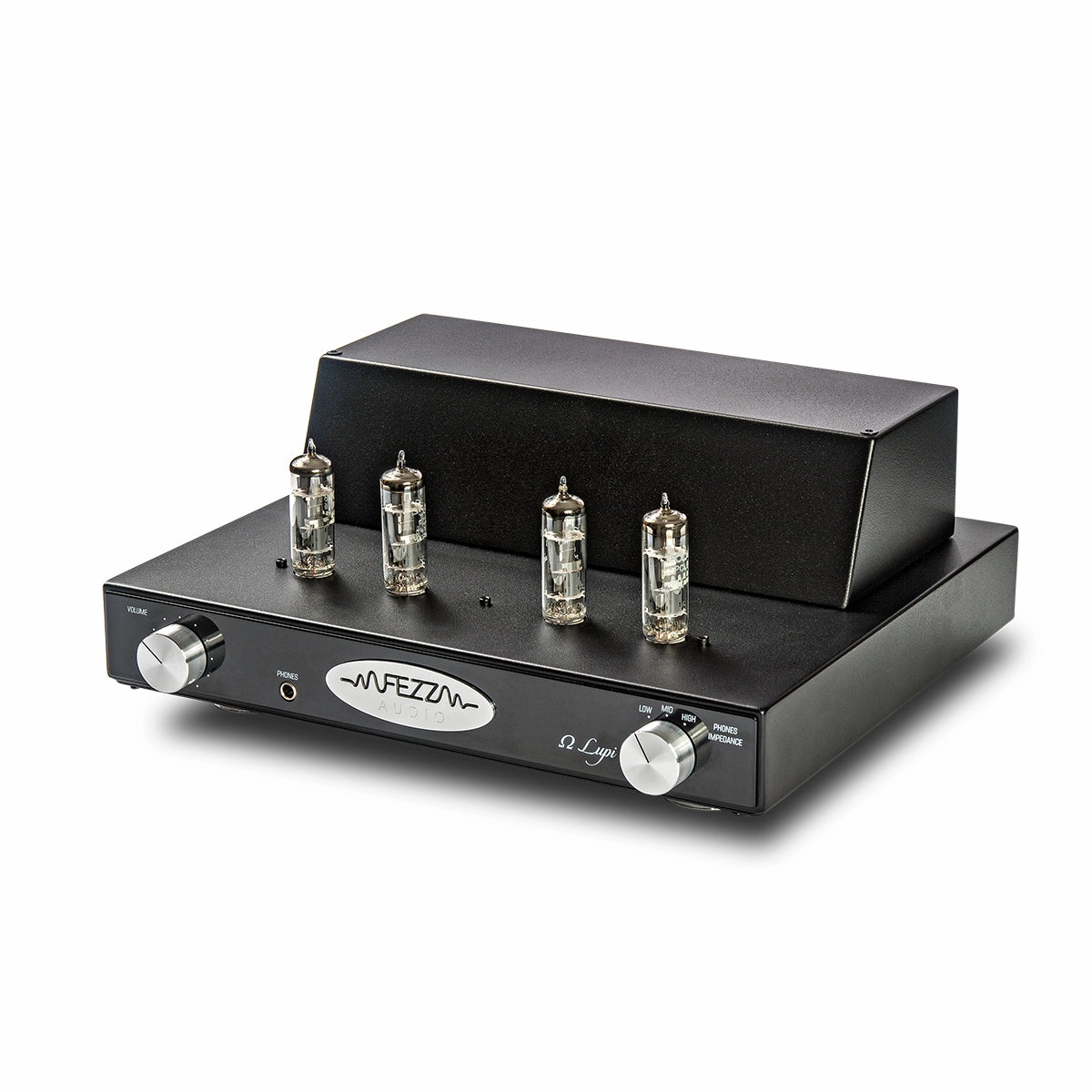

Omega Lupi is a headphone amp that combines the unique PCL86 tube with toroidal power and output transformers. The output impedance can be adjusted by a front-panel knob to ensure perfect match with any type of headphone. The PCL 86 is a dual-filament tube, with both triode and pentode elements in a single capsule. Omega Lupi is capable of driving even the most-demanding headphones with open, spacious, and detailed sound.
Note: The "Legacy" and "Evolution" versions are identical internally and they sound the same. The Evolution modelsare priced slightly higher due to the higher costs of their cosmetically enhanced casework.
- Type:stereo vacuum tube headphone amplifier
- Max. output power:2 x 250mW
- Circuit type:Push-pull AB1 Class
- Output impedance:32-600

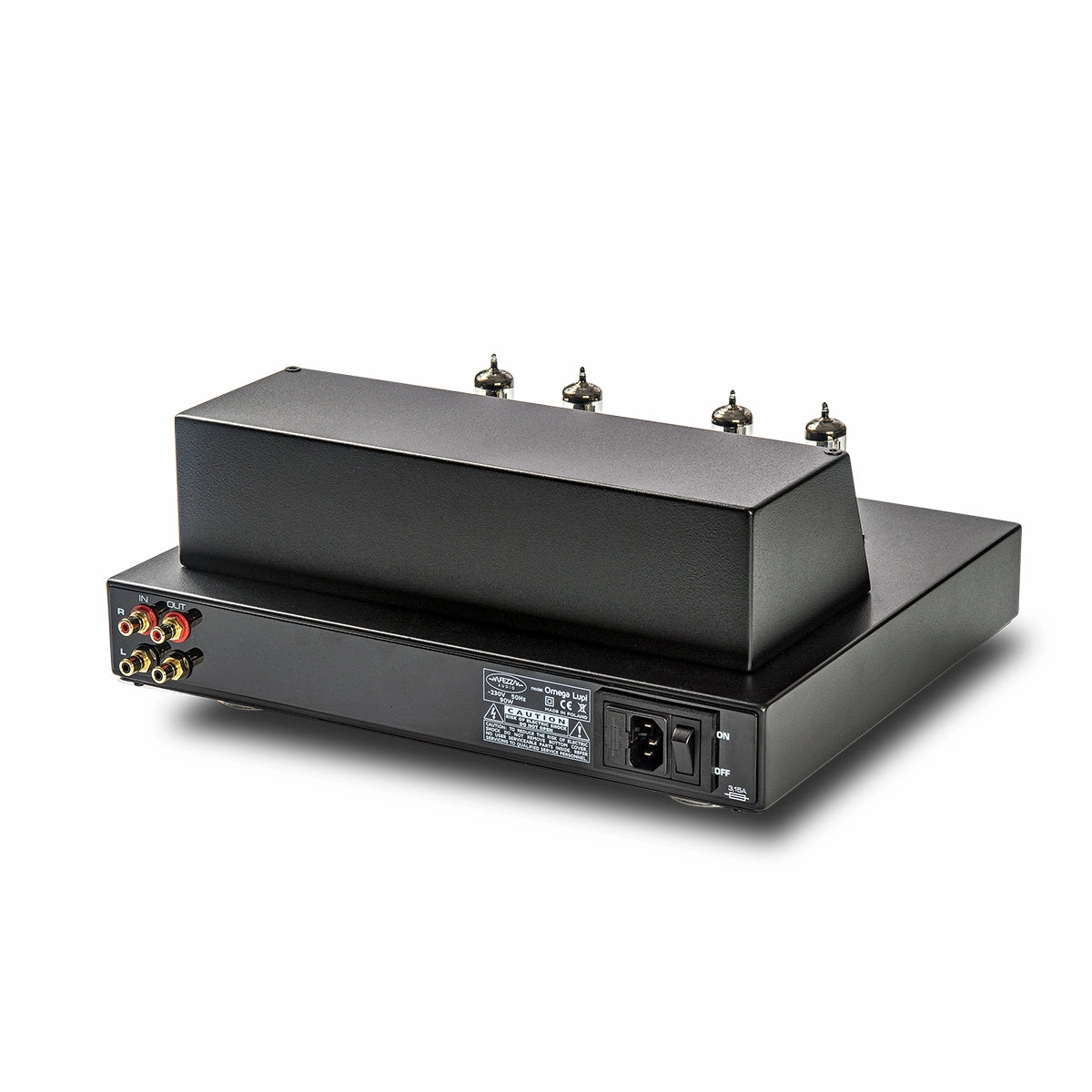

- Inputs:1 x RCA
- Outputs:1 x RCA
- Harmonic distortions THD:< 0,3%
- Frequency response:20Hz-120kHz (-3dB)
- Power consumption:90W
- AC fuse:3,15A T
- Net weight:9,5 kg
- Dimensions:340x355x150mm
- Tubes:PLC84 x4 (ower output, pre-amp & drivers)
