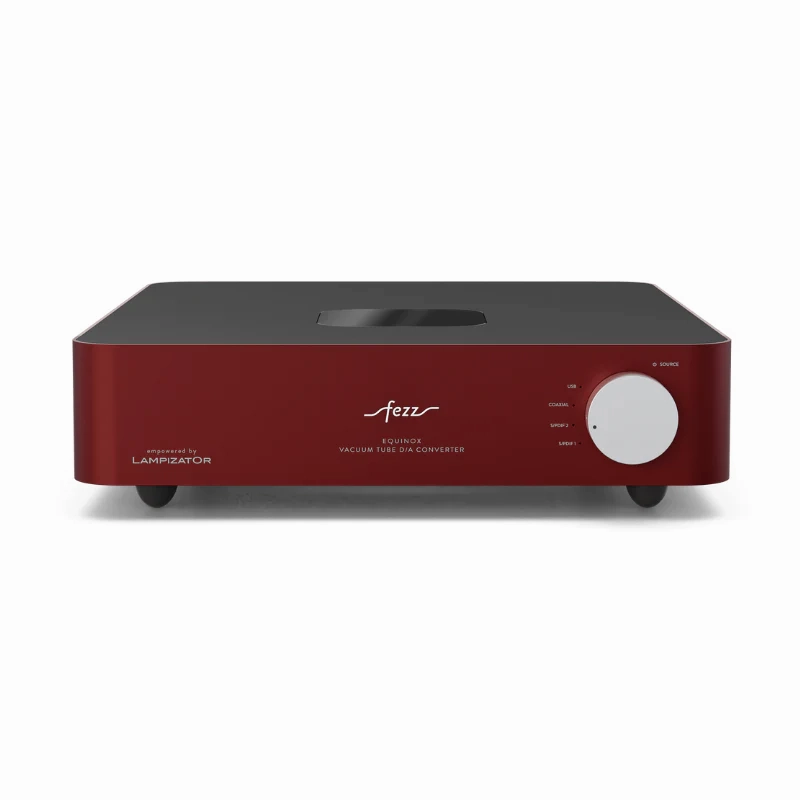

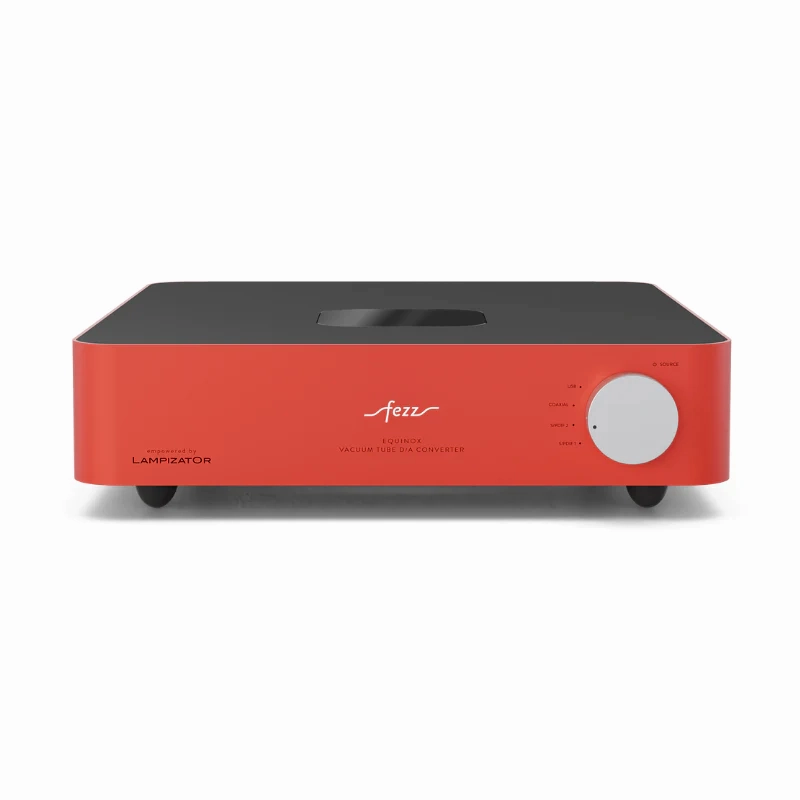

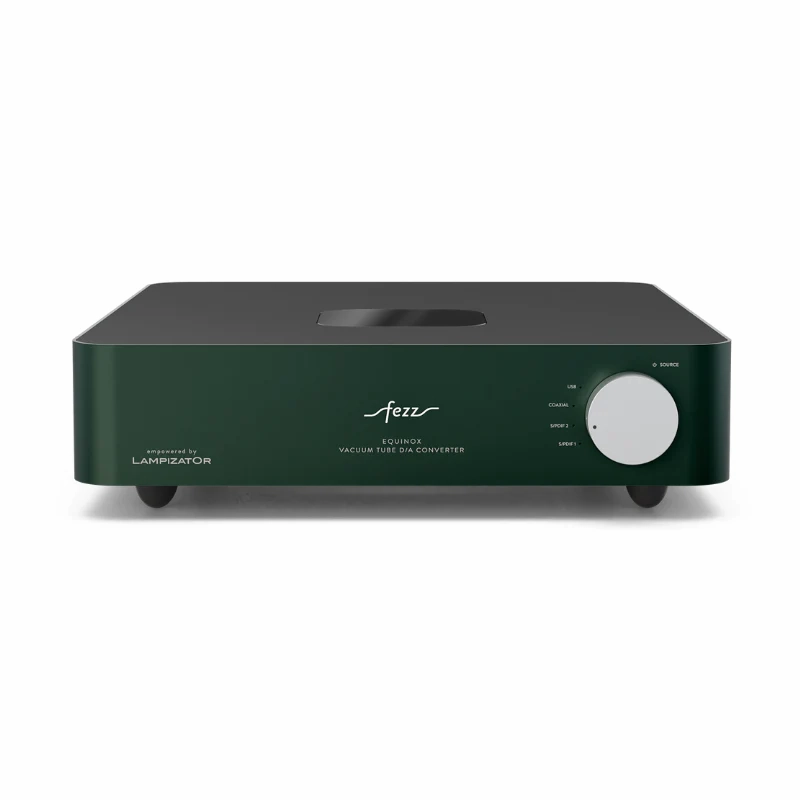

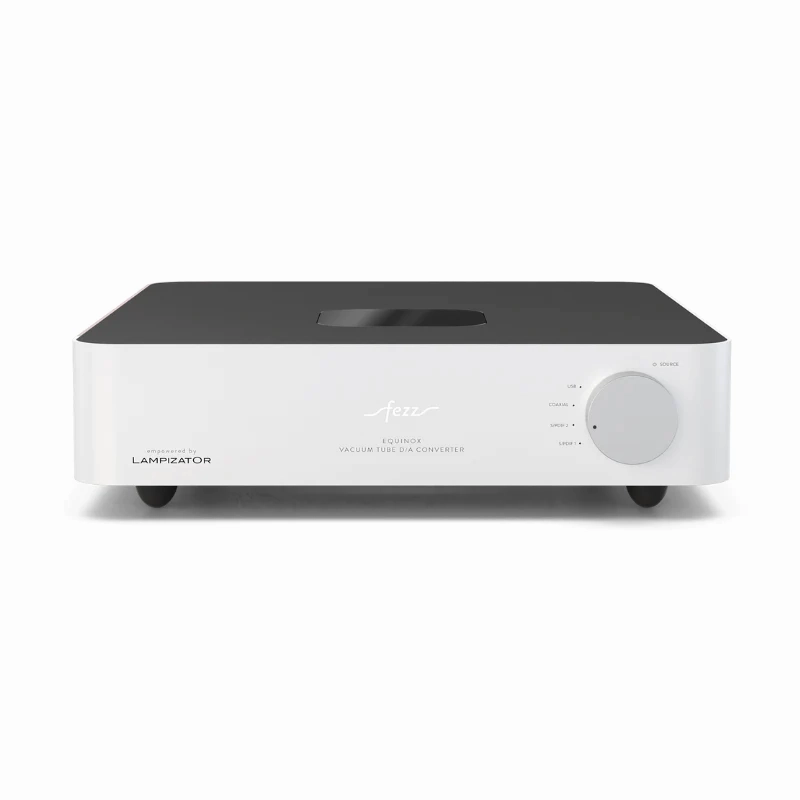

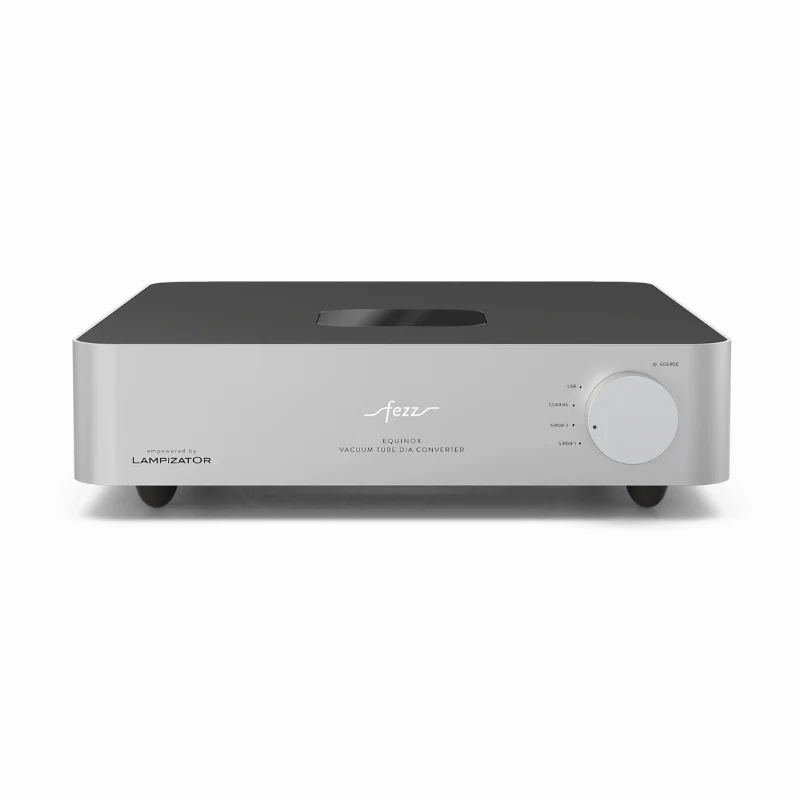

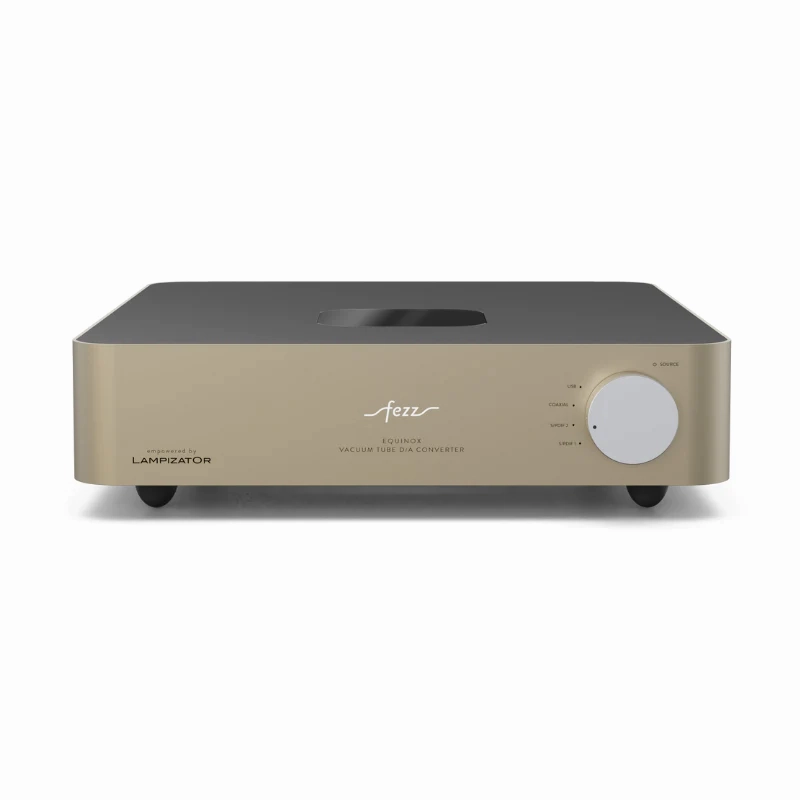

Equinox is the worlds only Lampizator-licensed vacuum tube D/A converter designed by ukasz Fikus. It is also the cheapest on a market D/A converter with the Lampizator logo. The unit is based on PCM1794 chipsets and a 12au7 vacuum tube. Fezz/Toroidy engineers designed a dedicated, highest quality Supreme class toroidal power transformer for Equinoxs power supply. The device is equipped with 2 Toslink, 1 coaxial, and 1 USB digital signal input. Thanks to the easily accessible tube, located under the sliding glass on the top panel, units offer the opportunity to create and adjust sound tone according to your preferences by replacing the tube without any hustle.
SPECIFICATIONS
- Tube type: ECC82/12AU7
- Inputs: USB type B, 2x S/PDIF, Coaxial
- Outputs: 2x RCA
- Opamp: Burr Brown PCM 1794
- S/PDIF Receiver: AKM4118
- PCM sampling rates: 32 kHz to 192 kHz, 16 to 24 bit, USB connection: up to 384 kHz and 32 bit
- Oversampling: no
- Harmonic distortions THD: < 0,05%
- Power consumption: 30W
- Net weight: 8 kg
- Dimensions: 355x380x100mm
