Designed and manufactured in Japan, the AVC-X6800H drives 11.4 channels of amplification for an upscaled experience. With Dolby Atmos and DTS:X, plus IMAX Enhanced and Auro 3D, the AVC-X6800H envelops larger living spaces in breathtaking 3D audio. With HEOS Built-in, wirelessly stream your favourite music.
Engineered for excellence
Enveloping 3D audio
Feel like you're in the center of the action with enveloping 3D sound.
Expert ready
Take advantage of the wide variety of configuration options to best fit your space.
Denon craftsmanship
Designed and manufactured at Denon facilities in Japan to meet our highest standards.

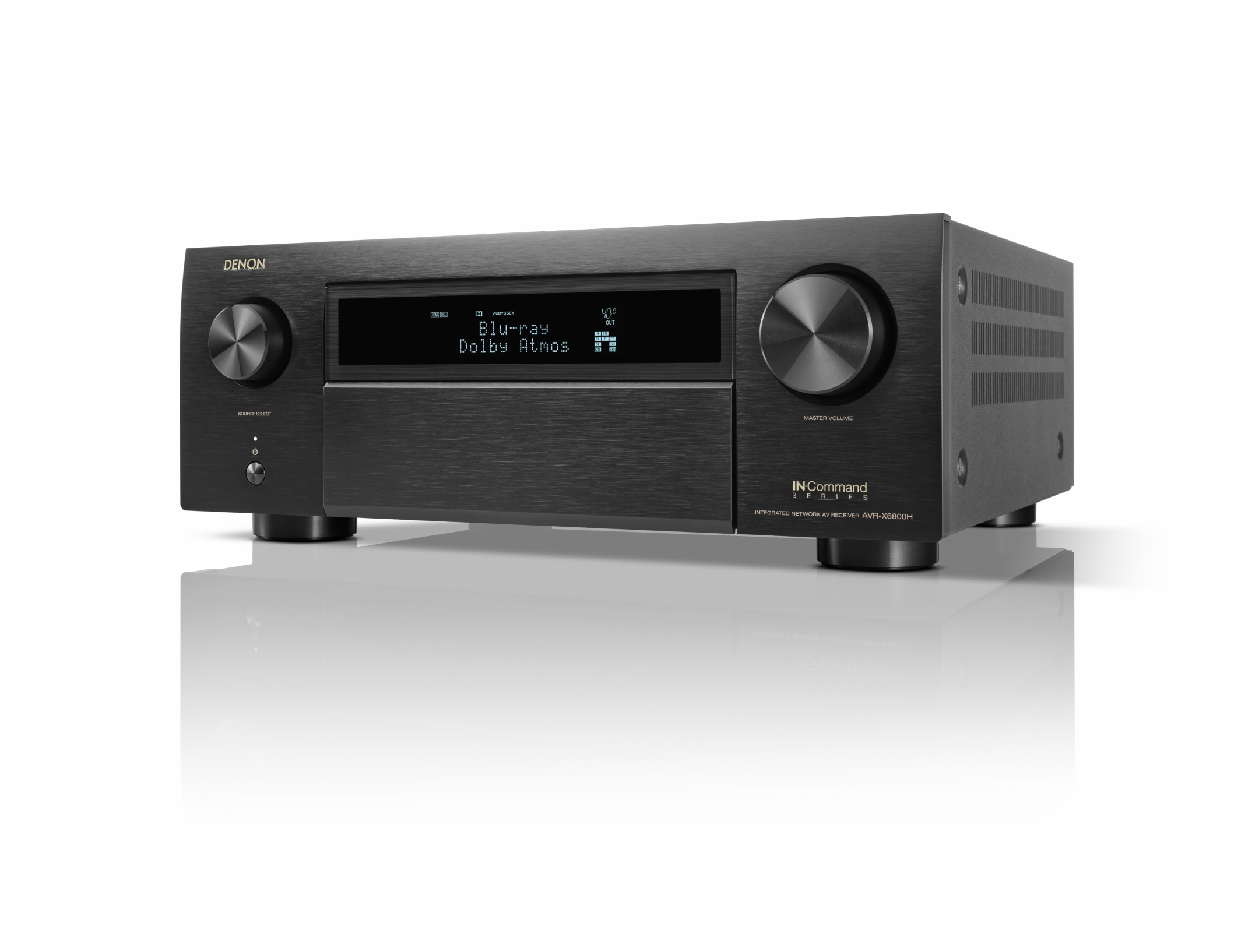

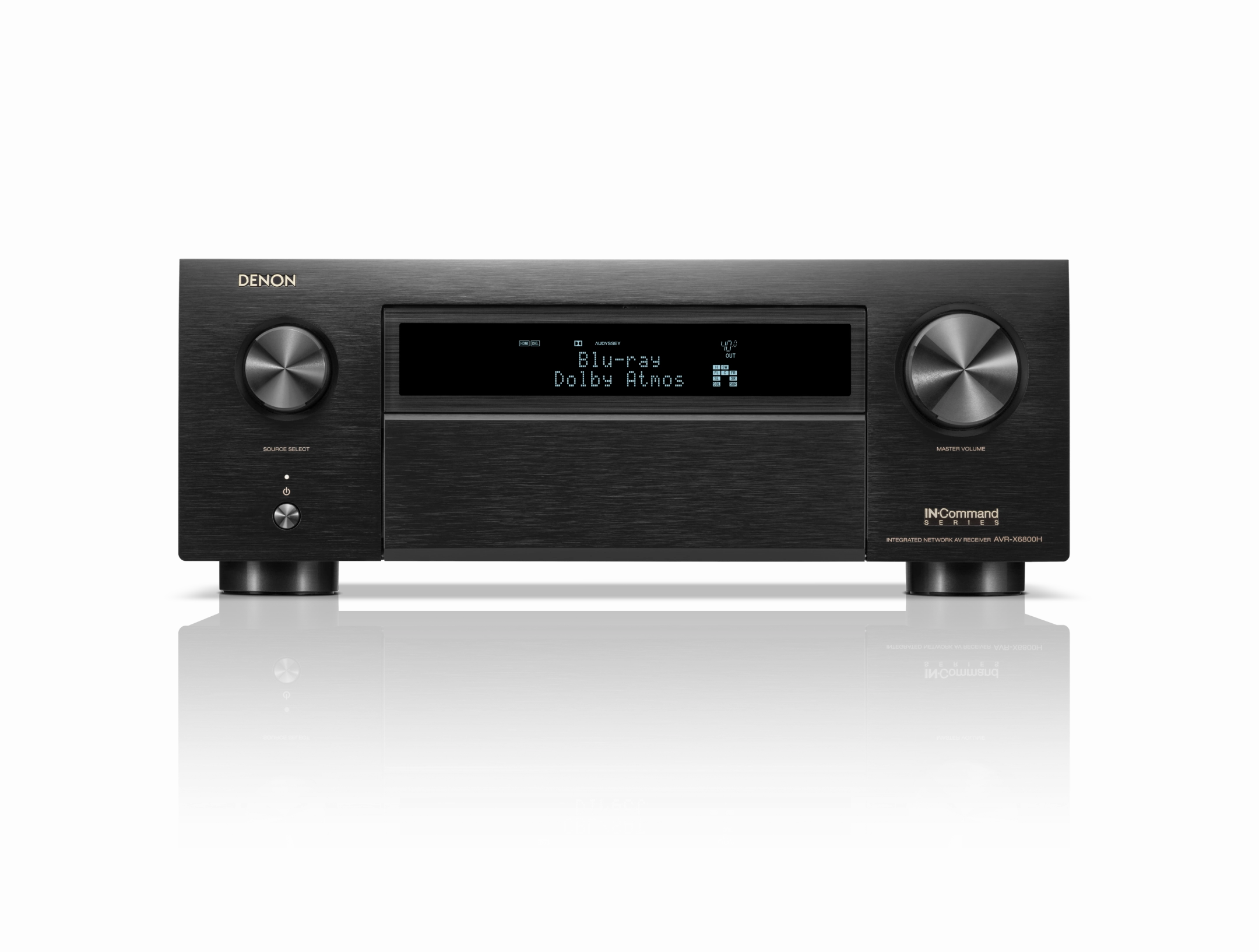

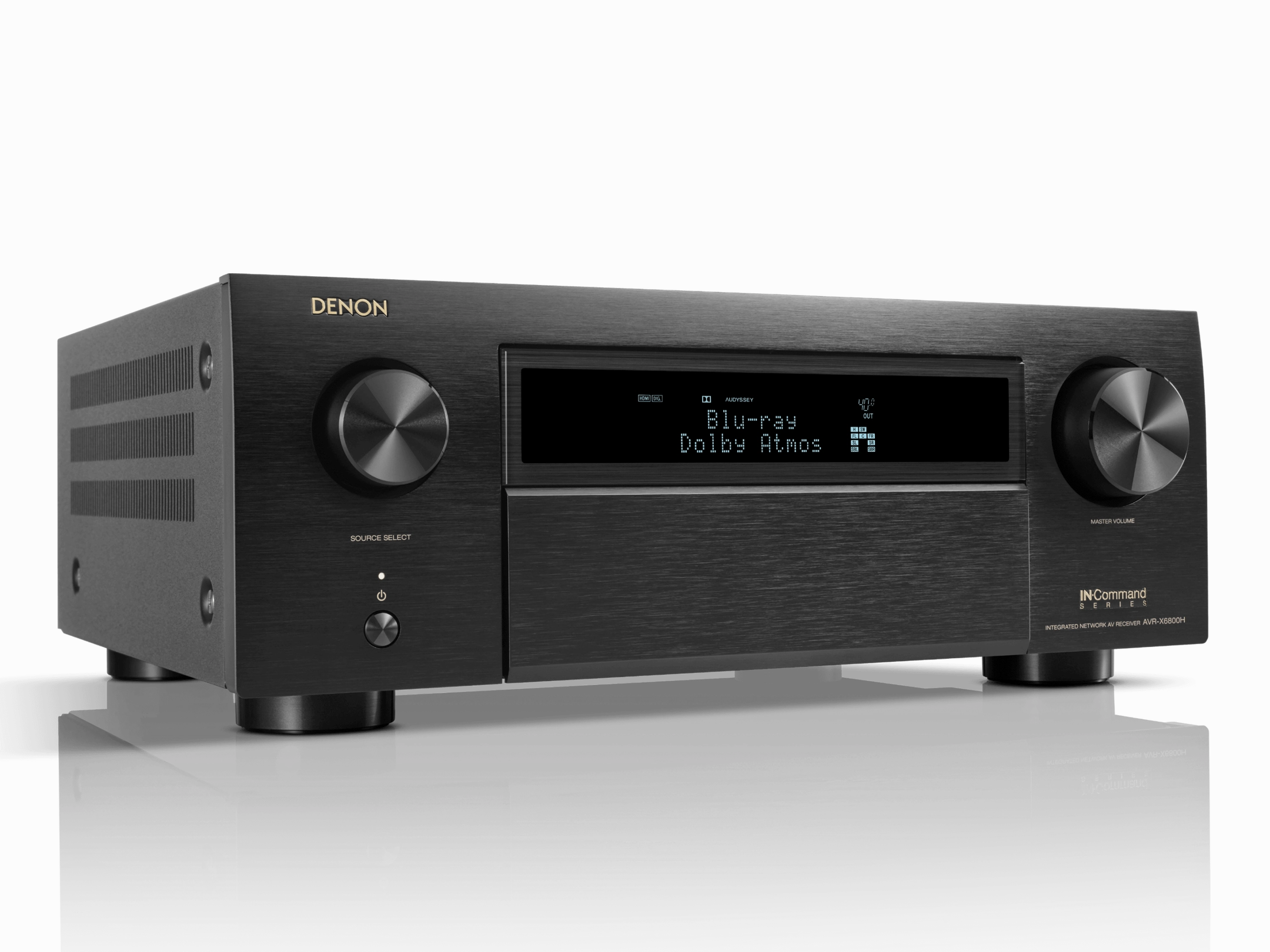

AVC-X6800H
Discover an uncompromising home theatre AV amplifier.
Enhance performance with room-correction options from Audyssey (installed) or Dirac Live and Dirac Live Bass Control (optional)
Tailor your sound with complete connectivity & control
Every element of a Denon product is thoughtfully crafted to deliver an unforgettable audio experience.
Specifications:
| Category | Specification |
|---|---|
| Multichannel Surround | |
| DTS HD Master / DTS | Yes / Yes / Yes |
| DTS Neo:6 / DTS Neural | No / Yes |
| DTS Virtual | Yes |
| IMAX Enhanced | Yes |
| Dolby TrueHD / Dolby Atmos / Dolby Atmos Height Virtualization / Dolby Atmos Music | Yes / Yes / Yes / Yes |
| Dolby ProLogic II / Dolby Surround | No / Yes |
| Auro 3D | Yes |
| 360 Reality Audio / MPEG H | Yes / Yes |
| Audyssey DSX | No |
| Multichannel Stereo | Yes |
| Max. number of processing (preamp) channels | 13.4 |
| Sound Enhancements | |
| Mono Block Power Amp Construction | Yes |
| Discrete Power Amplifier | Yes |
| D.D.S.C. HD Digital | Yes (32 bit) |
| Pure Direct | Yes |
| Gold Plated RCA Terminals | Yes |
| Clock Jitter Reducer | Yes |
| Alpha Processing | AL32 Processing Multichannel |
| Audyssey MultEQ | XT32 |
| Audyssey Dynamic EQ / Dynamic Volume | Yes / Yes |
| Audyssey LFC | Yes |
| Dirac Live upgradability | Yes |
| Compressed Audio Restorer | Yes |
| Network | |
| Media Server | Yes |
| HEOS Wireless Multi-Room Technology | Yes |
| Bluetooth Re-transmit for Bluetooth headphones | Yes (With volume control) |
| Alexa / Google Voice Assistant / Apple HomePod | Yes / Yes / Yes |
| Lossy Formats: MP3 / WMA / AAC | Yes / Yes / Yes |
| Lossless Formats: FLAC / ALAC / WAV | Yes / Yes / Yes |
| Lossless Formats: FLAC HD 192/24 / WAV 192/24 / ALAC 192/24 | Yes / Yes / Yes |
| DSD Audio Streaming | Yes (2.8/5.6MHz) |
| FLAC HD 192/24 | Yes |
| WAV 192/24 | Yes |
| ALAC 192/24 | Yes |
| Gapless playback | Yes (FLAC, WAV, ALAC, DSD) |
| AirPlay Audio Streaming | Yes (AirPlay2) |
| Internet Radio | Yes (TuneIn) |
| Spotify Connect | Yes (connect) |
| Pandora | Yes |
| SiriusXM | Yes |
| Other Streaming Services | Amazon Music HD / Amazon Music / TIDAL / Deezer / Soundcloud / Mood Mix |
| Roon Tested | Yes |
| HEOS App Control | Yes |
| Compatible with Remote APP for Smart Phones | Denon AVR Remote |
| Compatible with Remote APP for Tablets | Android / iOS / Amazon Kindle |
| Ethernet Ports | Yes |
| Wi-Fi | Yes |
| Bluetooth | Yes |
| HDMI | |
| HDMI Inputs: Back, Front | 7 / No |
| HDCP2.3 support | Yes |
| HDMI Outputs: Main, Zone | 2 / 1 |
| Video conversion Analog -> HDMI | Yes |
| HDMI to HDMI Scaling | 1080P/4K to 8K |
| HDMI 2.1: 8K/60 Hz AB / 4K/120 Hz AB | Yes / Yes |
| 8K/60Hz AB / 4K/120Hz AB Pass-Through In/Out | 7 / 2 (up to 40Gbps) |
| HDMI 2.0: 3D / 4K / CEC / ARC / InstaPrevue | Yes / Yes / Yes / Yes / No |
| HDR / HLG / Dolby Vision / HDR10 / Dynamic HDR | Yes / Yes / Yes / Yes / Yes |
| ALLM (Auto Low Latency Mode) Pass-Through for Gaming | Yes |
| Variable Refresh Rate / Quick Frame Transport / Quick Media Switching | Yes / Yes / No |
| 3D Signal Pass-Through | Yes |
| 8K Signal Pass-Through, Scaling, GUI Overlay | Yes / Yes / Yes |
| 4K Signal Pass-Through / Scaling / GUI Overlay | Yes / Yes / Yes |
| HDMI Pass-Though in Standby Mode | Yes |
| CEC | Yes |
| DSD Audio capability | Yes |
| Audio Return Channel | ARC, eARC |
| Auto LipSync | Yes |
| Multi-room / CI | |
| Multi-Room Zones | 3 |
| Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog | Yes (2ch) / Yes (2ch) / Yes / Yes |
| Zone Audio Output: Speaker / Pre-Out | Yes / Yes |
| Zone HDMI output from HDMI source | Yes |
| IP Control / RS232 Control / Web Control / App Control | Yes / Yes / Yes / Yes |
| Remote In / Out | Yes / Yes |
| DC Trigger output | 3 |
| HDMI Diagnostics | Yes |
| Others | |
| Auto speaker setup by microphone | Audyssey MultEQ XT32, Dirac Live (upgrade) |
| Front Display | 2 Line FLD |
| Graphic User Interface - GUI | Modern HD GUI |
| GUI Languages | 3 |
| Setup Assistant | Yes |
| Quick Select Plus, Quick Select | Yes / No |
| Firmware Update by Network / USB | Yes / Yes |
| Variable cross over | Yes |
| Optimized Bass Redirection | Yes |
| Bass Sync | Yes |
| ECO Mode | Yes |
| Auto Power Off | Yes |
| Sleep Timer | Yes |

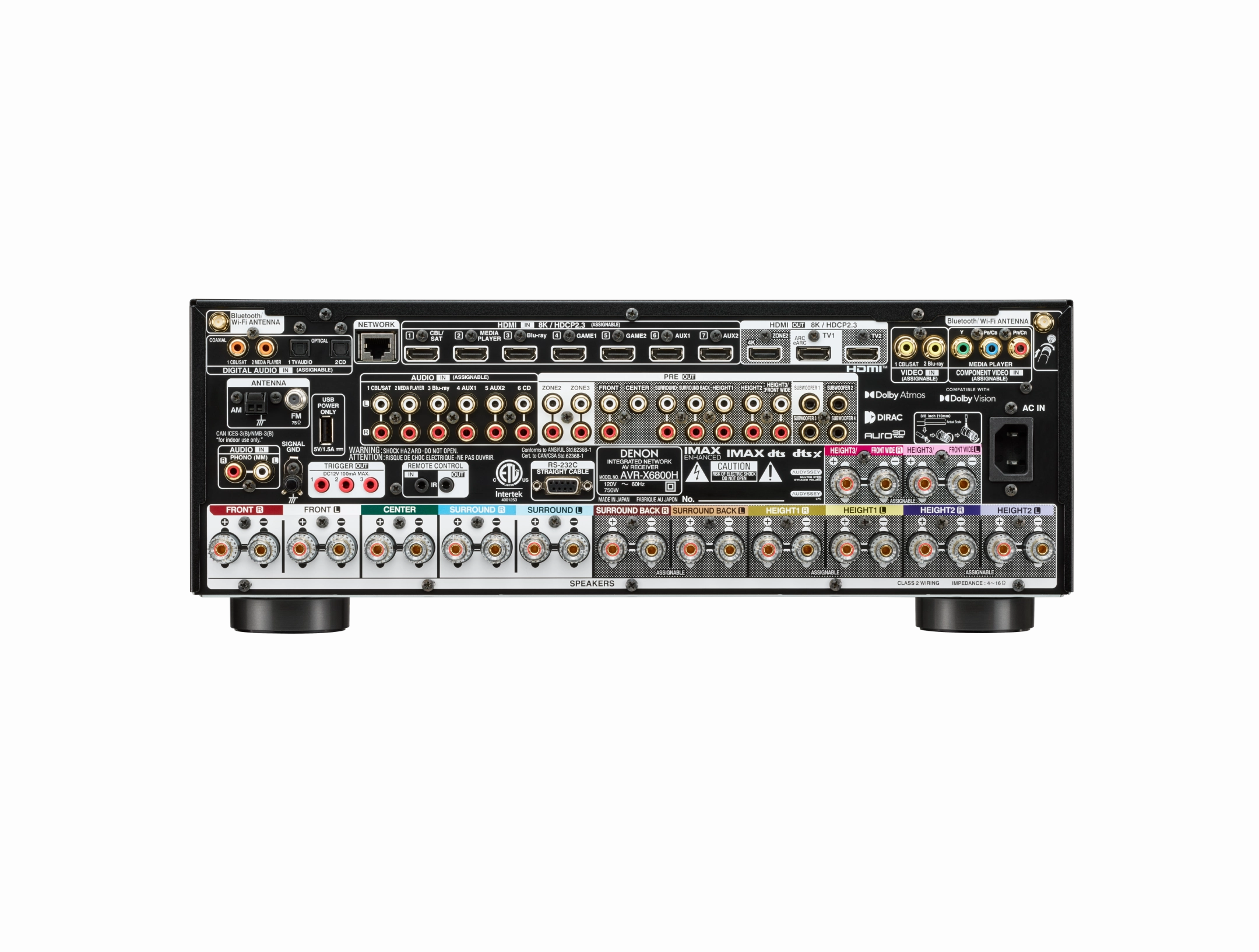

| Inputs Outputs | |
| VIDEO | |
| Composite In / Out | 2 / No |
| Component In / Out | 1 / No |
| HDMI In / Out | 7 / 3 |
| Multi-Room Video Out: Video / HDMI | No / Yes |
| AUDIO | |
| Analog In, Out | 6 / No |
| Phono (MM) In | Yes |
| Digital in: Optical / Coaxial | 2 / 2 |
| Multi-Room Out: Analog / Digital | 2 / No |
| Multichannel Pre-out | Yes (13.4) |
| Subwoofer Out | 4 (independent) |
| OTHER | |
| Speaker Terminal: Gold-Plated Screw / Regular Screw | Yes / No |
| Number of Speaker Terminals | 13 |
| Speaker A / B | assignable |
| Bi-amp drive | assignable |
| Multi-Room Speaker Terminal | assignable |
| Front Inputs: Audio / Composite / Digital (Opt) / HDMI / USB | No / No / No / No / Yes |
| USB Audio / Made for iPod / Made for iPhone | Yes / No / No |
| USB Power Supply on Rear Panel | Yes |
| AM/FM Tuner | No |
| Specifications | |
| Number of Power Amps | 11 |
| Power Output (8 ohm, 20 Hz - 20 kHz, 0.05% 2ch Drive) | 140 W |
| Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive) | 175 W |
| Power Output (6 ohm, 1 kHz, 1% 1ch Drive) | 205 W |
| General | |
| Metal Front Panel | Yes |
| System Remote Control | RC-1256 |
| Pre-programmed / Learnable / LCD Display | Yes / No / No |
| Power Consumption in W | 750 |
| Power Consumption No-Sound (ECO On / Off) in W | 65W / 110W |
| Standby Consumption in W | 0.1 |
| CEC Standby Consumption in W | 0.5 |
| Network Standby Consumption in W | Less than 2.0 |
| Maximum Dimensions | |
| Antenna: Horizontal: (W x D x H) in mm | |
| Antenna: Vertical: (W x D x H) in mm | 434 389 167 |
| w/o Antenna: (W x D x H) in mm | (434 x 389 x 237) |
| Carton Dimensions (Packaging) (W x D x H) in mm | 531 x 465 x 303 |
| Weight in kg | 15.6 |
| Weight in kg (Packaging) | 18.2 |
| Power Supply | AC 230 V, 50 / 60 Hz |
| Speaker Impedance | 416/ohms |
| Pre-Amplifier Section | |
| Input Sensitivity | 200 mV |
| Frequency Response | 10 Hz100 kHz 1, 3dB (Direct mode) |
| S/N Ratio | 102dB (IHF-A weighted, Direct mode) |
| What's in the Box | Main unit, remote control, batteries, wire labels, quick start guide, Audyssey microphone, card board microphone stand, 2 External Detachable Antenna, AC cord |
| EAN code | Black / 0747192140366 |
| Silver / 0747192140373 |
