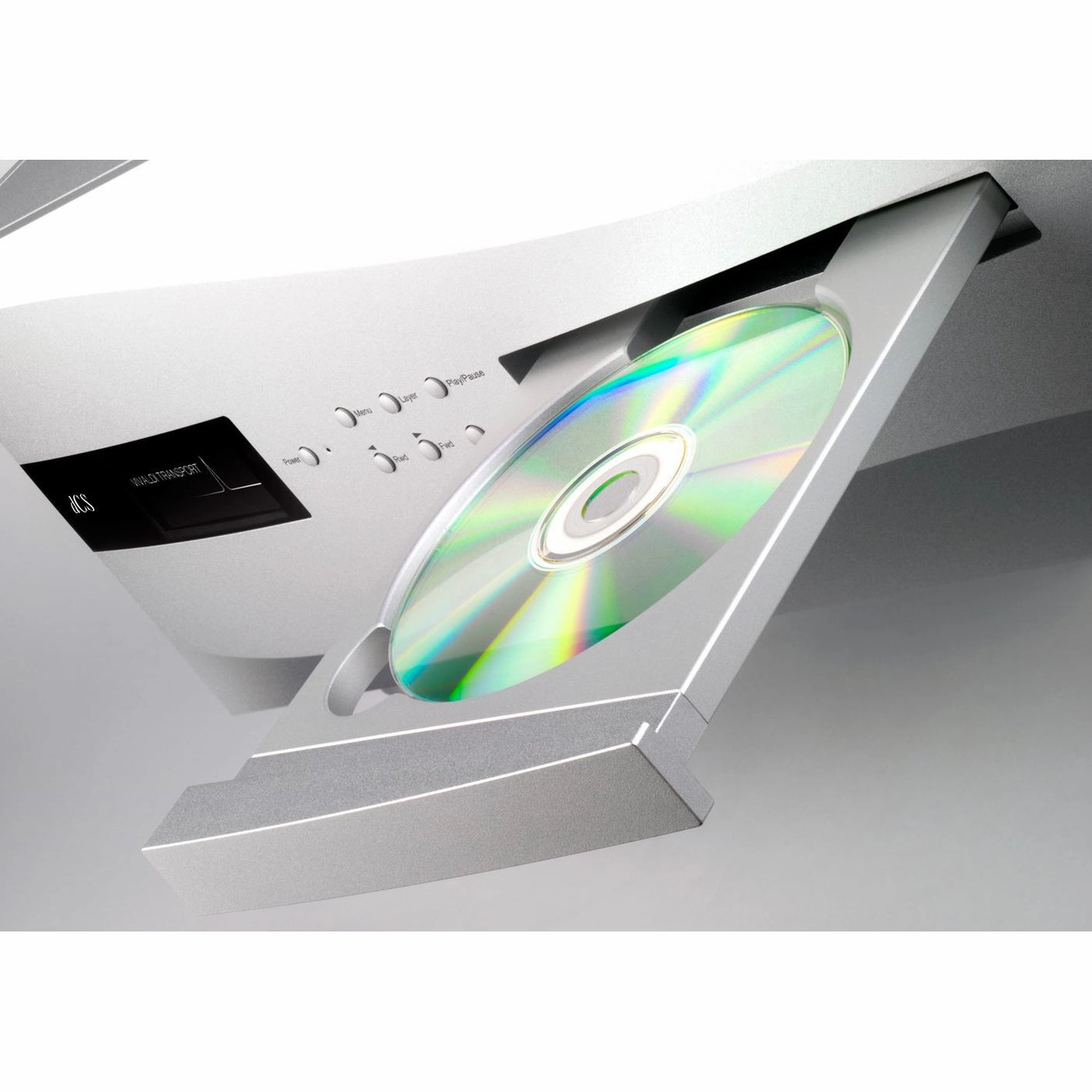

Designed to deliver excellent performance in rigidity, vibration resistance and resonant-free operation, the Rossini Transport offers a stable and near-silentperformance that extracts astonishing levels of detail from silver discs
APEX Player Key Features
- Latest generation dCS Digital Processing Platform brings state-of-the-art signal processing and flexibility
- dCS Ring DAC APEX, as used in Vivaldi playback system, delivers enhanced sonic and technical performance

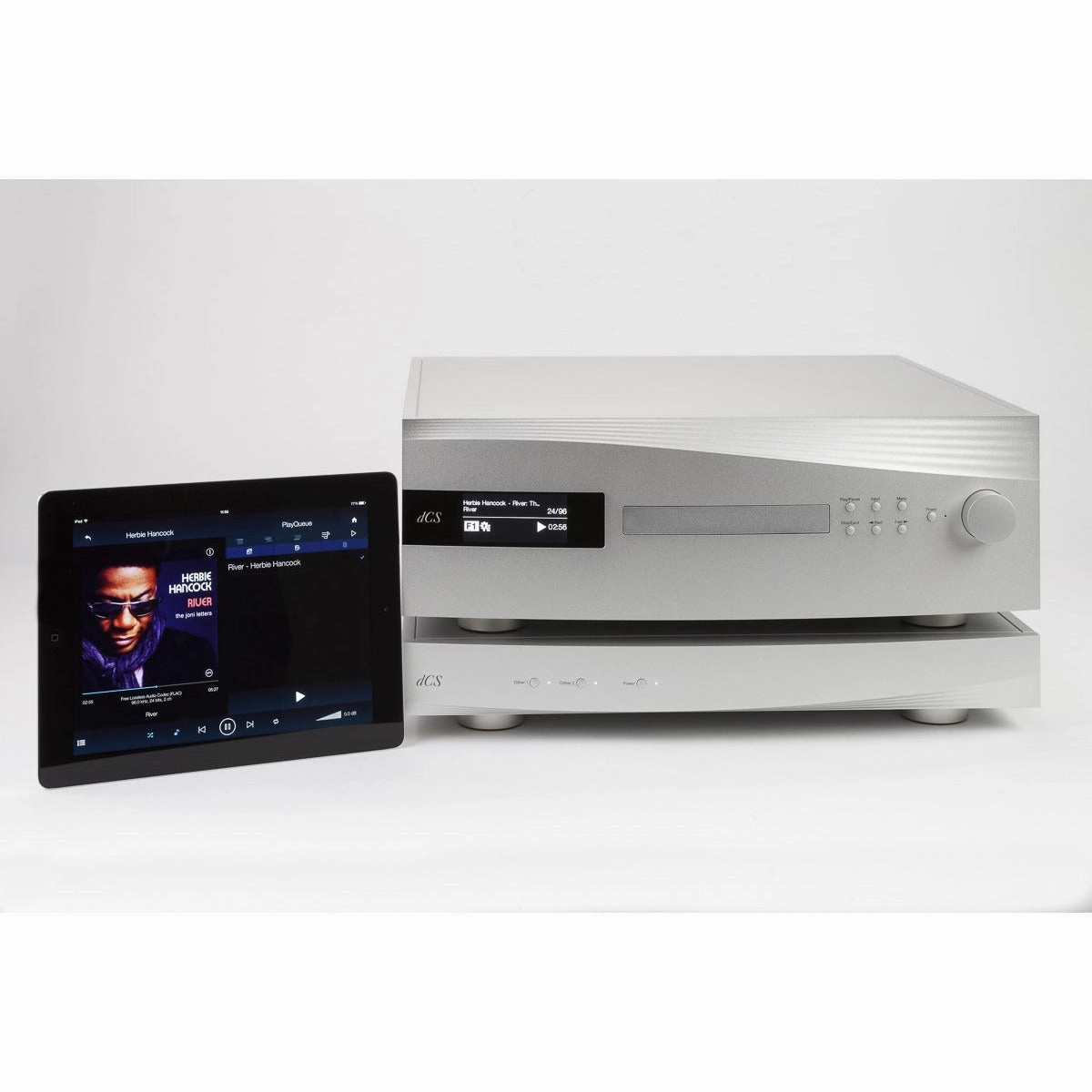

- High quality streaming from TIDAL, Qobuz, Deezer and internet radio via the dCS Mosaic Control app
- Roon Ready, AirPlay, Spotify Connect and UPnP compatible
- USB, AES, Dual AES and S/PDIF digital audio inputs
- Integral, high quality CD transport for silver disc playback
- Multi-stage DXD oversampling design with optional DSD upsampling; user-selectable DSP and DSD filters
- Auto clocking system improves ease of use and minimises jitter
- Multi-stage power regulation and twin mains transformers isolate analogue, digital and clock circuitry
- Firmware-upgradeable for future functionality and performance upgrades
- Features a full MQA decoder. This MQA implementation is unique, as it is the first opportunity to enable a DAC which, by providing exact rendering to beyond 16x (768 kHz), matches the desired temporal response with very low modulation noise
Specifications:
| Type | Upsampling CD/Network Player |

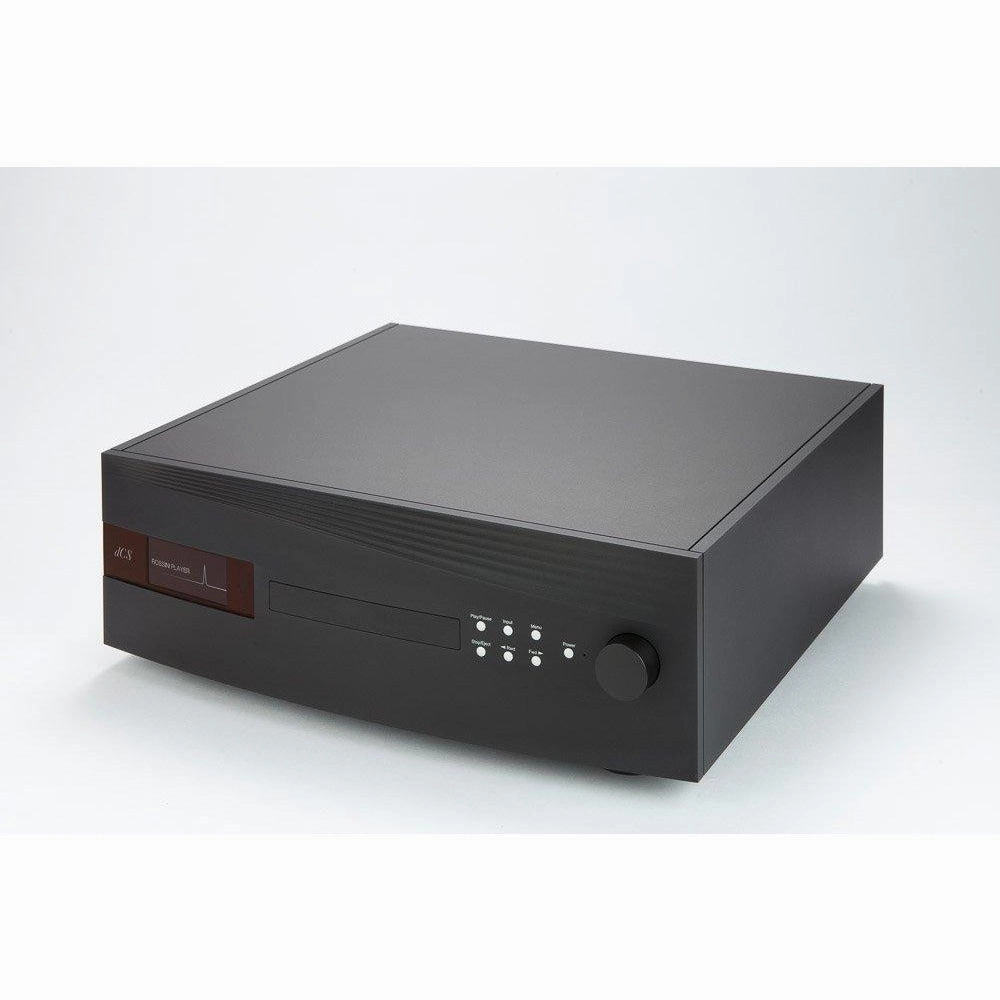

| Chassis Options | Silver or Black |
| Dimensions | 444mm / 17.5 x 435mm / 17.2 x 151mm / 6.0 (Allow extra depth for cable connectors) |
| Weight | 17.4kg / 38.3lbs |
| DAC Technology | dCS proprietary Ring DAC topology (6MHz in Map 1 or 3; 3MHz in Map 2) |

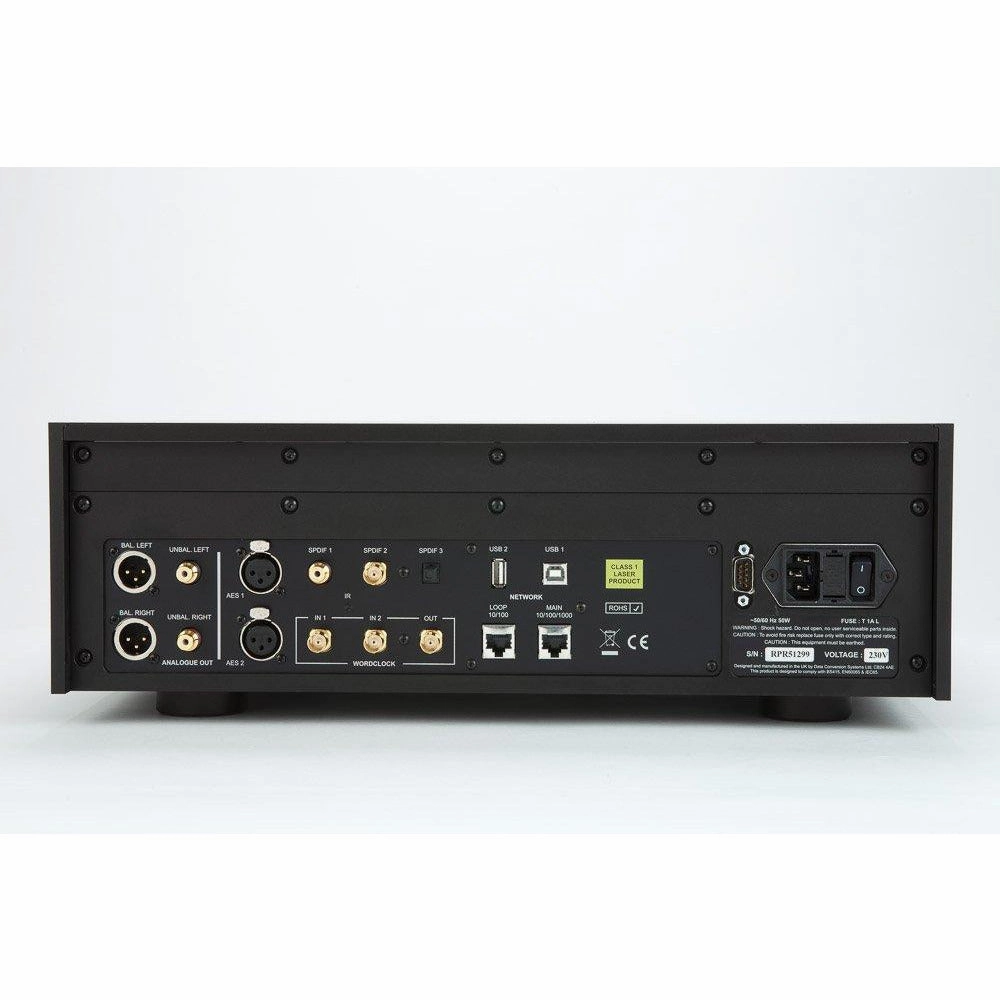

| Inputs | Ethernet (RJ45), USB 2.0 (B-type), USB On-The-Go (A-type), 2 x AES/EBU (XLR), Dual AES pair, SPDIF (RCA, BNC, TOSLINK) |
| Supported Input Formats | PCM: 24-bit 44.1 384kS/s, DSD: DSD/64 & DSD/128 in DoP or DFF/DSF format |
| Transport Mechanism | Stream Unlimited JPL-2800 SilverStrike with aluminium tray |
| Outputs | 1 x pair balanced (XLR), 1 x pair unbalanced (RCA) |
| Output Levels | 0.2V, 0.6V, 2V, 6V rms (set in menu) |
| Output Impedance | Balanced: 3; Unbalanced: 52 |
| Max Load | 600 (Recommended: 10k-100k) |
| Word Clock Inputs | 2 x BNC (44.1, 48, 88.2, 96, 176.4, 192kHz) |
| Word Clock Output | 1 x BNC (TTL-compatible Word Clock output in Sync Mode) |
| MQA Support | Full decoding & rendering from Network and USB2 inputs, final rendering from other inputs |
| Dynamic Range | 16-bit: Better than -96dB0, 20Hz-20kHz unweighted; 24-bit: Better than -113dB0, 20Hz-20kHz unweighted |
| Distortion | Better than -115dB0, 20Hz-20kHz |
| Intermodulation Distortion | Better than -105dB0, 20Hz-20kHz |
| PCM Filters | Up to 6 filters to balance Nyquist image rejection and phase response |
| DSD Filters | 4 filters to reduce out-of-band noise; Filter 5 improves transient response |
| Upsampling Options | User selectable PCM upsampling to DXD, DSD, or DSDx2 |
| Software Updates | Downloadable via dCS Mosaic App or CD-R |
| Control | dCS Mosaic App, RS232 interface, dCS Universal Remote |
| Power Supply | Factory set to 100, 115/120, 220, or 230/240V AC, 50-60Hz |
| Power Consumption | 26 Watts typical / 35 Watts maximum |
| USB Audio Support | USB Audio Class 1 & 2 fully supported by Windows 10/11 & OSX 10.10 or later |
