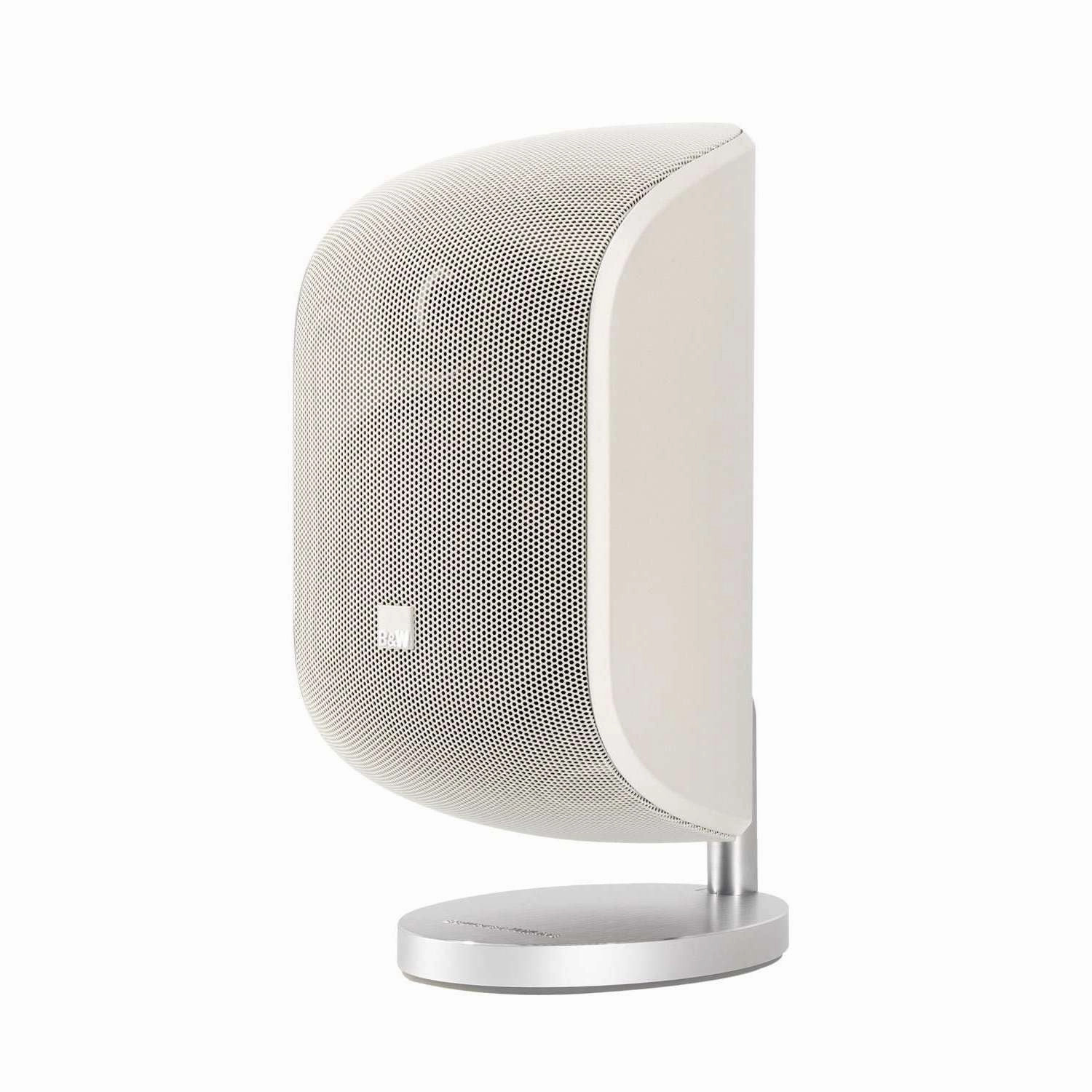

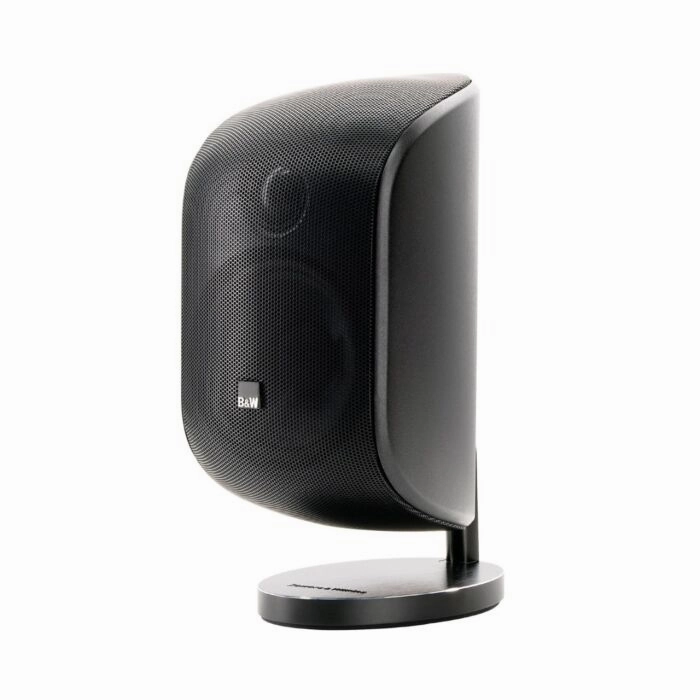

Forming the basis of a completely revised Mini Theatre concept, the new M-1 combines a cleaner aesthetic with dramatically improved performance. Combine it with either the ASW608 or the new PV1D subwoofer to create a home theatre experience with superb integration and impressive power for such a discreet system. Plus, its more extended bass response allows M-1 to be used on its own for two-channel applications. Mount the speaker as shown on a table or shelf. Alternatively, a bracket is included for wall mounting and a floor stand is available as an optional extra.
Technical features
Nautilus tube loaded tweeter with aluminium dome,Woven glass fibre cone bass / midrange
Description
2-way vented-box system
Drive units
1x 25mm (1in) aluminium dome high-frequency,1x 100mm (4in) woven glass fibre cone bass / midrange
Frequency range
-6dB at 55Hz and 50kHz
Frequency response
64Hz - 23kHz 3dB on reference axis
Dispersion
Within 2dB of reference response,Horizontal: over 60 arc,Vertical: over 10 arc
Sensitivity
85dB spl (2.83V, 1m)
Harmonic distortion
2nd and 3rd harmonics (90dB, 1m),<1% 120Hz - 30kHz
Nominal impedance
8 (minimum 4.0)
Crossover frequency
4kHz
Recommended amplifier power
20W - 100W into 8 on unclipped programme
Max. recommendedcable impedance
0.1
Dimensions
Height: 248mm (9.8in),Width: 114mm (4.5in),Depth: 162mm (6.4in),Mounted on table stand
Net weight
2.3kg (5lb)
Finishes
Cabinet: Matte Black or Matte White,Grille: Matte Black or Matte White perforated steel to match
