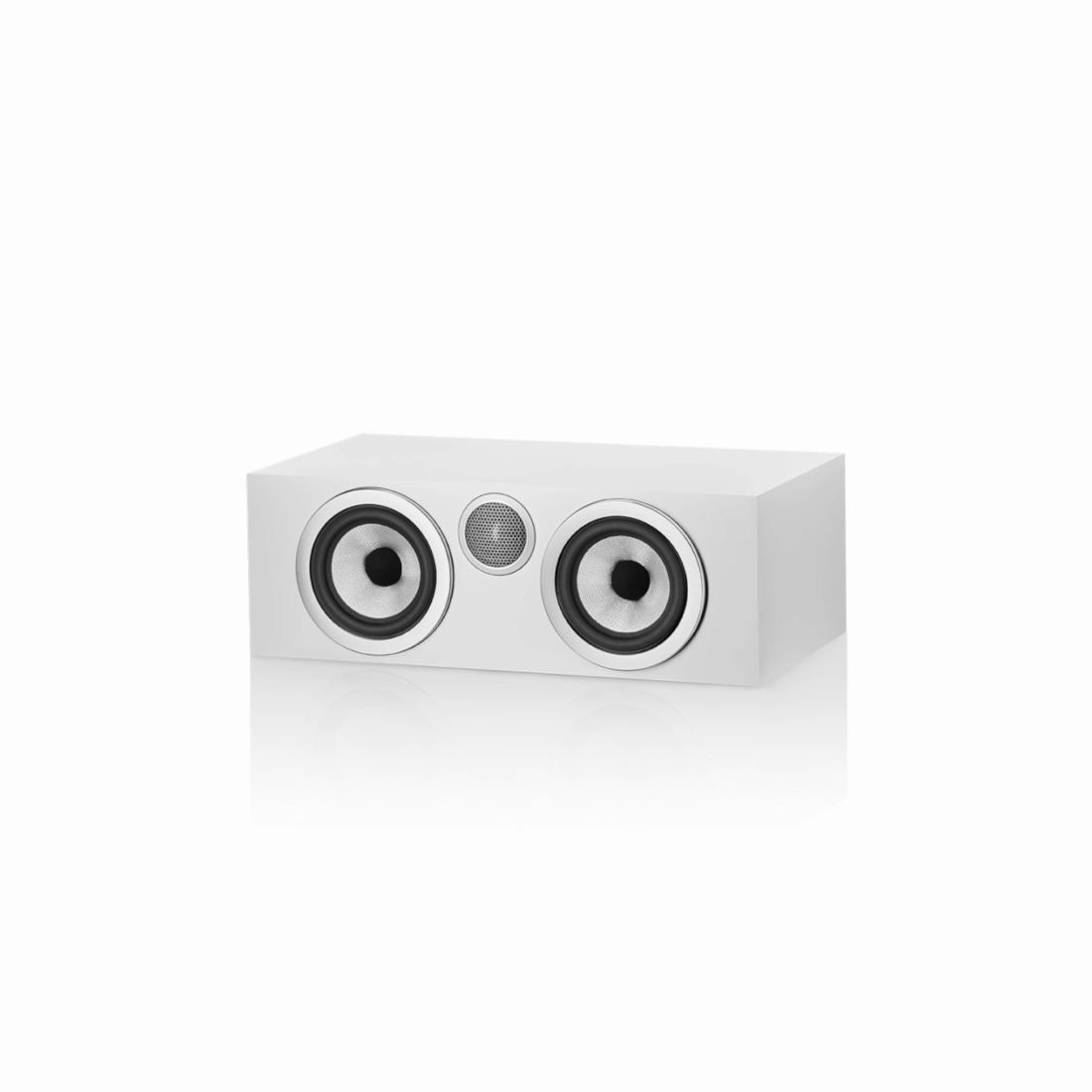

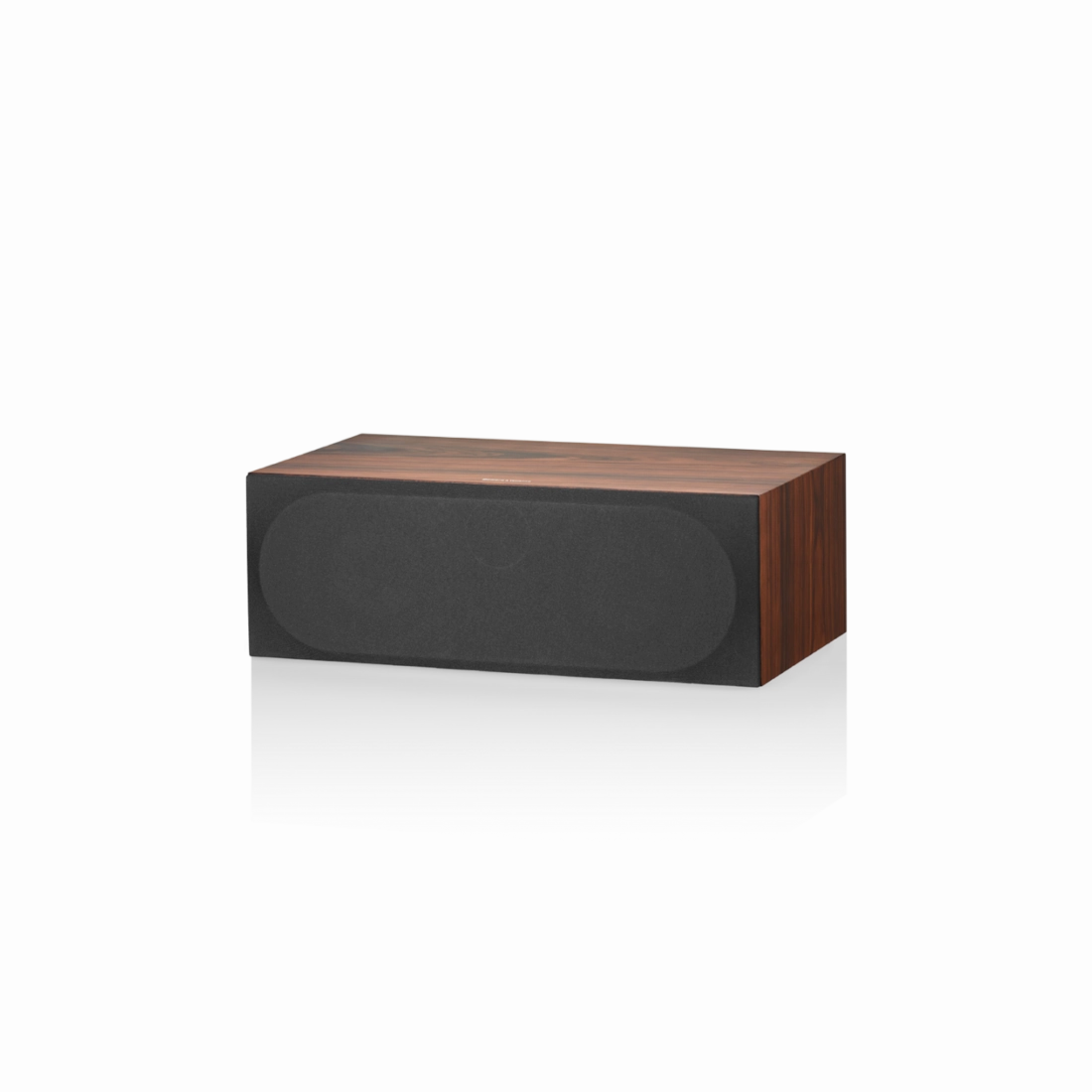

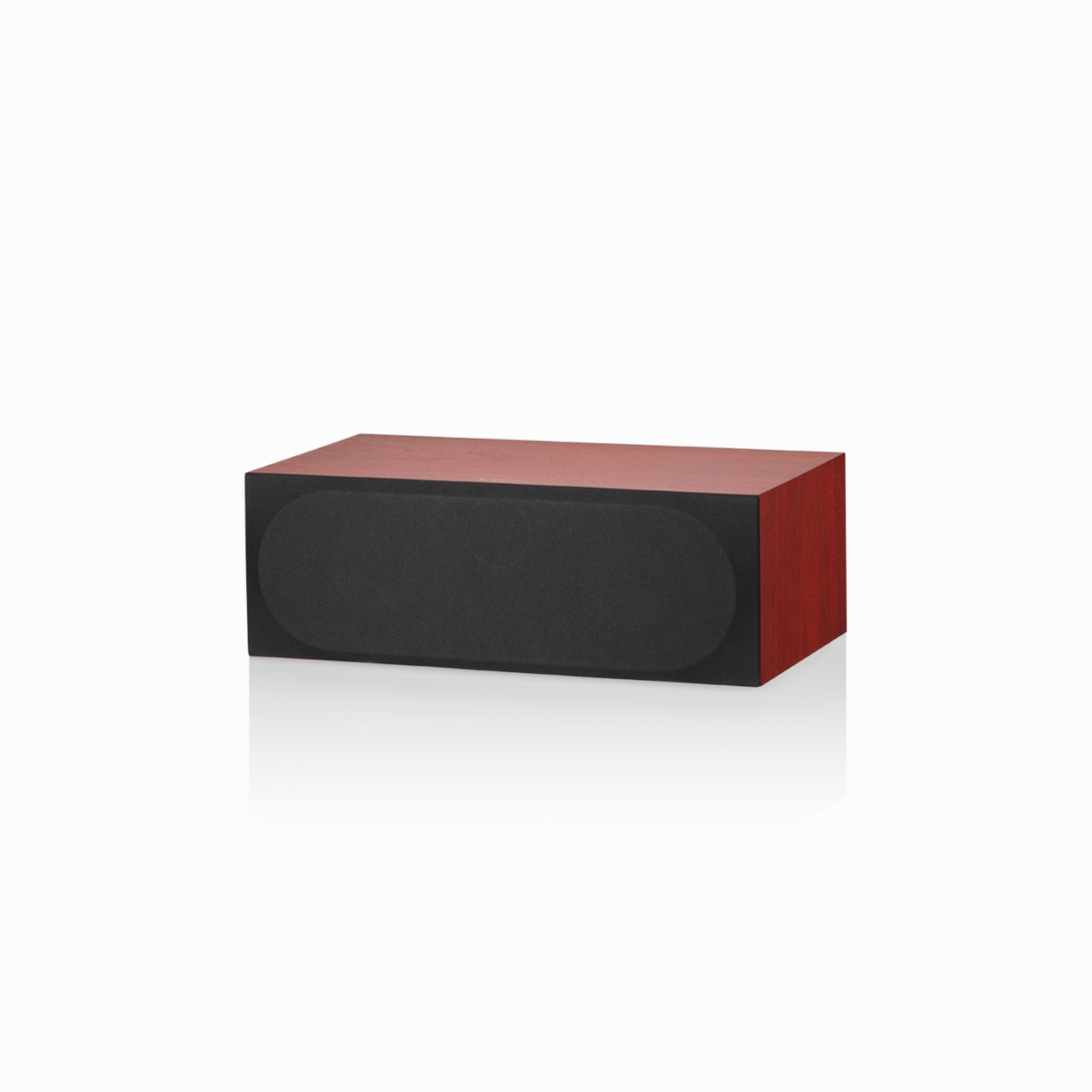

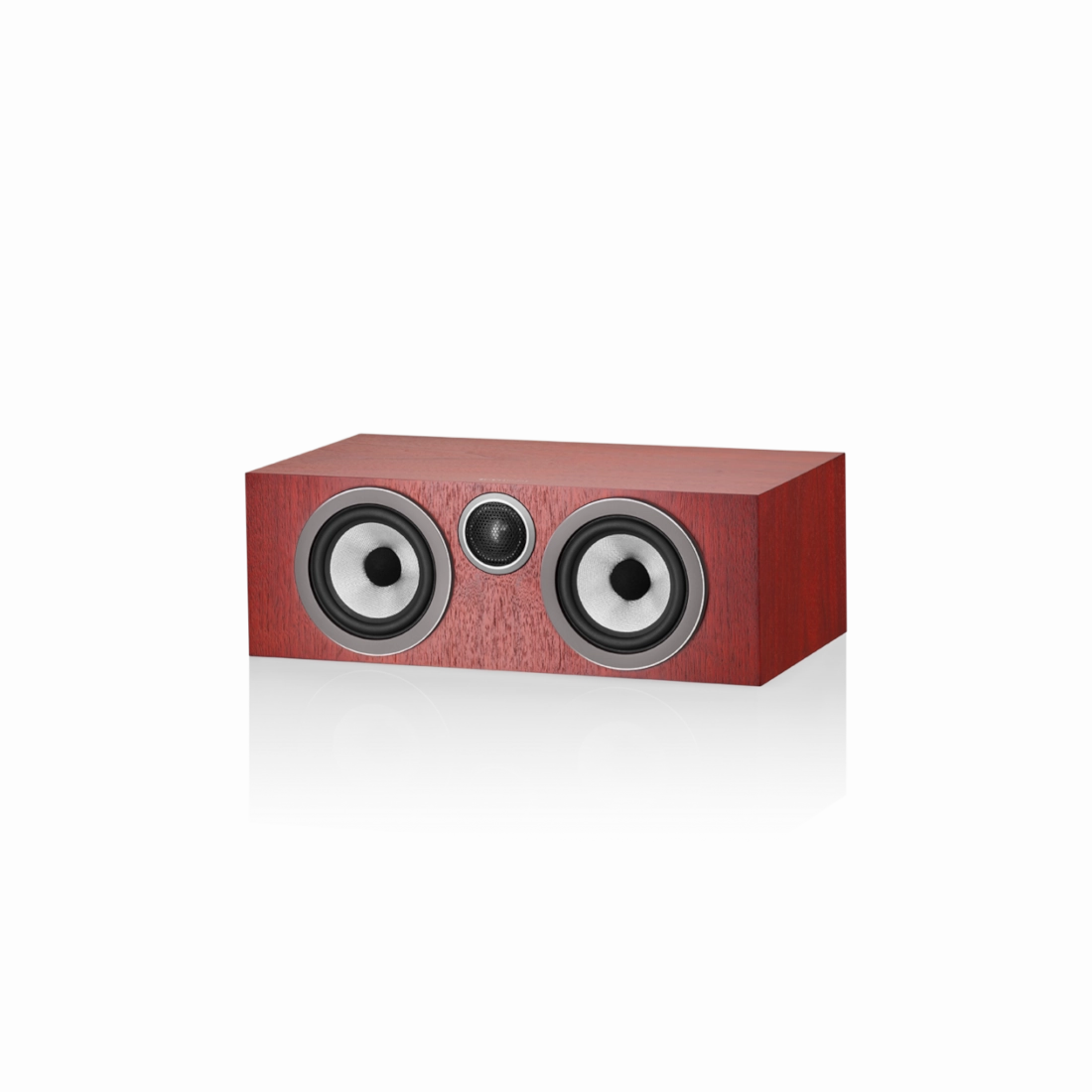

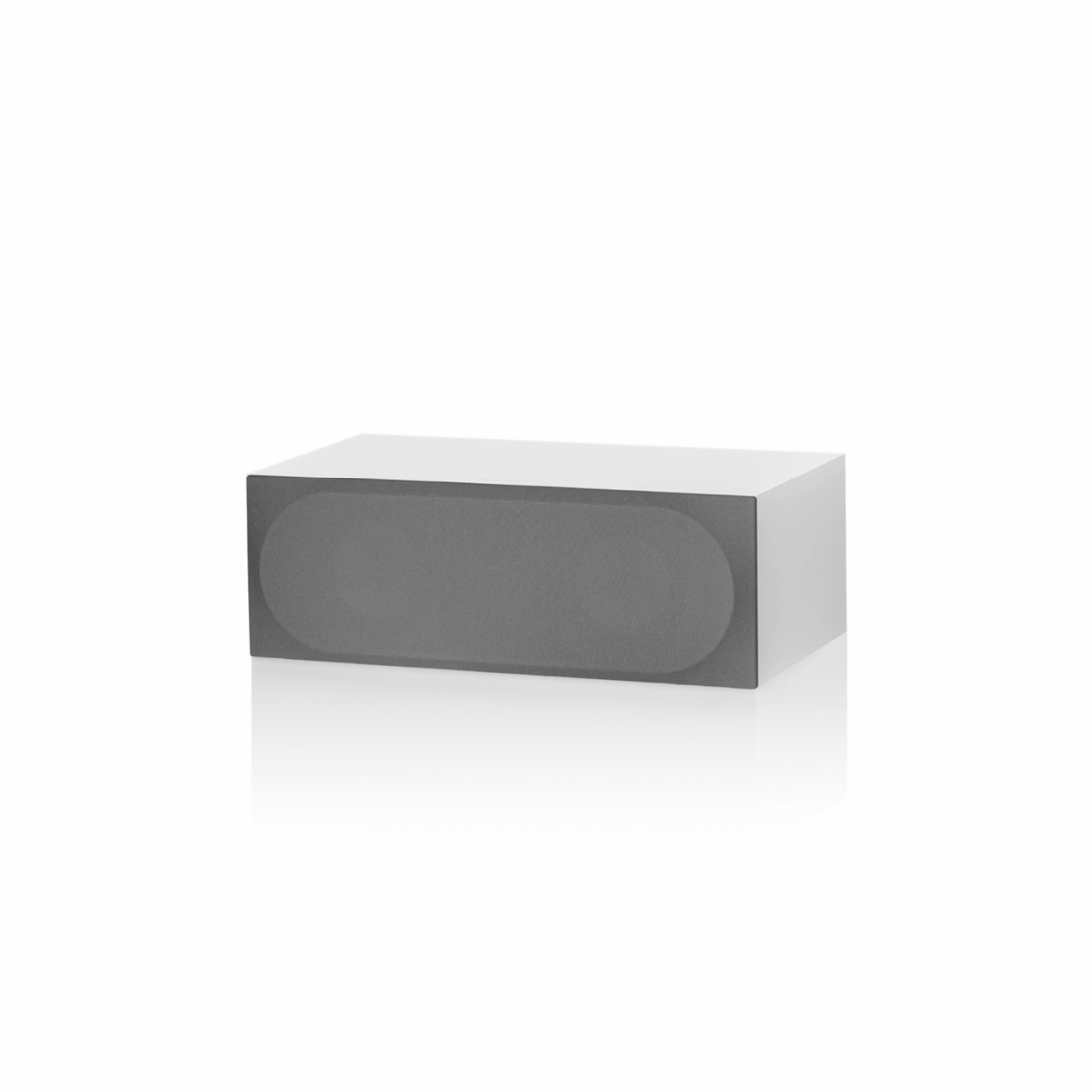

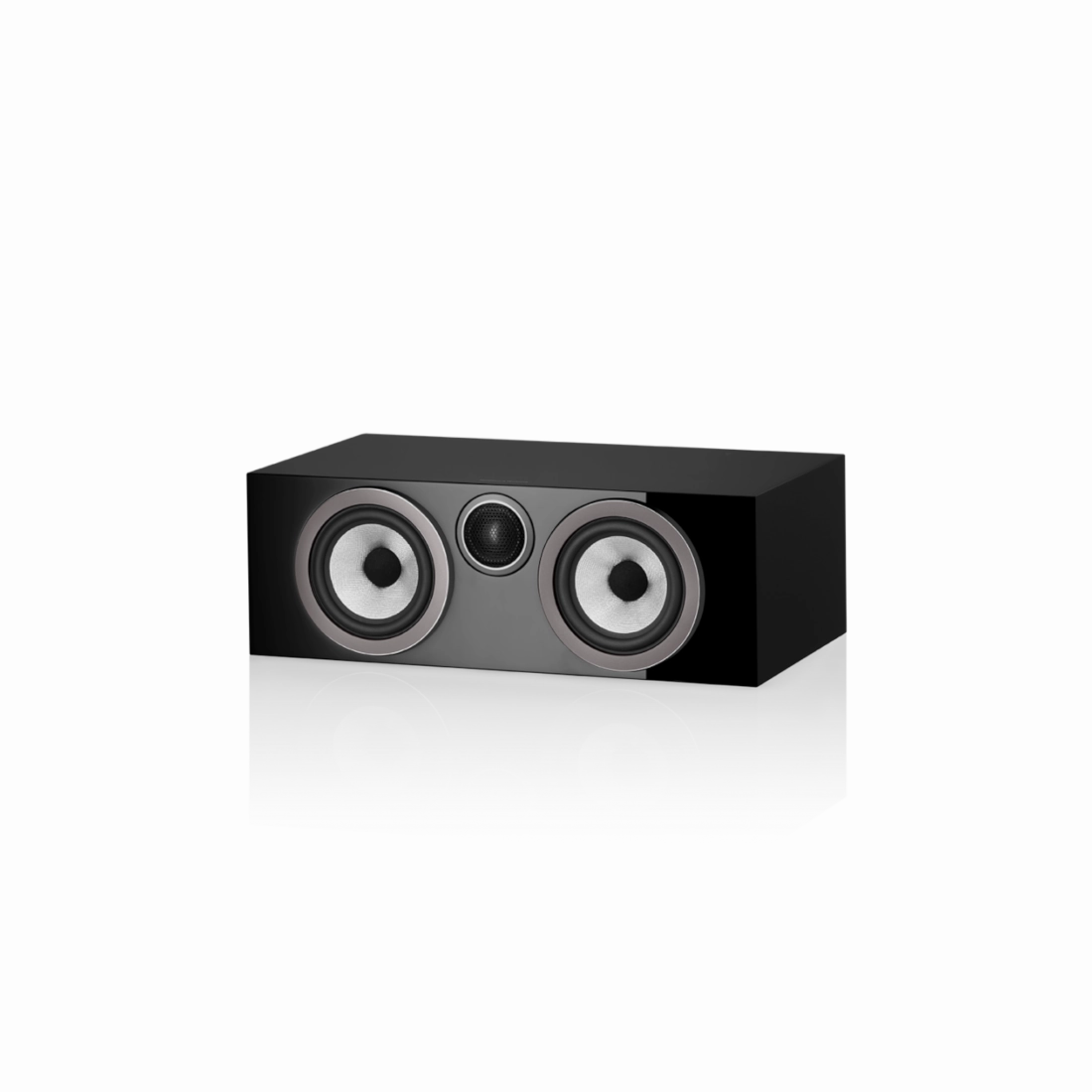

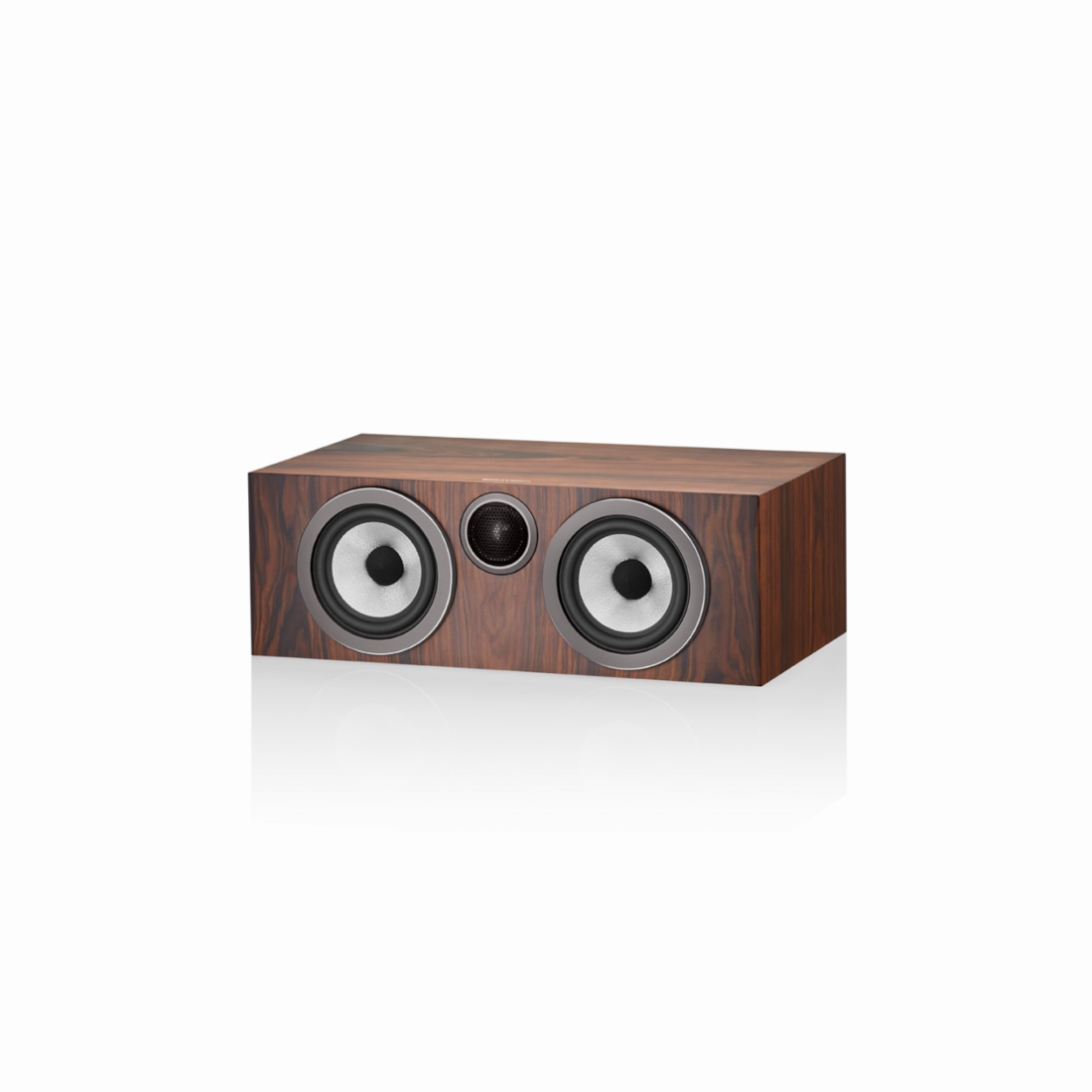

HTM72 S3

HTM72 S3 is the more compact centre-channel speaker in the new 700 Series. It features a Carbon Dome tweeter and twin Continuum cone Mid/Bass drivers. Its the perfect partner for a home theatre system based around the 704 S3, 706 S3 or 707 S3.

A premium choice for smaller set-ups

HTM72 S3 is the more compact centre-channel speaker in the range, bringing superior dialogue clarity to the home cinema experience.

Sharper detail

Carbon Dome tweeters are purpose-built for the 700 Series. Delivering a dramatic improvement on the aluminium double dome tweeter, they raise the breakup threshold to 47kHz, for pinpoint imaging accuracy and detail.

Truly amazing sound

Thanks to its composite construction, the Continuum cone avoids the abrupt transitions in behaviour that can impair the performance of a conventional drive unit. The result is a more open, neutral performance that delivers voices and instruments with precision and transparency.

Specifications:

Size & weight

Dimensions	Height: 165 mm (6.5 in) cabinet only Width: 477 mm (18.8 in) Cabinet only Depth: 266 mm (10.5 in) Cabinet only 302 mm (11.9 in) including grille and terminals
Net weight	9.66kg (21.3 lb)

Technical details

Technical features	Decoupled Carbon Dome tweeter Continuum cone bass / midrange Flowport
Description	2-way vented-box system
Drive units	1x 25mm (1 in) Decoupled Carbon Dome high-frequency 2x 130mm (5 in) Continuum cone bass / midrange
Frequency range	48Hz - 33kHz
Frequency response	70Hz - 28kHz 3dB
Sensitivity	87dB spl (on axis at 2.83Vrms at 1m)
Harmonic distortion	2nd and 3rd harmonics (90dB, 1m on axis) <1% 100Hz - 22kHz <0.5% 200Hz - 22kHz
Nominal impedance	8 (minimum 4.3)
Recommended amplifier power	30W - 120W into 8 on unclipped programme
Max recommended cable impedance	0.1
