DB2D

Using the same 10-in drivers found in the flagship 800 D4 speakers and a high-efficiency 1000 watt amplifier, DB2D uses intelligent DSP to optimise bass in any room.

Save space, not bass

DB2D's fast, solid bass complements the 800 Series Diamond speakers, and advanced room optimisation makes it easy to position.

Suit your speakers

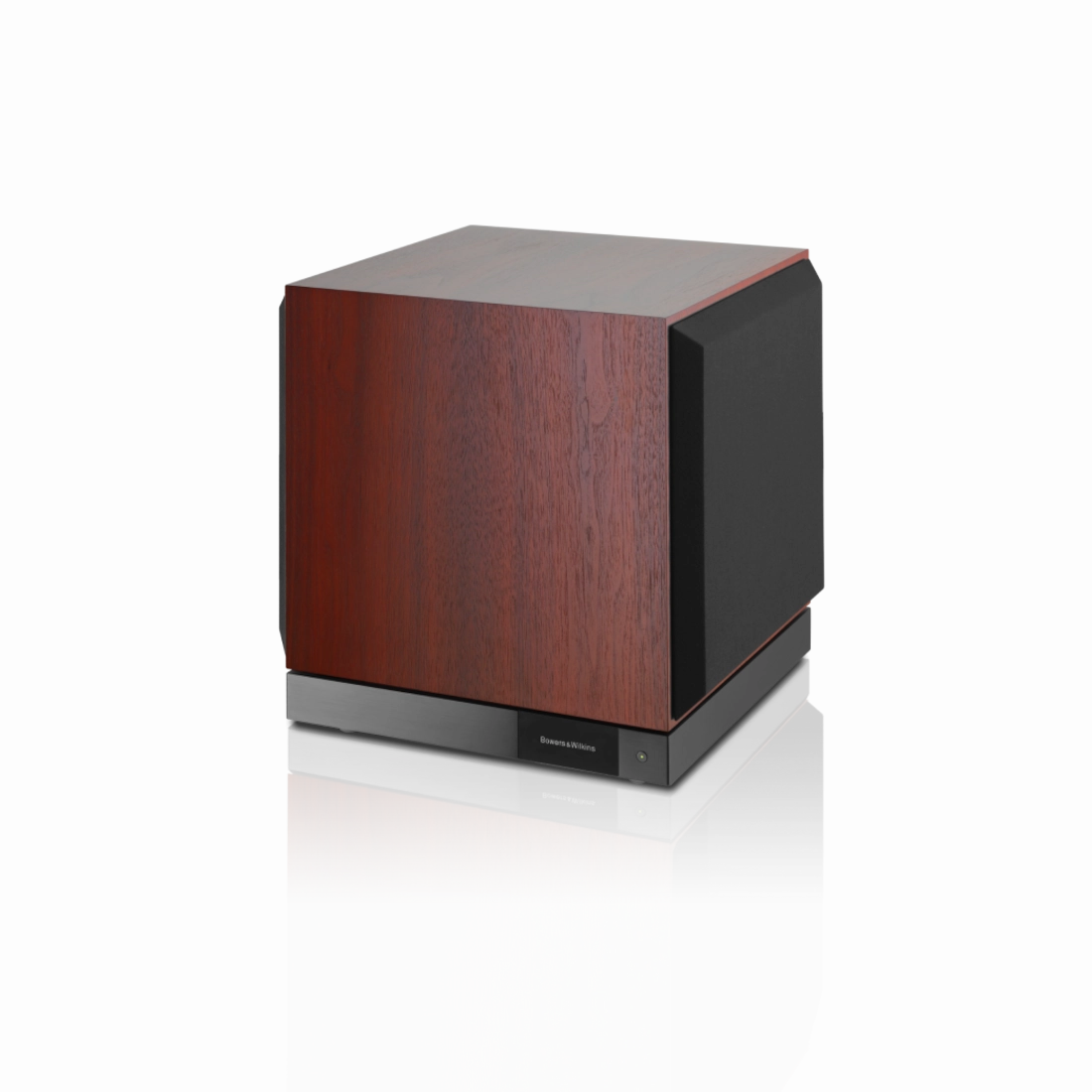

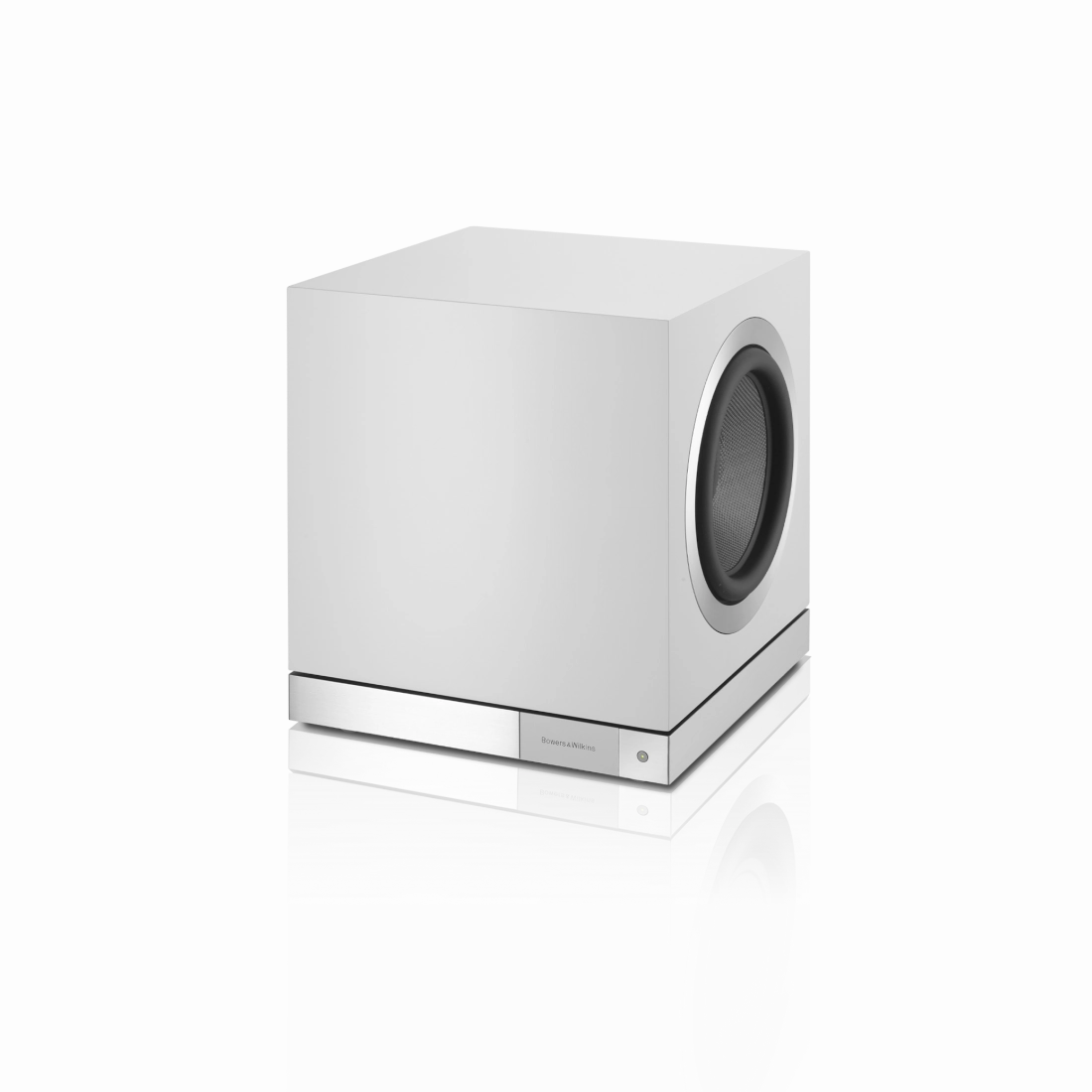

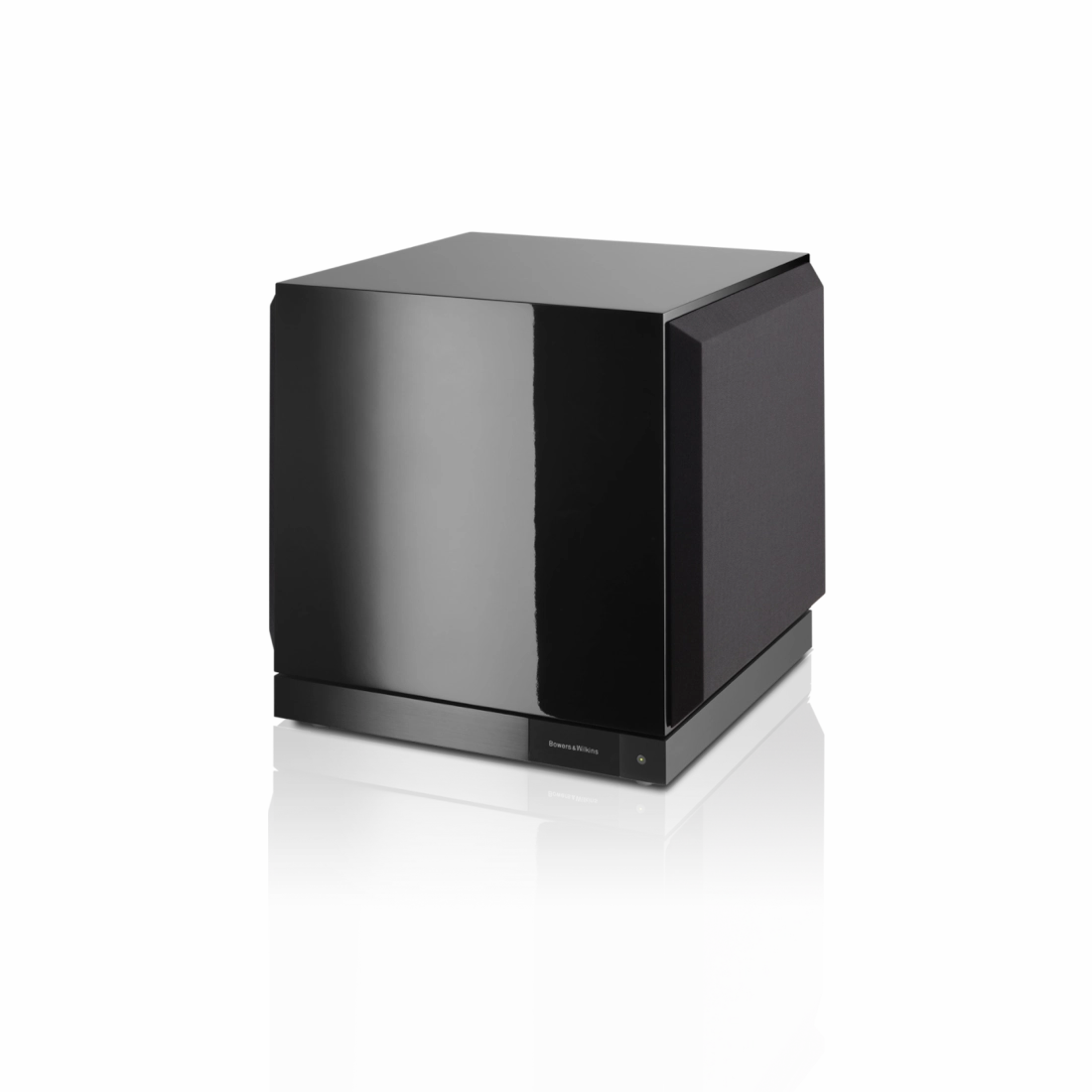

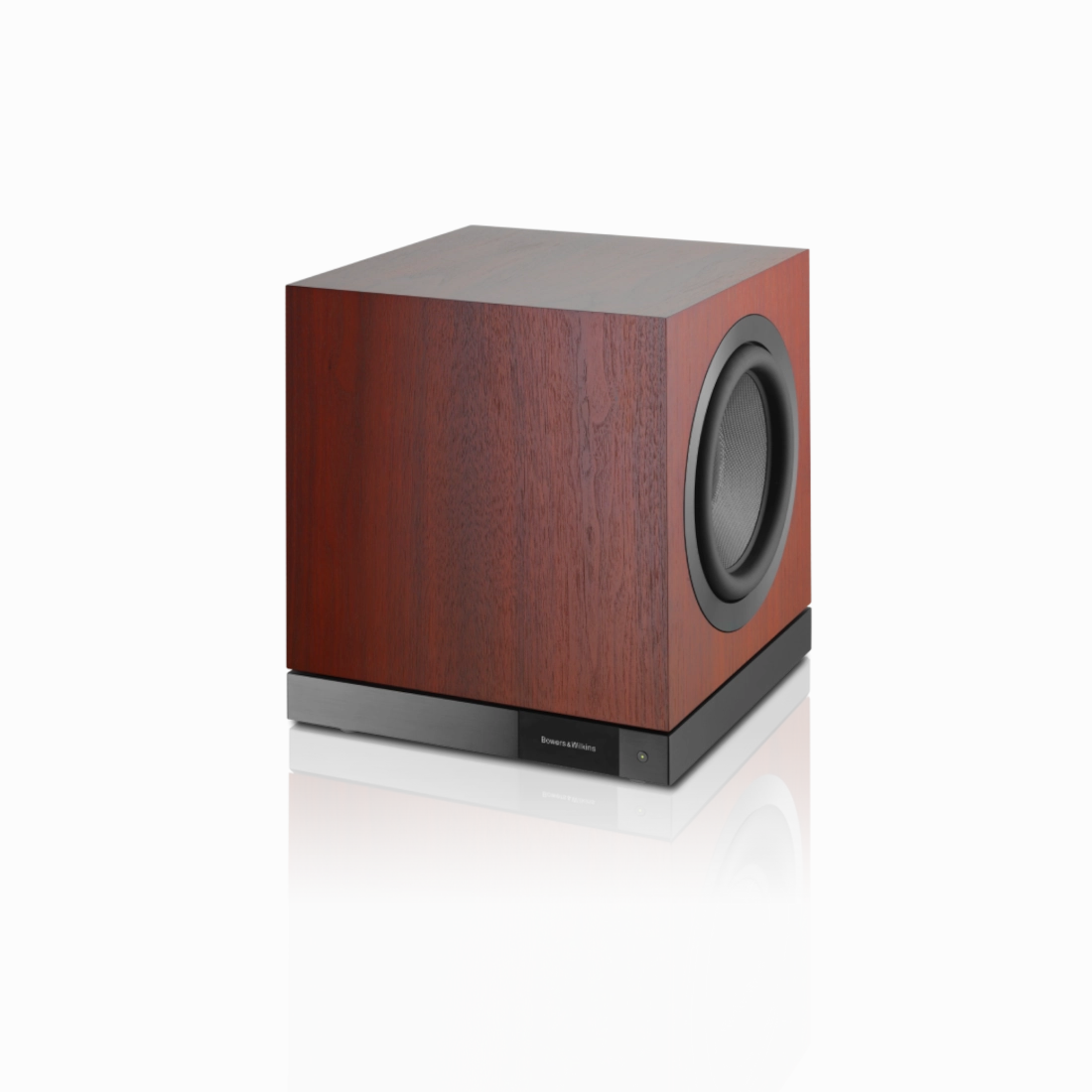

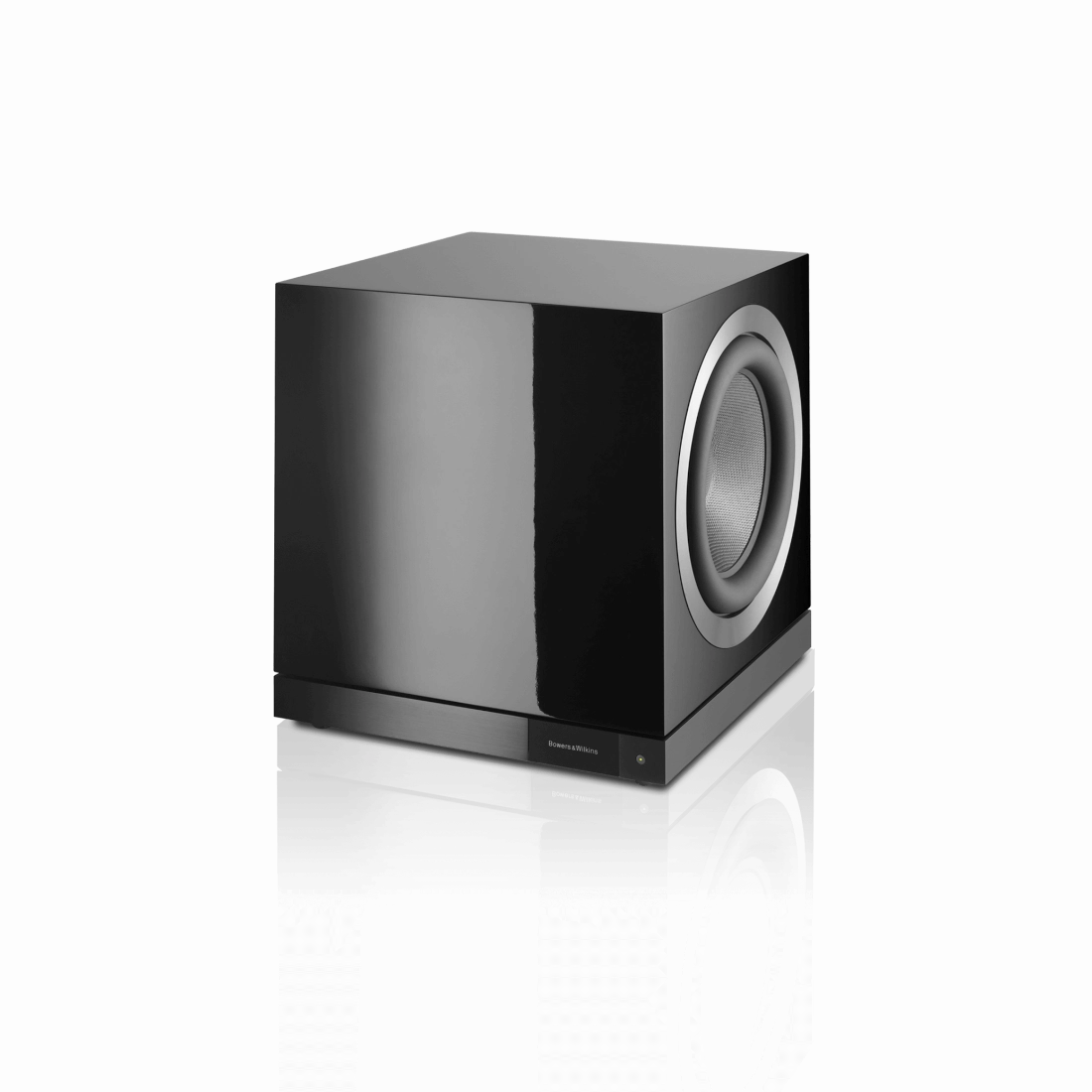

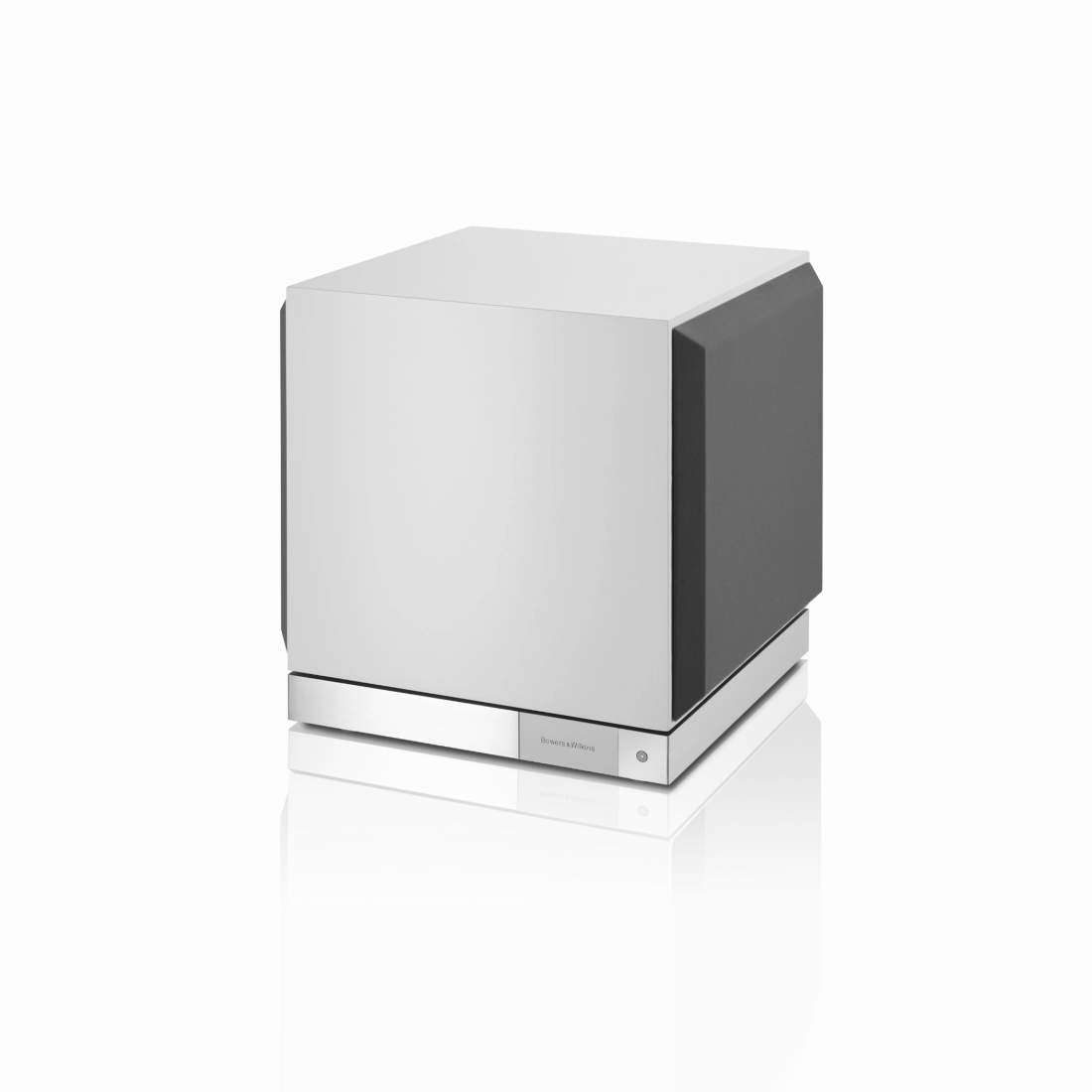

As well as being beautifully built, DB2D comes in a choice of finishes to match your speakers and your dcor.

Power and control

The DB2D's digital signal processing ensures punch and control for scintillating movie effects and to make more of your music.

Nimble and powerful

Solid, dramatic bass is delivered through the rigidity and lightness of the uniquely-shaped, variable thickness Aerofoil cone.

A question of balance

The back-to-back (opposed) drivers cancel out cabinet resonances, ensuring all that power is used to create room-shaking bass, not wasted vibrations.

The digital advantage

Digital amplification is cool-running and energy efficient, even when working hard, while Dynamic EQ and Room EQ ensure a precise sound for music and movies.

Take control

By placing control in the palm of your hand, our subwoofer app not only makes our DB Series subwoofers a snap to set up, it also helps maximise your sound quality.

Specifications:

Size & weight

Dimensions	Height: 430mm (16.9 in) Width: 377mm (14.8 in) Depth: 360mm (14.2 in)
Net weight	36kg

Technical details

Technical features	1000w Class D Hypex amplifier 2 x 250mm (10 in) Aerofoil cone drive units in a balanced configuration Digital preamplifier with Dynamic EQ App-based set-up and BT-LE control
Description	DB Series Subwoofer
Drive units	2 x 250mm (10 in) Aerofoil cone drive units in a balanced configuration
Frequency range	-6dB at 8.5Hz - 500Hz
Frequency response	10Hz - 350 Hz -3dB (centered on level at 100Hz)
Max power output	1000W
Inputs	2 x XLR 2 x RCA 2 x 3.5mm 12V trigger RS-232 - 9-pin D connector
