See nothing, hear everything

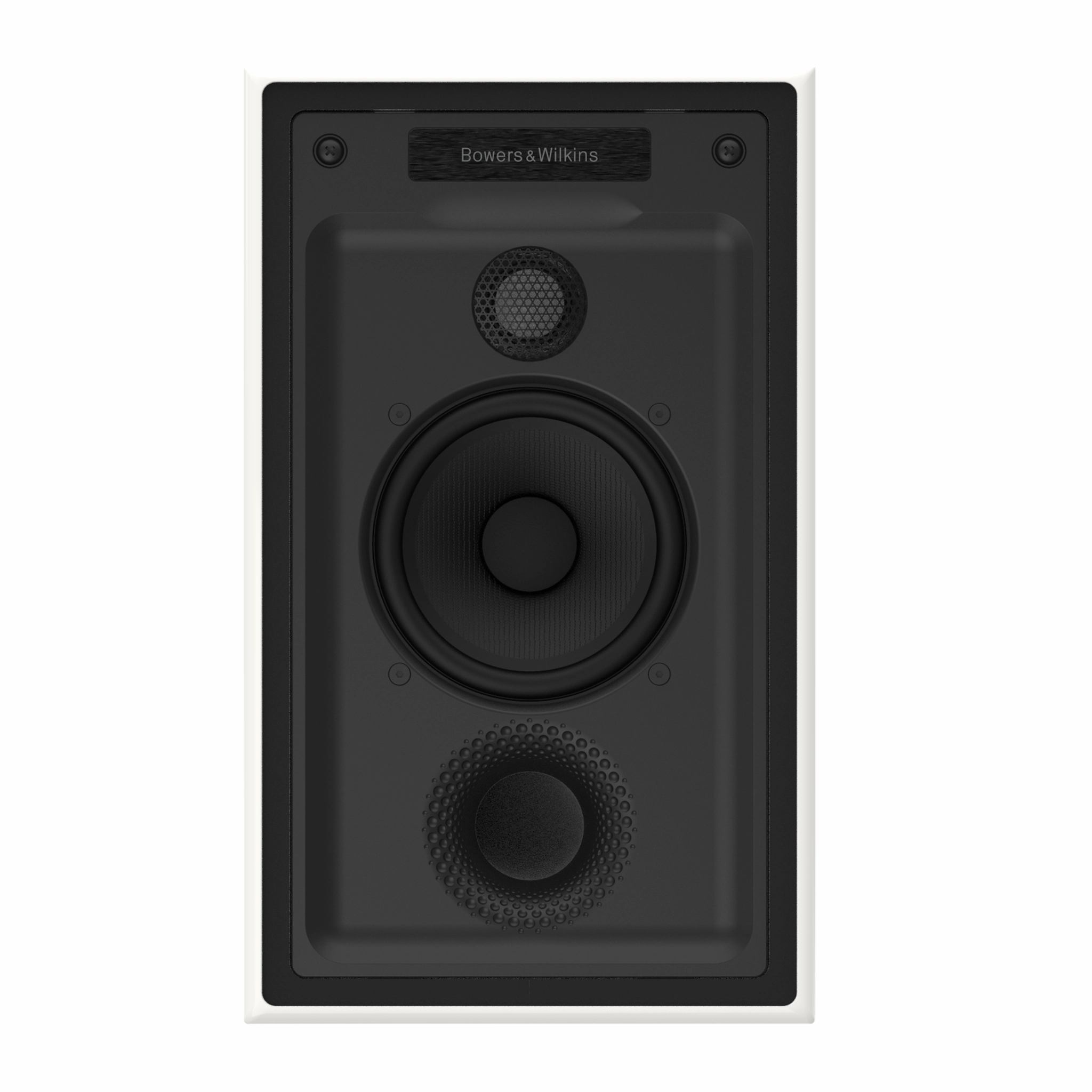

The CWM7.5 shares the acoustic configuration of the 707 S2 and like its sibling, it
houses a 130mm (5in) bass/mid-range Continuum cone driver plus a 25mm (1in) Carbon Dome tweeter, coupled to a forward-firing FlowportTM for outstanding bass response from a relatively small footprint. It has a critically formed baffle constructed from glass reinforced ABS plus its own integrated backbox, ensuring retrofittable installation plus optimum performance. Its an outstanding performer when used in stereo or multi-room installations, and is equally at home as the rear speaker in a larger theatre application.
Specifications:
- Description:2-way in-wall system
- Tweeter:1x 25mm (1 in) Carbon Dome high-frequency
- Mid/Bass:1x 130mm (5 in) Continuum conedriver
- Frequency range:(-6dB) -6dB at 43Hz and 33kHz
- Frequency Response:-3dB 45Hz - 28kHz 3dB
- Sensitivity:86dB spl (2.83Vrms, 1m)
- Nominal impedance:8 (minimum 3.8)
- Recommended amplifier power:25W - 150W into 8 on unclipped programme
- Frame height:356mm
- Frame width:212mm
- Depth (behind surface):102mm
- Cut-out height:331mm
- Cut-out width:187mm
- Cut-out height w/PMK:336mm
- Cut-out width w/PMK:192mm
- Reservoir box height:385mm
- Reservoir box width:181mm
- Protrusion:8mm
- Net weight:3.8kg
- Back box:White
- Grille:White
