Designed for wall-mounted left, centre and right speaker positions in a discreet home cinema system, CWM7.4 S2 can also be mounted beside, above or below the screen,

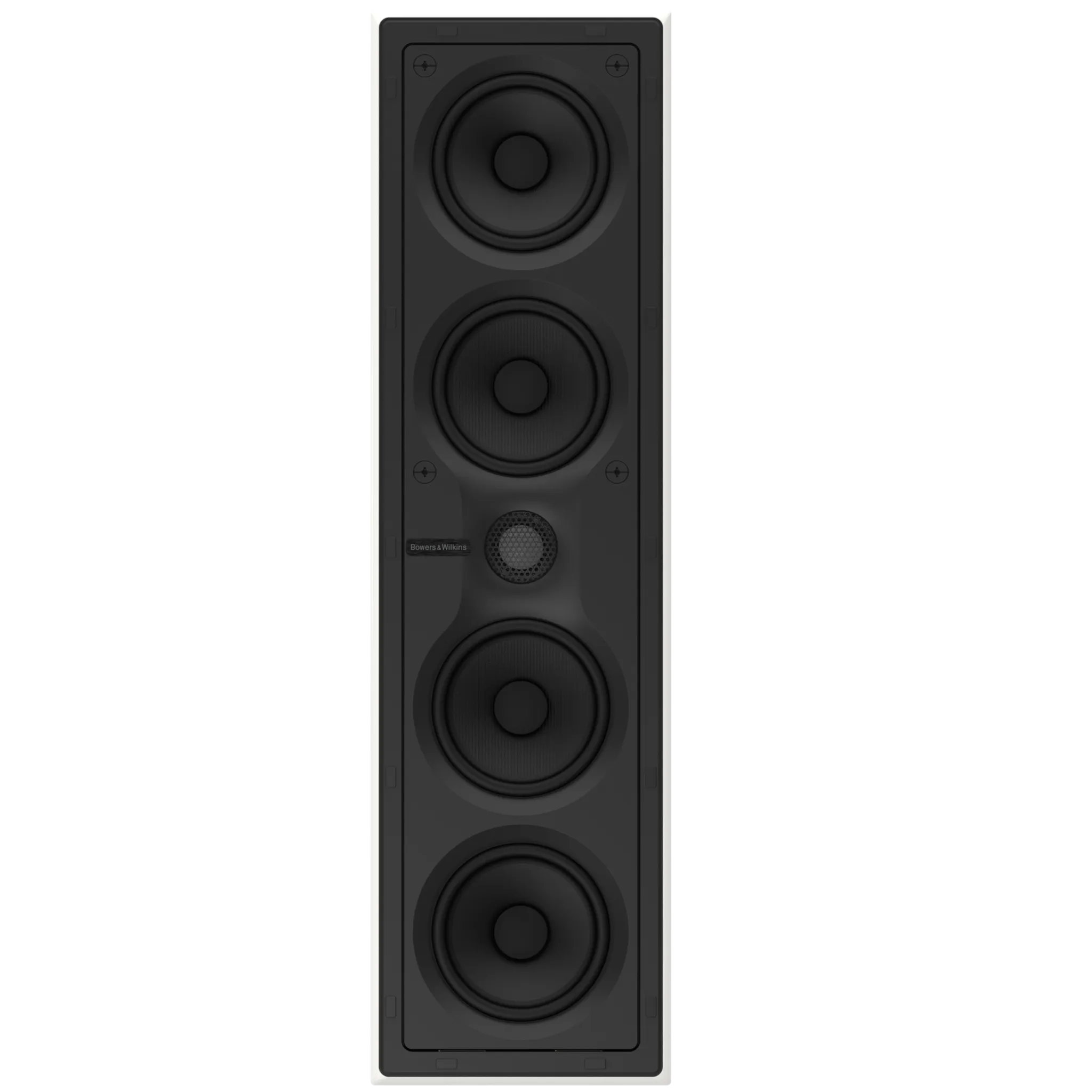

ensuring crystal-clear dialogue and dramatic special effects. Thanks to Bowers & Wilkins unique QuickDogs fixing method, installation is simple, requiring no tools. Its 2.5-way configuration features a single Carbon Dome tweeter, twin 100mm (4in) Continuum cone midrange units and twin 100mm (4in) Aramid Fibre/paper bass cones.

Specifications:

• Technical features:Carbon Dome tweeter, Continuum midrange, Aramid Fibre/Paper bass cones
• Description:2-way in-wall system
• Drive units:1x 25mm (1 in) Carbon Dome high-frequency
• 2x 100mm (4 in) Continuum cone mid/bass
• 2x 100mm (4 in) Aramid Fibre/Paper profile bass
• Frequency range:(-6dB) -6dB at 43Hz - 33kHz
• Frequency Response:-3dB 45Hz - 28kHz 3dB
• Sensitivity86dB spl (2.83Vrms, 1m)
• Harmonic distortion:2nd and 3rd harmonics (90dB, 1m)
• <1% 80Hz - 33kHz
• <0.5% 120Hz - 33kHz
• Nominal impedance:8 (minimum 4.9)
• Recommended amplifier power:25W - 150W into 8 on unclipped programme
• Frame height:625mm (24.6in)
• Frame width:175mm (6.9in)
• Depth (behind surface):92.5mm (3.64in)
• Cut-out height:597mm (23.5in)
• Cut-out width:147mm (5.8in)
• Protrusion:8mm (0.3in)
• Net weight:6.2kg (13.73 lb)
• Finishes Grille:White
