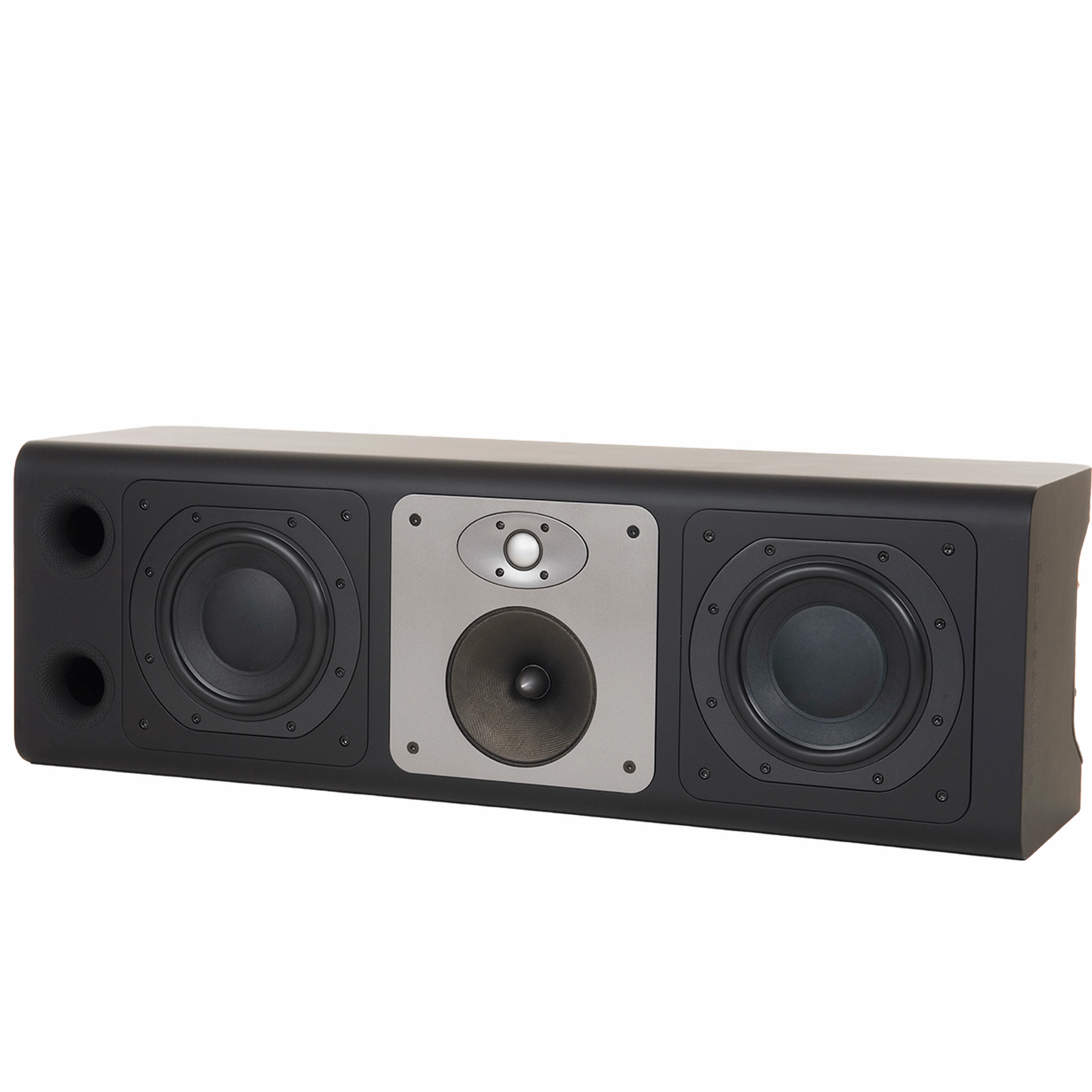

A unique modular design allows this loudspeaker to be used in horizontal or vertical configuration.
Listening is believing
The CT8.2 LCR is the latest addition to the very successful CT800 Series. It
marries high efficiency and SPL capability to outstanding fidelity for cinema and
music playback. Its unique modular baffle design allows for it to be used as a LCR
speaker in either vertical or horizontal positions. The CT8.2 LCR incorporates two
8 Paper/Aramid Fibre woofer, a 6 blue Aramid Fibre FST midrange, and 1.25
aluminium Nautilus tweeter in a passive crossover design.
Specifications:
| Description | Paper/Aramid Fibre bass unit cone Aramid Fibre FST midrange cone Speakon and binding post connectors 3-way open-box system |
| Drive units | 1x 32mm (1.25 in) tube loaded aluminium dome high-frequency tweeter 1x 150mm (6 in) woven Aramid Fibre FST midrange 2x 200mm (8 in) Paper/Aramid Fibre cone bass |
| Frequency range | -6dB at 31Hz and 45kHz |
| Frequency response | 39Hz - 24kHz 3dB on reference axis |
| Dispersion | Within 2dB of reference response Horizontal: over 60 arc Vertical: over 10 arc |
| Sensitivity | 91db spl (2.83V, 1m) |
| Harmonic distortion | 2nd and 3rd harmonics (91dB, 1m) <1% 80Hz - 20kHz <0.5% 200Hz - 15kHz |
| Nominal impedance | 8 (minimum 3) |
| Crossover Frequencies | 400Hz, 4.5kHz |
| Recommended amplifier power | 50W 500W into 8 on unclipped programme |
| Max. recommended cable impedance | 0.1 |
| Dimensions | Height: 1000mm (39.4 in) Width: 325mm (12.8 in) Depth: 300mm (11.8 in) |
| Net weight | 36.3kg (80 Ib) |
| Finish | CT800 soft touch paint finish |
