Uncompromising3-way loudspeaker, designed to sit on the left and right of your cinema screen.

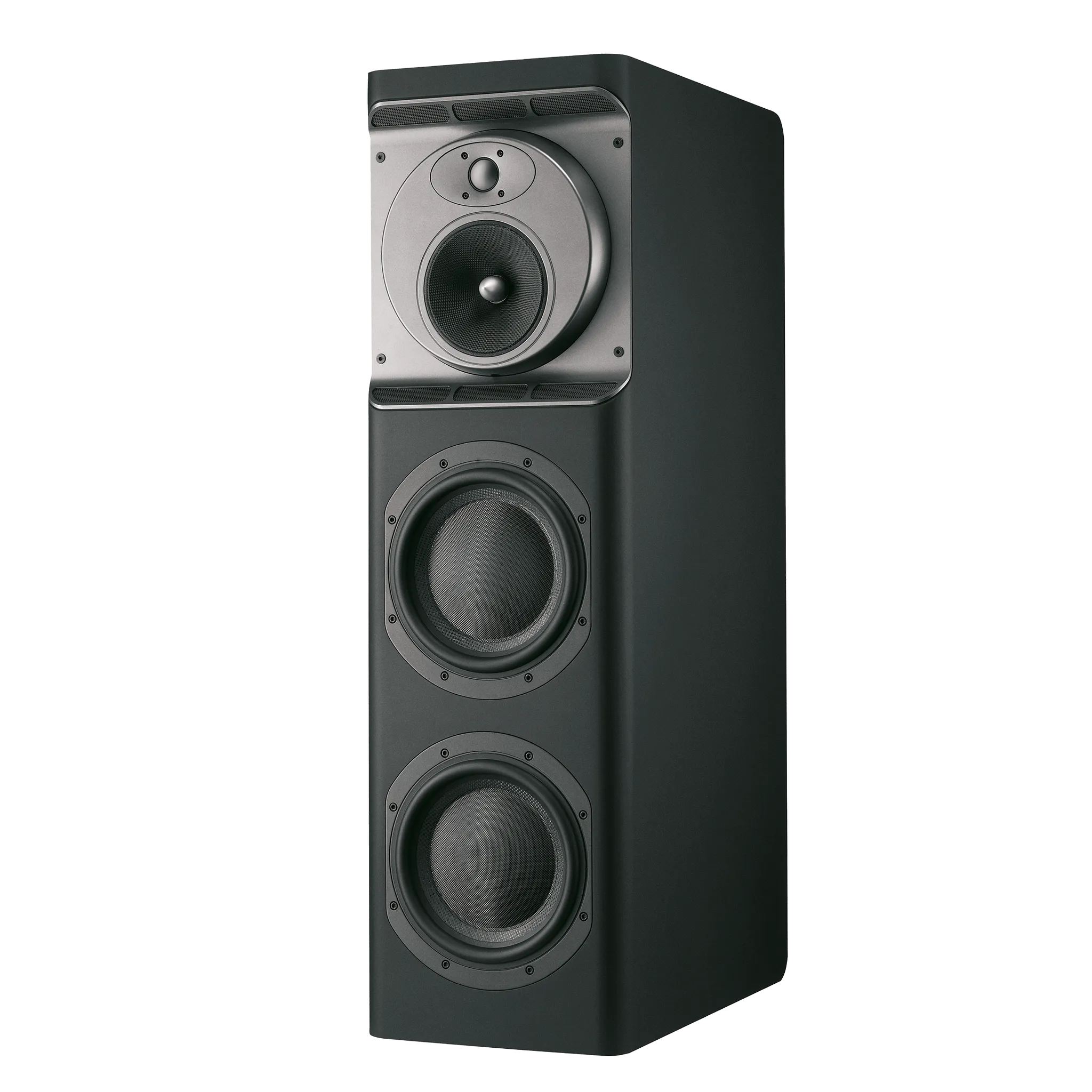

Front speaker: CT8 LR
Stationed to the left and right of the screen are two upright speakers. The CT8 LR features a spherical midrange/tweeter head that can be tilted towards the listener to retain a focused delivery, plus twin 10 bass units, as in the surround speaker.
Tweeter
For the Custom Theatre range we have taken
our development of the Nautilus-derived tubeloaded tweeter a stage further. Following the same principle as our adaptation of the midrange tube (see opposite), weve replaced the single, long tube with a whirl of tightly-packed, smaller channels contained in a shallow cup, each of which absorbs a portion of the unwanted sound energy from the back of the diaphragm. Even at frequencies well beyond human hearing, this tweeter sings like a bird.
Specifications:
| Technical features | Adjustable midrange/ tweeter head aramid fiber cone FST midrange Composite sandwich cone bass Matrix cabinet Active bass crossover Laser alignment device |
| Description | 3-way closed-box system |
| Frequency range | -6dB at 23Hz and 40kHz |
| Sensitivity | 93dB spl (2.83V, 1m) (mf/hf) |
| Nominal impedance | 8 (minimum 4) |
| Recommended Amplifier Power | 50W 1000W into 8 on unclipped programme |
| Max. recommended cable impedance | 0.1 |
| Dimensions | Height: 1100mm (43.3 in) Width: 325mm (12.8 in) Depth: 550mm (21.65 in) |
| Net weight | 85kg (187 lb) |
| Finishes | Cabinet: Black |
