ASW610XP

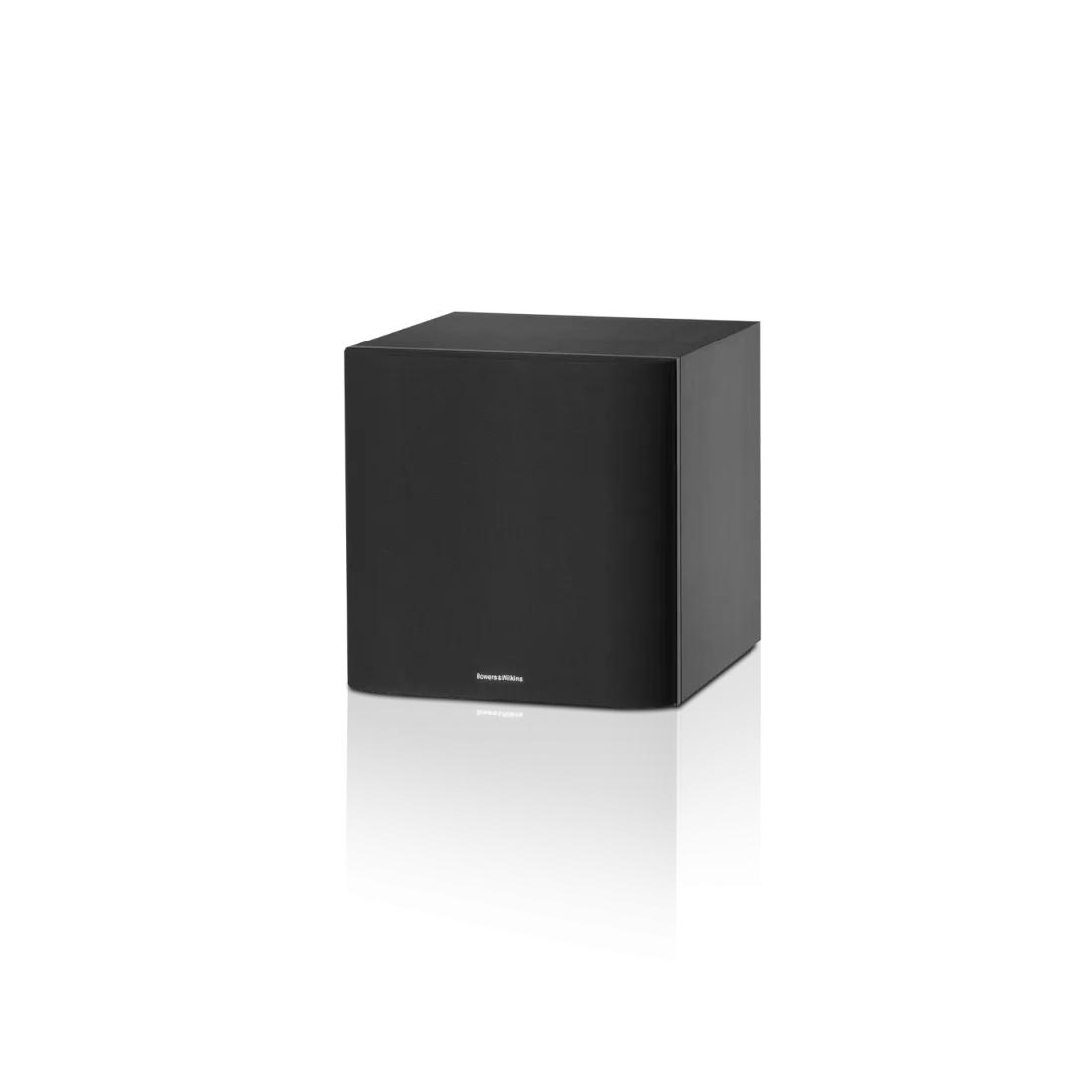

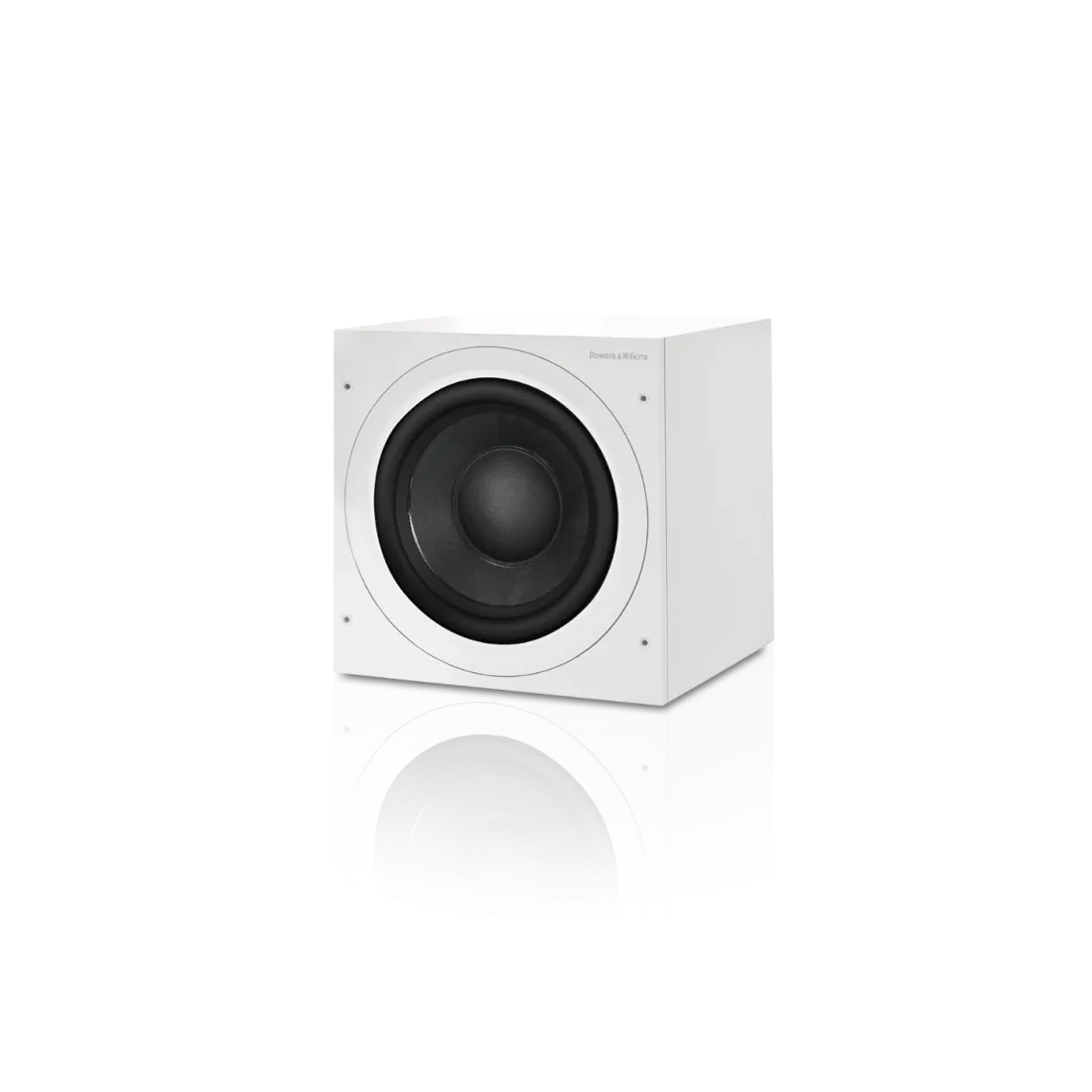

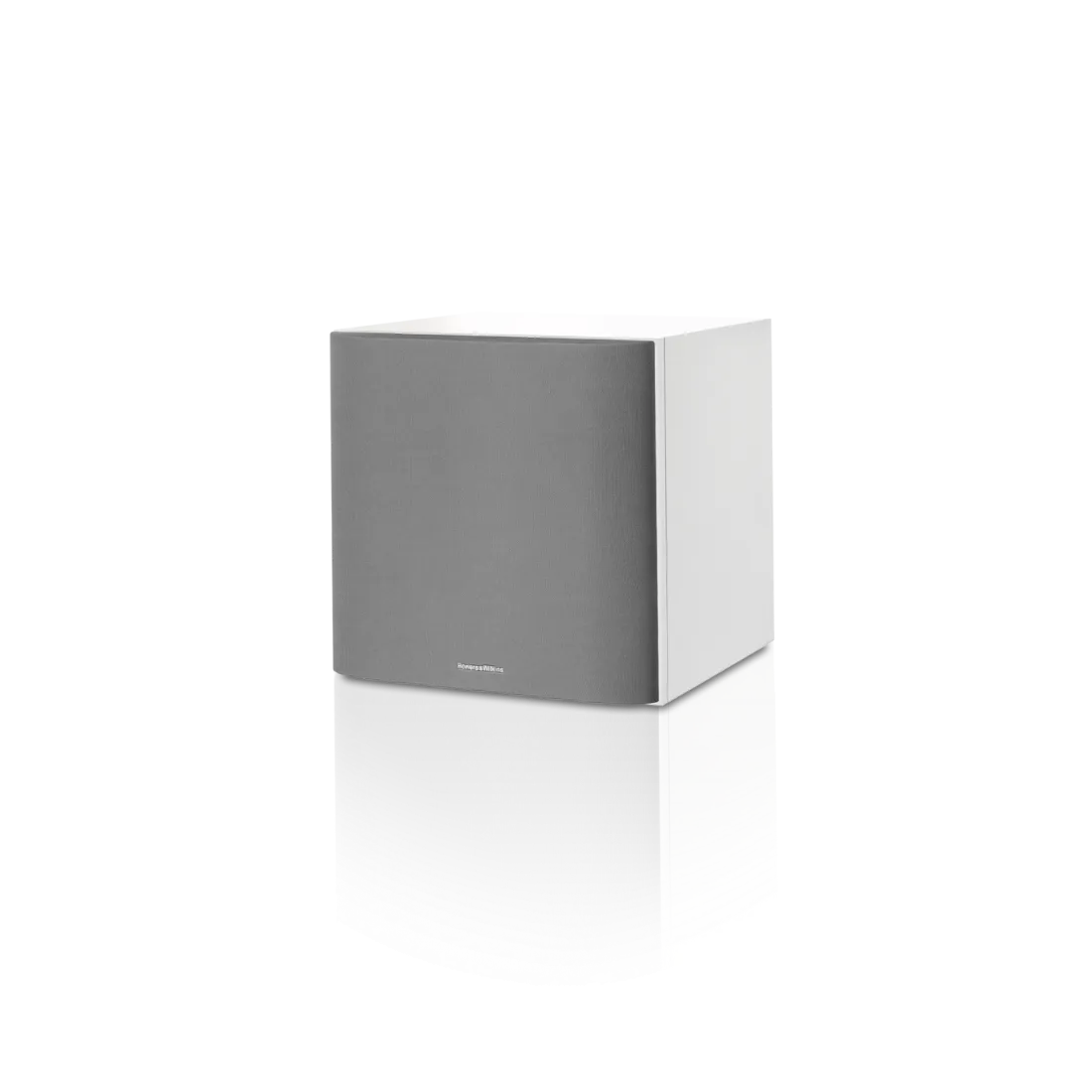

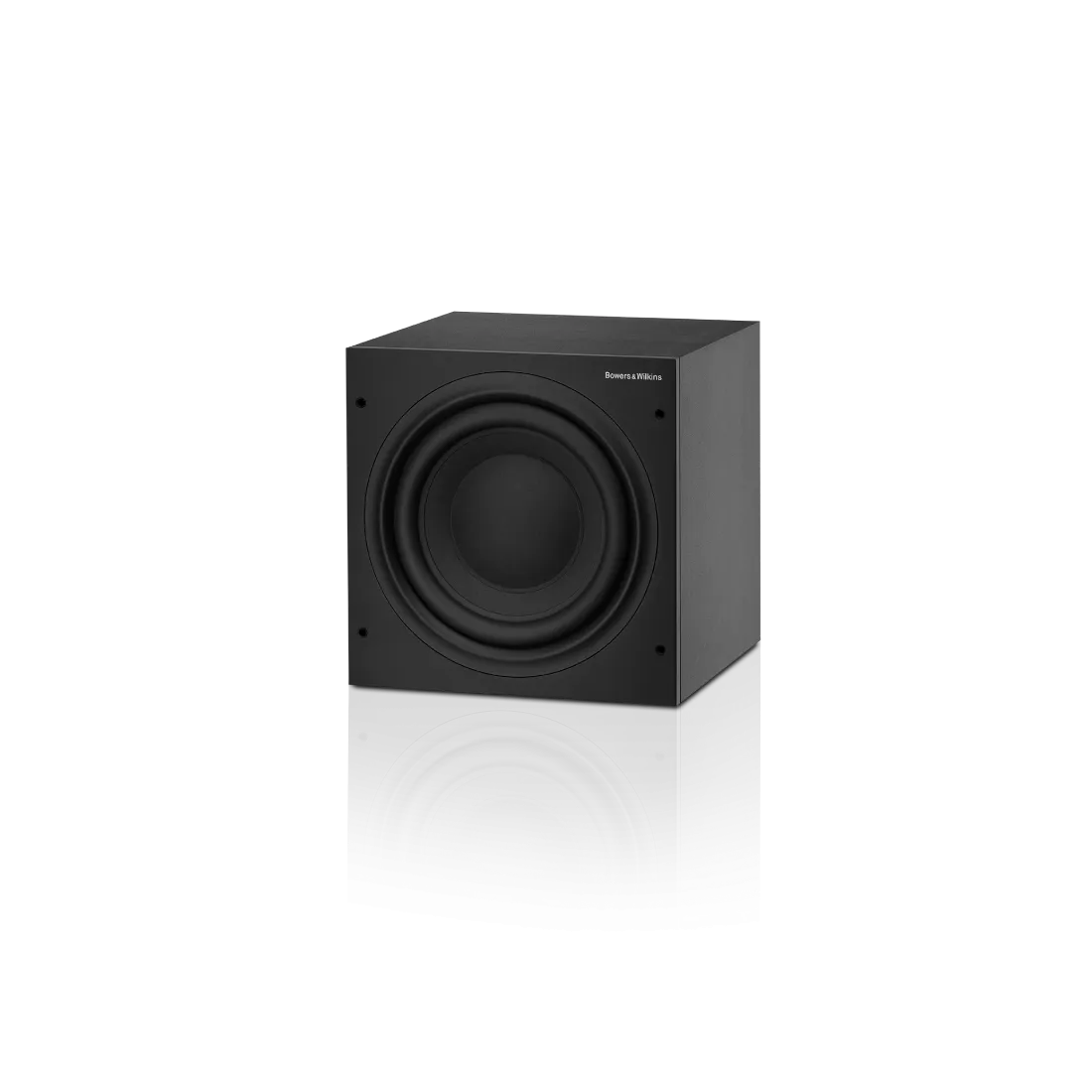

ASW610XP, the most powerful of the 600 Series subwoofers, delivers the finishing touch or finishing thump to a hi-fi or home theatre system for larger rooms.
Tuned for powerful bass
A big driver isn't enough: ASW610XP's combines paper pulp, Aramid fiber and resin for stiffness and accuracy.
All the power youll need
ASW610XP may be compact, but it packs a gutsy 500W Class D amplifier designed for punch and cool operation.
Specifications:
Size & weight
| Dimensions | Height: 325mm (12.8in) not including feet or spikes 337mm (13.3in) including feet 353mm (13.9in) including spikes Width: 325mm (12.8in) Depth: 348mm (13.68in) not including grilles 375mm (14.8in) including grilles and controls |
| Net weight | 18.65kg (41.12 lb) |
Technical details
| Technical features | Input level (line in) Input level (speaker in) Low-pass filter frequency (line in only) Low-pass filter bypass Bass extension Bass roll-off alignment Auto sense on / standby Phase switch |
| Description | Active closed-box subwoofer system |
| Drive units | 250mm (10 in) Paper / Aramid fibre cone long-throw |
| Frequency range | -6dB at 18Hz and 25 / 140Hz adjustable (EQ at A) |
| Frequency response | 3dB 25Hz 40 / 140Hz adjustable (EQ at A) |
| Bass extension | -6dB at 18Hz (position A) -6dB at 23Hz (position B) -6dB at 28Hz (position C) |
| Amplifier power output | 500W |
| Power consumption | 98W / 1W standby |
| Input impedance | 33k |
| Signal / Noise | >80dB |
| Inputs | Line in (RCA Phono) Speaker in (Binding post) 12v trigger (3.5mm jack) Low-pass filter Active 4th-order, variable cut-off frequency |
Finishes
| Cabinet finishes | Black White |
| Grille finishes | Black Grey |
