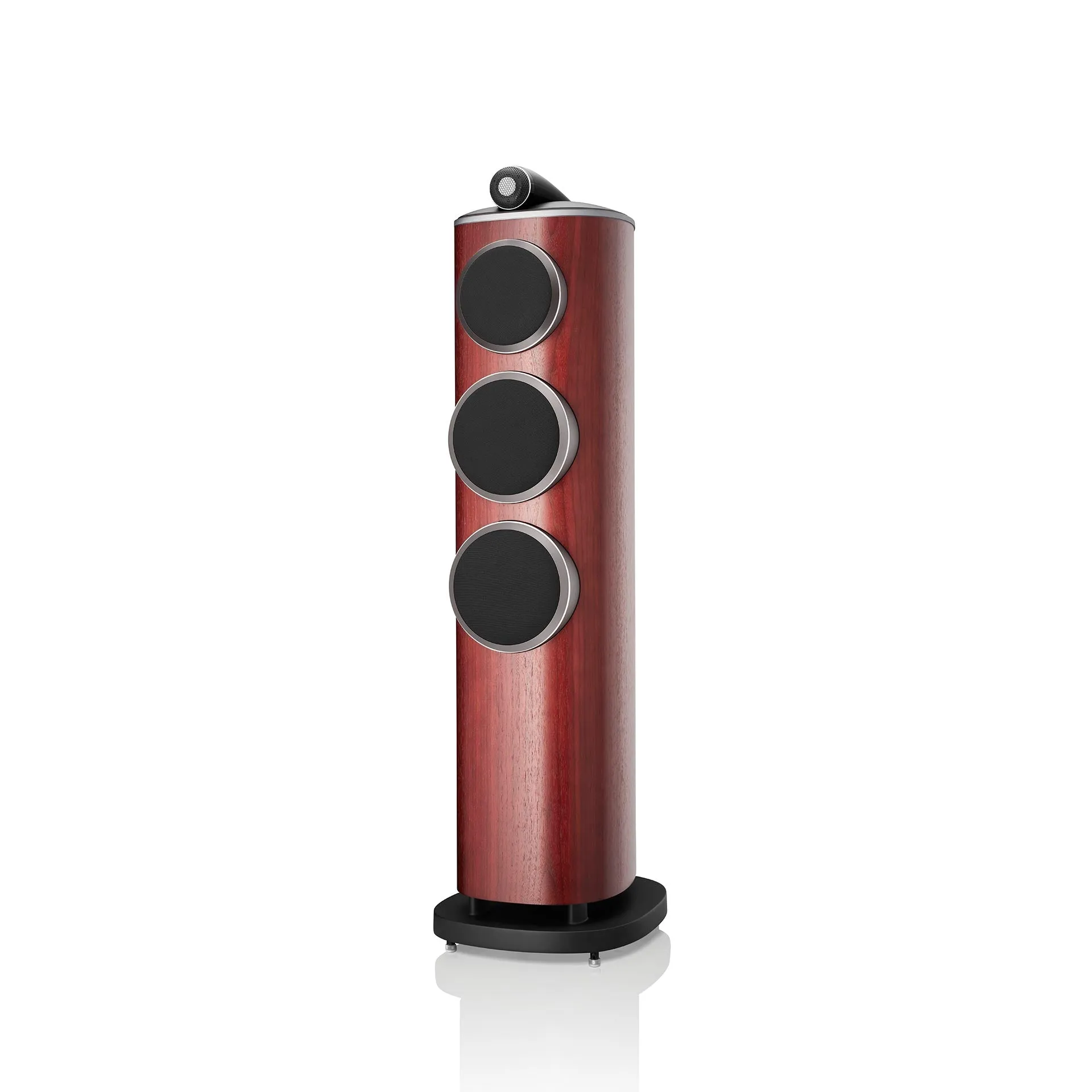

For listeners who crave the performance of an 800 Series Diamondfloorstander but prefer a more conventional aesthetic, the 804D4 is the perfect choice. Its new cabinet and plinth make it our best-performing 804 yet.
Classic quality
804 D4is perhaps more conventional in appearance than other floorstanders in the 800 Series Diamond range, but its every bit as sophisticated. Its new Reverse-Wrap cabinet is both a mechanical and acoustic revolution in its class, and its new plinth ensures rock-solid, accurate bass response too.
Aluminium top-plate
Every stereo model in the new 800 Series Diamond range has a significantly upgraded cabinet with an all-new aluminium top-plate. This also provides a perfect mounting point for all-new Leather by Connolly trim, with luxurious black leather for dark cabinets and light grey for lighter finishes.
Reverse Wrap cabinet

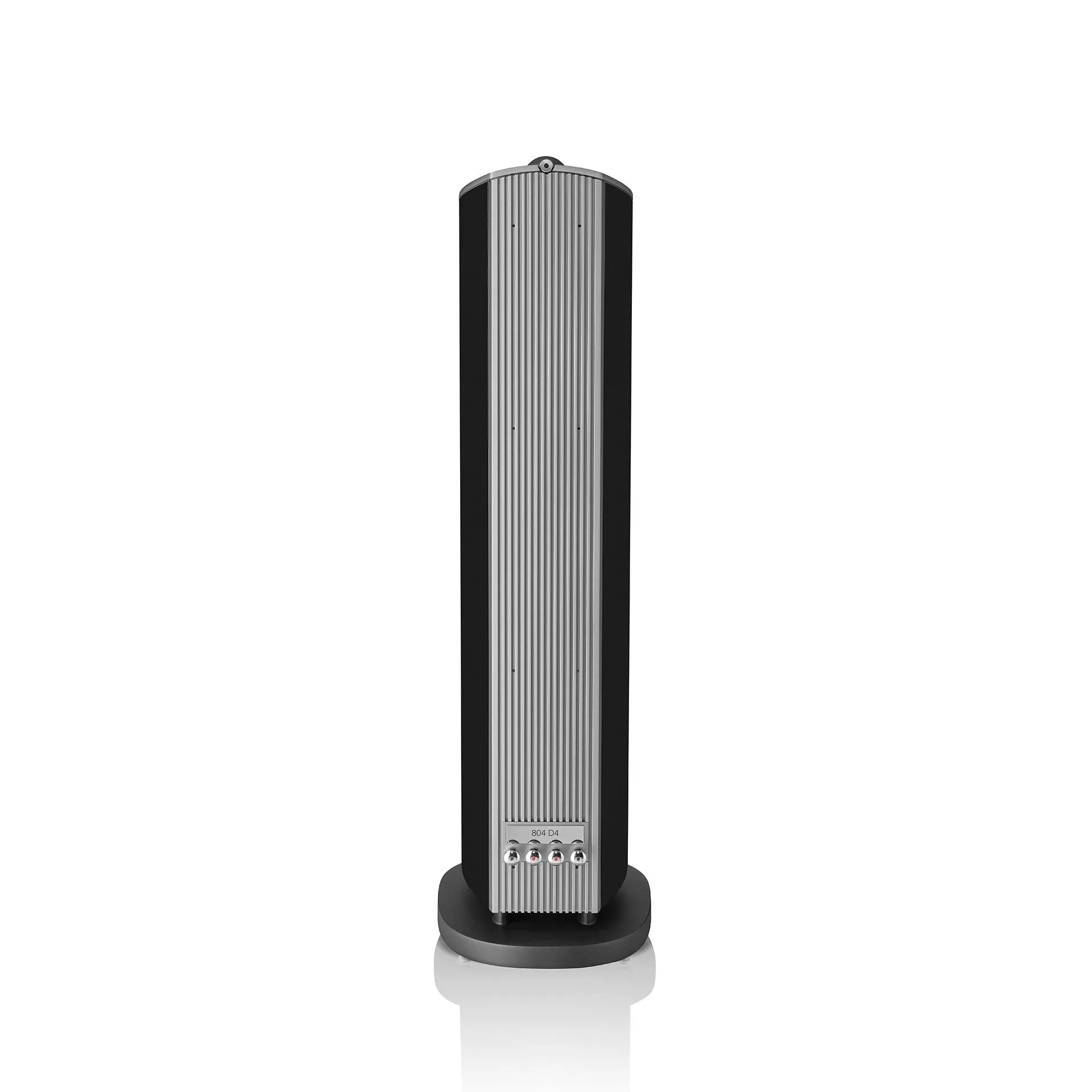

Instead of a conventional loudspeaker box, the cabinet in 804D4 is made from a continuous curved section of wood, with the drive units mounted at the heart of the curvature. This stiffer, more inert structure resists mechanical resonances far better and also ensures better dispersion of sound.
Aluminium plinth
A great speaker needs a rock-solid foundation. The new 804D4 uses a downwards-firing Flowportexiting on to a solid aluminium plinth complete with a steel constrained layer damping sheet, which controls unwanted resonance. It also has greatly upgraded spikes for maximum stability and durability.
Get a Head
804 D4 is the entry-level floorstanding model in the 800 Series Diamond range. Step up to 803 D4 and youll find larger bass drivers (180mm, 7in) plus, crucially, the addition of a TurbineHead enclosure for the 130mm (5in) midrange cone, which adds even more spaciousness to the sound.
Technical specifications
Technical features
Diamond tweeter
Solid body Tweeter-on-Top
Continuumcone FST
Anti-Resonance plug
Biomimetic Suspension
Matrix
Aerofoilcone bass units
Flowport
Description
3-way vented-box system
Drive units
1x 25mm (1in) diamond dome high-frequency
1x 130mm (5in) Continuum cone FSTmidrange
2x 165mm (6.5in) Aerofoil cone bass units
Frequency range
20Hz to 35kHz
Frequency response
24Hz to 28kHz( /-3dB from reference axis)
Sensitivity
89dB (on axis at 2.83Vrms at 1m)
Harmonic distortion
2nd and 3rd harmonics (90dB,1m on axis)
<1% 90Hz 20kHz
<0.3% 120Hz 20kHz
Nominal impedance
8 (minimum 3.0)
Recommendedamplifier power
50W 200W into 8 on unclipped programme
Max. recommendedcable impedance
0.1
Dimensions
Height: 1071mm
Width: 306mm
Depth: 391mm
Net weight
36.85kg
Finishes
Cabinet:

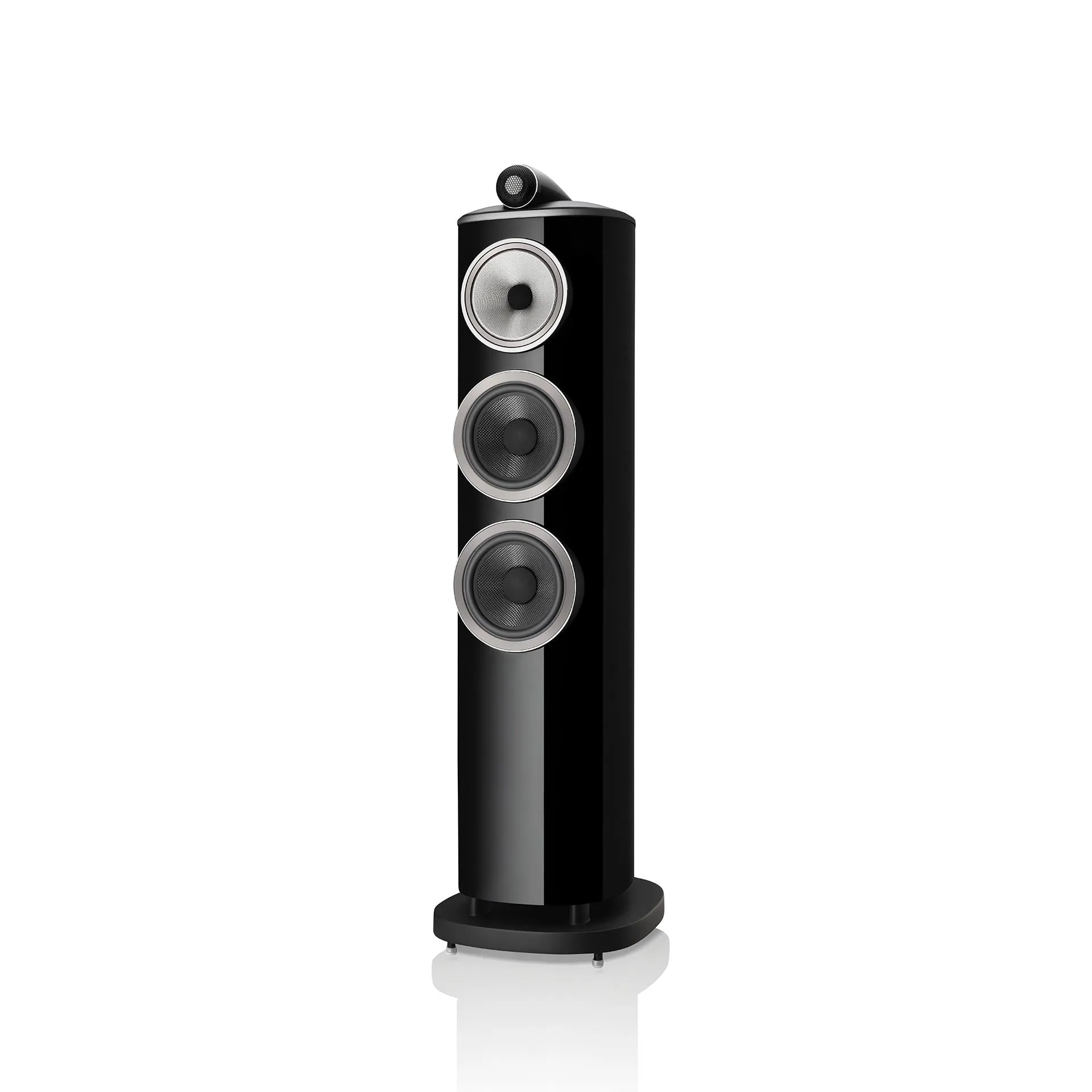

Gloss Black

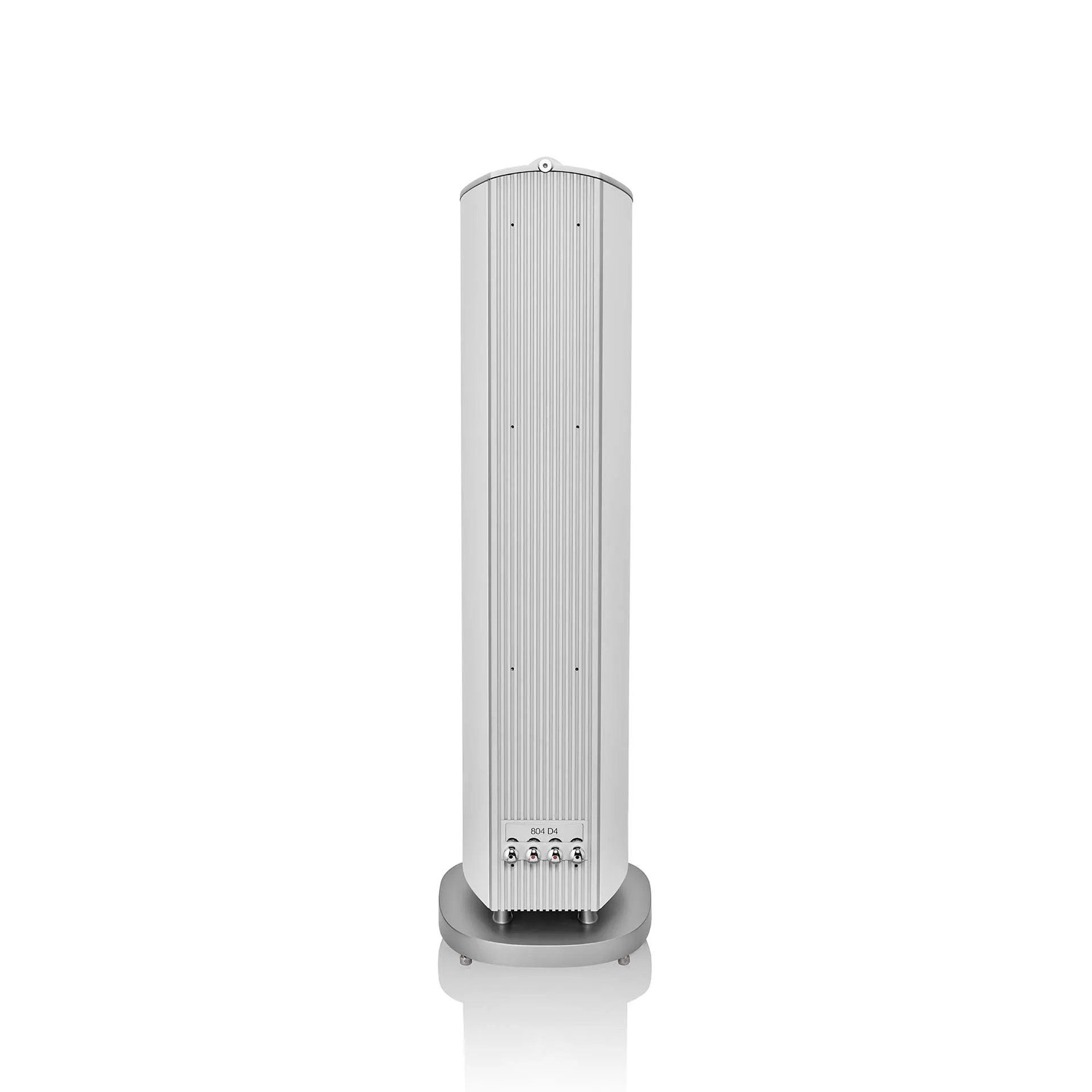

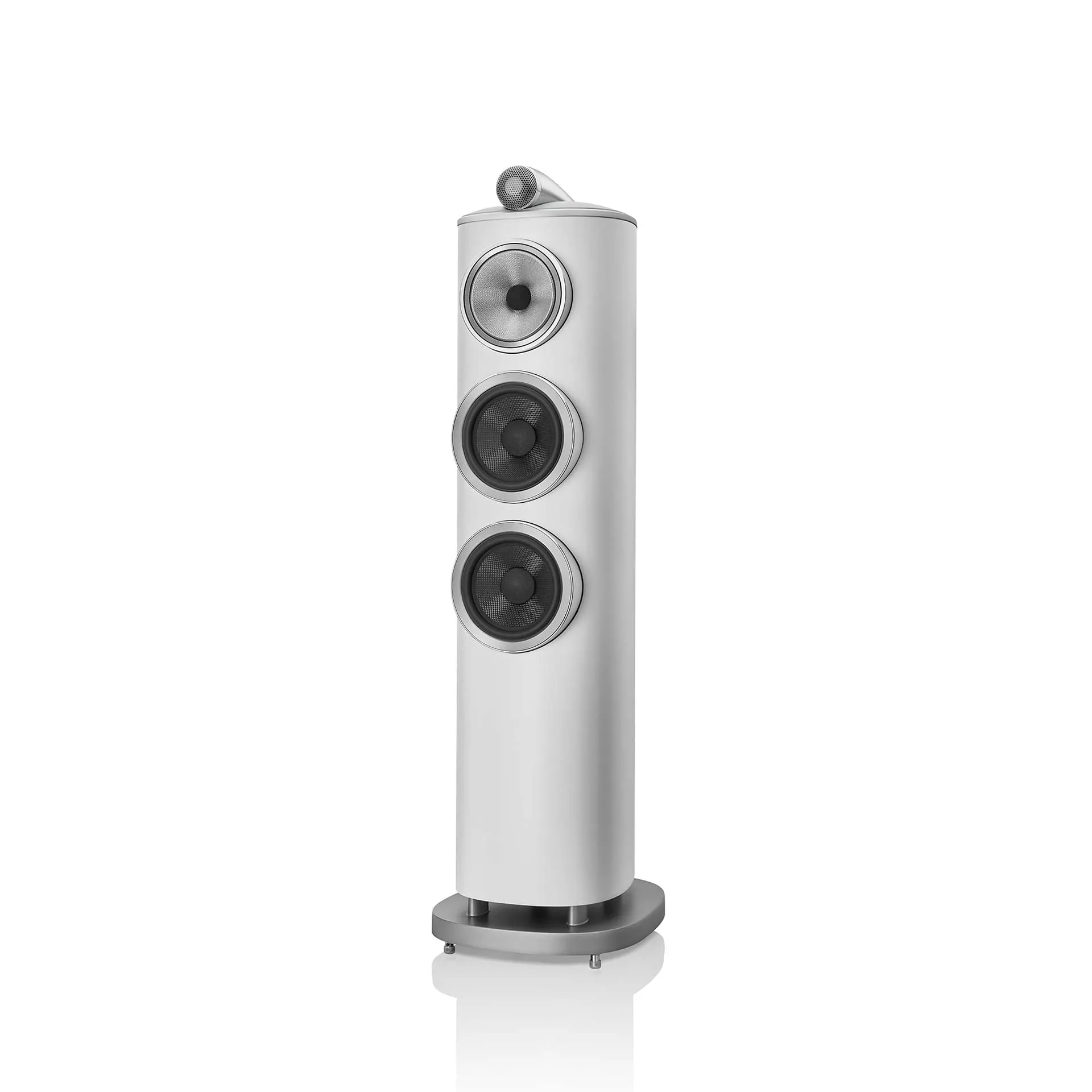

White

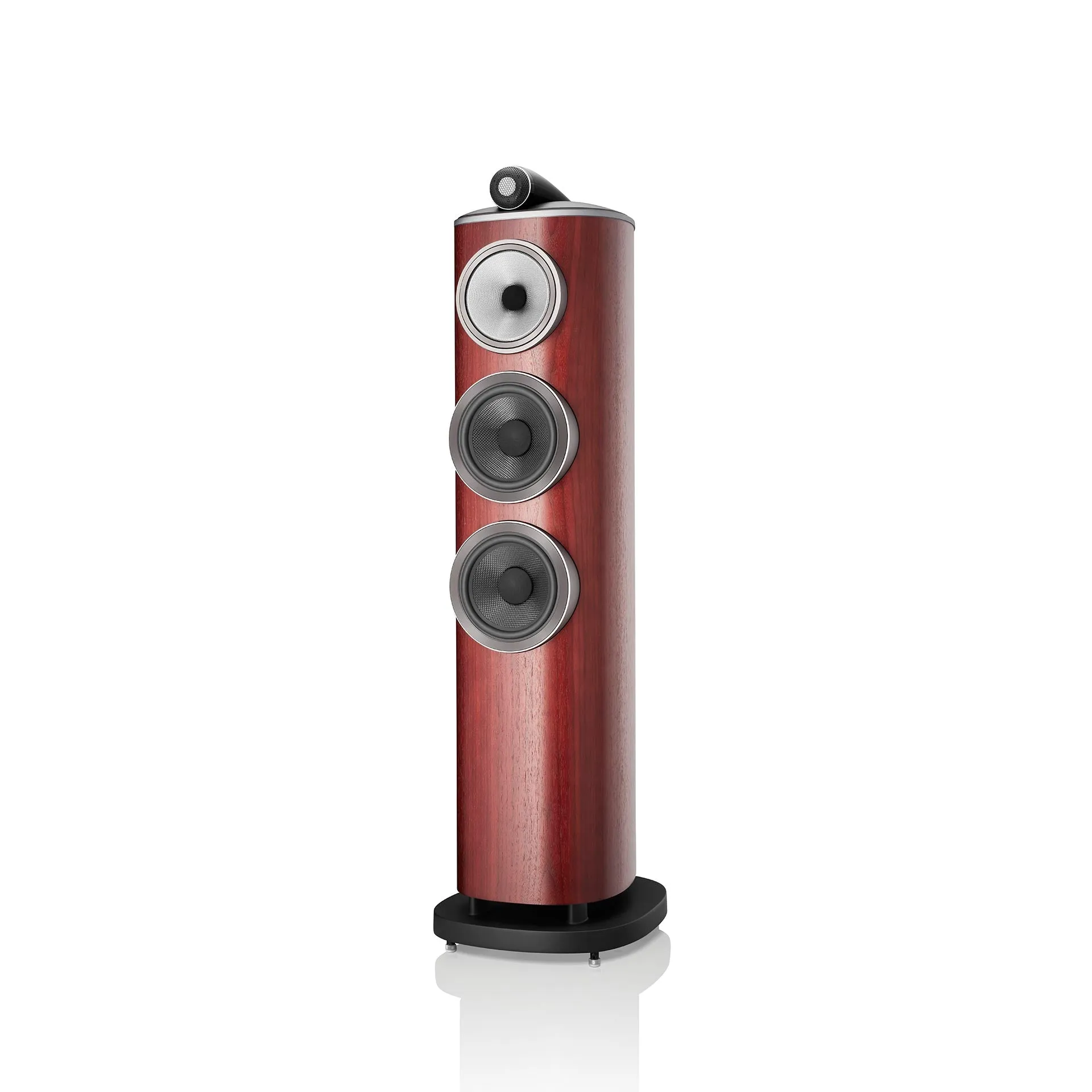

Satin Rosenut

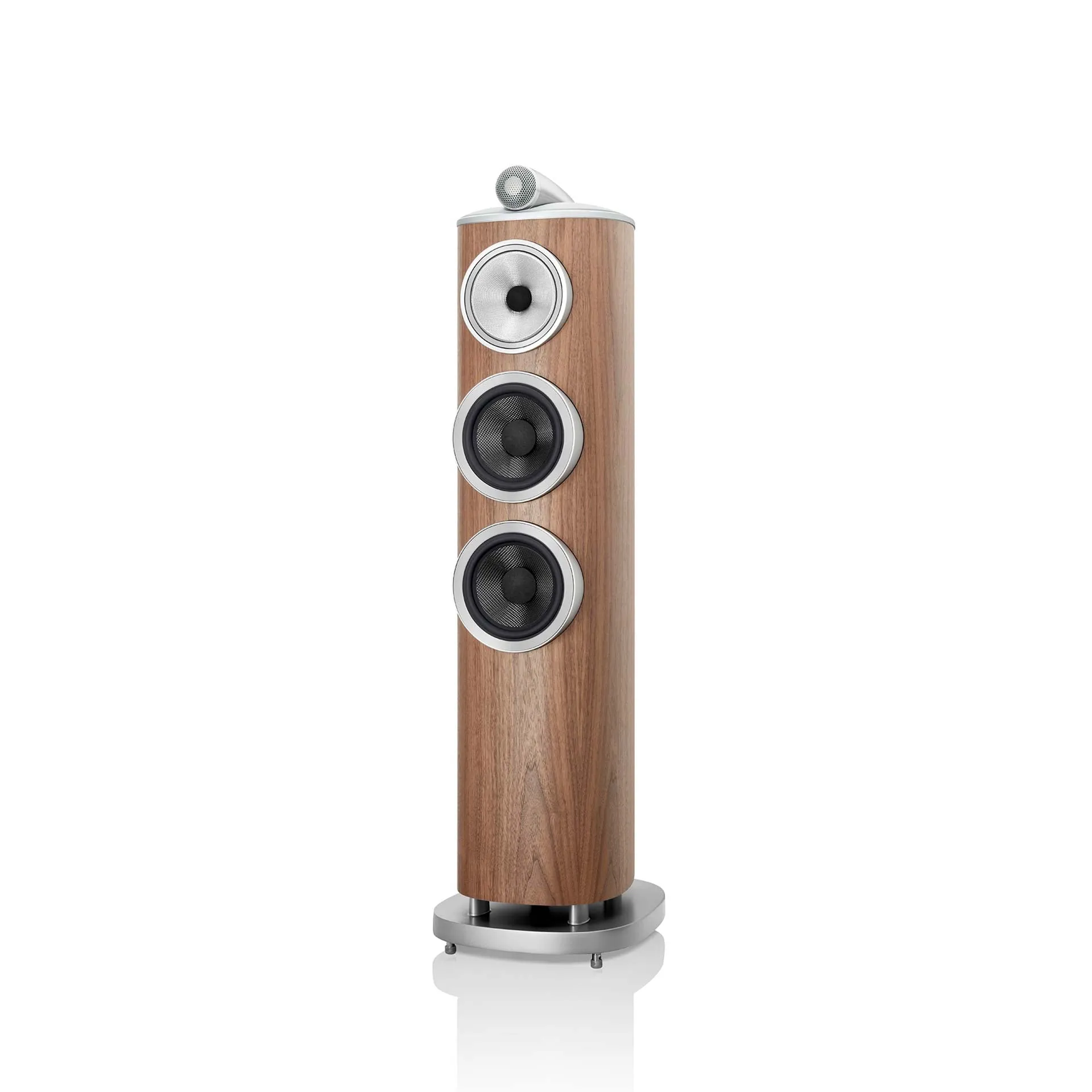

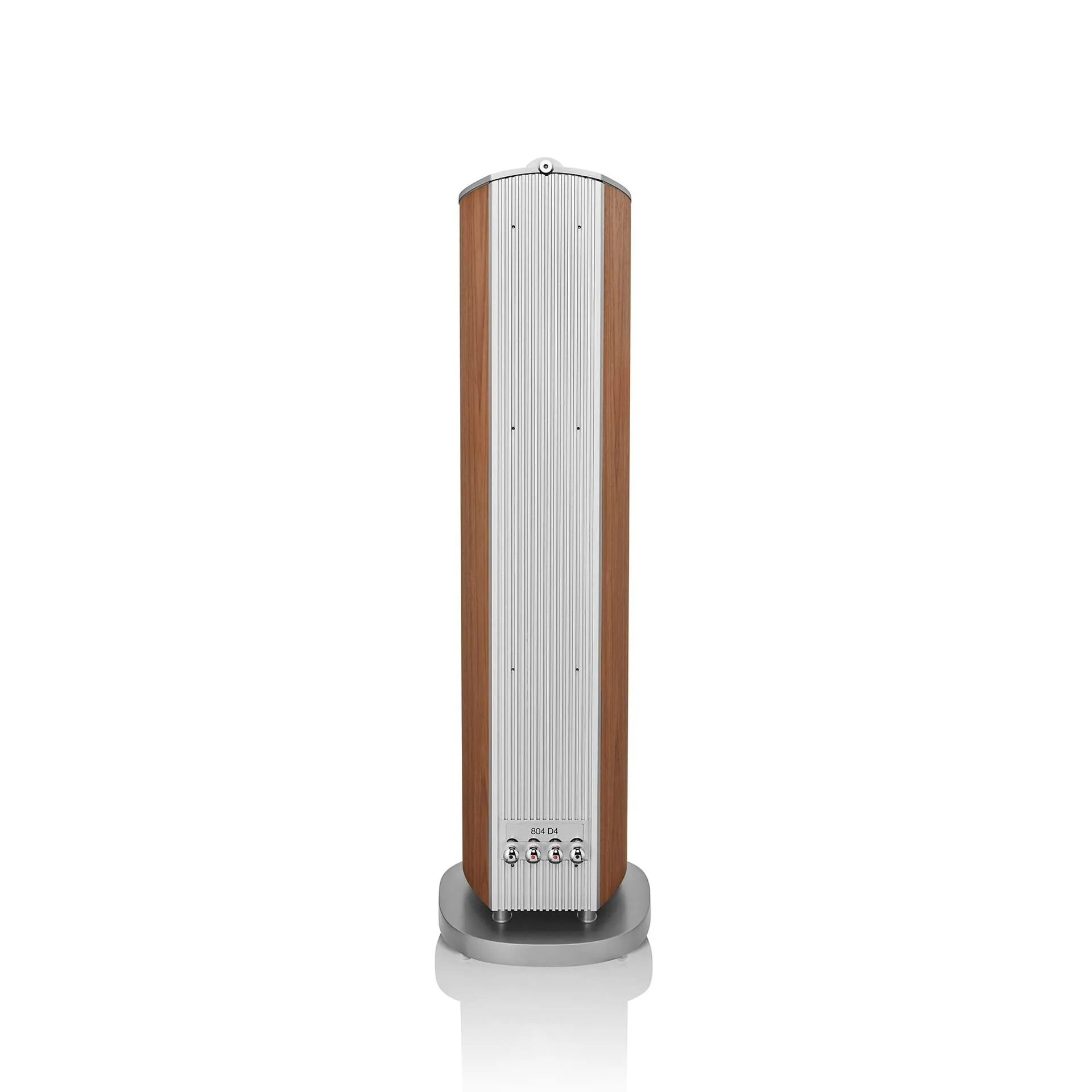

Satin Walnut
Grille:
Black

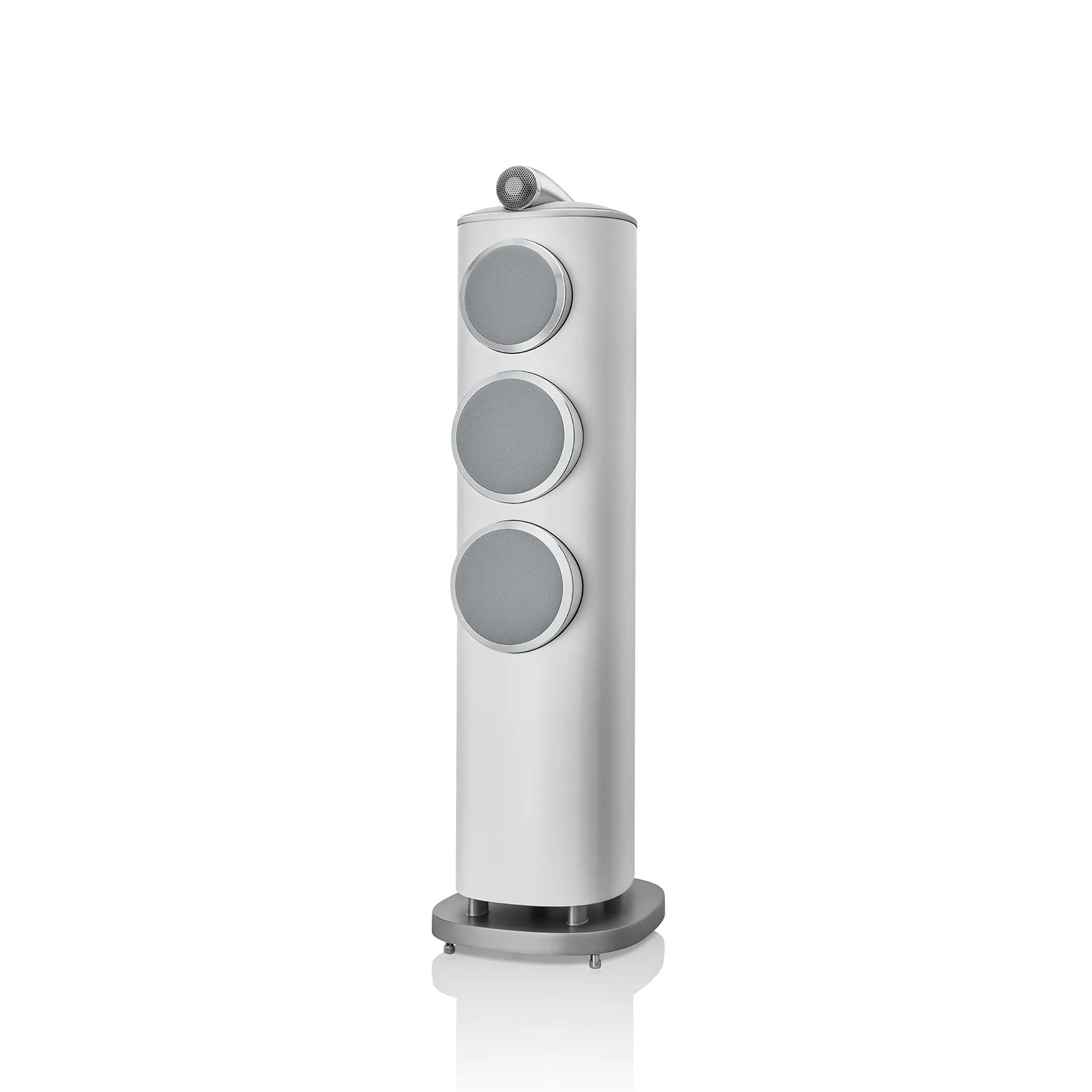

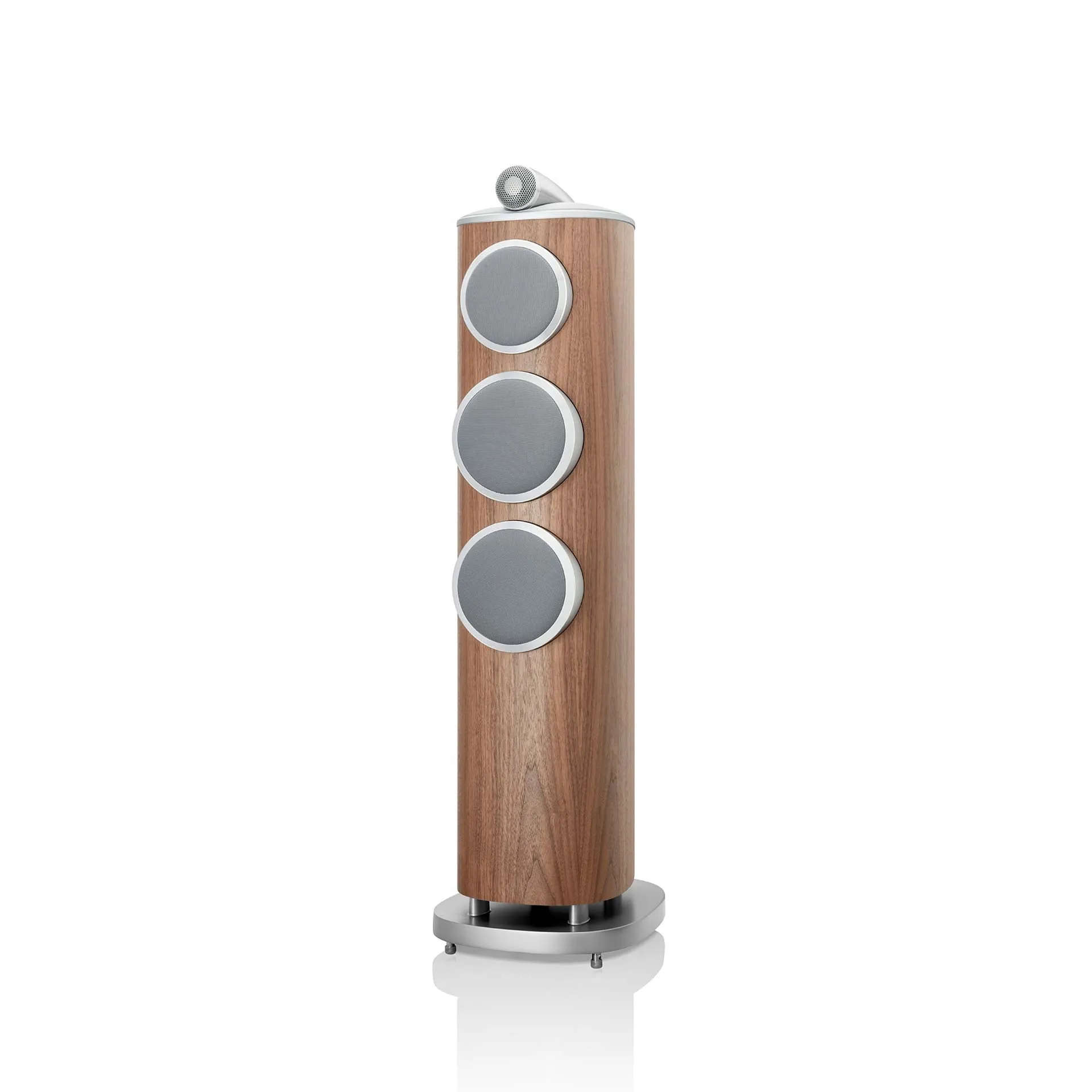

Grey
Black
Grey
