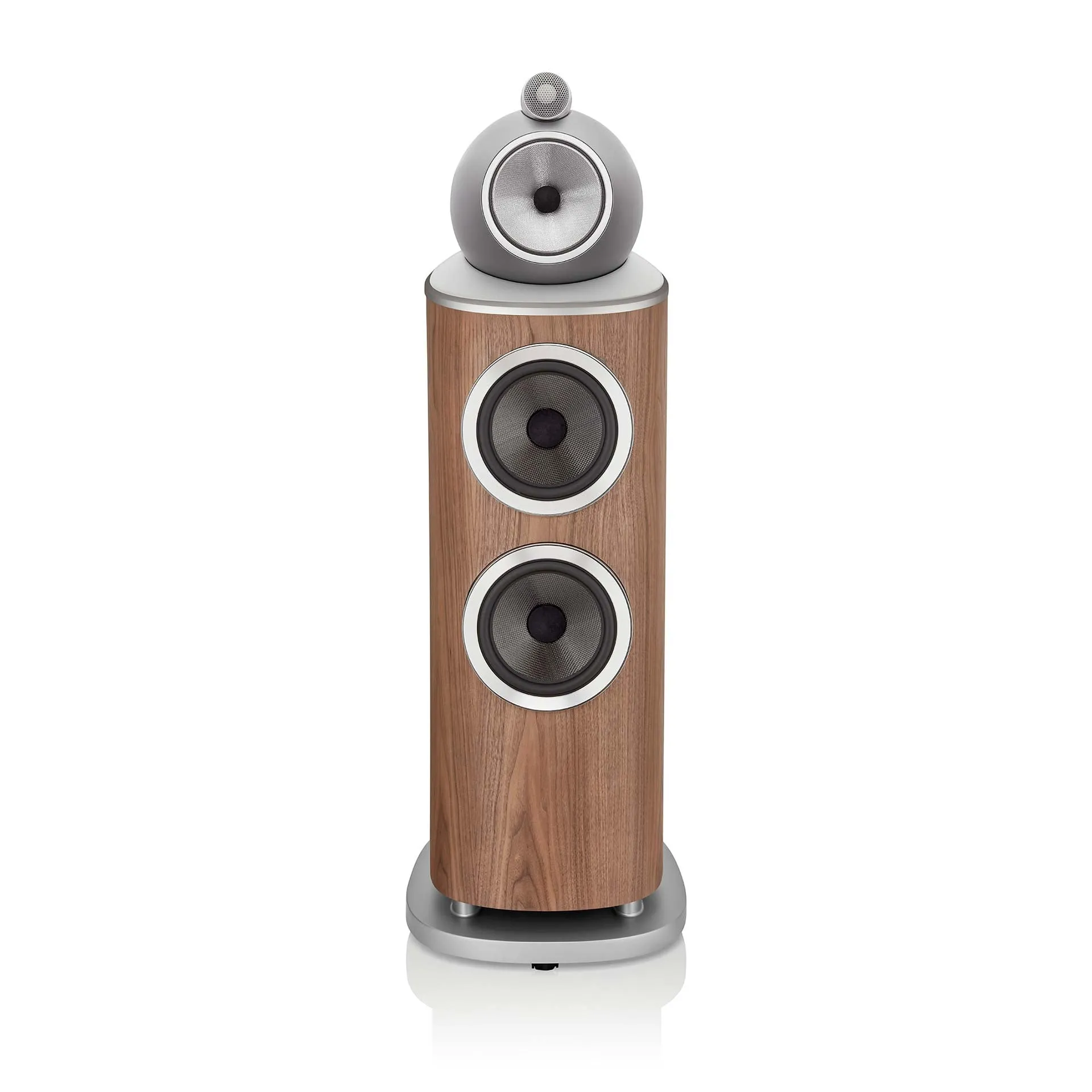

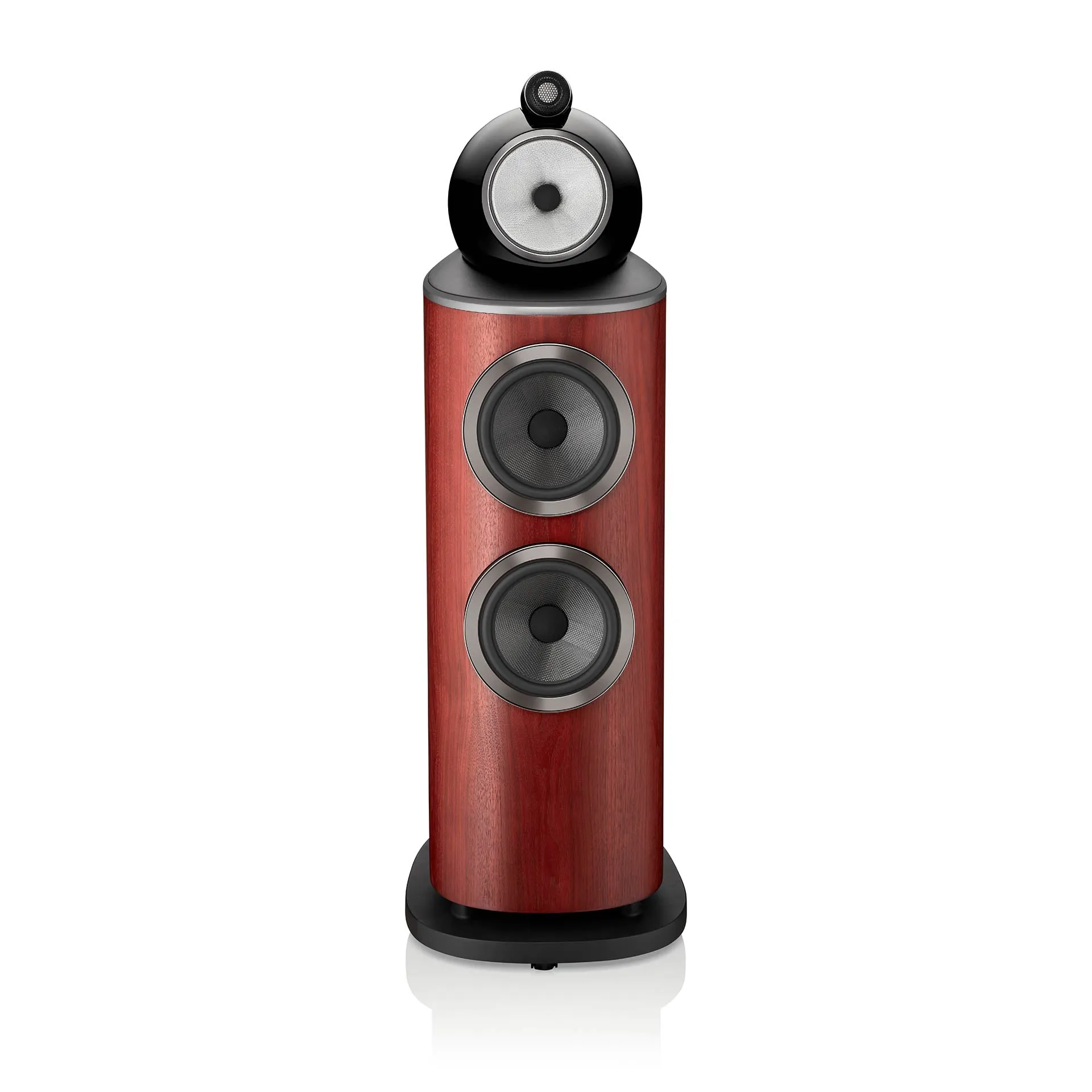

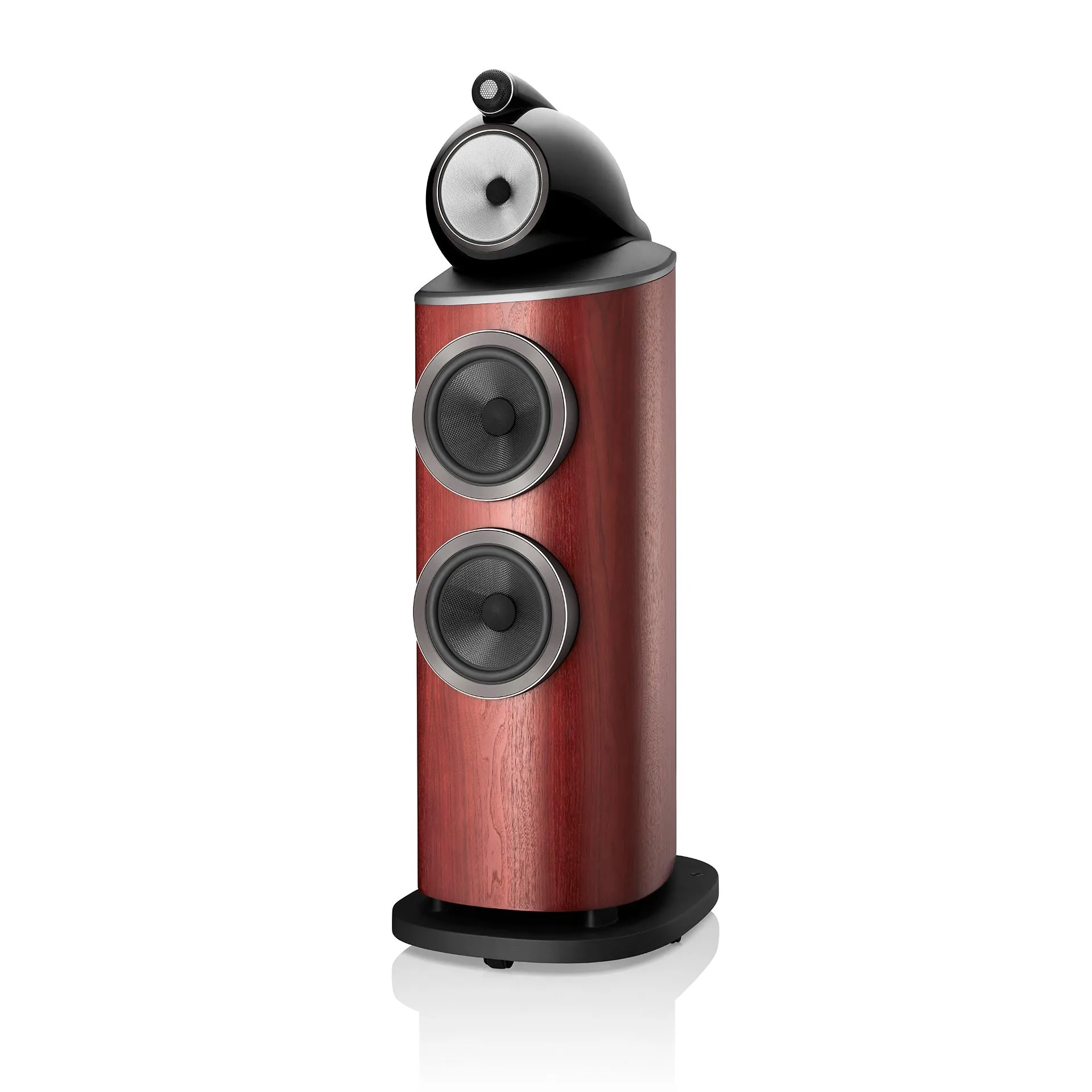

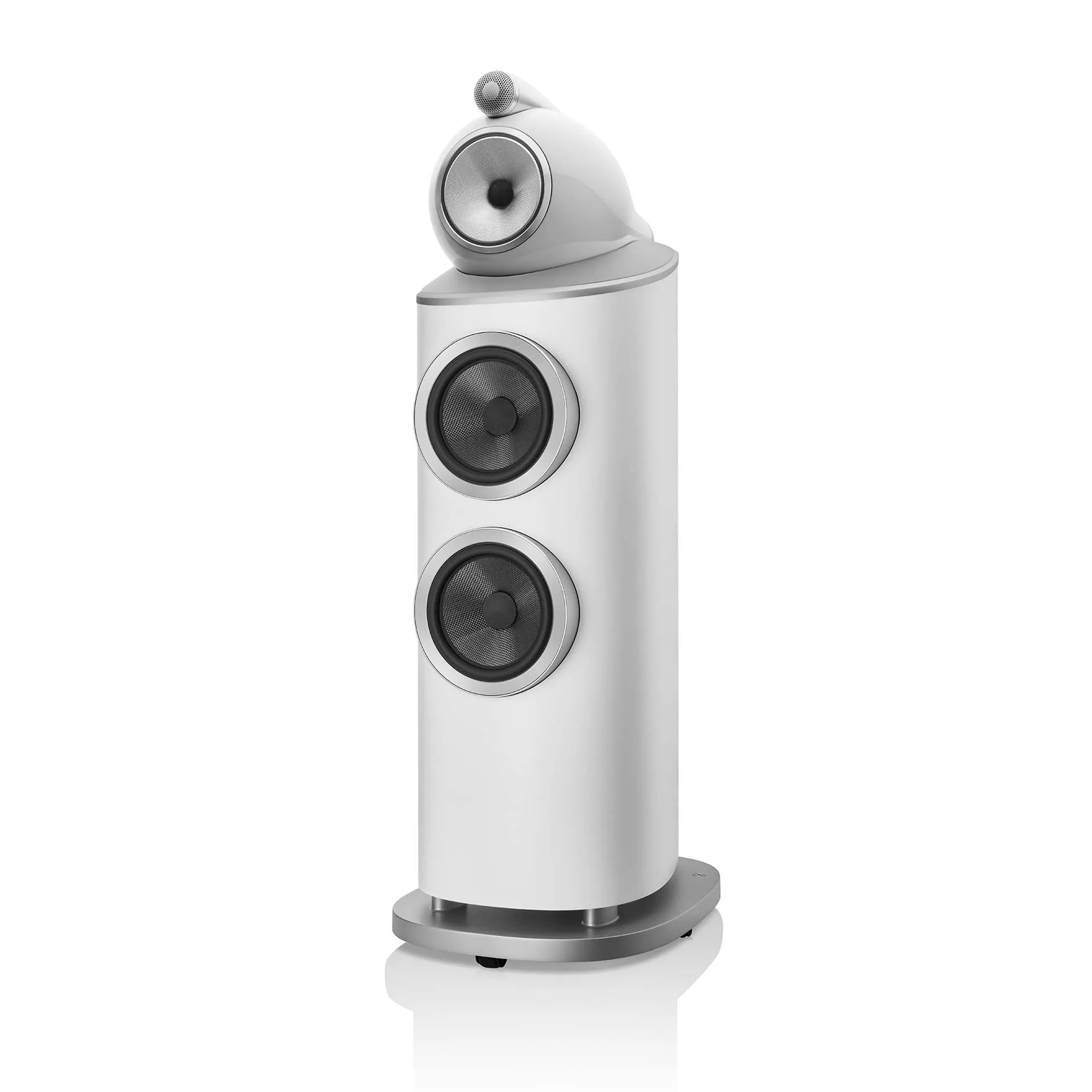

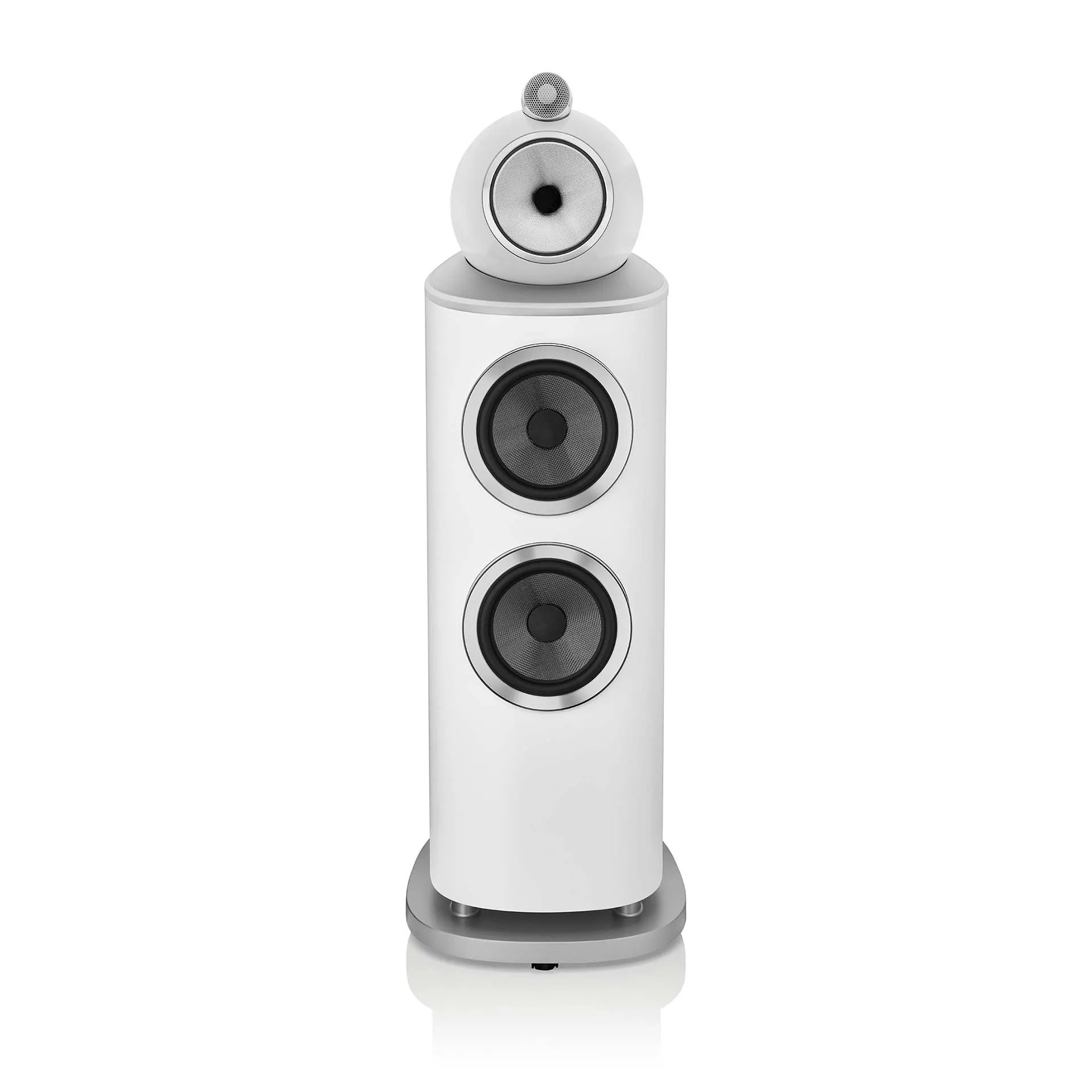

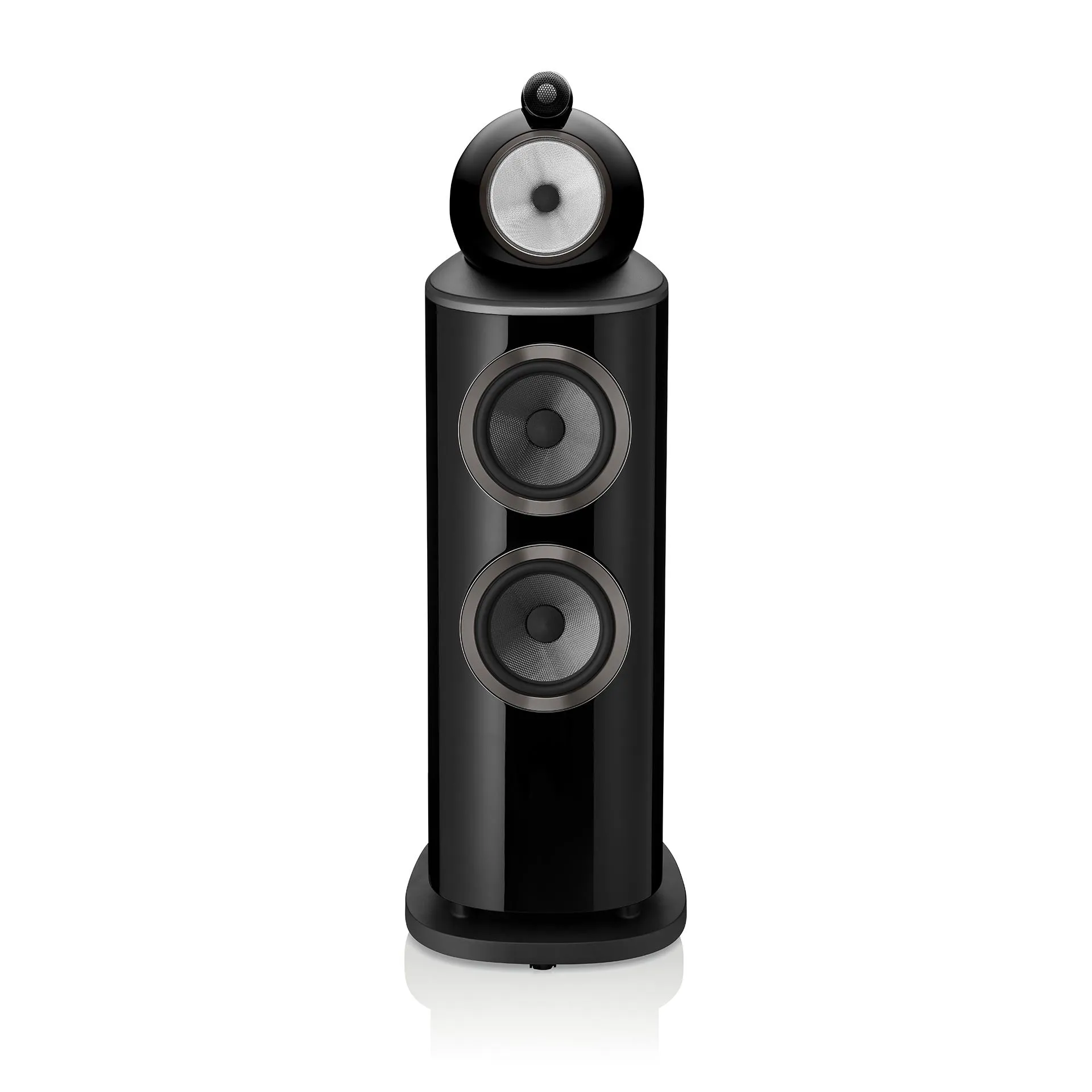

Built to similar proportions as the flagship 801 D4, the 802 D4 offers much of the performance of its sibling, including the same TurbineHead enclosure for its midrange drive unit, yet is more affordable overall.
Absolute elegance

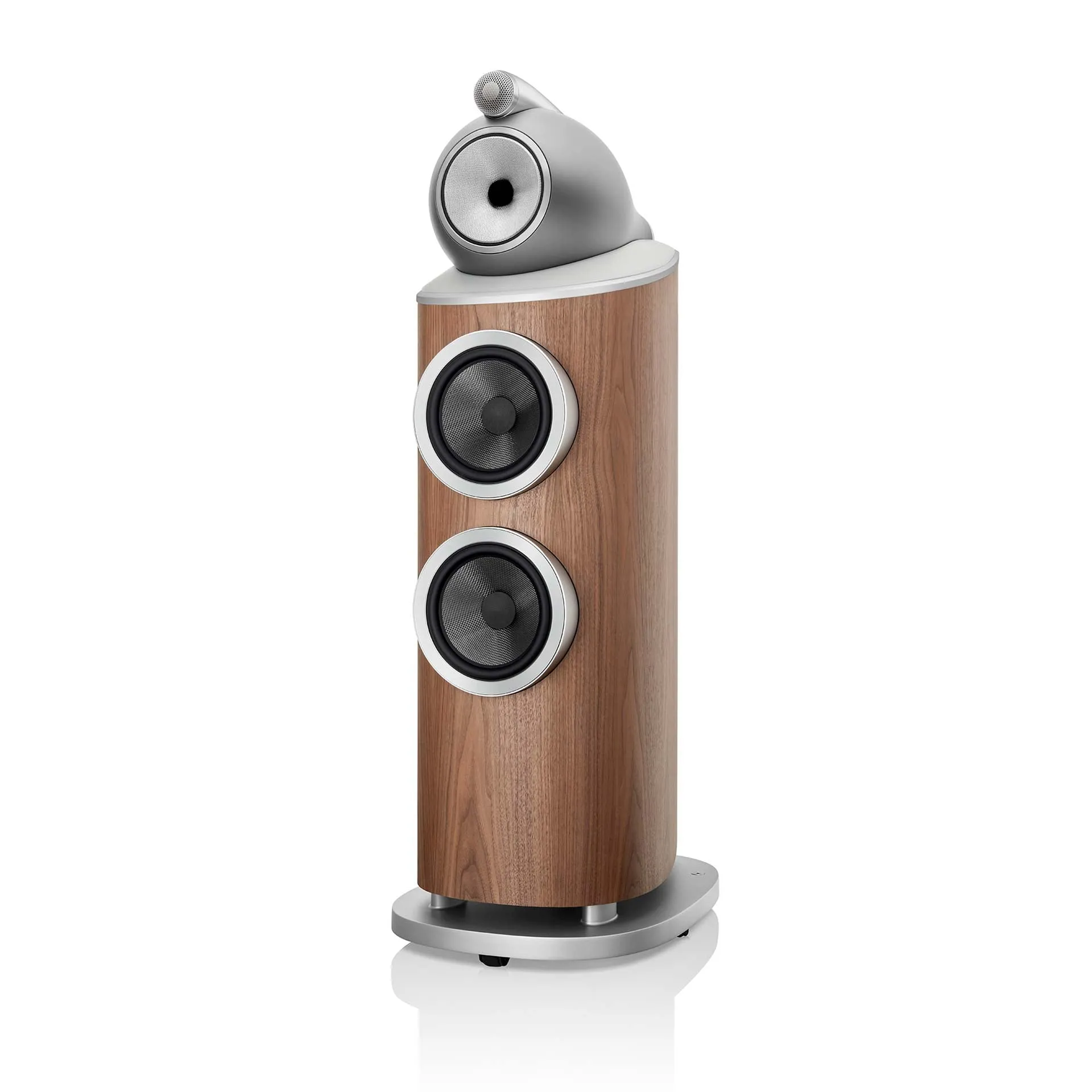

802 D4s svelte proportions and beautiful painted or real-wood-veneer finishes make for an elegant living-room companion but one that doesnt compromise on performance. Perfect for reference-grade stereo listening and an excellent choice in home theatre applications.
Aerofoilbass cone
Our Aerofoil bass cone technology remains an outstanding solution to the conundrum of combining low mass and high stiffness in bass cones, thanks to its carbon-fibre skin and variable-profile foam core. Now, we have added the foam Anti-Resonance Plugfor lower distortion and even cleaner bass.
Aluminium top-plate
Every stereo model in the new 800 Series Diamondrange has a significantly upgraded cabinet with an all-new aluminium top-plate. This also provides a perfect mounting point for all-new Leather by Connolly trim, with luxurious black leather for dark cabinets and light grey for lighter finishes.
Decoupled midrange assembly
Like its floorstanding siblings in the new range, 802D4 has a dedicated midrange cone using three key Bowers&Wilkins technologies: the Continuumcone, Biomimetic Suspension and midrange decoupling, the latter ensuring minimal interference from the operation of the loudspeakers bass drivers.
One of our best
802 D4 is a very special loudspeaker in its own right, with a thrilling blend of performance and style that other loudspeakers will find hard to emulate. Only one model in our range can best it the flagship 801D4, which has 250mm (10in) bass cones in a more substantial low-frequency enclosure.
Technical specifications
Technical features
Diamond tweeter
Solid body Tweeter-on-Top
Continuumcone FST
Anti-Resonance plug
Biomimetic Suspension
TurbineHead
Matrix
Aerofoilcone bass units
Flowport
Description
3-way vented-box system
Drive units
1x 25mm (1in) diamond dome high-frequency
1x 150mm (6in) Continuum cone FSTmidrange
2x 200mm (8in) Aerofoil cone bass units
Frequency range
14Hz to 35kHz
Frequency response
17Hz to 28kHz( /-3dB from reference axis)
Sensitivity
90dB (on axis at 2.83Vrms at 1m)
Harmonic distortion
2nd and 3rd harmonics (90dB,1m on axis)
<1% 70Hz 20kHz
<0.3% 100Hz 20kHz
Nominal impedance
8 (minimum 3.0)
Recommendedamplifier power
50W 500W into 8 on unclipped programme
Max. recommendedcable impedance
0.1
Dimensions
Height: 1218mm
Width: 413mm
Depth: 602mm
Net weight
88.10kg
Finishes
Cabinet:
Gloss Black
White
Satin Rosenut
Satin Walnut
Grille:
Black
Grey
Black
Grey
