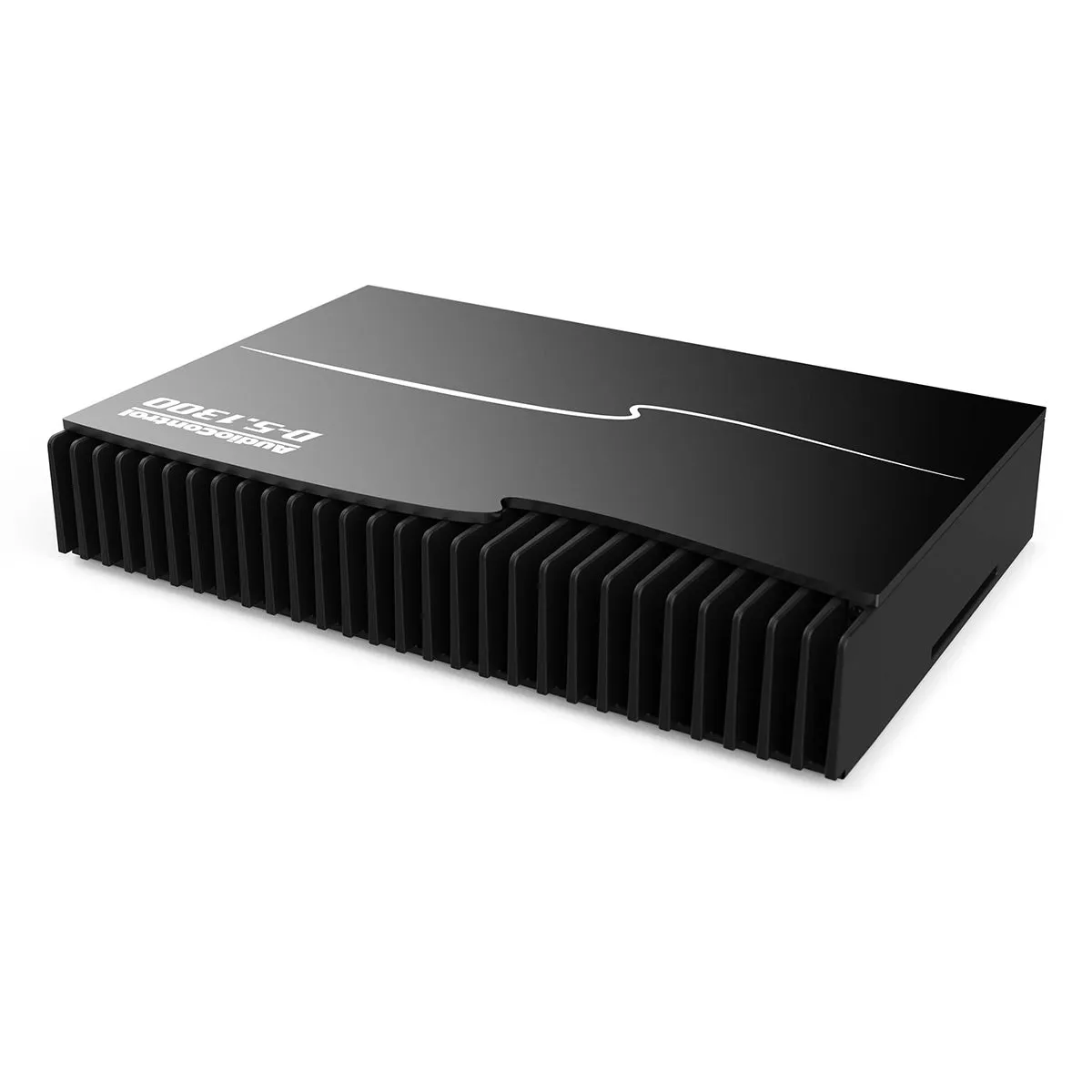

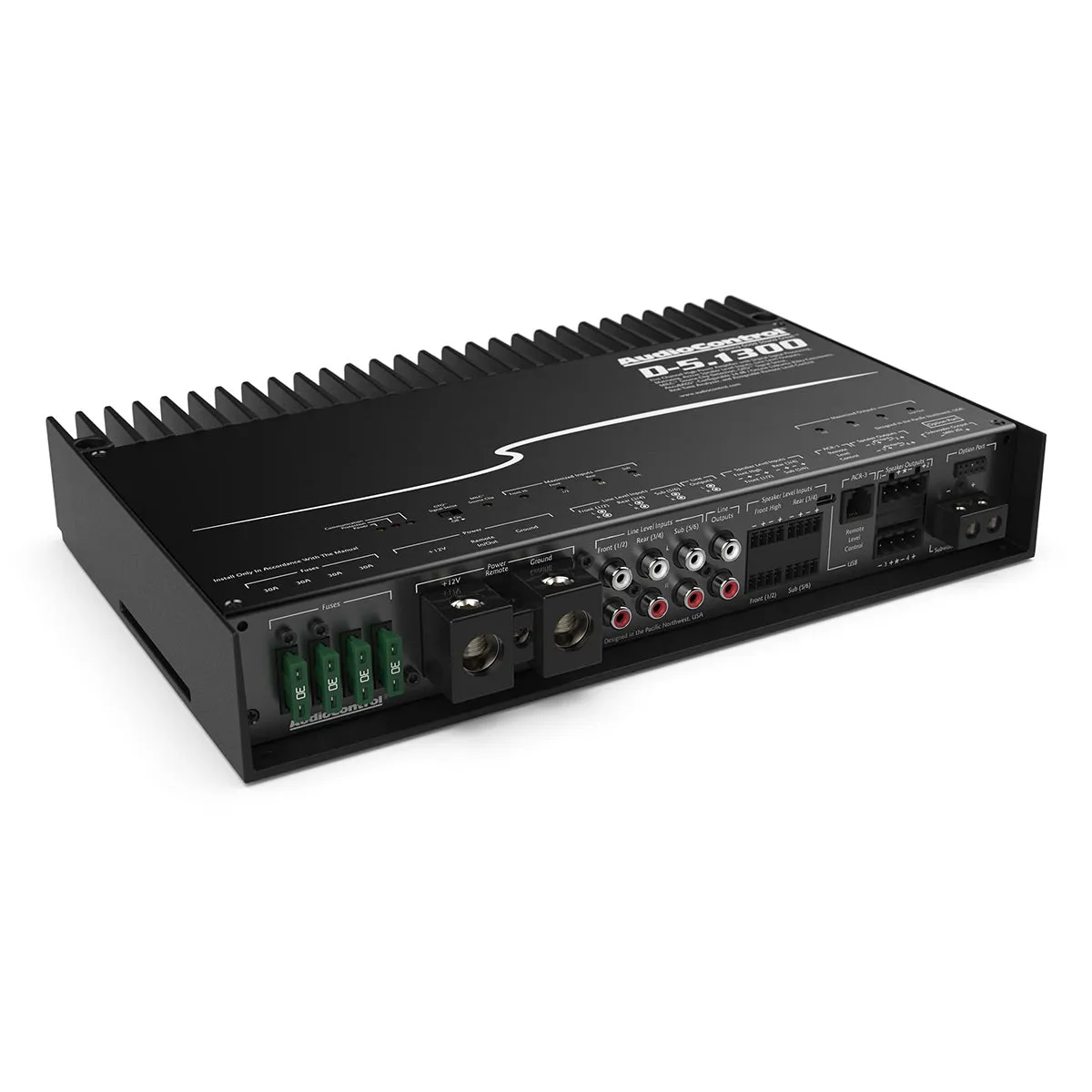

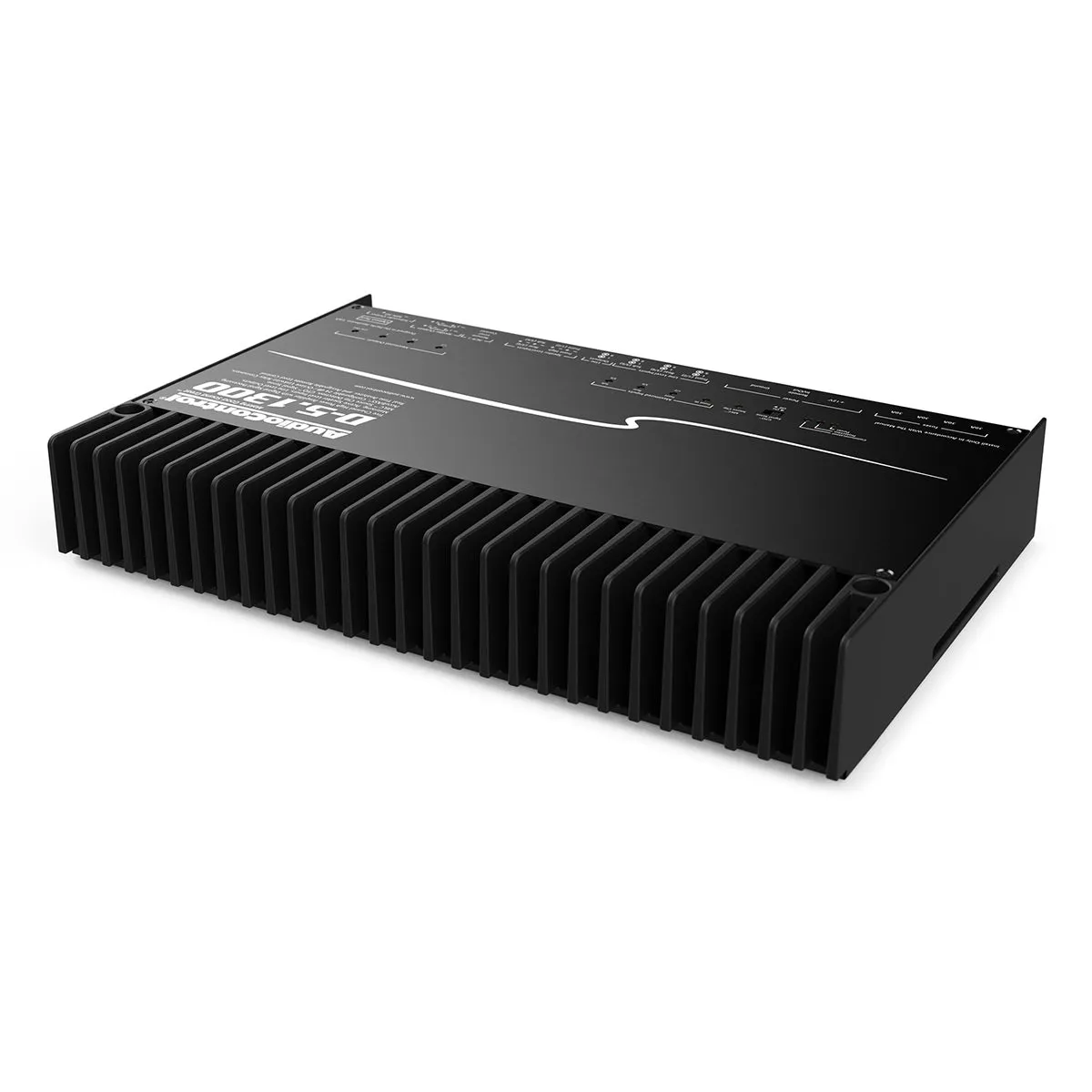

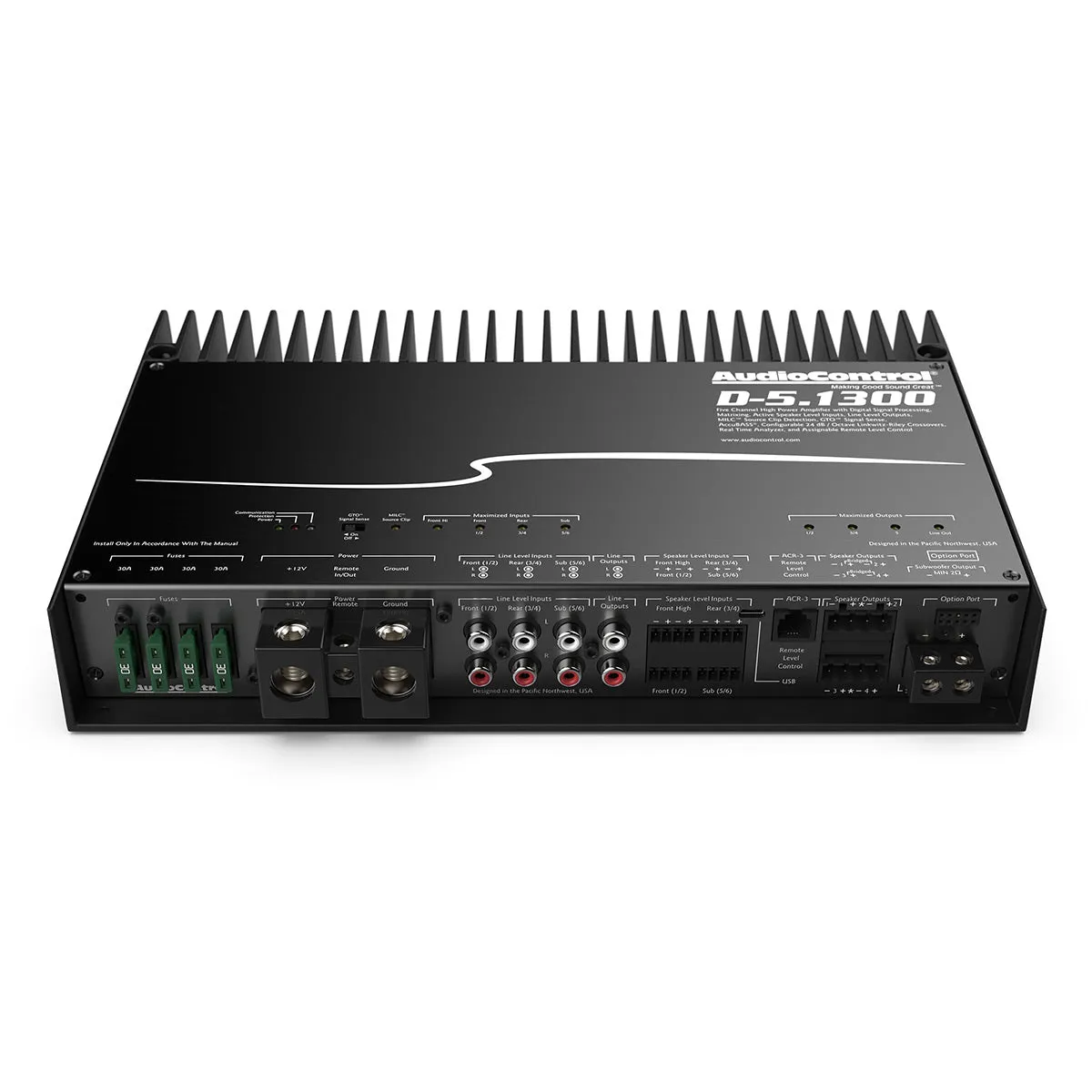

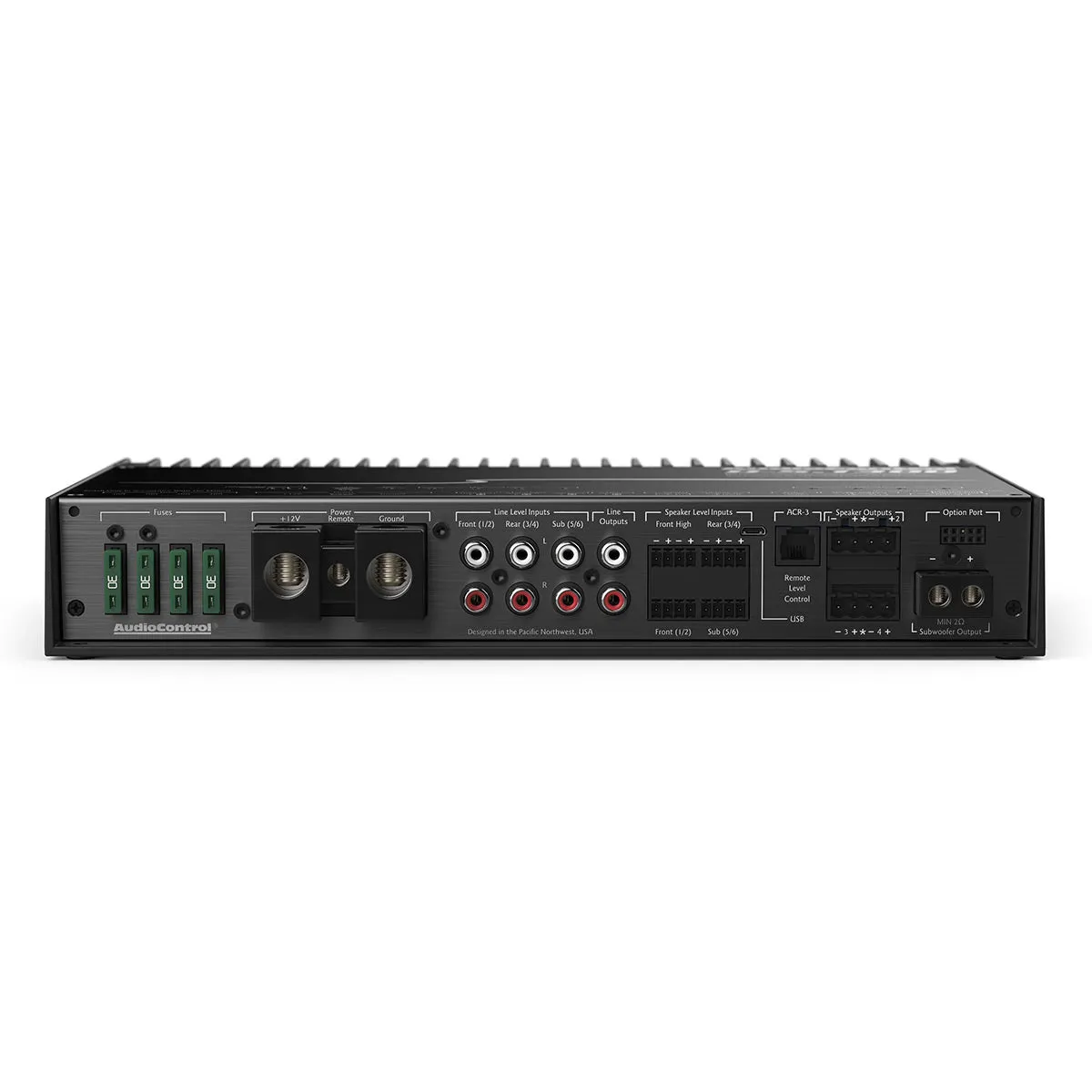

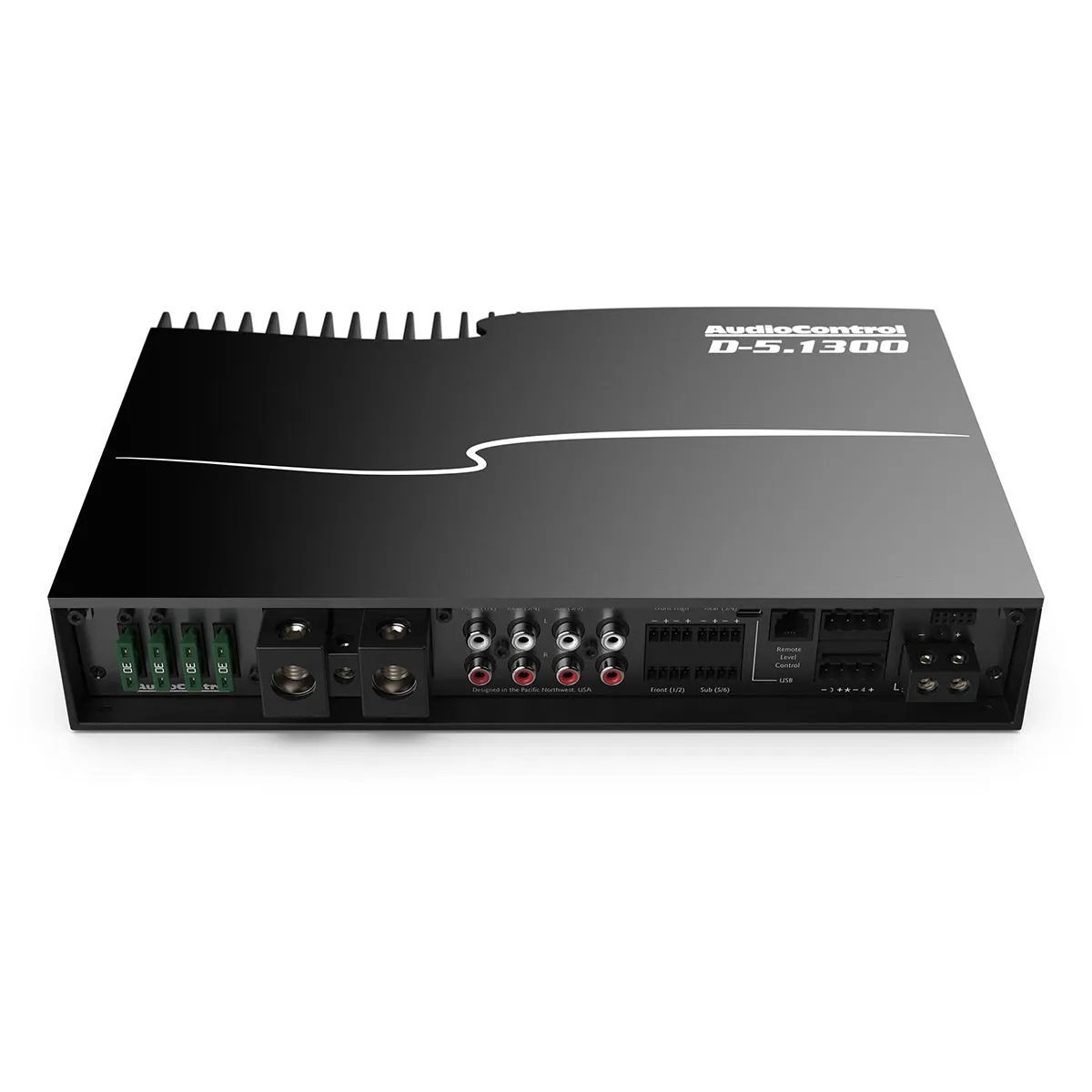

High-Power 5 Channel DSP Matrix Amplifier with Accubass

The D-5.1300 brings five channels of sonic purity and unprecedented levels of power to a complete range of multi-channel and subwoofer amplifiers from AudioControl. Featuring eight active speaker level inputs, six line-level inputs, the DSP-driven D-5.1300 features independent crossovers, 30 band EQ with auto EQ, signal summing, signal delay, built-in RTAs, and AccuBASS. Integrate seamlessly with your OEM or aftermarket sound system with this single-amp solution, which will transform your audio with impressive power levels delivered to your speakers and subs. Add the optional ACR-3 remote for level control.

Features:

• Built-in Digital Signal Processor
• Configurable as 5 or 3 channel amplifier
• 4 x 200 watts 1 x 500 watts @ 2 ohms
• 4 x 100 watts 1 x 300 watts @ 4 ohms
• 400 watts @ 4 ohms bridged
• AccuBASS Processing
• MILCMaximum Input Level Control (Patent Pending)
• GTOSignal Sense
• Independent Linkwitz-Riley Alignment crossovers
• Summable active speaker-level inputs (8 channels) for OEM integration
• 6preamp inputs
• PFM Subsonic Filter
• Solid One-Piece Aluminum Chassis
• Input and Output RTA for precise and informed tuning
• Input and Output Delay
• 12 and 24 dB/octave Linkwitz-Riley crossovers
• 30 band equalizer with auto EQ
• Optional ACR-3remote for preset recall and level control
• Optional AC-BT24Bluetooth Streamer/Programmer
• DM Smart DSP app available in downloadsfor Mac/PC or

DM Smart DSP

AudioControls multi-platform DM Smart DSP app allows complete control over all tuning features of the D-5.1300 including 30 bands of EQ, signal delay, phase correction, AccuBASS, GTOSignal Sense, MILCClip Detection, plus integrated input and output RTAs. Access DM Smart DSP from your phone or tablet with the optional AC-BT24 BluetoothStreamer & Programmer and use the all-new DM Controlapp for easy access to level adjustments and preset recall.
