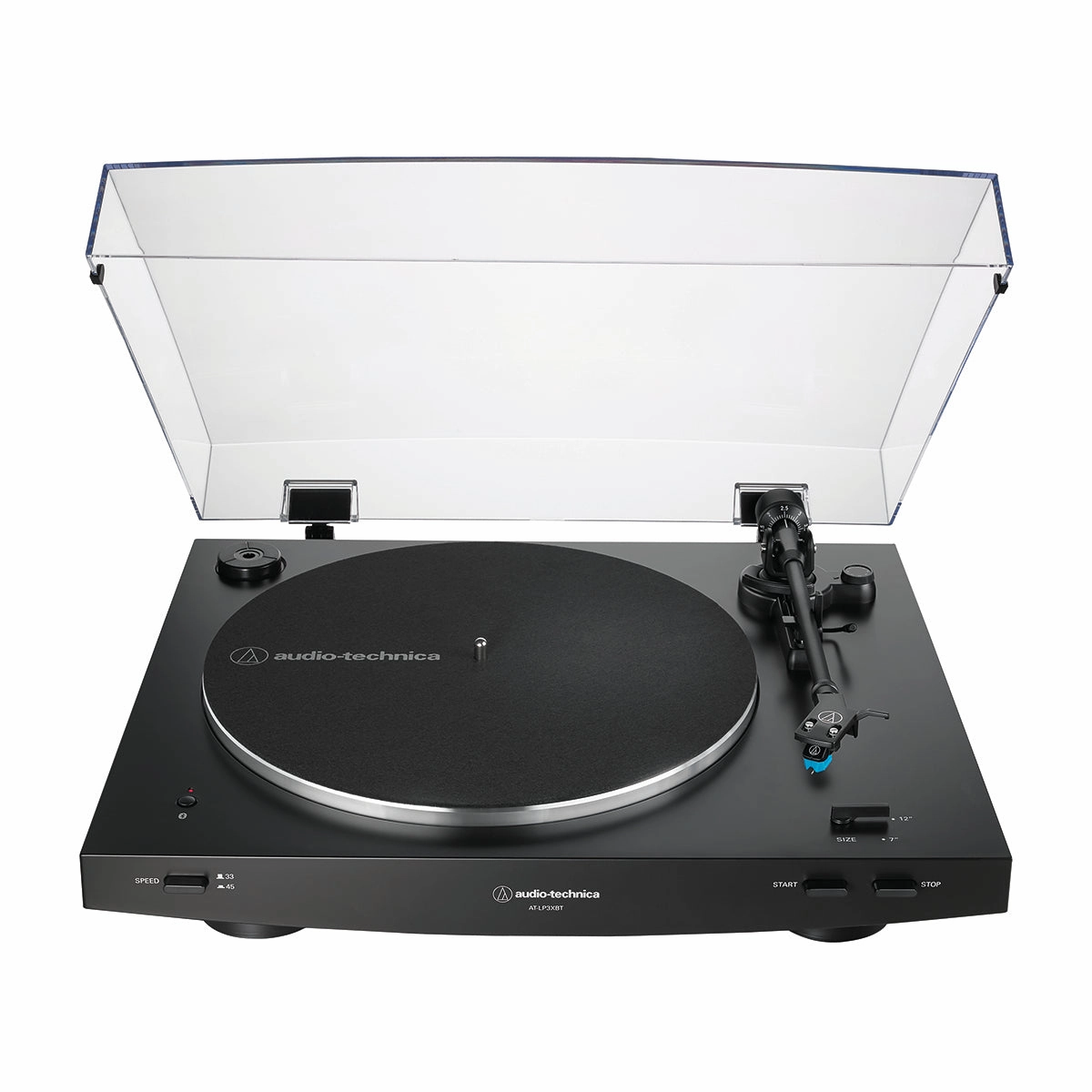

The AT-LP3XBT turntable combines 60 years of high-fidelity design with convenient Bluetooth technology, giving you all the benefits of vinyl with the freedom to connect to the latest Bluetooth speakers or headphones.
The successor model of the previous AT-LP3 comes with beneficial upgrades, such as wireless compatibility with the high-quality Qualcomm aptX Adaptive audio and Qualcomm aptX audio codecs, the AT-VM95C cartridge, which is compatible with any of Audio-Technicas VM95 Series replacement styli, detachable RCA output cables, and the external AC adapter, which handles the AC/DC conversion outside of the chassis, reducing noise in the signal chain.
Features
- Fully automatic belt-drive turntable operation with two speeds: 33-1/3, 45 RPM
- High-fidelity audio with Bluetooth wireless technology
- Connects wirelessly to speakers and other devices equipped with Bluetooth wireless technology or to wired audio systems and powered speakers via included dual RCA output cable
- Compatible with the high-quality Qualcomm aptX Adaptive audio and Qualcomm aptX audio codecs
- Balanced straight tonearm with hydraulically damped lift control and rest
- AT-VM95C cartridge is compatible with any VM95 Series replacement stylus, offering a wide choice of options for every budget and application
- Includes the AT-HS3 universal headshell
- Built-in switchable phono/line pre-amplifier with detachable dual RCA output cable with grounding wire
- Anti-resonance, die-cast aluminum platter with felt mat
- Damped base construction for reduced low-frequency feedback coloration
- External AC adapter handles AC/DC conversion outside of the chassis, reducing noise in the signal chain
- Included Accessories: detachable RCA output cable (Dual RCA male to dual RCA male with ground), 45 RPM adapter, removable hinged dust cover, and detachable power cable

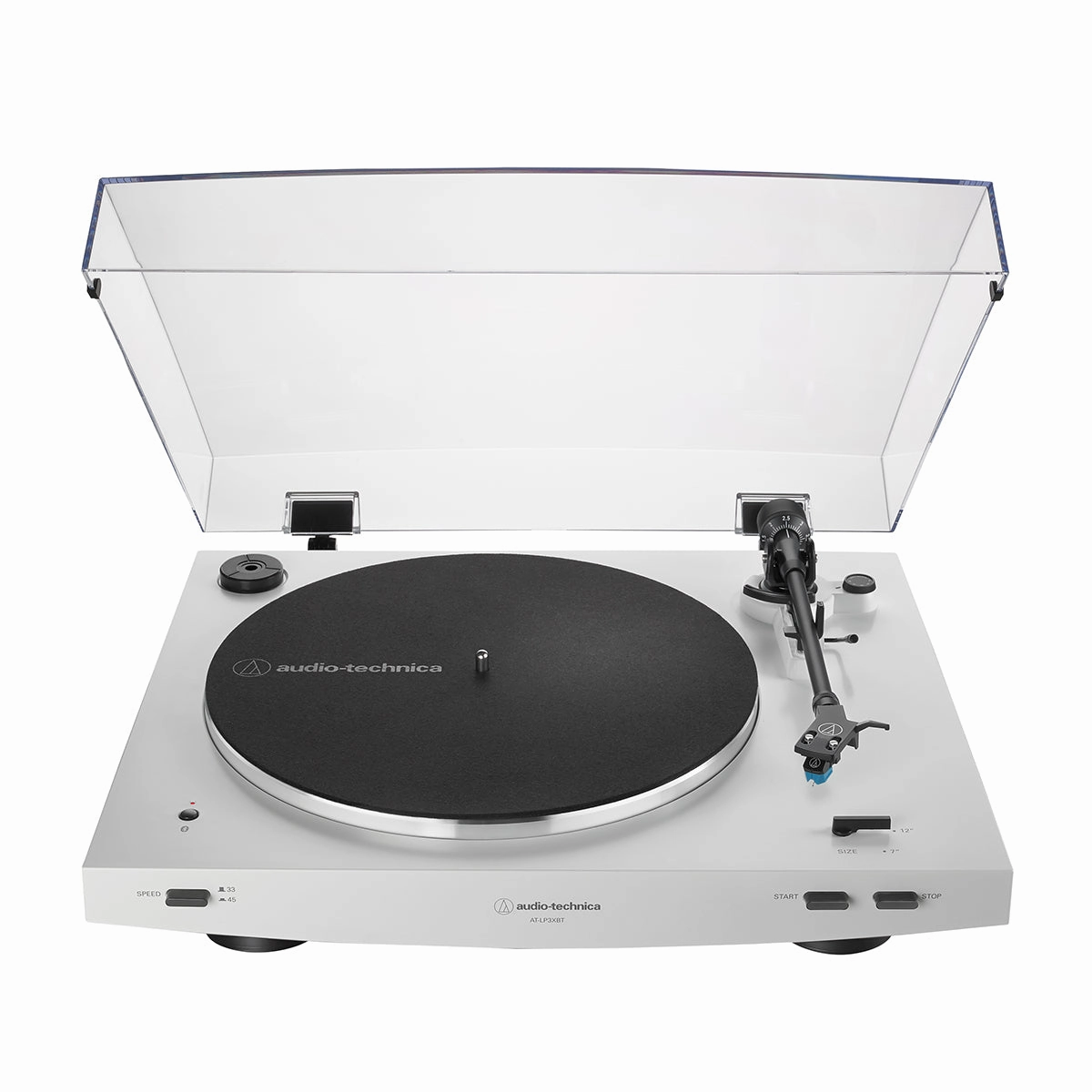

- Available in black (AT-LP3XBT-BK) and white (AT-LP3XBT-WH)
Specifications
Communication Specifications
Communication System | Bluetooth version 5.2 |
RF Output | 2.5 mW EIRP |
Maximum Communication Range | Line of sight - approx. 10 m (33') |
Frequency Band | 2.402 GHz to 2.480 GHz |
Modulation Method | GFSK, Pi/4DQPSK, 8DPSK |
Compatible Bluetooth Profiles | A2DP |
Supported Codecs | Qualcomm aptXTM Adaptive audio, Qualcomm aptXTMaudio, SBC |
Turntable Specifications
Type | Belt-drive, fully automatic operation |
Motor | DC motor |
Drive Method | Belt drive |
Speeds | 33-1/3 RPM, 45 RPM |
Turntable Platter | Die-cast aluminum |
Wow and Flutter | < 0.2 % WRMS (33 RPM) at 3 kHz |
Signal-to-Noise Ratio | > 60 dB |
Output Level | PHONO: 4.0 mV nominal at 1 kHz, 5 cm/sec LINE: 252 mV nominal at 1 kHz, 5 cm/sec |
Phono Pre-Amp Gain | 36 dB nominal, RIAA equalized |
Tonearm Specifications
Type | Static balanced straight tonearm |
Effective Length | 221.5 mm |
Overhang | 19 mm |
Maximum Tracking Error Angle | Less than 3.0 |
Stylus Pressure Adjustment Range | 1 to 4 g |
Applicable Cartridge Weight Range (including headshell) | 14.5 to 20 g |
Cartridge and Headshell Specifications
Cartridge Model | AT-VM95C |
Cartridge Type | VM |
Recommended Load Impedance | 47,000 ohms |
Output Voltage | 4.0 mV (1kHz, 5cm/sec) |
Stylus | 0.6 mil bonded conical |
Cantilever | Aluminum pipe |
Tracking Force Range | 1.8 to 2.2 g (standard 2.0 g) |
Cartridge Weight | 6.1g (0.22 oz) |
Headshell Model | AT-HS3BK |
Headshell Weight | 11.1 g (including lead wires) 10.3g (excluding lead wires) |
Headshell Overhang Adjustment | 8 mm |
General Specifications
Power Supply Requirements | 100-240 V, 50Hz/60Hz, 0.6A Max. |
Power Consumption | 2 W |
AC Adapter | 12V, 0.5 A |
Dimensions | 435.6mm (17") 374 mm (15 ") 128 mm (5.0") (W D H) |
Weight | 5.0 kg (11 lbs) |
Accessories Included | Dust cover Felt mat Platter (with drive belt) Counterweight Headshell (AT-HS3BK) with VM stereo cartridge (AT-VM95C) 45 RPM adapter RCA audio cable (Approx. 1.0 m (3.3')) AC adapter (Approx. 1.5 m (4.9')) |
Replacement Stylus (sold separately) | AT-VMN95C |
Replacement Headshell (sold separately | AT-HS3BK |
Replacement Belt (sold separately) | AT-LP3XBT exclusive belt |
For product improvement, the product is subject to modification without notice.
