Rich Musicality Immersive Sound = Stunning Realism

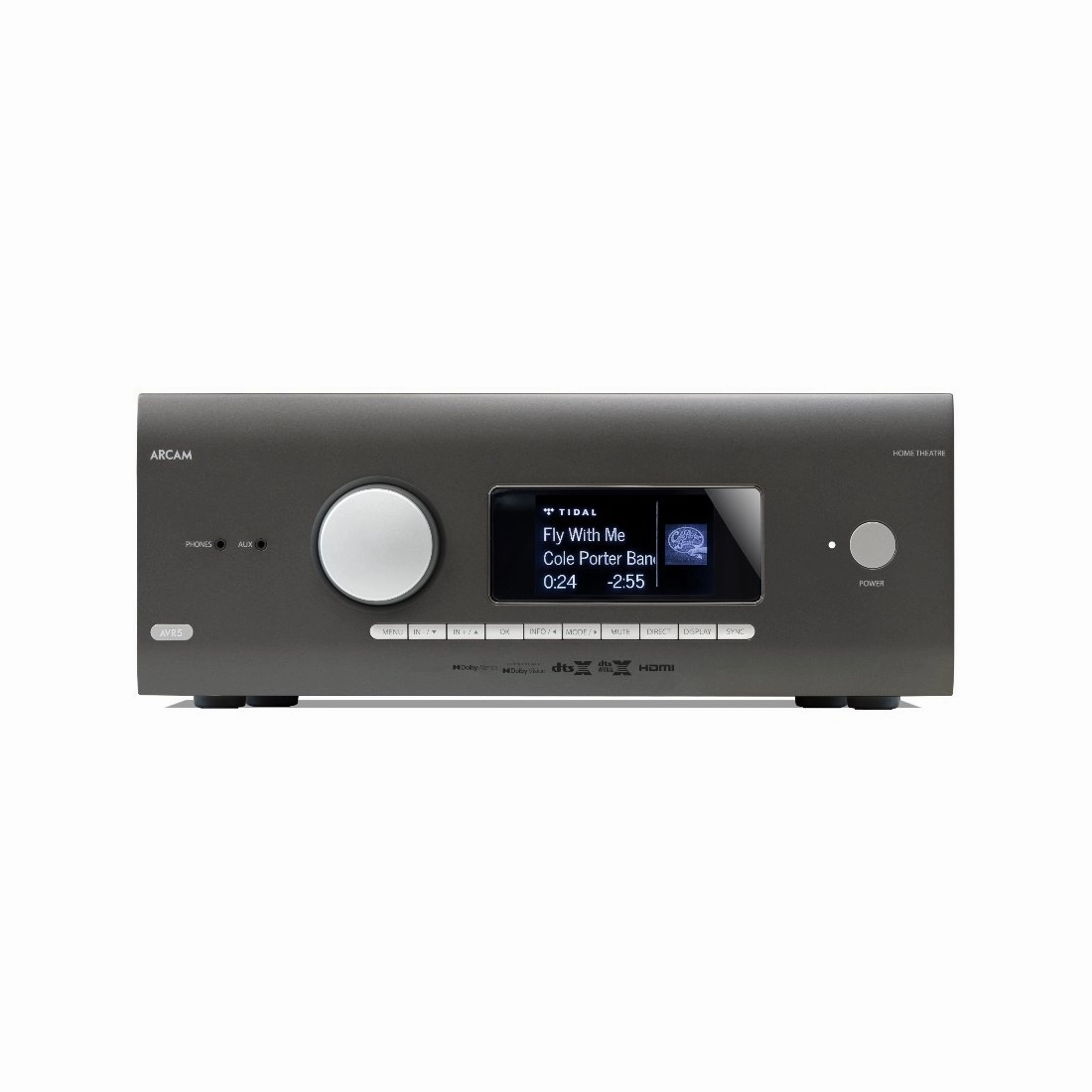

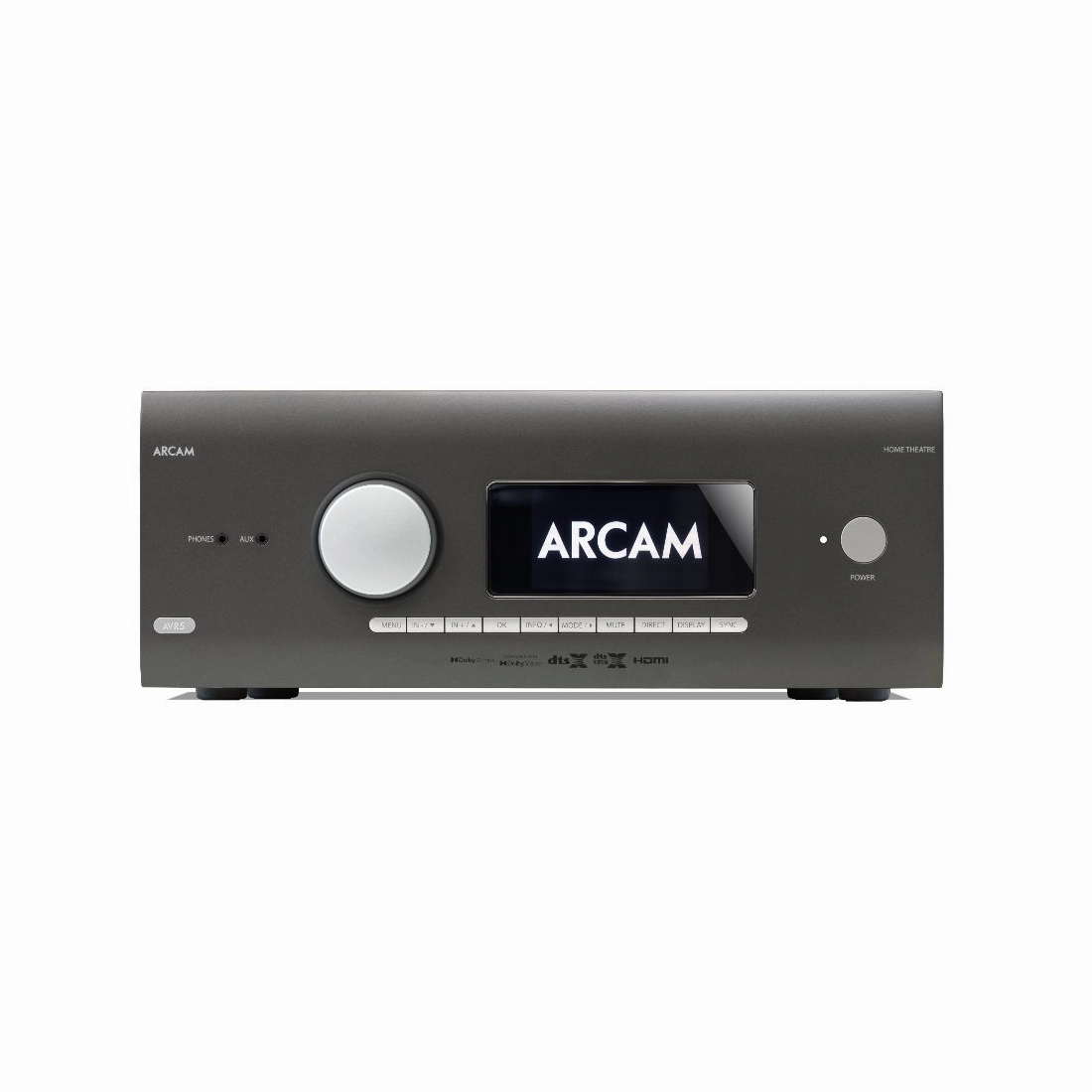

The Arcam AVR5 is a high-performance audio/visual receiver that delivers stunning realism for the ultimate home cinema experience. Native 12-channel decoding of immersive audio from Dolby Atmos and DTS:X, the AVR5 can deliver incredible theatre experiences.
Features:
- Dolby Atmos & DTS:X 7.1.4 decoding
- 4K (UHD) HDMI2.0b with HDCP2.2
- 7 HDMI inputs, 2 HDMI outputs, eARC compatible
- Ready for Dirac Live room correction*
- ESS 9026PRO audiophile DACs
- Class AB power amplification
- Uses frame-type transformer
- Wifi / Ethernet, RS232 and IR control
- Apple Airplay2 and Google Cast for streaming audio
- Bluetooth aptXHD
- Free MusicLife iOS and Android UPnP streaming app
- Supports MQA
- Roon Ready
The Arcam AVR5 is designed with a passion for music and movies, bringing both to life with truly high fidelity. The AVR5 features an over engineered power supply and transformer for real world power with low noise. The Class AB amplifiers are based upon those in Arcam stereo amplifiers, guaranteeing musicality otherwise not heard from other AV receivers.
The performance and musicality can be accessed immediately with integrated streaming using Apple Airplay2, Google Chromecast, Bluetooth with aptXHD, Spotify Connect, and UPnP with the MusicLife app.
Your Arcam AVR5 comes Dirac Ready, fully prepared to run Dirac Live, the worlds most advanced room correction software. Dirac Live is available at an additional cost via the Dirac website:
Dirac Live Bass Control aggregates measurement and location data from a subwoofer and the main speakers to determine how a systems bass is best reproduced throughout the room.
Specifications:
Continuous power output, per channel, 8Ohms/4Ohms | |
| 2 channels driven, 20Hz - 20kHz, <0.02% THD | 80W/100W |
| 2 channels driven, 1kHz, 0.2% THD | 85W/120W |
| 7 channels driven, 1kHz, 0.2% THD | 60W/85W |
| Residual noise & hum (A-wtd) | <0.15mV |
Maximum input | |
| Main Processor | 4.5V rms |
| Nominal sensitivity | 1V, 2V, 4V (user adjustable) |
| Input impedance | 47k? |
| Signal/noise ratio (A-wtd ref 100W) normal/stereo direct | 100dB/110dB |
| Frequency response | 20Hz20kHz 0.2dB |
Preamplifier Outputs | |
| Nominal output level | 1V RMS (max. 5V RMS) |
| Output impedance | 560? |
| THD N (20Hz20kHz) | 100dB |
Headphone Output | |
| Maximum output level into 32? | 5Vrms |
| Output impedance | <100? |
| Input impedance | 47k? |
General | |
| Mains voltage | 110120V or 220240V, 5060Hz |
| Power consumption (maximum) | 1.5kW (Thermal dissipation approx. 5200 BTU/hour) |
| Power consumption (idle, typical) | 90W (Thermal dissipation approx. 340 BTU/hour) |
| Power consumption (standby) | <0.5W |
| Dimensions W x D (including speaker terminals) x H (including feet) | 433 x 425 x 171mm |
| Weight (net) | 16.5kg |
| Weight (packed) | 19.8kg |
| Supplied accessories | Mains lead Remote control with 2 x AAA batteries Manual DAB/FM aeria 3 x WiFi/Bluetooth antennas |
